Bar LCD Display, TFT LCD Display Module
Model RV069LFM-350-40

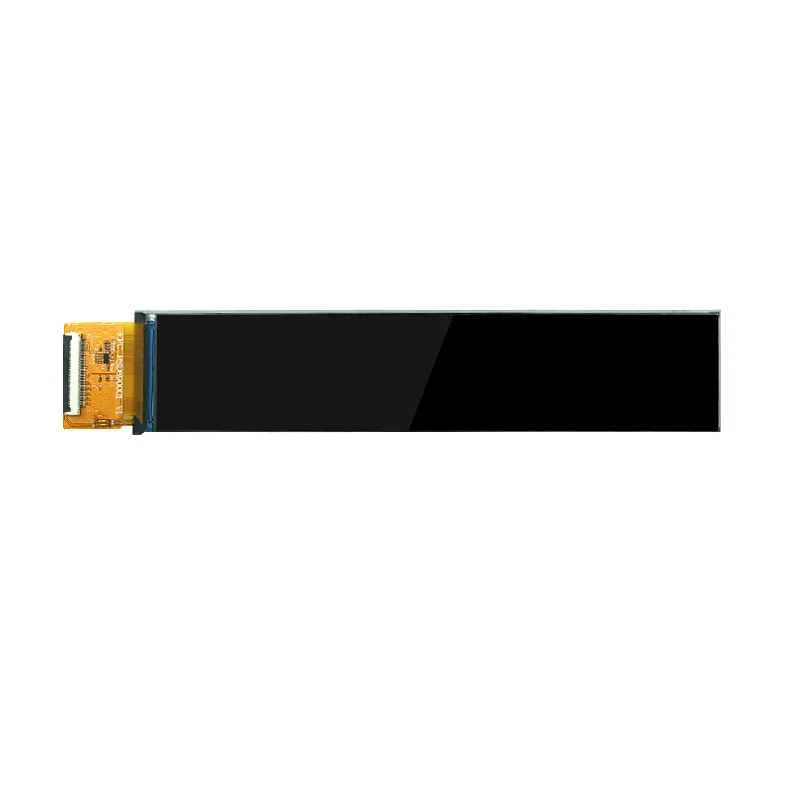

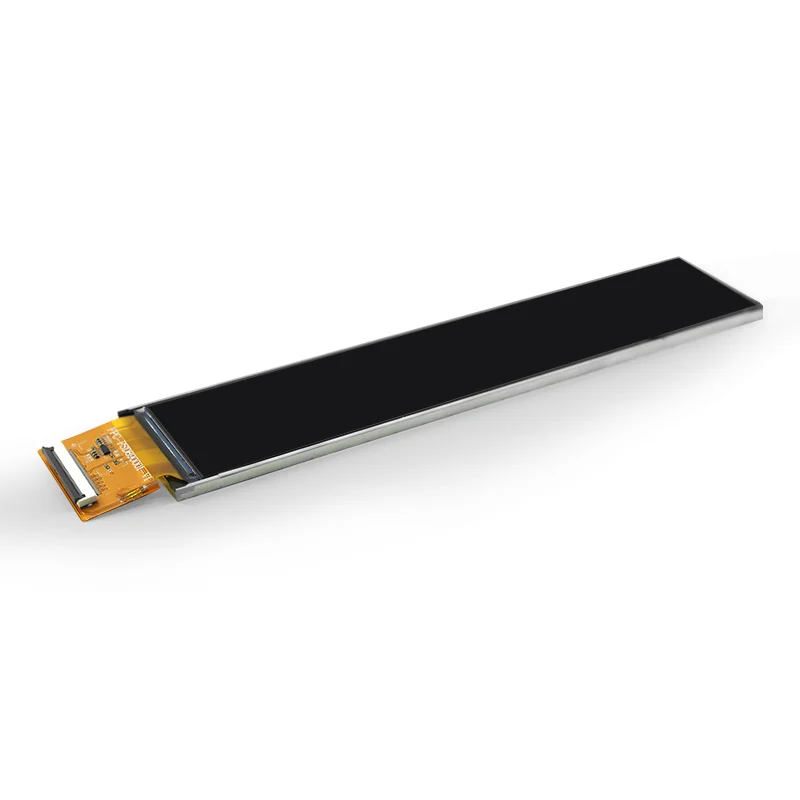

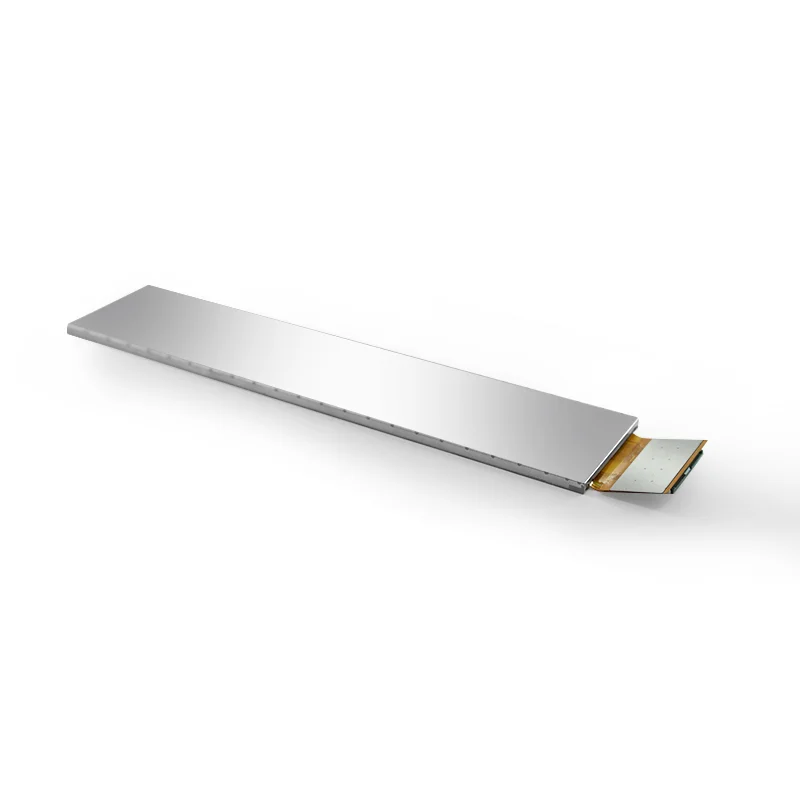

Small Stretched Bar LCD Panel 6.9 inch 280*1424 Bar LCD Display
Key specifications
- Size
- 6.9 inch stretched bar lcd panel
- Interface
- MIPI
- Resolution
- 280(RGB)x1424
- Driver IC
- ST7703I
- LCD AA
- 33.60 (H)*170.88 (V) mm
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
RV069LFM-350-40 is an innovative stretched bar lcd display panel, slim TFT, LED backlight LCD display. It provides LCD module with 6.9 inch LCD size for digital signage or color control panel for Refrigerators, ovens, microwave ovens, air fryers, range hoods, coffee machines, etc.
| Model | RV069LFM-350-40 |
| LCD size | 6.90 inch TFT bar lcd display panel |
| Display Mode | Normally Black |
| Resolution | 280(RGB)x1424 |
| Pixel pitch | 40(H) x3 x 120(V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing direction | ALL |

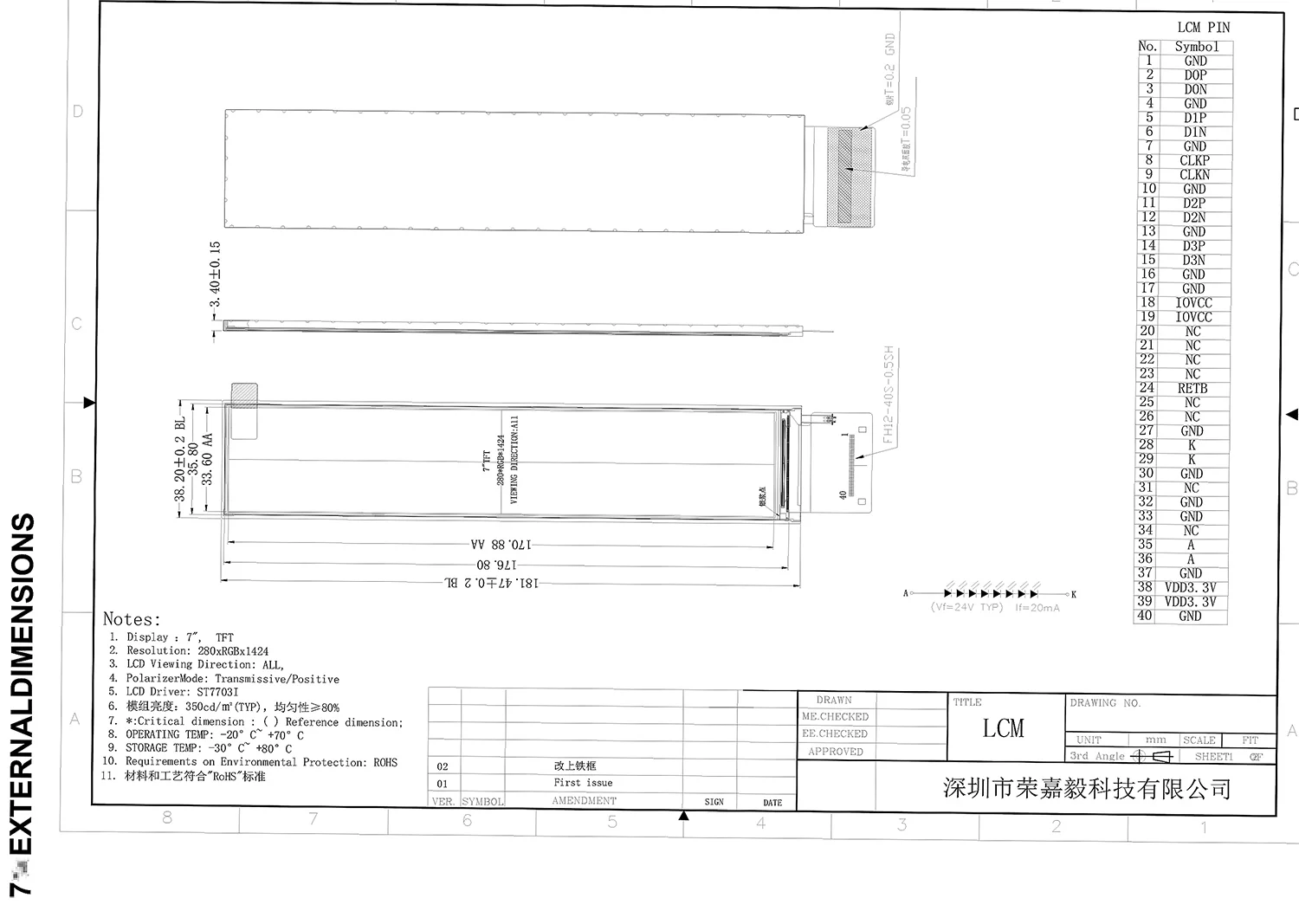

| Module outline dimension | 38.20 (H)*181.47(V)*3.40(D) |
| LCD AA | 33.60 (H)*170.88 (V) |
| Colors | 16.7M |
| Driver IC | ST7703I |
| Interface | MIPI |
| Backlight | White LED |
| Operating Temperature | 20℃~ +70℃ |
| Storage Temperature | 30℃~ +80℃ |
| Pin | 40pin |
ABOUT RJOYTEK LCD SOLUTION
1: LCD display custom, the lcd display size custom, all-in-one lcd monitor custom, and printing the logo, the color of bezel, the materials of frame.
2: LCD interface, there are two options, the first is LCD module interface, MCU, RGB, SPI, LVDS, EDP, TTL, MIPI. The second is the external interface, VAG, USB, DVI, HDMI and so on.
3: FPC custom, including the FPC type, size, material, shape.
4: LCD control board, we provide the control board according to your requirements.

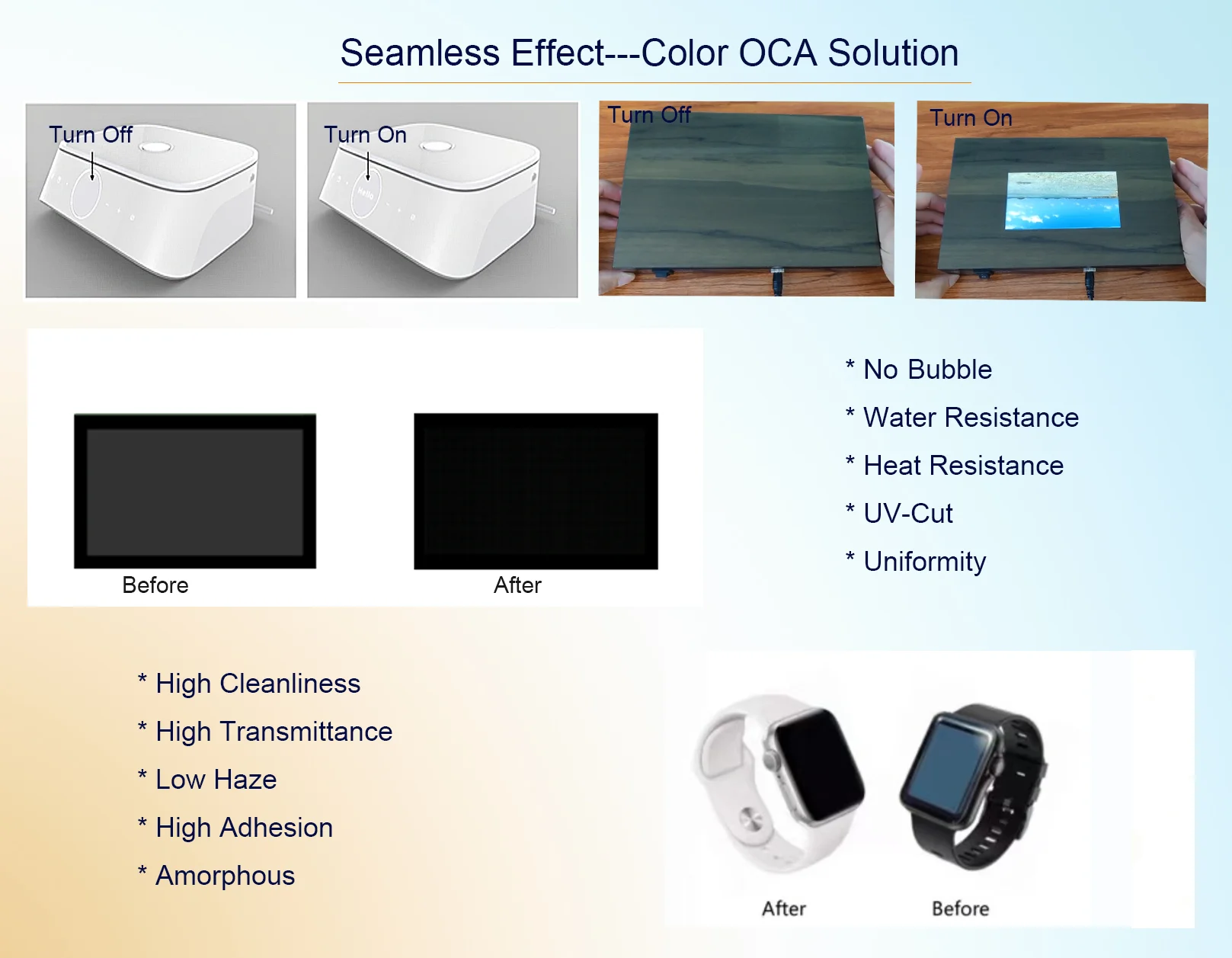

5: Seamless effect display solution–color OCA, check the solution as picture:
MORE BAR TYPE LCD DISPLAY PANEL HERE:
 |  |  |
| 6.8 INCH TFT LCD BAR DISPLAY | 12.3 INCH TFT LCD TOUCHSCREEN | 19/24/27/28/31/43 INCH BAR ADVERTISING LCD DISPLAY |
If you need to talk with our sales manager or check more details, welcome to visit our ALIBABA SHOP!
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
