CONNECTED DEVICE INTERFACES

Displays for IoT

Make connected data clear, useful and accessible at the point of interaction.

IoT connects devices so that they can exchange information. A local display makes that information visible to the people using the product.

APPLICATION SCENARIOS

Connected interfaces for everyday infrastructure.

Bring display, touch and embedded computing together around the installation, workflow and service conditions of each terminal.

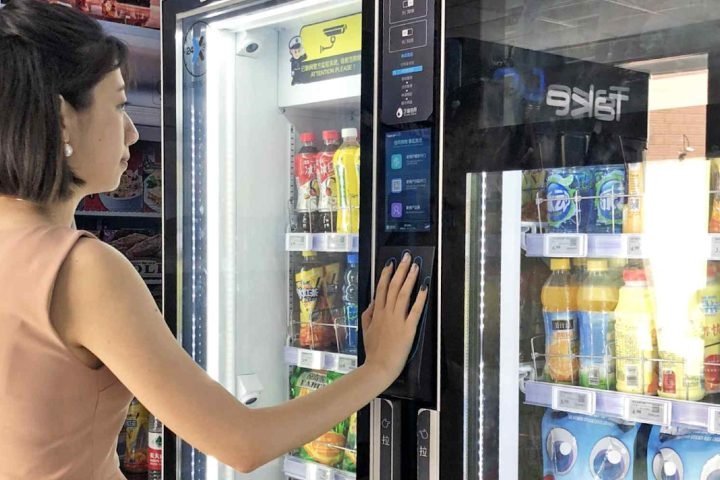

Touchscreen vending machine used by a customer

Smart retail & vending

Responsive product selection, payment interaction and local equipment status.

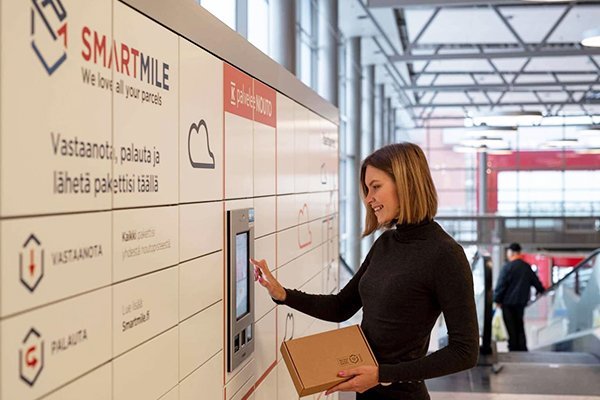

Touchscreen parcel locker used for package collection

Smart express lockers

Clear collection workflows, access control and peripheral integration for unattended terminals.

Electric vehicle charging station with an integrated display

Smart grid & energy monitoring

Readable energy data and operator controls for connected monitoring and charging equipment.

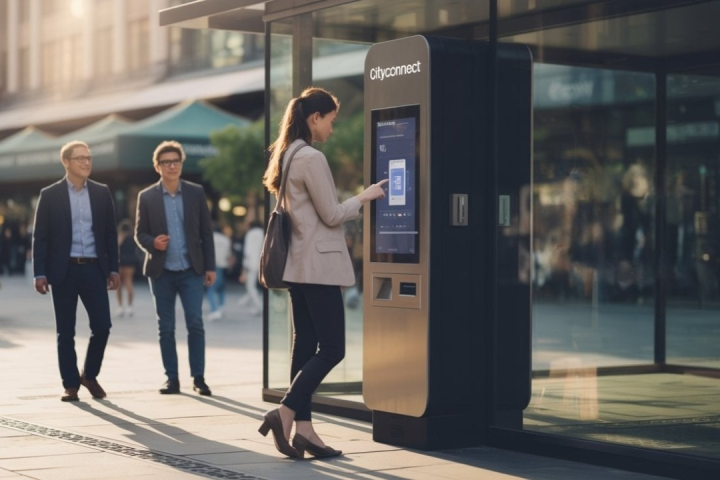

Outdoor self-service touchscreen kiosk

Smart buildings & kiosks

Touch-enabled information, navigation and building controls in shared public spaces.

DISPLAY & COMPUTING PLATFORMS

Build the visible interface and the intelligence behind it.

Use these platforms as a starting point for an engineering review. Final specifications, availability and software support depend on the selected configuration.

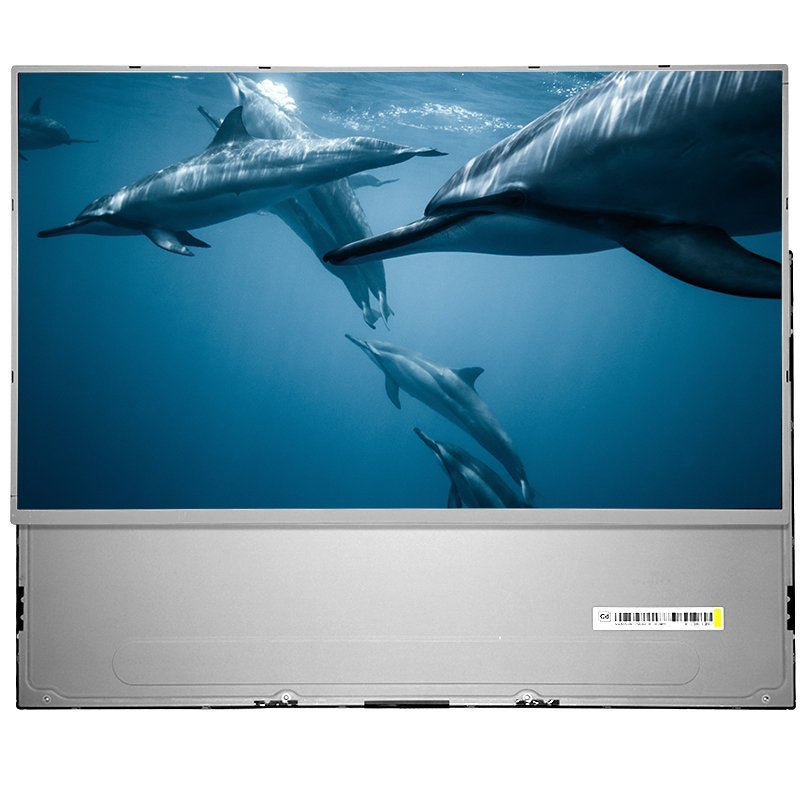

LCD display module showing an underwater dolphin scene

Display module

P238HVN01.0C0

A Full HD VA display platform for larger commercial interfaces. Review contrast, LVDS integration and cover-glass options for your kiosk design.

Find this platform

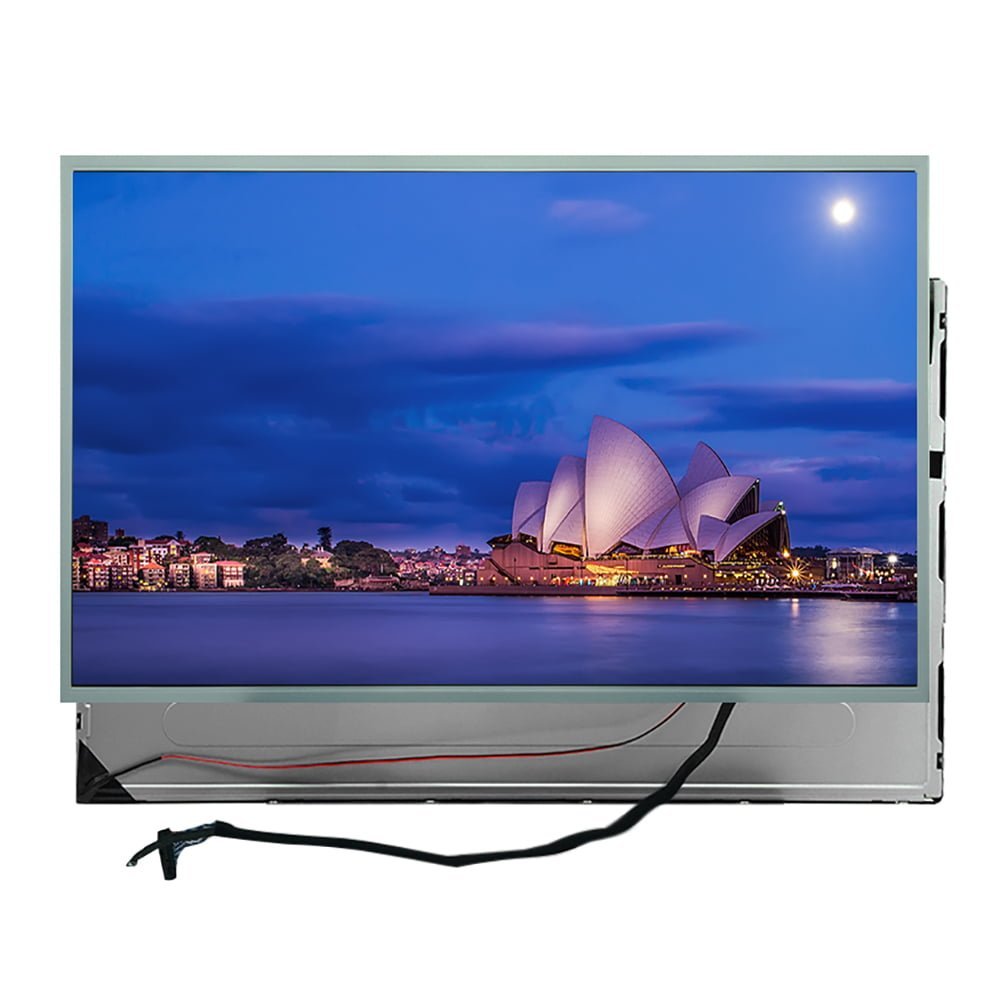

LCD module displaying a photograph of the Sydney Opera House

Display module

RV215FHM

An IPS display option for control monitors and self-service terminals. Confirm luminance, mechanical dimensions and host-interface compatibility before selection.

Find this platform

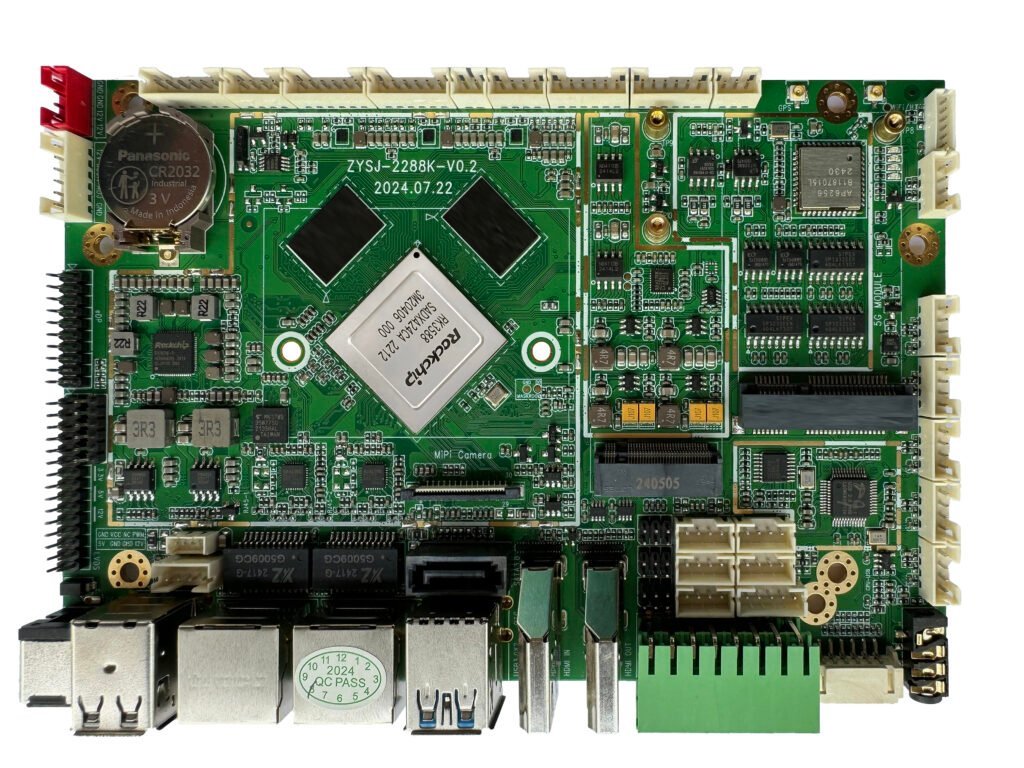

2288K-V0.2 embedded computing circuit board

Computing module

RJY-2288K

A Rockchip-based platform for connected gateways and complex HMI systems. Discuss multi-display operation, Ethernet and serial peripheral requirements.

Find this platform

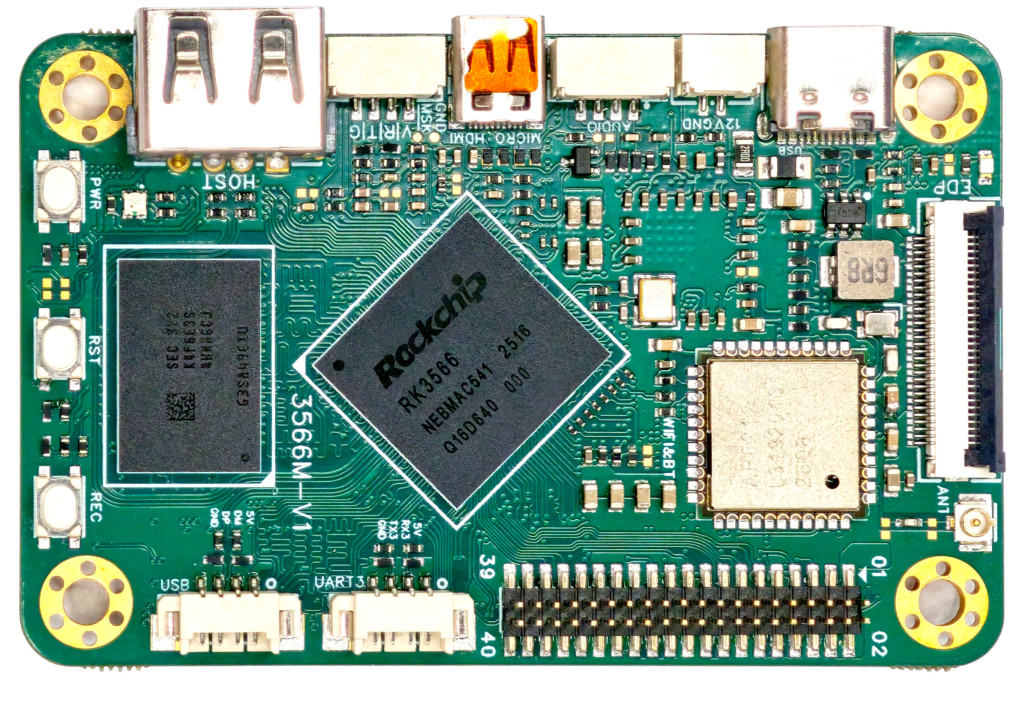

Embedded computing circuit board for display integration

Computing module

RJY-3566M

A compact computing option for power-aware terminals. Confirm the required Android or Linux software image, thermal design and peripheral support.

Find this platform

CUSTOMIZATION

Adapt the subsystem to the terminal — not the other way around.

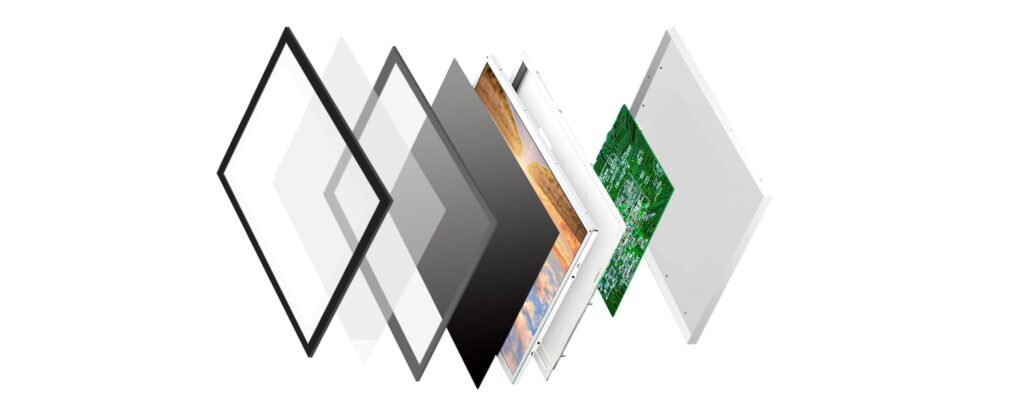

Exploded display assembly with cover glass, touch panel, LCD, electronics and housing

Display, touch & protective glass

Review optical bonding, anti-glare treatments and impact-resistant cover glass for the installation. Tune touch performance around wet surfaces, contamination and the intended input method.

  • Optical stack and cover-glass design
  • Touch controller tuning and validation
  • Mechanical fit and environmental protection

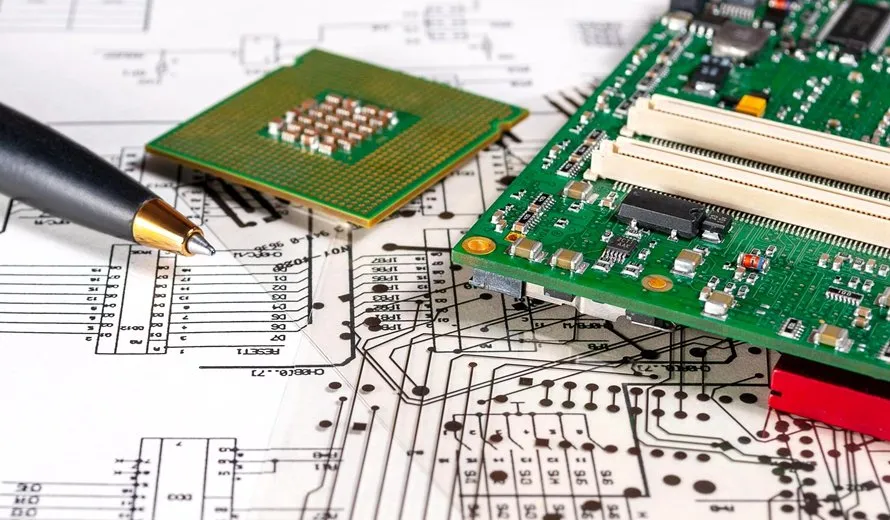

Circuit boards and technical drawings for PCB layout design

Embedded hardware & PCB integration

Define the interfaces your equipment needs, then review board layout, power and enclosure constraints as one system. Confirm wireless certifications and lifecycle commitments for the target market during project review.

  • Relays and sensor connections
  • RS485, UART and other peripheral interfaces
  • Antenna layout, thermal design and supply planning

APPLICATION 01

IoT interfaces for smart spaces

Control lighting, climate and connected appliances from one interface. LCD-TFT with touch is suitable for visual control panels, while OLED or e-paper can serve simpler status displays. Choose the display around viewing conditions and interaction, rather than connectivity alone.

Explore display modules
Smart home hub with a wall-mounted touchscreen

APPLICATION 02

Compact displays for wearable devices

Wearables need a readable interface within a small enclosure and limited battery budget. OLED provides contrast without a separate backlight; suitability depends on the actual content and duty cycle. Health-related devices also need careful validation of readability and interaction.

Explore display modules
Wearable alert watch worn by an older adult

APPLICATION 03

Clear information at the industrial edge

IIoT sensors, meters and operator panels turn equipment data into useful local information. Simple indicators and detailed graphical dashboards need different display architectures. Evaluate ambient light, temperature, touch operation and enclosure protection against the real installation conditions.

Explore display modules
Operator using an industrial touchscreen in a production environment

START WITH YOUR PRODUCT

A clear brief makes display selection faster.

Share these details with the RJY team so the first review addresses the decisions that matter to your design.

Interface & host
Host platform, display interface, connector and available software support.
Optical & touch
Viewing distance, ambient light, touch method and cover glass requirements.
Power & enclosure
Power budget, active area, mounting space and operating environment.
Production plan
Prototype timing, expected volume and target product lifetime.
