TFT LCD Display Module
Model LC185TT8A OC

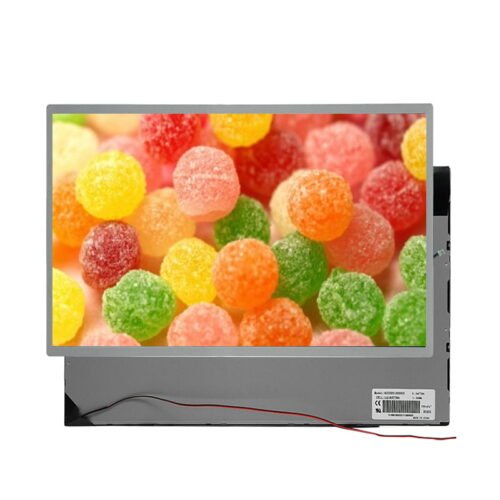

RJOYTEK 18.5 inch 1366*768 TFT LCD Panel
Key specifications
- Resolution
- 1366*768
- Interface
- LVDS
- Size
- 18.5 inch TFT LCD Panel
- Display Mode
- Normally White (TN)
- Surface treatment
- Anti-glare, 3H
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
This is a Open-cell incorporating amorphous silicon TFT color LCD panel, with 1366*768 RGB dots, 16.7M color, LVDS inetrface 18.5 inch LCD Display panel, +5V of DC supply voltage.
What can we supply?
- HDMI board
- Signal wire if you need
- Control board according to your requirements, such as video, voice, and so on
- CTP/RTP touch panel if you need
- Sample fast delivery and safe package
| Model | LC185TT8A OC |
| Size | 18.5 inch TFT LCD panel |
| Pixels | 1366×768 |
| Active Area | 409.8 (H) x 230.4 (V) |
| Pixel Pitch | 0.300 (H) x 0.300 (V) |
| Pixel Arrangement | RGB vertical stripe |
| Display Colors | 16.7M |
| Display Mode | Normally White |
| Surface treatment | Anti-glare,3H |
| PhysicalSize(COF/PWBincluded)[mm] | 421.45(W)x279.20(H)x2.40(D)Typ. |
| TFTglassSize[mm] | 421.45(W)x242.50(H)x1.43(D)Typ. |
| Operating Ambient Temperature | 0-50 ºC |
| Storage Temperature | -20-60 ºC |
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
