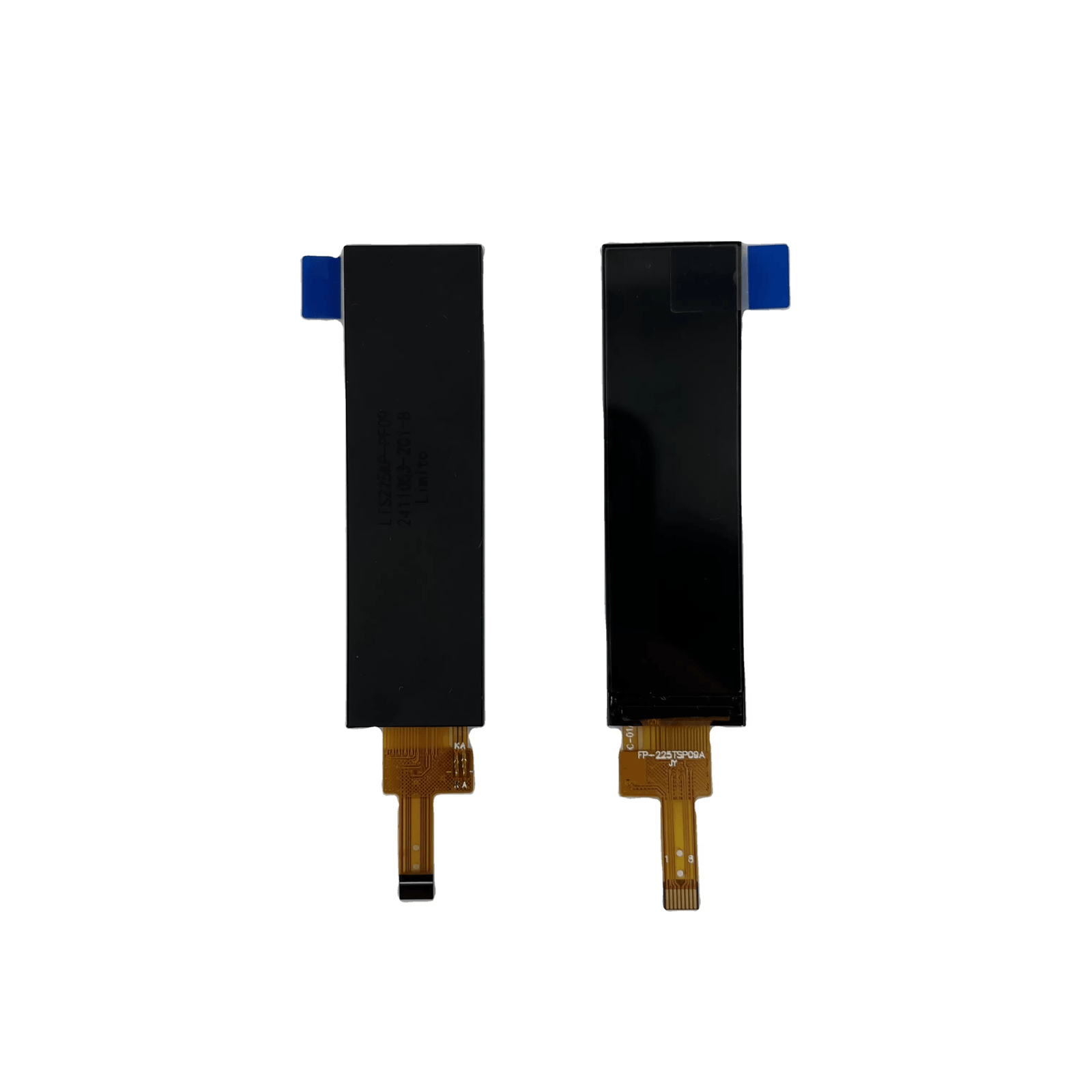

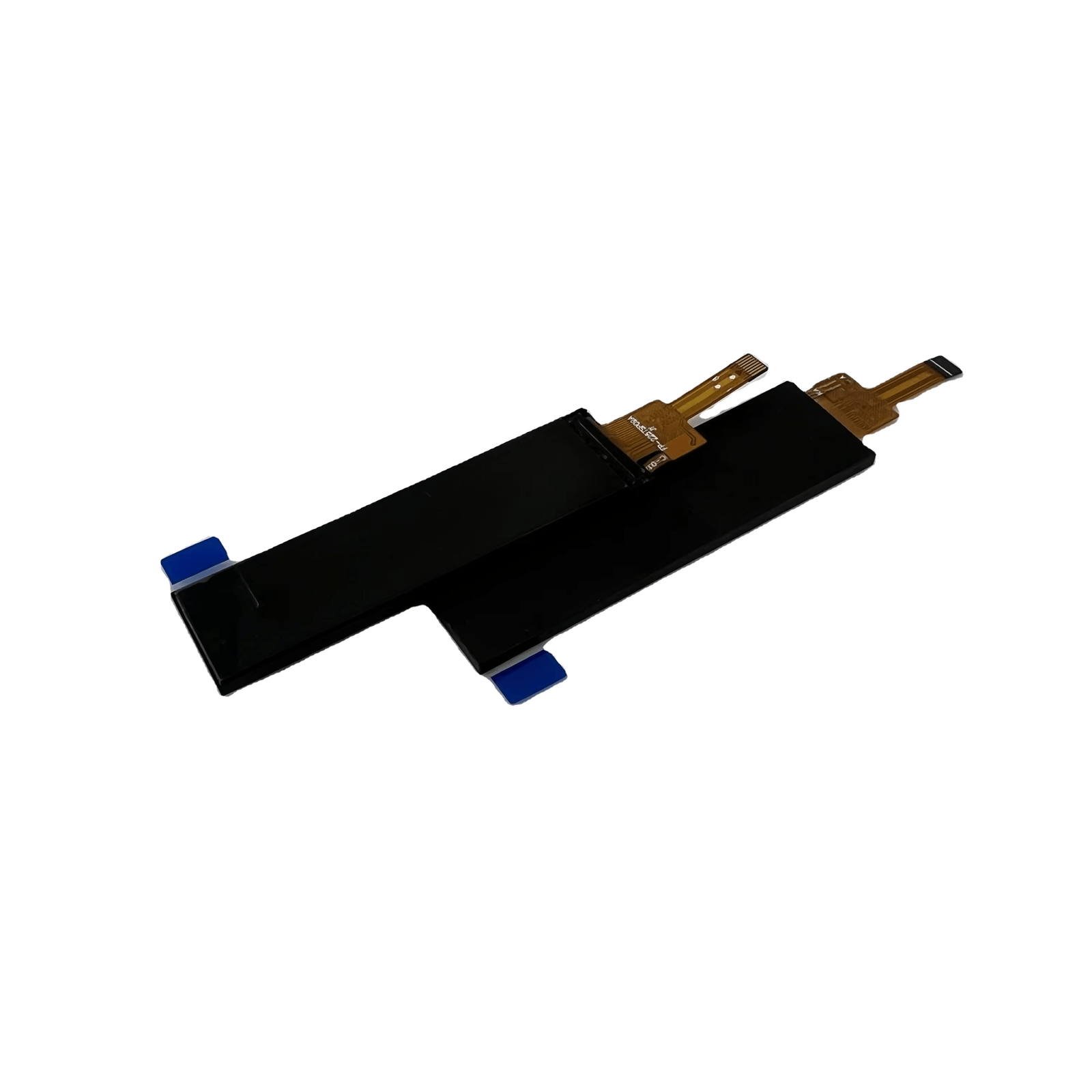

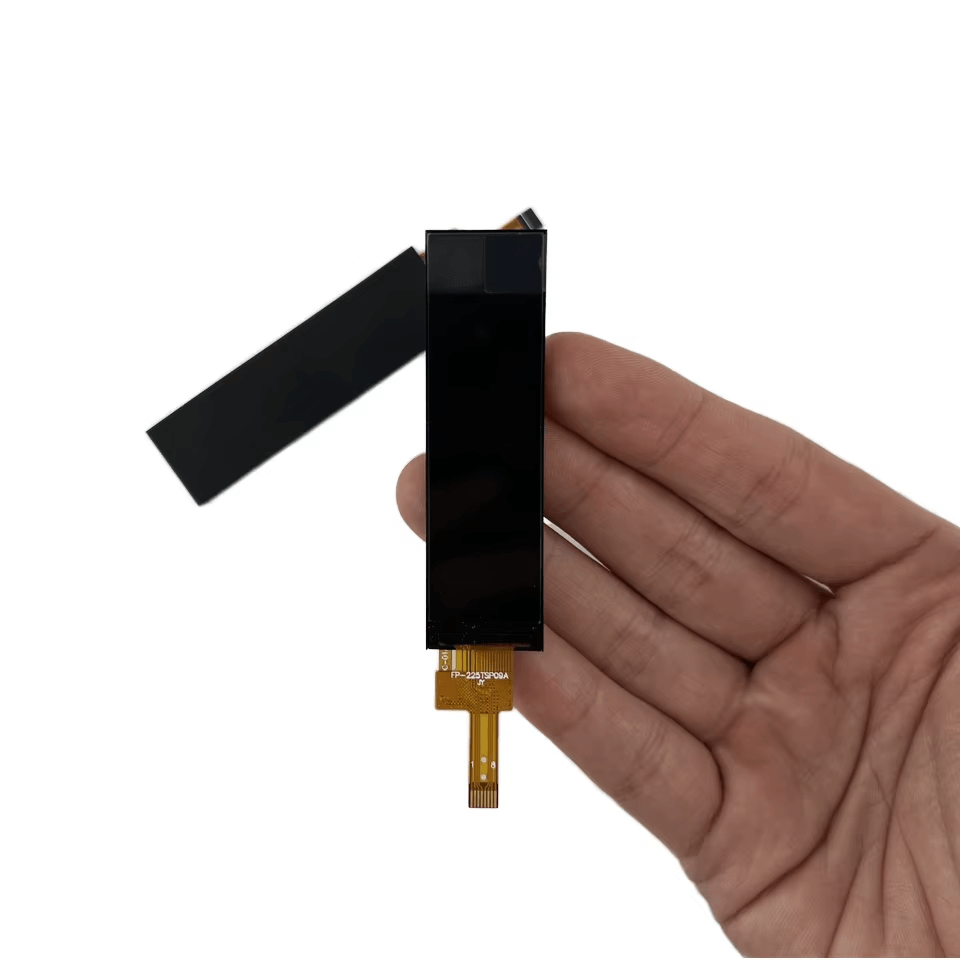

2.25-inch TFT Bar LCD Screen – 76*284 Resolution, SPI Interface, 600 Cd/m² Brightness

High Resolution Display:

This 2.25-inch TFT LCD module features a 76RGB x 284 dot matrix, providing clear and detailed display performance. The high resolution ensures that images and text are displayed with fine detail, making it ideal for applications requiring precision and clarity.

Vibrant Color Display:

The module can display up to 262K colors, offering rich and vibrant color reproduction to meet the diverse color display needs of various applications. This capability enhances the user interface, making it more dynamic and visually appealing.

Excellent Viewing Angles and Brightness:

With a typical brightness of 600 Cd/m² and excellent viewing angle characteristics, the display maintains high brightness and contrast at 0°, 180°, 90°, and 270° angles, ensuring a high-quality visual experience from different perspectives.

Stable Operating Temperature Range:

This module operates reliably in temperatures ranging from -20°C to +70°C and can be stored in temperatures from -30°C to +80°C. This makes the product suitable for varied environmental conditions, enhancing its reliability across different climates.

Low Power Consumption and Long-Lasting Backlight:

The backlight unit is recommended to use a constant current circuit to ensure consistent brightness and reduce power consumption. With low power consumption and an LED backlight lifespan of up to 20,000 hours, the product is energy-efficient and durable, reducing maintenance and replacement costs.
