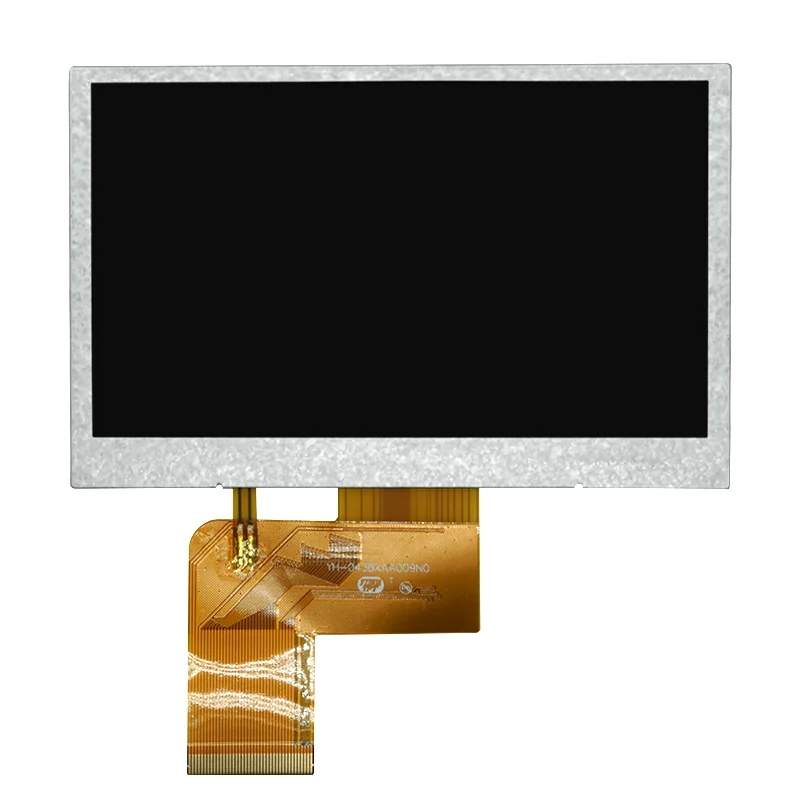

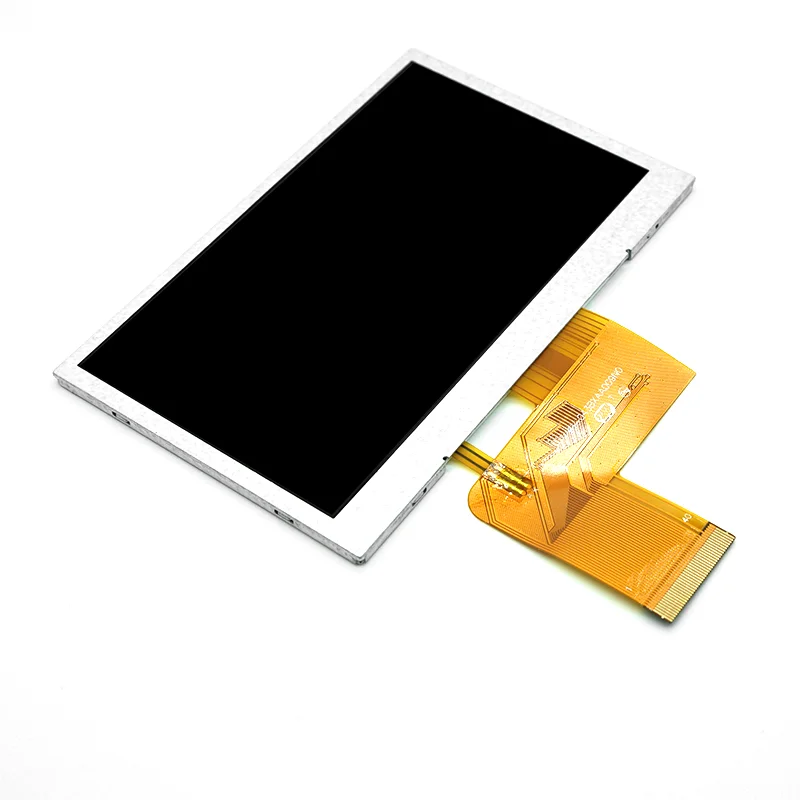

RJOYTEK 4.3 inch 480*272 TFT LCD Module



  • Interface Options: The display offers versatile interface options, including SPI/RGB, providing compatibility with various systems and applications.
  • RoHS Compliant: The product complies with RoHS (Restriction of Hazardous Substances) standards, ensuring environmental friendliness and safety.
  • Contrast Ratio: It boasts a high contrast ratio of 1000:1, enhancing image quality and visual clarity.
  • Brightness Customization: The brightness is customizable to meet specific requirements, allowing for tailored performance in different scenarios.
  • Pin Configuration: The display module features a 40-pin configuration, facilitating easy integration into compatible systems.
  • Normal Black: The display is designed with a standard black color.


  • Industry Application: Ideal for use in various industrial applications, where reliability and performance are crucial.
  • Office Automation: Suitable for office automation systems, contributing to efficient and seamless operations.
  • 3D Printer Application: The display is well-suited for integration into 3D printer systems, providing visual feedback and control.

Touch Options:

  • No Touch: Available in a non-touch variant, catering to applications where touch functionality is not required.
  • With Touch: Also available with touch functionality for interactive applications and user interfaces.

Additional Features:

  • With HDMI Board: This display can be equipped with an HDMI board for enhanced connectivity and versatility.
  • Custom Brightness: Brightness levels can be customized to match specific requirements, ensuring optimal visibility.

Resolution Options:

The display offers various resolution options to suit different display needs:

  • 480×272
  • 800×480
  • 1920×1080
  • 480×800

Interface Options:

The display supports multiple interface options, providing flexibility in connection:

  • RGB
  • SPI
  • LVDS

These features make this display module suitable for a wide range of applications, including industrial use, office automation, and 3D printing, while offering various touch and interface options to meet specific requirements.

Contact Us

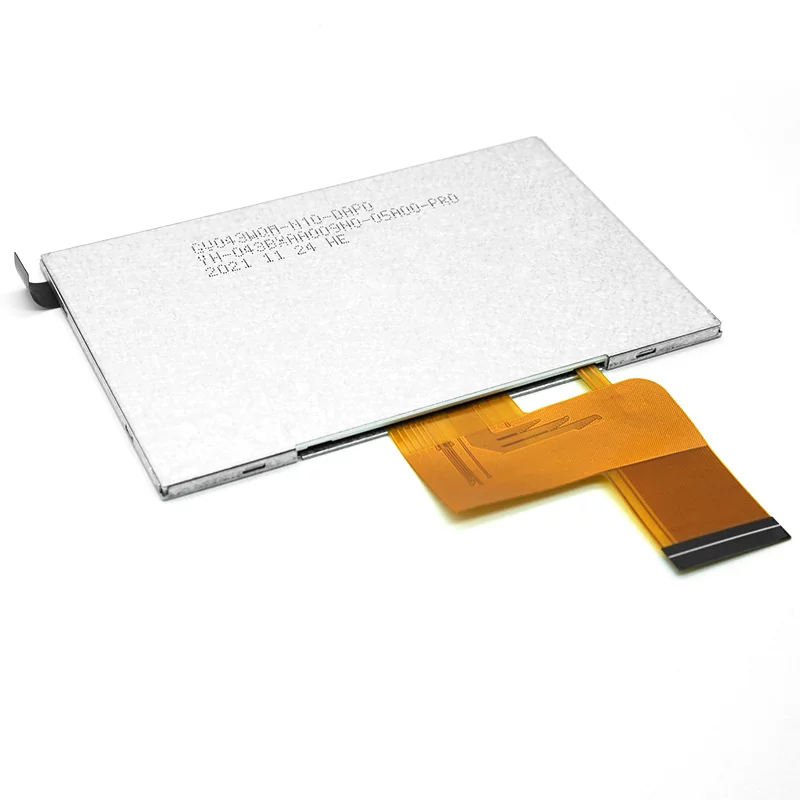

GV043WQB-N10-8HP0 is a 480×272 pixel dots 4.3-inch color TFT lcd module display, if you need VGA video, AV signal driver board USB control board or HDMI board, please tell us, they will provide it according to your requirements.

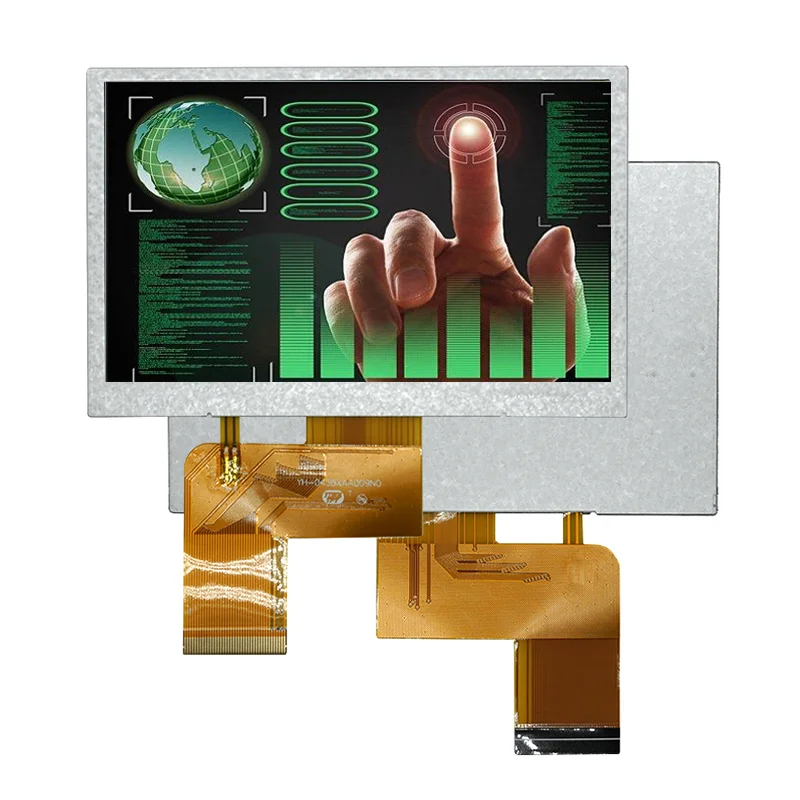

The capacitive touch panel is optional, touch or without touch all acceptable, it depends on your applicational products. It can be used in embedded systems, 3D printers, industrial devices, security and hand-held equipment which requires a display of high-quality and colorful video.

TFT LCD modules have become increasingly popular in the market due to their high-quality display and wide range of applications. One such module is the 4.3 inch 480272 TFT LCD module, which is a compact and versatile display that can be used in a variety of applications.

The 4.3 inch 480*272 TFT LCD module is a color display with a resolution of 480×272 pixels. This module uses thin-film transistor (TFT) technology, which offers better image quality and faster response times compared to other LCD technologies.

One of the main benefits of the 4.3 inch 480*272 TFT LCD module is its compact size. This module is small enough to fit in a variety of applications, including handheld devices, automotive displays, and industrial control systems. Despite its small size, the module provides a high-quality display that is suitable for a range of applications.

The 4.3 inch 480*272 TFT LCD module also has a high contrast ratio of 1000:1, which means that it can display vivid colors and deep blacks. The module supports up to 16.7 million colors, which allows it to display images with a high degree of color accuracy and detail.

Another benefit of the 4.3 inch 480*272 TFT LCD module is its low power consumption. This module is designed to consume minimal power, which makes it ideal for battery-powered devices and other applications where power efficiency is important.

The module also has a built-in controller that simplifies the process of interfacing with a microcontroller or other embedded system. The controller supports a range of interface protocols, including RGB, SPI, and LVDS, which makes it easy to integrate the module into different systems.


Model RV043WQB-TBD-40
Size 4.3 Inch TFT LCD Screen
Active area 95.04 (H) × 53.856(V)
Number of pixels 480 (H) × 272(V)
Pixel pitch 0.198 (H) × 0.198 (V)
Pixel arrangement RGB Vertical stripe
Display colors 16.7M
Display mode ADS Normal Black
Dimensional outline 100.16 (H) × 61.856(V) × 1.256(D) typ
Surface treatment HC
Operating Temperature -30-85 ℃
Storage Temperature -30-85 ℃


Contact Us Now!

More 4.3 inch TFT LCD module here:

Model Size Resolution Interface Luminance Pin  connection Active area Storage temperature
RV043WVM-330-40 4.3″ 800*480 RGB/SPI 330nit 40pin 95.04(H)*53.856(V) -30℃~85℃
RV043FHM-K10-60 4.3″ 1920*1080 LVDS 1000nit 60pin 100.8*56.7 -30℃~80℃
RV043WVM-400-50 4.3″ 480*800 RGB 400nit 50pin 56.16(W)*93.6(L) -30℃~70℃
