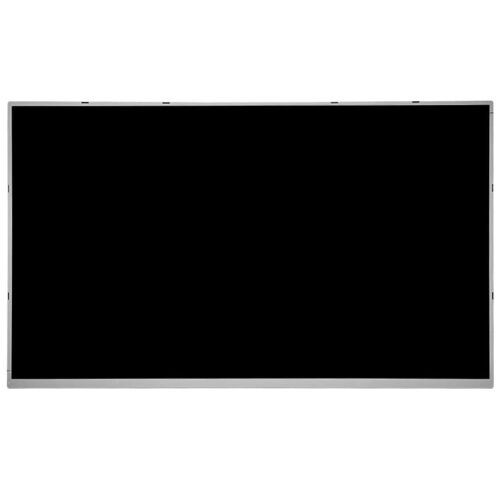

RJOYTEK 23.8 inch LCD Module FHD 1920*1080 TFT LCD Screen Module

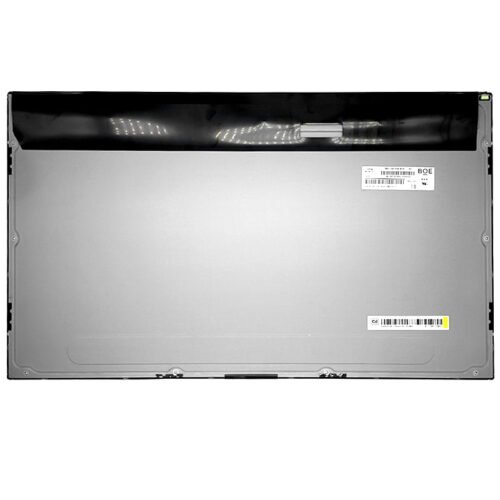

RJOYTEK 23.8 inch LCD Module FHD 1920*1080 TFT LCD Screen Module - Image 2

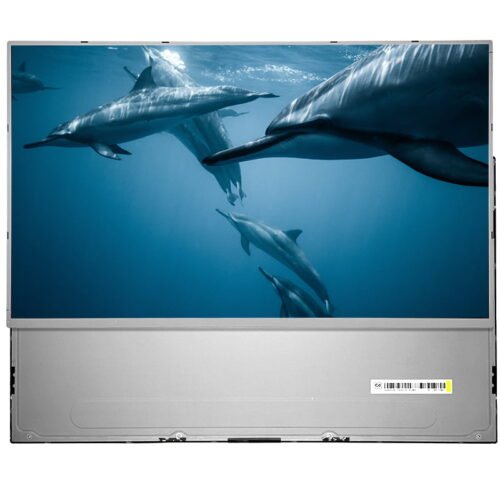

RJOYTEK 23.8 inch LCD Module FHD 1920*1080 TFT LCD Screen Module - Image 3

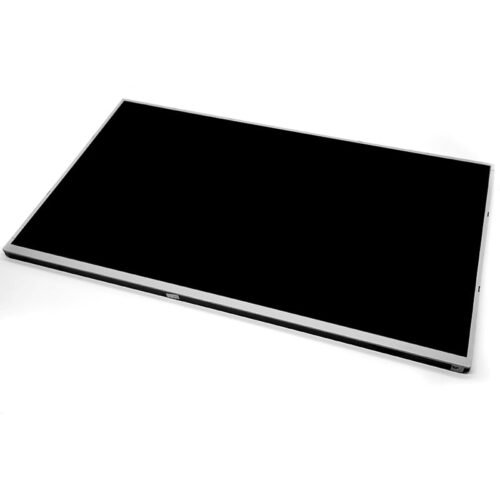

RJOYTEK 23.8 inch LCD Module FHD 1920*1080 TFT LCD Screen Module - Image 4

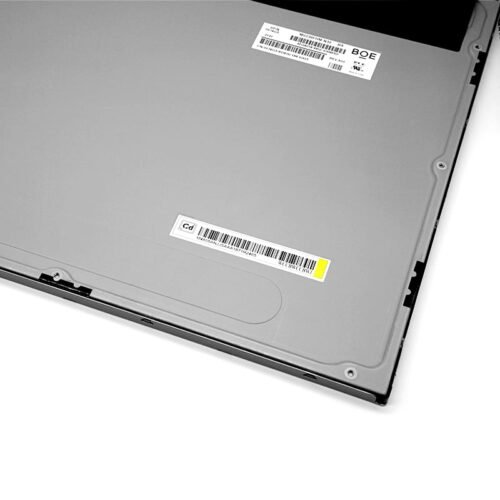

RJOYTEK 23.8 inch LCD Module FHD 1920*1080 TFT LCD Screen Module - Image 5
Model P238HVN01.0

RJOYTEK 23.8 inch LCD Module FHD 1920*1080 TFT LCD Screen Module

  • Size: 23.8 inch lcd display
  • Resolution: 1920*1080
  • Interface: RGB
  • Luminance: 250 cd/m2
  • Electrical Interface: Dual channel LVDS,8-bits RGB data input
Contact for availability
View specifications

Share your interface, touch, brightness and volume requirements for an engineering fit review.

01Interface review
02Touch integration
03Controller support
04Lifecycle coordination

Product overview

Engineered for application fit

23.8 inch TFT panel is a commonly daily-use PC monitor display panel, with wide view angle IPS and response time, VA model and high contrast ratio of 3000:1, it is a very nice gaming PC LCD Display.

With FHD 1920*1080 Pixels, SAG 40%, 3H surface treatment.

Model P238HVN01.0
Size 23.8 inch TFT LCD Module
Active Area 527.04(H) x 296.46(V)
Pixels H x V 1920 x 1080
Pixel Pitch 274.5(per one triad)×274.5
Pixel Arrangement R.G.B. Vertical Stripe. Source board at bottom
Display Mode VA Mode (Vertical Alignment), Normally Black
White Luminance 250 cd/m2  (Typ.)
Contrast Ratio 3000(Typ.)
Response Time 16ms (Typ., on/off)
Outline Dimension 543.0(H) x 317.4(V) x 11.2(D) (Typ.)
Electrical Interface Dual channel LVDS,8-bits RGB data input
Support Color 16.7M colors
Surface Treatment SAG 40%, 3H
Operating Temperature 0-50 oC]
Storage Temperature -20-60 oC]
RoHS Compliance RoHS Compliance
TCO Compliance TCO 8.0 Compliance



FAQ

Q1: Which items can be customized?
A1: LCD module size, FPC, interface， Brightness, Logo, Resolution, etc.

Q2: What about the warranty you offer?
A2: We provide 12 months warranty & tested products.
There is no warranty if :
(1). Man-made damage;
(2). Not our company’s product.

rjoytek factory show certification1

Technical data

Specifications

Detailed specifications are available from the RJY engineering team.

Project adaptation

Customization options

Adapt an existing display platform to the electrical, optical and mechanical needs of your product.

  • Interface and FPC adaptation
  • Brightness and backlight
  • Touch and cover glass
  • Controller board support
  • Mechanical coordination

Engineering FAQ

Questions before evaluation

Can touch and cover glass be customized?

Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.

Can RJY provide a controller board?

Controller support can be evaluated with your host interface, timing and software requirements.

What is required for a quotation?

Provide the application, target specification, operating environment, sample quantity and annual volume.
