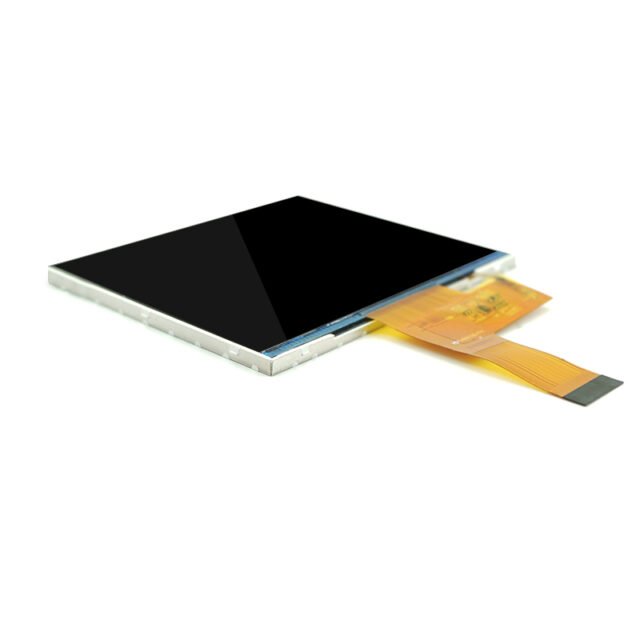

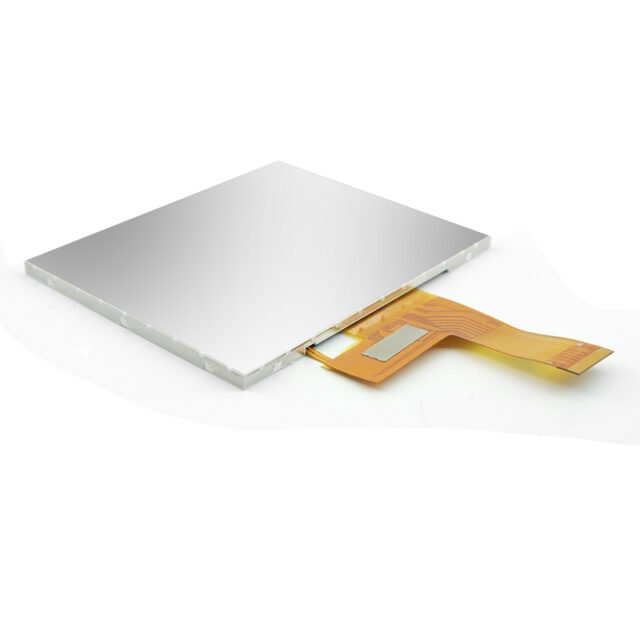

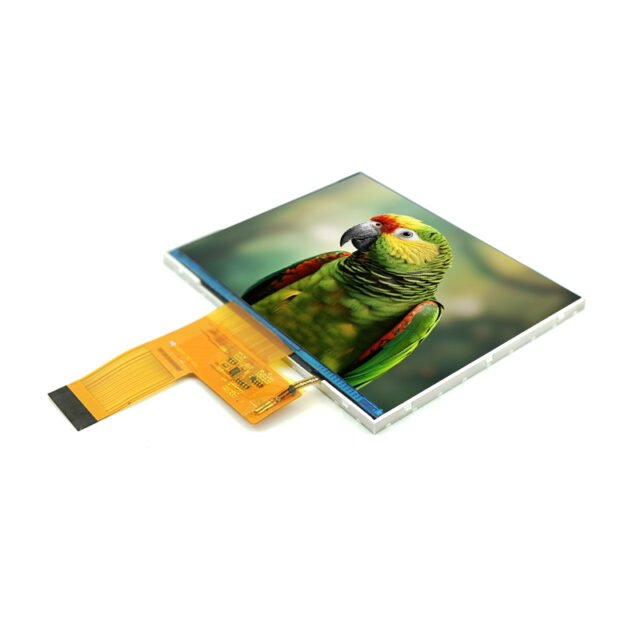

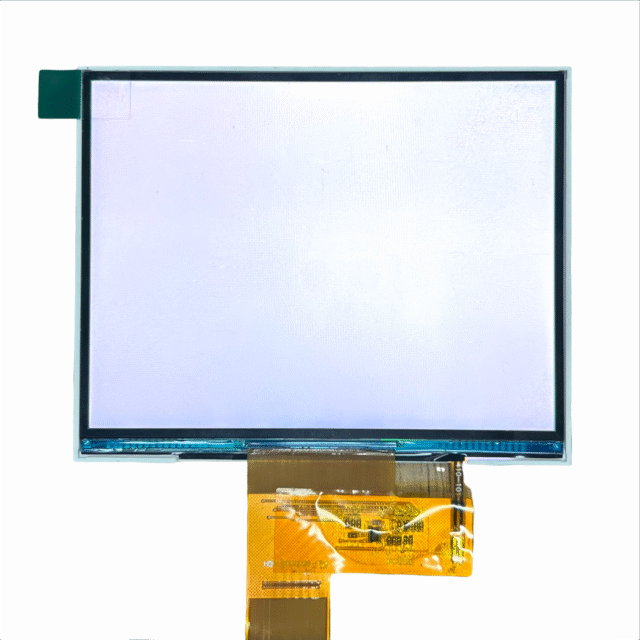

4.16-Inch High-brightness IPS LCD Module – 1280×960 Resolution, MIPI Interface
- Size: 4.16 inch TFT LCD
- Resolution: 1280 × 960 pixels
- Interface: MIPI, RGB vertical stripe
- View Angle: All-direction (wide viewing)
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit
The RJY 4.16-inch TFT LCD module is a high-performance display solution tailored for compact devices that require sharp visuals, full viewing angles, and efficient interface connectivity. With a resolution of 1280×960 pixels and MIPI interface, this module is ideal for advanced handheld equipment, medical visualization systems, smart industrial controllers, and next-generation HMI interfaces.
Features & Benefits
-
High Pixel Density: With a pixel pitch of 0.066mm, this module delivers crisp, sharp imagery—ideal for rendering fine graphics and data-dense user interfaces.
-
All-View Angle IPS-Like Performance: Ensures clear readability from any orientation, suitable for devices used in rotation or multi-user interaction scenarios.
-
MIPI Interface Support: The embedded MIPI interface enables high-speed data transmission while keeping connector and layout complexity low—making integration with modern MCUs or SoCs simple and efficient.
-
Compact Yet Robust Form Factor: Slim profile (3.8mm) allows tight integration into handheld or embedded environments without sacrificing durability.
-
Stable Outdoor Performance: With operating temperatures from –20°C to +70°C, the panel is designed to function reliably across varying industrial and semi-outdoor conditions.
-
Optional Touch Panel Integration: Capacitive touch support available for enhanced interactivity, gesture control, and UI flexibility.
Recommended Applications
-
Smart home central control units
-
Medical imaging terminals
-
Industrial handheld testers and data loggers
-
Compact HMI interfaces
-
Portable monitoring devices
-
Advanced consumer electronics
Customization Support
Need modifications for your application?
RJY Display provides:
-
FPC interface tuning (direction, pin count)
-
Cover lens & touch panel lamination (custom logo, print, color)
-
Optical bonding for anti-reflection and outdoor readability
-
Custom bracket or frame integration
Technical data
Specifications
| Parameter | Specification |
|---|---|
| LCD Size | 4.16 inch (Diagonal) |
| Display Mode | Normally Black |
| Resolution | 1280(RGB) × 960 pixels |
| Pixel Pitch | 0.066(H) × 0.066(V) mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Angle | All viewing directions (Ultra-wide) |
| Module Outline | 90.86(H) × 72.84(V) × 3.8(D) mm |
| Active Area (AA) | 48.6(H) × 64.8(V) mm |
| Colors | 16.7 million colors (8-bit depth) |
| Interface | MIPI (High-speed serial) |
| Driver IC | GH7005-01 |
| Backlight | White LED |
| Touch Panel | Capacitive touch (optional) |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –30°C to +80°C |
| Compliance | RoHS |
Mechanical reference
Structure
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
