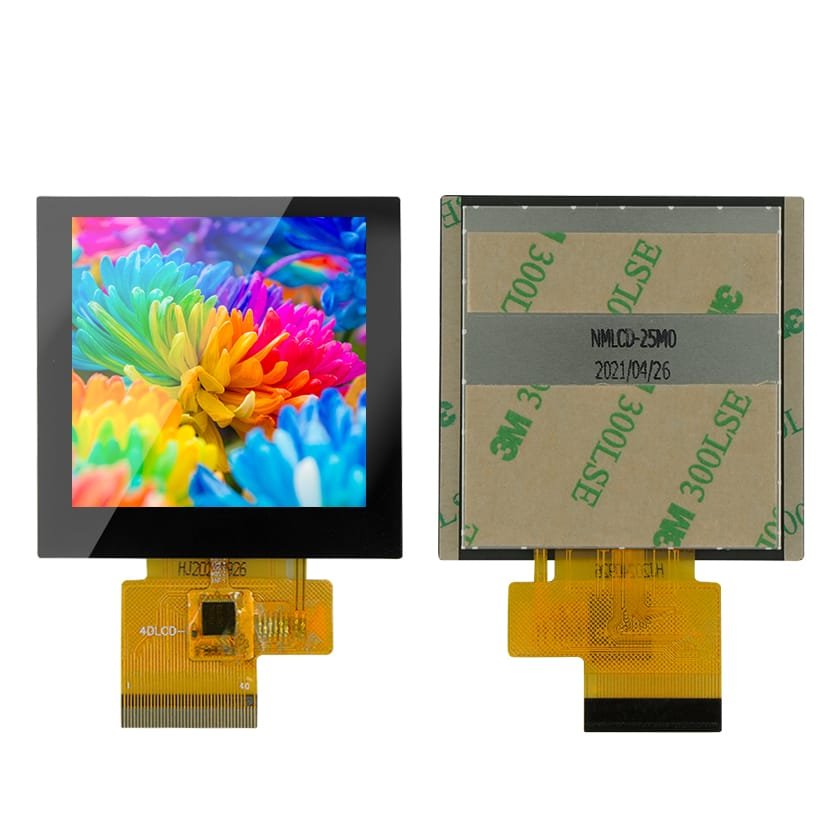

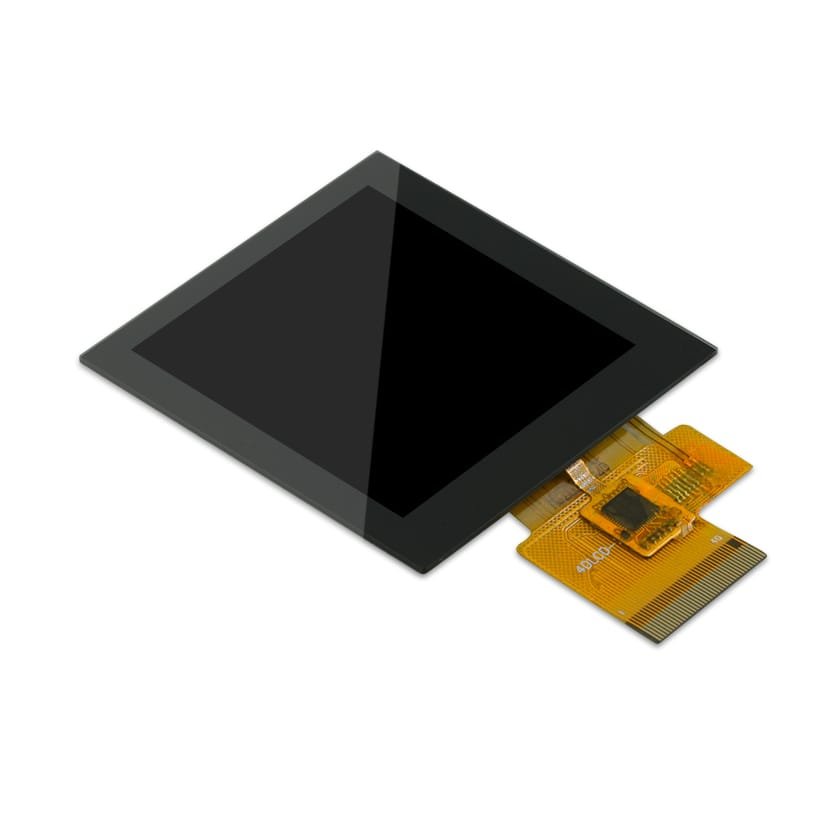

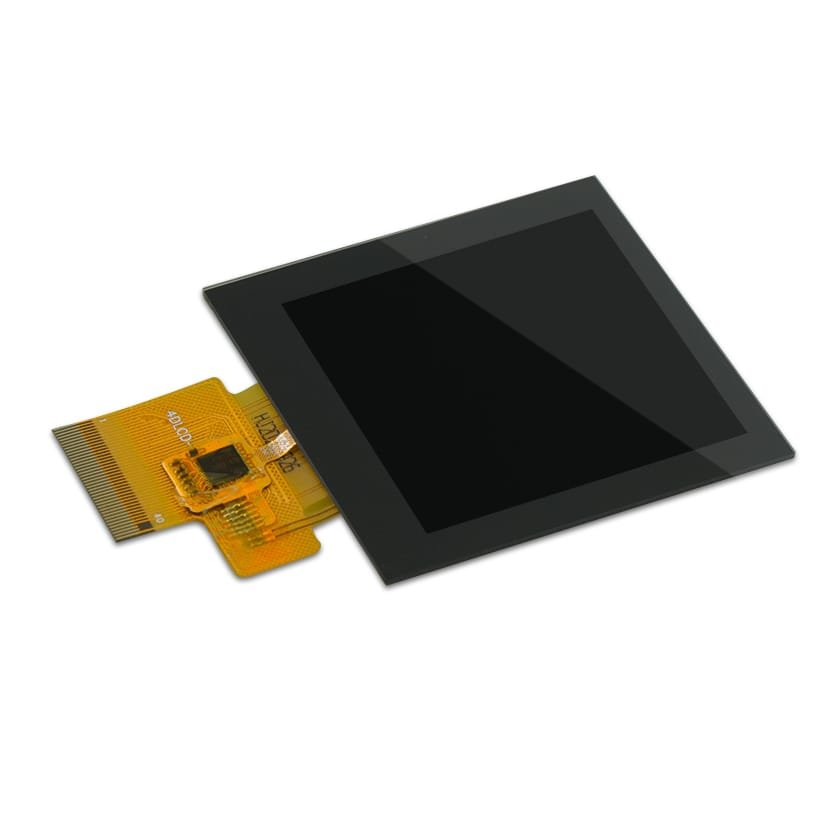

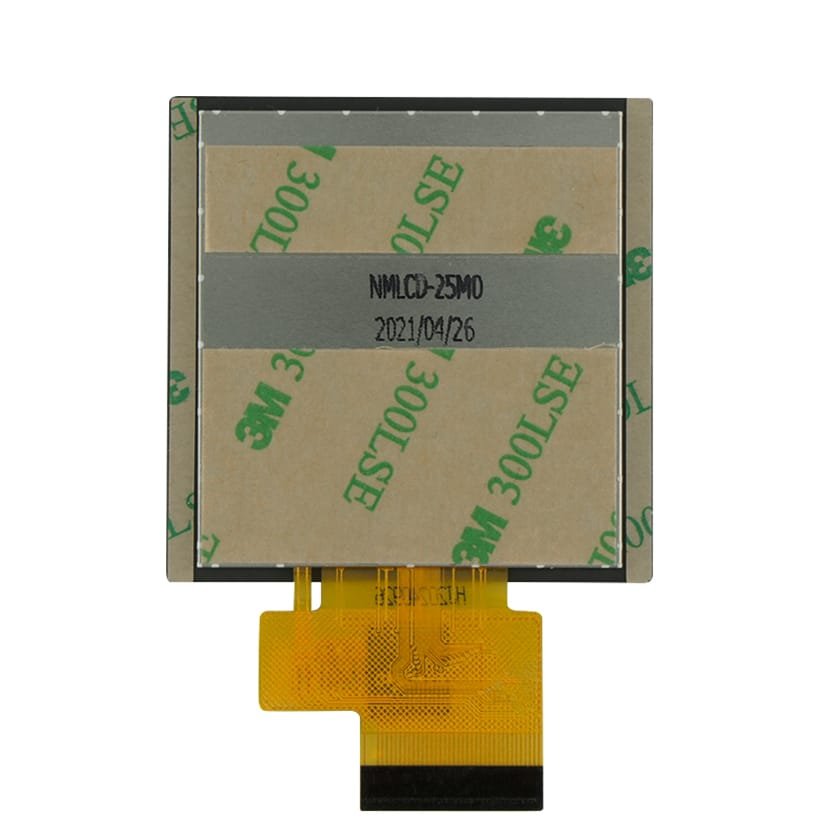

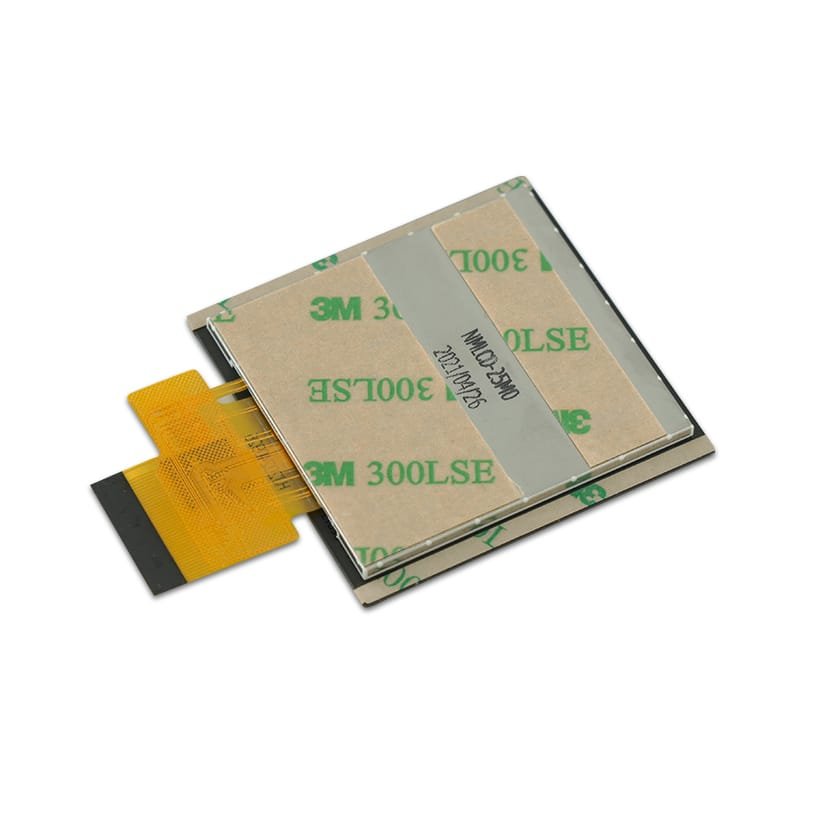

2.6-Inch Custom TFT LCD Touch Screen Display – 240×240 Pixels, 300 Nits Brightness, Capacitive Touch
- Compact Size: 2.6-inch display, ideal for space-constrained applications.
- High Clarity: 240(RGB)×240 resolution with RGB Vertical Stripe arrangement for vivid visuals.
- Advanced Touch Technology: G+F structure with a 6H surface hardness, providing durability and responsiveness.
- Wide Operating Range: Operates efficiently between -20°C to +70°C.
- Seamless Integration: SPI interface and ST7789 driver IC for easy compatibility.
- Eco-Friendly Design: RoHS-compliant, ensuring environmental safety.
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit
The RT026Z1P-300-40 is a cutting-edge 2.6-inch TFT LCD display module designed to meet the demanding needs of industrial and embedded systems. Equipped with a high-resolution 240(RGB)×240 pixel display, this module delivers vibrant and precise imagery through its RGB Vertical Stripe arrangement. The compact design makes it an ideal solution for applications requiring optimal use of space without compromising performance.
Featuring a G+F touch structure, the display provides an intuitive and durable interface for end-users, enhanced by its 6H surface hardness for robust performance even under rigorous conditions. Its wide operating temperature range of -20°C to +70°C ensures reliable functionality in diverse environments, from industrial setups to outdoor applications.
The module is driven by the ST7789 driver IC, ensuring seamless integration through the SPI interface for fast and efficient communication. Additionally, the white LED backlighting enhances visibility in various lighting conditions, while the touch panel, powered by the FT6336U touch IC, supports multiple touchpoints for enhanced user interaction.
Environmentally conscious, the display module complies with RoHS standards, guaranteeing a sustainable and eco-friendly design. With its wide viewing angles and compact dimensions (42.7mm x 51.35mm x 2.2mm), the RT026Z1P-300-40 is versatile enough for applications in industrial equipment, IoT devices, and more.
By combining high-quality visuals, durability, and efficient performance, the RT026Z1P-300-40 represents a dependable and versatile choice for developers and engineers looking to integrate advanced display technology into their projects.
Technical data
Specifications
| Item | Specification | Unit |
| LCD Size (液晶面板尺寸) | 2.6 | inch |
| Display Mode (显示模式) | Normally White | -- |
| Resolution (分辨率) | 240(RGB) × 240 | Pixel |
| Pixel Pitch (像素尺寸) | 0.18(H) × 0.18(V) | mm |
| Pixel Arrangement (像素排列) | RGB Vertical Stripe | -- |
| Viewing Direction (视角) | ALL O’clock | -- |
| Module Outline Dimension (模组外形尺寸) | 42.7(W) × 51.35(L) × 2.2(T) | mm |
| LCD AA (液晶显示区域) | 43.3(W) × 43.2(L) | mm |
| TP VA (触摸可视区域) | 44(W) × 44(L) | mm |
| Colors (颜色深度) | 16.7M | -- |
| Weight (重量, TP+LCM) | -- | g |
| Driver IC (驱动芯片) | ST7789t3 | -- |
| Driver IC RAM Size (记忆体大小) | -- | -- |
| Interface (接口类型) | SPI | -- |
| Backlight (背光类型) | White LED | -- |
| Touch IC (触摸芯片) | FT6336U | -- |
| Surface Hardness (表面硬度) | 6H | -- |
| Support Points (支持点数) | Multi-Touch (多点触控) | -- |
| Touch Structure (触摸结构) | G+F | -- |
| Cover Lens (盖板) | -- | -- |
| Colors (颜色) | -- | -- |
| Operating Temperature (工作温度) | -20℃ ~ +70℃ | -- |
| Storage Temperature (存储温度) | -30℃ ~ +80℃ | -- |
| Environmental Requirements (环保要求) | RoHS | -- |

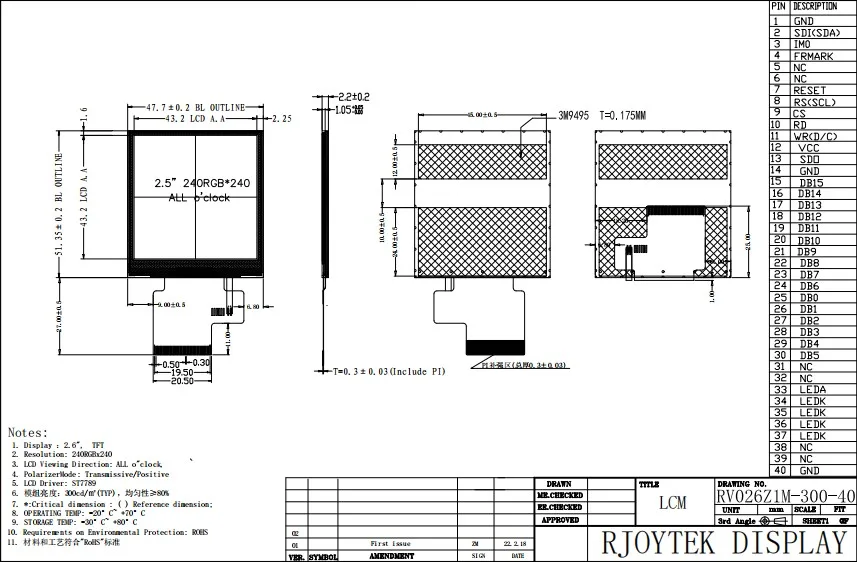

Mechanical reference
