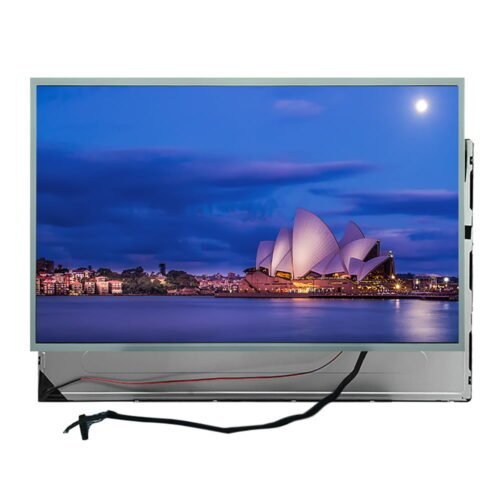

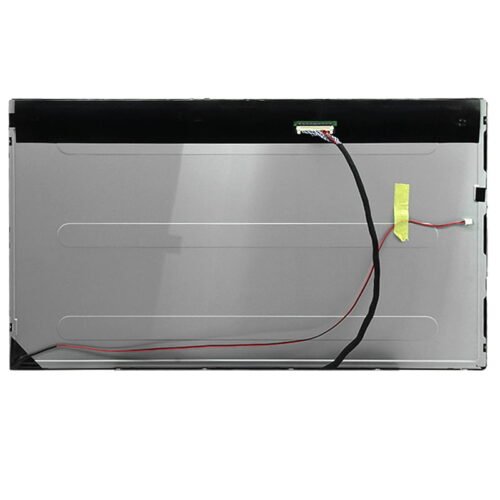

21.5 inch LCD Panel 1920*1080 TFT LCD Screen

MODEL: RV215FHM-300-30
  • Size: 21.5 inch TFT LCD Panel
  • Resolution: 1920*1080
  • Brightness: 300/500 nit
  • Display Mode: Normally Black(IPS)
  • Display area: 478.656(H) x 260.28 (V)
  • Outline Dimension: 495.64(H) x 292.21(V) x9.85(D)
  • Interface: LVDS

With HDMI Board

With LCD Control Board

Custom Brightness

Custom LCD Control Board

Get more LCD solution


Contact Us


The 21.5-inch LCD panel boasts a full high-definition resolution of 1920*1080 pixels, providing sharp and vivid imagery with exceptional detail. TFT (Thin Film Transistor) technology ensures high-quality color reproduction, contrast, and brightness levels, resulting in a visually appealing experience.

One of the key highlights of the 21.5-inch LCD panel is its In-Plane Switching (IPS) technology. IPS offers superior viewing angles, enabling accurate color representation and consistent image quality, even when viewed from off-center positions. This makes it ideal for applications that involve multiple viewers or require precise color reproduction, such as graphic design, photography, video editing, and professional multimedia usage.

The LVDS (Low-Voltage Differential Signaling) interface is another notable feature of the 21.5-inch LCD panel. LVDS provides a reliable and high-speed digital interface, ensuring efficient data transmission between the display and the connected devices. It is commonly used in industrial applications, medical equipment, and automotive displays, where robustness and stability are essential.

Model RV215FHM-300-30
Size 21.5 inch TFT LCD Panel
Pixels 1920(H) x3(RGB)x 1080 (V)
Active Area [mm] 478.656(H) x 260.28 (V)
Pixel Pitch [mm] 0.0831(H) x 0.241 (V)
Outline Dimension 495.64(H) x 292.21(V) x9.85(D)
Display Mode IPS(Normal Black)
Pixel arrangement RGB Vertical stripe
Luminous 495.6*292.2*10.3
Brightness TYP=300 /500 cd/㎡
Interface LVDS
Storage Temperature -20-60 ºC
Operating Ambient Temperature -10-50 ºC
LED Current 220 mA
LED Voltage 43 v
Viewing Angle 89/89/89/89



21.5 inch LCD Panel Applications:

Desktop Computing:

The 21.5-inch LCD panel is a popular choice for desktop computers, offering a spacious and immersive viewing experience. Its high resolution and wide color gamut make it suitable for tasks such as content creation, gaming, and multimedia consumption.

Public Display Systems:

With its IPS technology and wide viewing angles, the 21.5-inch LCD panel finds applications in public display systems. Whether it’s digital signage, information kiosks, or interactive displays in museums or retail environments, this panel ensures that content remains vibrant and easily viewable from various angles.

Graphic Design and Photography:

Professionals in the creative industry require accurate color reproduction and precise detail. The 21.5-inch LCD panel with IPS technology offers excellent color accuracy and wide viewing angles, making it a favored choice for graphic designers, photographers, and video editors who rely on color-critical work.

Medical Equipment:

The medical sector often demands displays with high-quality visuals for accurate diagnosis, patient monitoring, and surgical procedures. The 21.5-inch LCD panel, with its LVDS interface and high resolution, is well-suited for medical imaging applications, including radiology, ultrasound, endoscopy, and patient monitoring systems.

Industrial Control Systems:

Industrial applications require robust and reliable displays that can withstand harsh conditions and provide clear visuals. The 21.5-inch LCD panel, with its LVDS interface and durable construction, serves as a suitable display solution for industrial control systems, factory automation, and human-machine interface (HMI) applications.


Recommended Products:

10.25 inch TFT LCD Panel for Car 1.89 inch Small TFT Display with LCD Board Round TFT Display Panel


LCD Board Information


(1) Power input: +12V DC input.
(2) OSD Language: Support Chinese, English and other languages.
(3) Multimedia storage medium function: support dual USB, support hot swap.
(4) Multimedia playback type: picture, music, video.
(5) Input signal: AV, HDMI.
(6) Power amplifier output: can provide 2*3W output power.
(7) Other functions: support multimedia file memory playback, multimedia rolling subtitle display, OSD rotation.


Rjoytek 21.5 inch 1920*1080 TFT LCD Panel Video.
