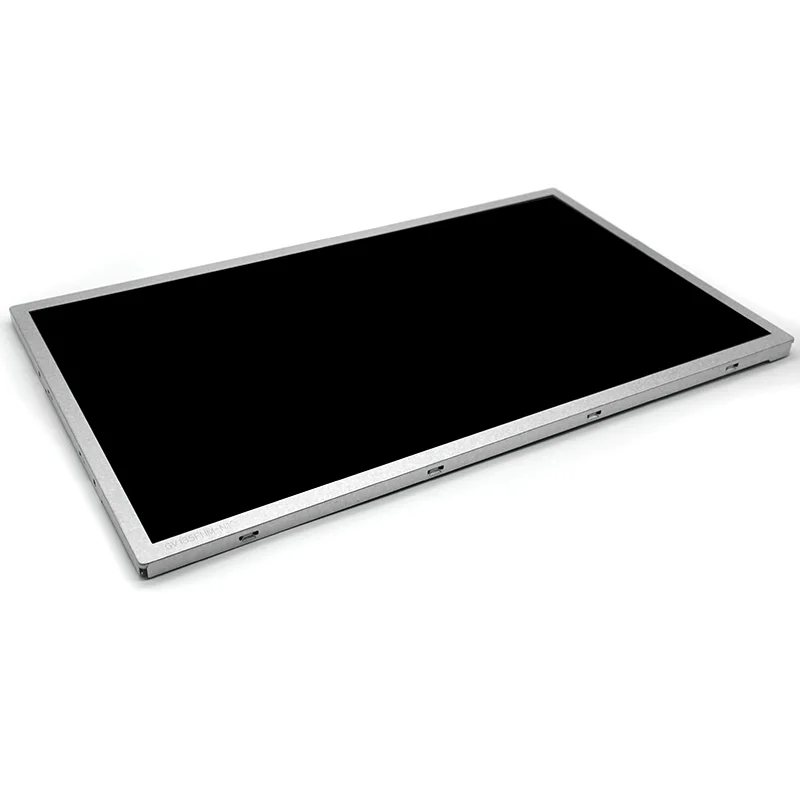

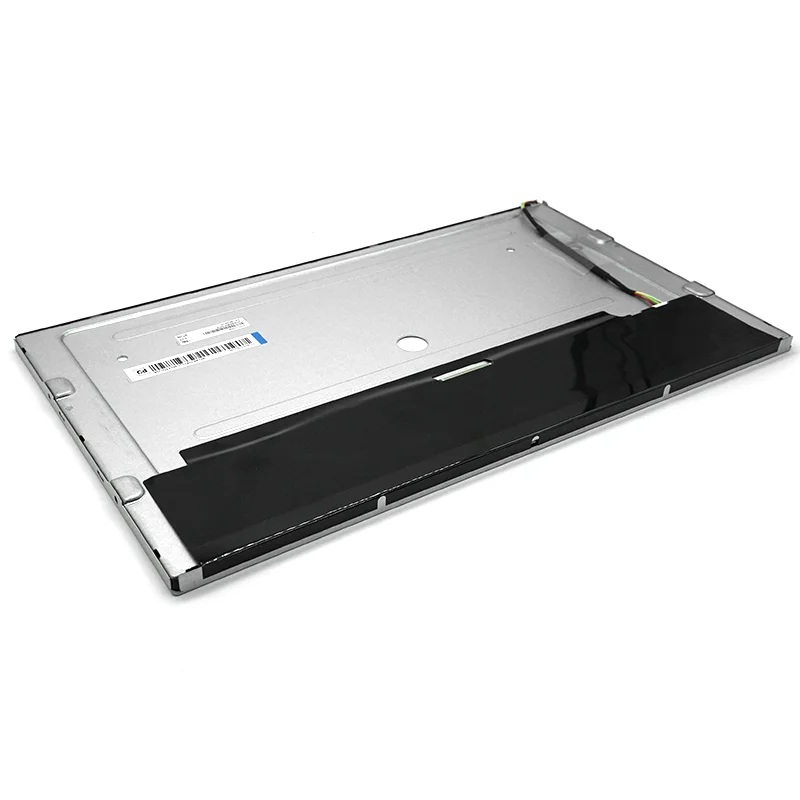

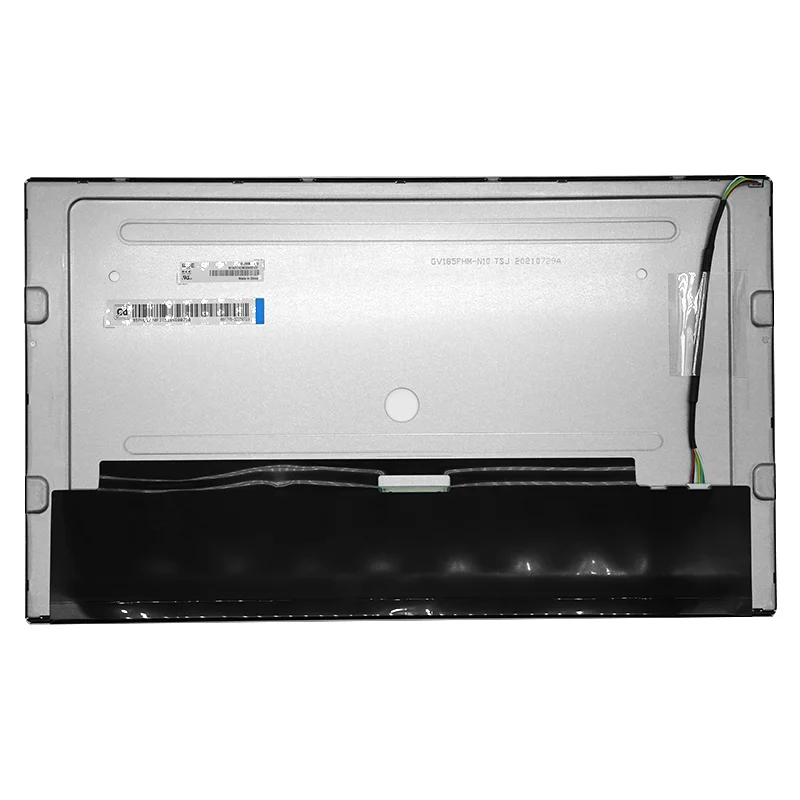

18.5 inch LCD Panel 1920*1080 Color TFT LCD Module
Features
* LED back-light
* LVDS interface
* RoHS Compliant
* 16.7M color depth
Resolution: 192081080
Interface: LVDS
Pin: 30pin
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit
18.5 nch TFT LCD panel 1920*1080 Normally Black LCD module, with AG25,3H surface treatment, 30pin connect and LVDS interface, support custom different interface driving board.
We do one-stop LCD solution, we provide HDMI board if you need, and we could customized the interface and brightness for you, and capacitive touch, or any other control board. Just feel free to send us email to contact us to get more information.
| Model | GV185FHM-N10 |
| Size | 18.5 inch LCD Panel |
| Active area | 408.96 (H) × 230.04(V) |
| Number of pixels | 1920(H) × 1080(V) |
| Pixel pitch | 0.213(H) × 0.213 (V) |
| Pixel arrangement | RGB Vertical stripe |
| Display colors | 16.7M(8bit) |
| Display mode | Normally Black |
| Dimensional outline | 430.4 (H) × 254.6(V) × 12(D) typ. |
| Surface treatment | AG25, 3H |
| Back-light | Edge side, 1-LED Lighting Bar Type |
| Luminance | 350 nit |
| Pin | 30 pin |
More Size You Could Visit:
 |
 |
 |
| 17 inch 1280*1024 LCD Panel | 5 inch 1080p Round LCD Module | 10.1 inch 1200*1920 LCD display Module |
Technical data
Specifications
Detailed specifications are available from the RJY engineering team.
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
