Bar LCD Display, Capacitive Touch Panel, TFT LCD Display Module
Model RV123Z7P-700-50

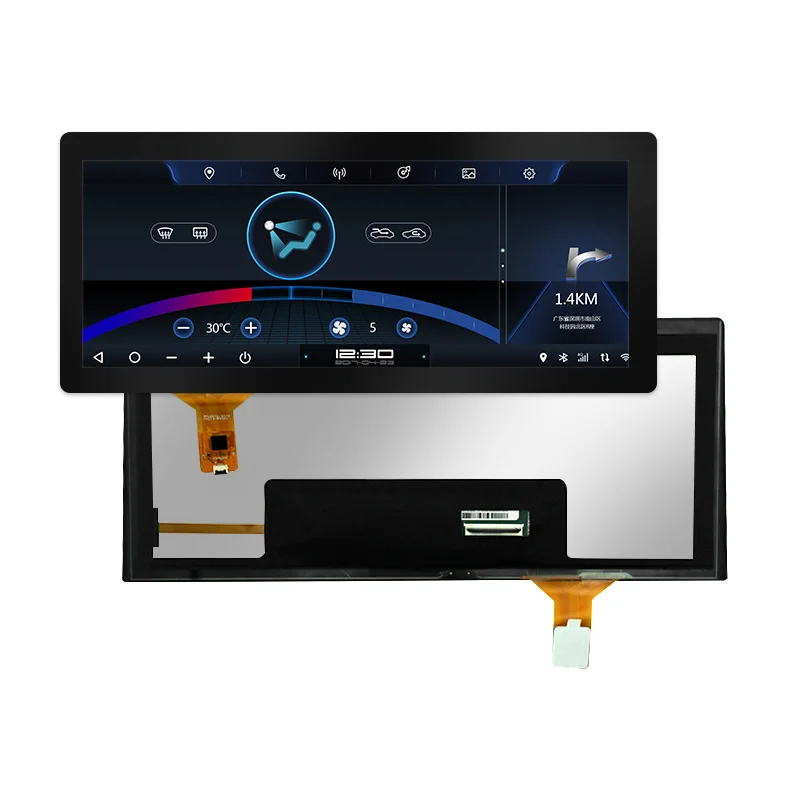

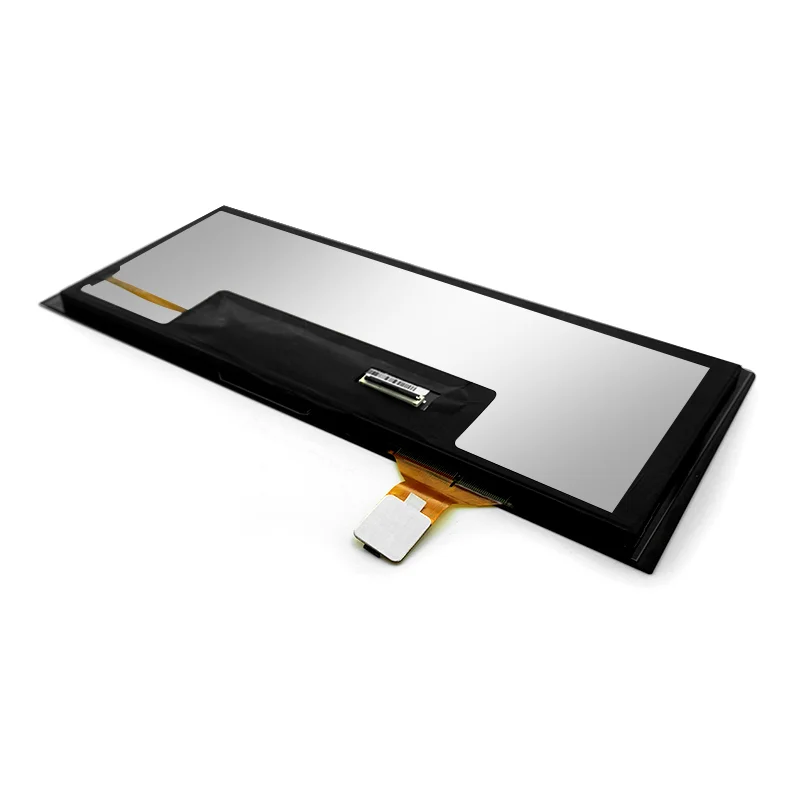

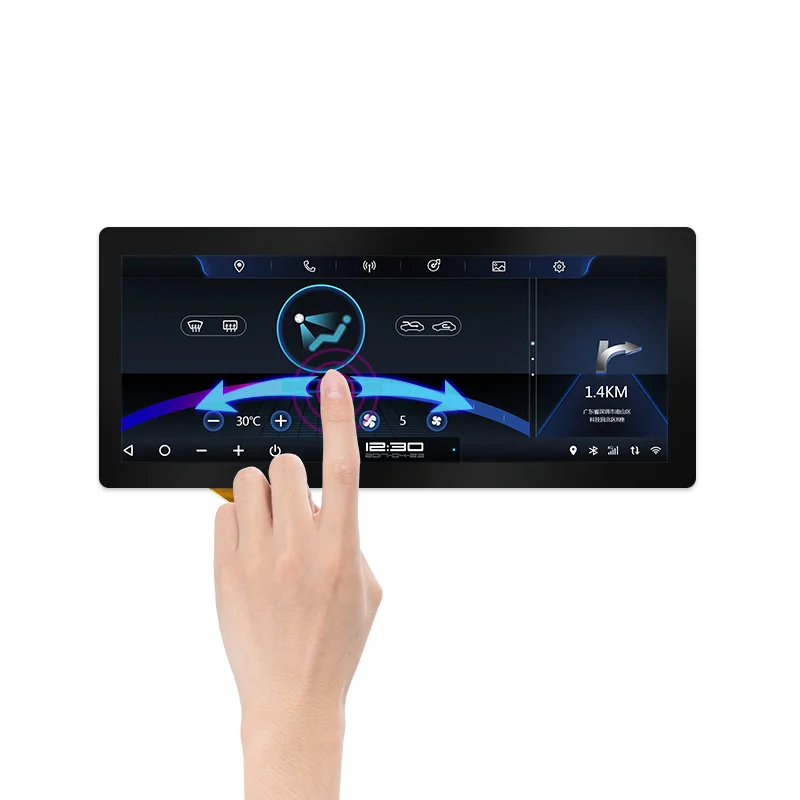

12.3 inch Stretched Bar LCD – Touch Screen, 1920*720 TFT LCD Display for Car
Key specifications
- Size(inch)
- 12.3
- Brightness (cd/m²)
- 700
- Interface
- LVDS
- Resolution
- 1920×720
- Wide Temperature
- Yes
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
RV123Z7M-700-50 is a touchscreen display with 12.3 inch size, 1920*720 resolution, this 12.3 inch is a stretched bar type and usually use for automotive display panel. It is a TFT LCD model, and this 12.3 inch screen panel also with one type that no touch, if you need one LCD panel without touch or you need resistive touch panel, just let us know, custom and LCD solution is our advantages.
This display panel with high 95 degree and low -40 degree resistant temperature, surface treatment is HC and surface hardness is 3H.
Recommended reading：
Why Should The Automotive LCD Display Be Resistant To High And Low Temperatures?
How To Get Sunlight Readable TFT LCD Display, Find A LCD Manufacturer
2. Technical Specifications
| Model | RV123Z7P-700-50 |
| Size | 12.3 inch TFT LCD Touch Panel |
| Active area | 292.032 (H) ×109.512 (V) |
| Number of pixels | 1920 ×720 |
| Pixel pitch | 0.1521 (H) ×0.1521 (V) |
| Pixel arrangement | RGB Vertical stripe |
| Display colors | 16.7M |
| Color gamut | NTSC 75% Typ, 70% min |
| Display mode | Normally black, IPS |
| Outline Dimension | 302.53±0.2(H)*123.51±0.2(V)*6.45(Without PCBA) 302.53±0.3(H)*123.51±0.5(V)*9.65Max(With PCBA) |
| Surface treatment | HC |
| Surface hardness | 3H |
| Operating Temperature | -30-85 °C |
| Storage Temperature | -40-95 °C |

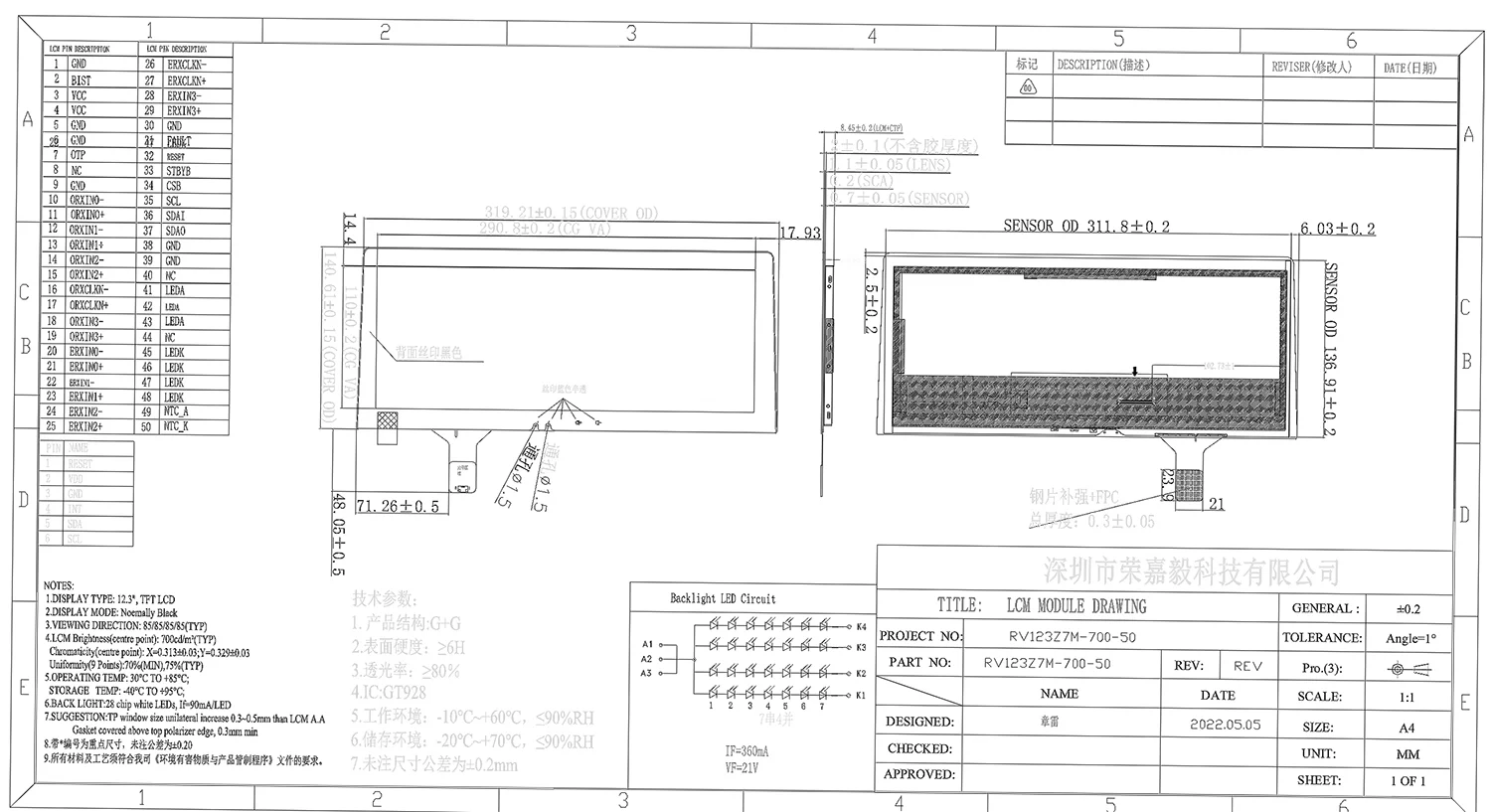

3. Structure
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
