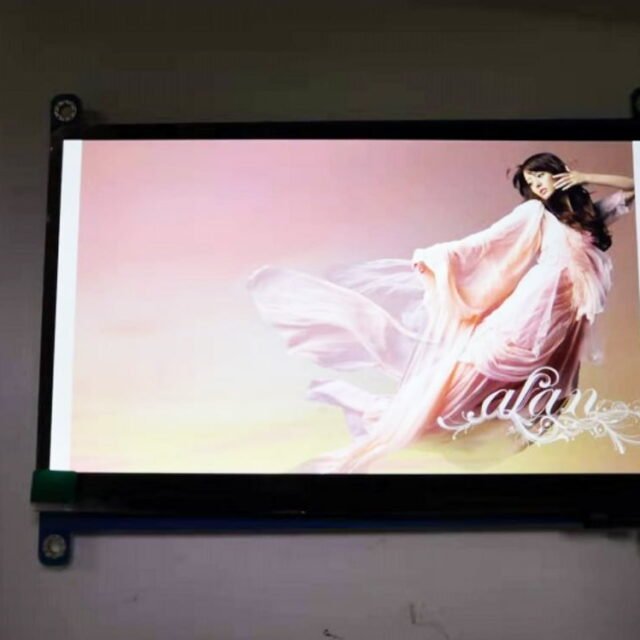

RJOYTEK 7 inch Raspberry Pi LCD Touch Screen Panel
RJOYTEK 7 inch Raspberry Pi LCD Touch Screen Panel - Image 2
RJOYTEK 7 inch Raspberry Pi LCD Touch Screen Panel - Image 3
RJOYTEK 7 inch Raspberry Pi LCD Touch Screen Panel - Image 4
RJOYTEK 7 inch Raspberry Pi LCD Touch Screen Panel - Image 5
RJOYTEK 7 inch Raspberry Pi LCD Touch Screen Panel - Image 6
, Model 08-RT2660TP-MAIN-V1.0

RJOYTEK 7 inch Raspberry Pi LCD Touch Screen Panel

Function

  • VGA、HDMI video signal
  • Capacitive Touch
  • PowerInput: MICRO_USBDC+5V
  • Speakeroutput：8Ω/2W*2
  • Adjustable battery according to its required backlight
Contact for availability
View specifications

Share your interface, touch, brightness and volume requirements for an engineering fit review.

01Interface review
02Touch integration
03Controller support
04Lifecycle coordination

Product overview

Engineered for application fit

Model08-RT2660TP-MAIN-V1.0
Size7 inch lcd panel for Raspberry Pi
Number of Pixels800*480
Active Area170(H)×109.6(V)
Pin50pin
LCD TypeTFT
Touchwith touch
Operating Temperature-10℃～+60℃
Storage temperature-20℃～+70℃
Speaker8Ω/2W*2
ApplicationsTTL: ZJ050NA-08C/AT070TN92

Function

  • VGA、HDMI video signal
  • Capacitive Touch
  • PowerInput: MICRO_USBDC+5V
  • Speakeroutput：8Ω/2W*2
  • Earphone
  • Multifunction OSD operation
  • With remote function (optional)
  • Automotive turn off when no signal
  • Adjustable VCOM voltage value according to the required screen
  • Adjustable battery according to its required backlight

Signal Input Standard

  • VGA: 800*480, 800*600, 1024*600, 1024*768, (Refresh rate60~75)
  • HDMI (Generic version1.2)

Working Environment

  • Working temperature: -10℃~+60℃
  • Working humidity:  90%RH(no condensation)

Storage Environment

  • Storage temperature: -20℃~+70℃
  • Storage humidity: 90%RH(no condensation)

123

234 2

Technical data

Specifications

Detailed specifications are available from the RJY engineering team.

Project adaptation

Customization options

Adapt an existing display platform to the electrical, optical and mechanical needs of your product.

  • Interface and FPC adaptation
  • Brightness and backlight
  • Touch and cover glass
  • Controller board support
  • Mechanical coordination

Engineering FAQ

Questions before evaluation

Can touch and cover glass be customized?

Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.

Can RJY provide a controller board?

Controller support can be evaluated with your host interface, timing and software requirements.

What is required for a quotation?

Provide the application, target specification, operating environment, sample quantity and annual volume.
