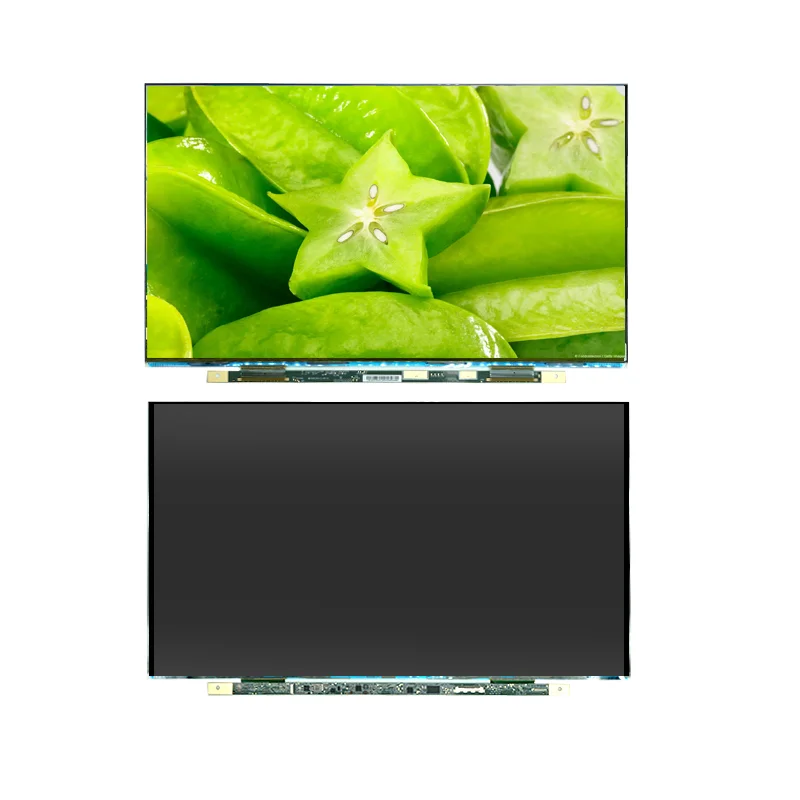

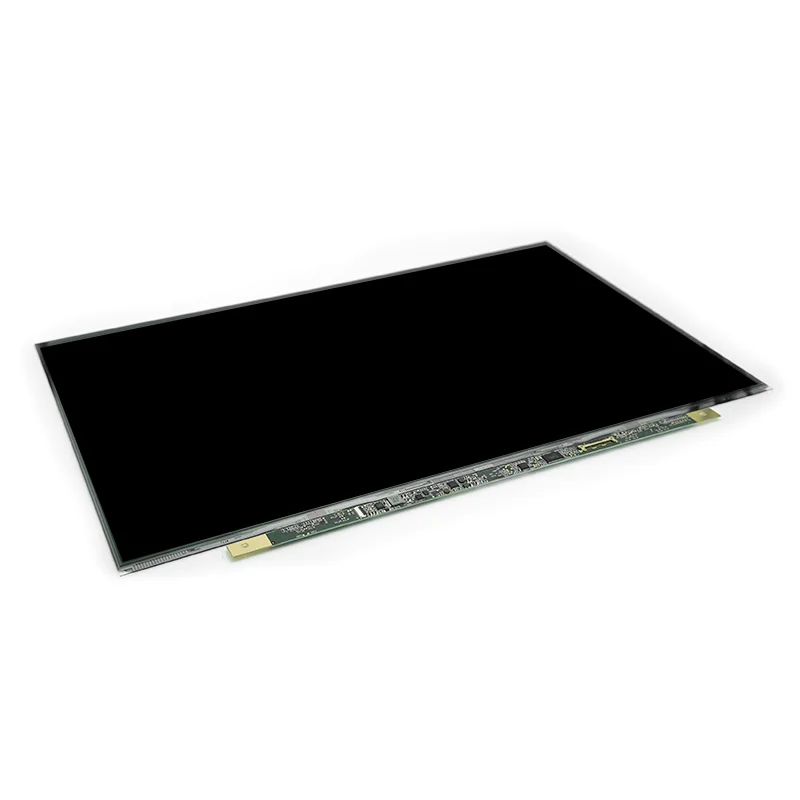

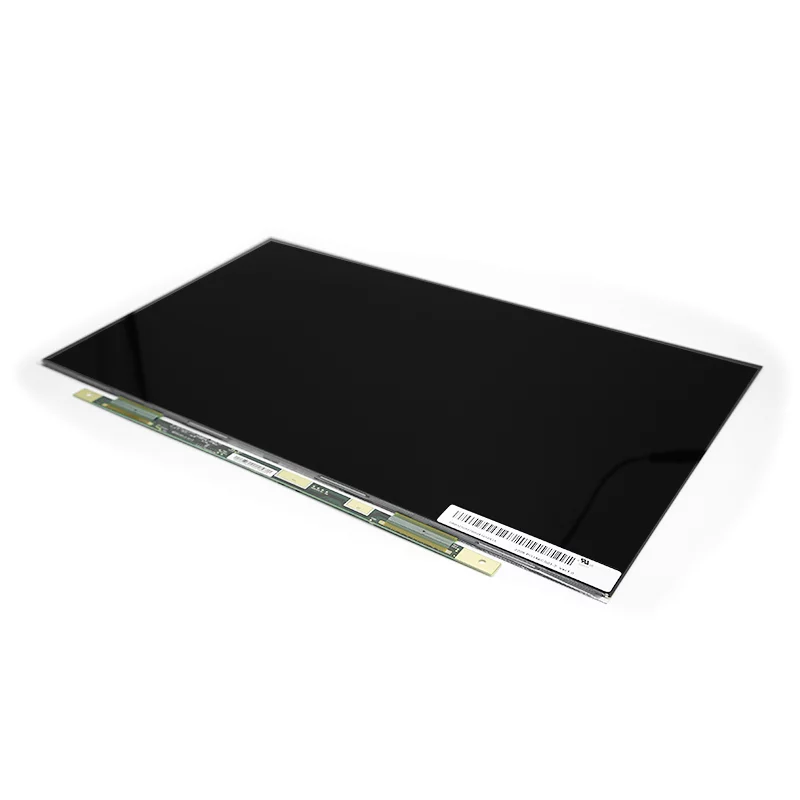

RJOYTEK 15.6 inch LCD Screen 1920*1080 eDP Interface Laptop TFT Display Panel
Features
(1) 2 lane eDP interface with 2.7 Gbps link rates
(2) 16.7M(6bits+Hi FRC) color depth, color gamut 45%
(3) Green product (RoHS & Halogen free product)
(4) On board LED driving circuit
(5) LED Dimming Mode DC
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit
| Model | PG156CS01-2 |
| Size | 15.6 inch tft lcd module |
| Active area | 344.16(H) × 193.59(V) |
| Number of pixels | 1920(H) ×1080(V) |
| Pixel pitch | 0.17925(H) × 0.17925(V) |
| Pixel arrangement | RGB Vertical stripe |
| Display colors | 16.7M(6bits+Hi FRC) |
| Color gamut | NTSC 45% Typ, 42% min |
| Display mode | Normally black |

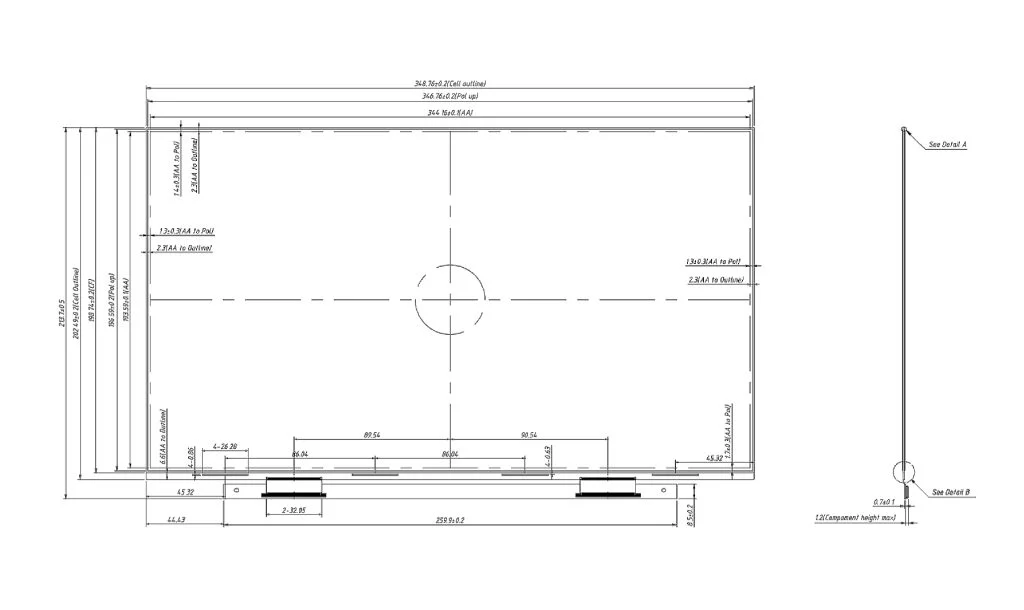

| Outline Dimension | 350.66±0.3(H)*205.25±0.3(V)*3.2Max (Without PCBA)
350.66±0.3(H)*214.75±0.5(V)*3.2Max (With PCBA) |
| Surface treatment | Anti-Glare |
| Surface hardness | 3H |
| Operating Temperature | 0-50 °C |
| Storage Temperature | -20-60 °C |
Technical data
Specifications
Detailed specifications are available from the RJY engineering team.
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
