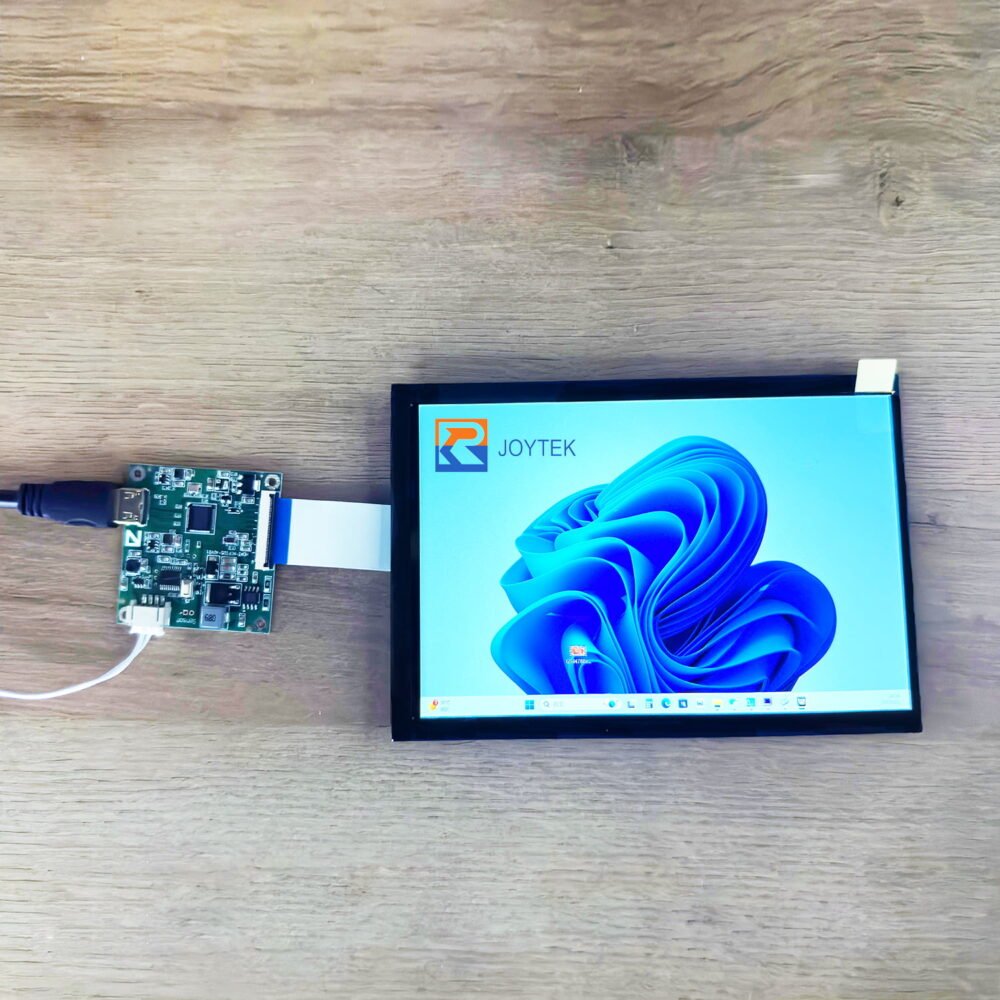

7-inch TFT LCD Display – 1200*1920 LCD Screen Sunlight Readable 7inch LCD Panel
- Size: 7 inch TFT LCD Panel
- Resolution: 1200*1920
- Brightness: 2500nit/ custom
- Touch/ No touch

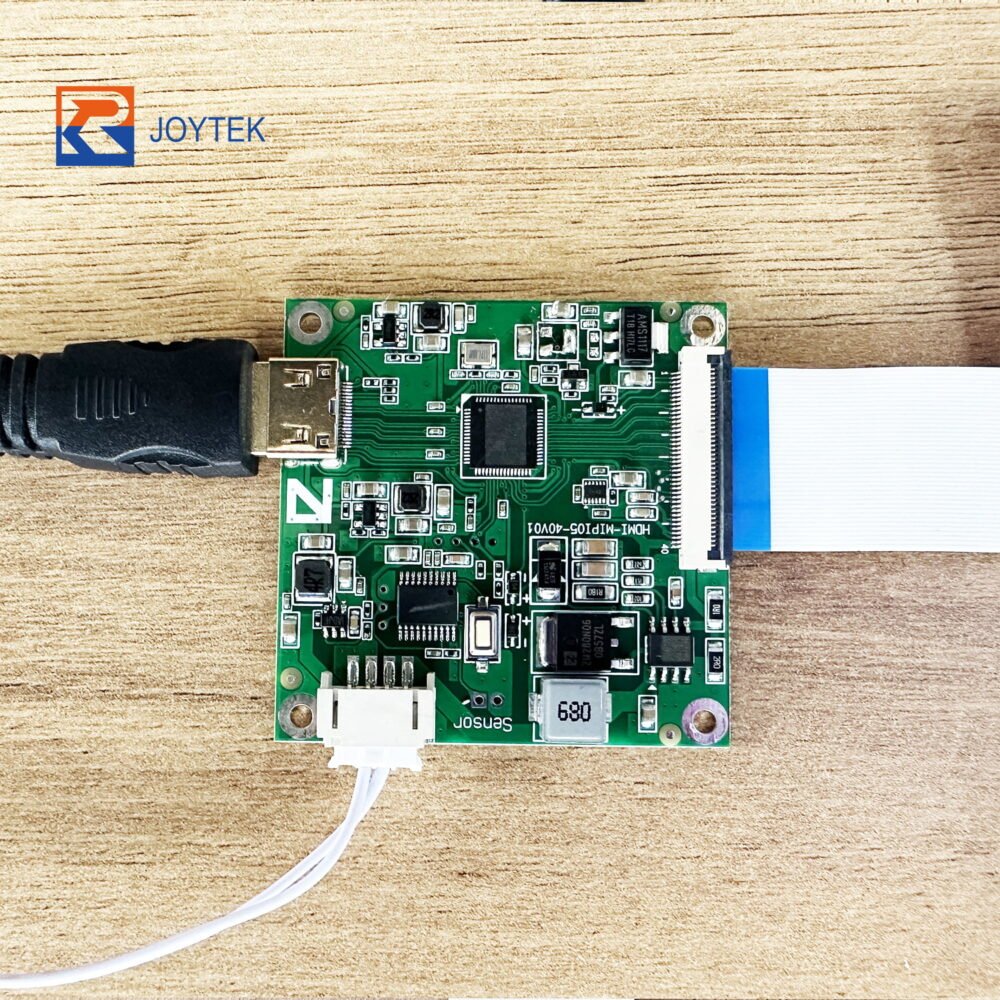

- With HDMI board
- Interface: MIPI-4LaneI
- LCD AA: 94.5(W)*151.2(H)
Support
- Custom LCD control board
- Custom Touch
- Custom brightness
- Custom all-in-one LCD monitor
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit
RV070WUM-K25-40 is a sunlight readable TFT LCD that with 2500nit brightness, and the Luminance is a acceptable custom item, you also could get different 800nit, 1000nit, 2000nit or others, it depends on your requirements.
This 7 inch 1200*1920 TFT screen interface is MIPI, and touch is optional， usually is capacitive touch panel, but we also acceptable custom RTP, single touch and multi-touch and so on. We provide different LCD board custom, HDMI board, Functional control board, Android board, and so on.
Parameters
| Model | RV070WUM-K25-40 |
| screen size | 7 inch |
| Number of Pixels | 1200(H) RGB*1920(V) |
| Active Area | 94.5(H) × 151.2(V) |
| Pixel Size | 78.5 (W) *78.5(H) |
| Module Size | 108.00(W )*163.55(H)*4.2(T) |
| LCD Type | TFT |
| Display Colors | 16.7M TRUE COLOR |
| Display Mode | Normally black |
| Interface | MIPI-4LaneI interface |
| Operating Ambient Temperature | -20 to +70 ℃ |
| Storage temperature | -30 to +80 ℃ |
| Pin | 40pin |
| Brightness | 2500nit |
APPLICATION OF 7 INCH TFT LCD DISPLAY
Mobile Devices: The high resolution and brightness make it suitable for smartphones and tablets, providing crisp visuals and enhanced visibility even in bright outdoor conditions.
Industrial Control Panels: The high brightness allows operators to view critical information and control systems effectively, even in harsh industrial environments with bright lighting.
Outdoor Advertising: The bright and high-resolution display can be utilized in digital signage and outdoor advertising, delivering vibrant and attention-grabbing content in various lighting conditions.
Medical Devices: The display’s resolution and brightness make it useful for medical equipment such as portable ultrasound machines or patient monitoring devices, enabling healthcare professionals to view detailed images and data accurately.
Gaming Consoles: The high-resolution display with increased brightness can enhance the gaming experience on handheld consoles, providing vivid graphics and improved visibility during gameplay.
Point-of-Sale (POS) Systems: The bright display can be used in retail or hospitality settings for point-of-sale systems, enabling clear visibility of product information, prices, and transaction details.
Recommended Products
 |
 |
 |
| 10.1 inch TFT LCD with Android Solution | 2.8 inch LCD Touchscreen Panel | 4 inch Sunlight Readable LCD Display |
Technical data
Specifications
Detailed specifications are available from the RJY engineering team.
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
