TFT LCD Display Module
Model B133ZAN02.A
RJOYTEK 13.3 inch Laptop LCD Display 3840*2160 4K LCD Display Module
Key specifications
- Size
- 13.3 inch TFT Display
- Resolution
- 3840*3160/4K LCD Screen
- Interface
- eDP
- Application
- Laptop, notebook style personal computer and industrial machine.
- Luminance
- 550 nit
- Surface Treatment
- Glare, Hardness 1H
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description

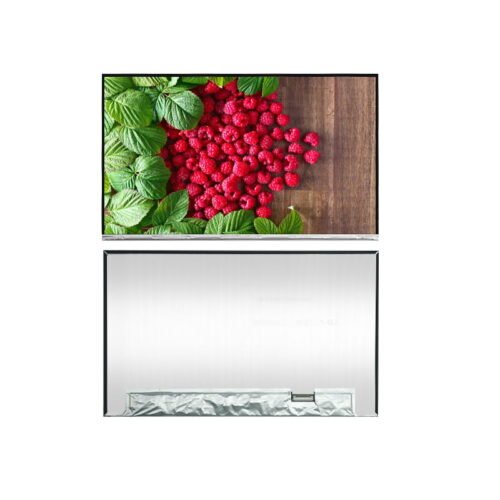

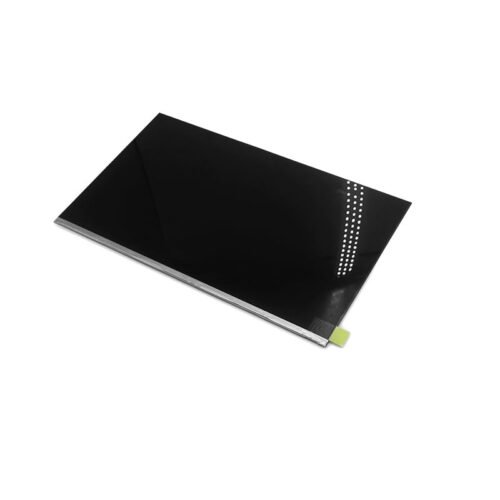

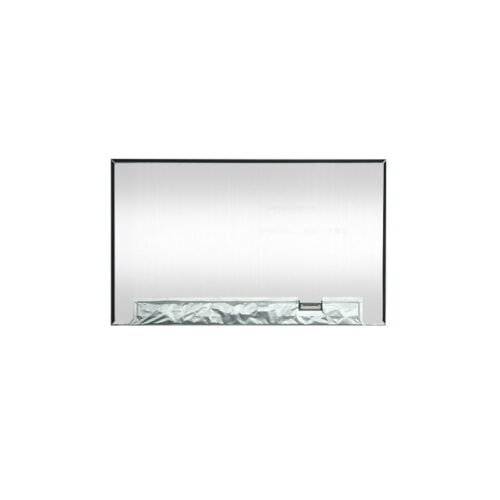

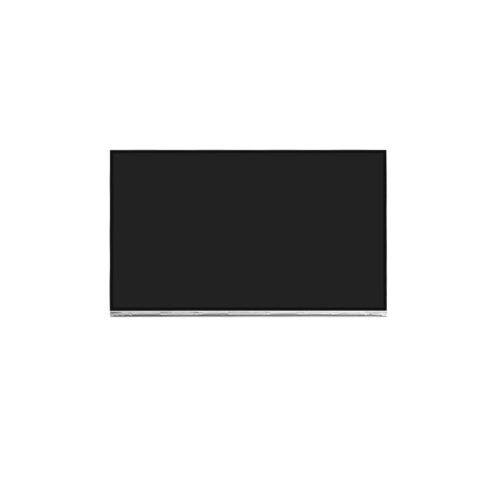

RJOYTEK 13.3 inch Laptop LCD Display 3840*2160 4K LCD Display Module
B133ZAN02.A is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 UHD, 3840(H) x2160(V) screen and 16.7M colors (RGB 8-bits+2FRC data driver) with LED backlight driving circuit. All input signals are eDP(Embedded DisplayPort) interface compatible.
B133ZAN02.A is designed for a display unit of notebook style personal computer and industrial machine.
| Model | B133ZAN02.A |
| Size | 13.3 inch |
| Screen Diagonal | 336.804 |

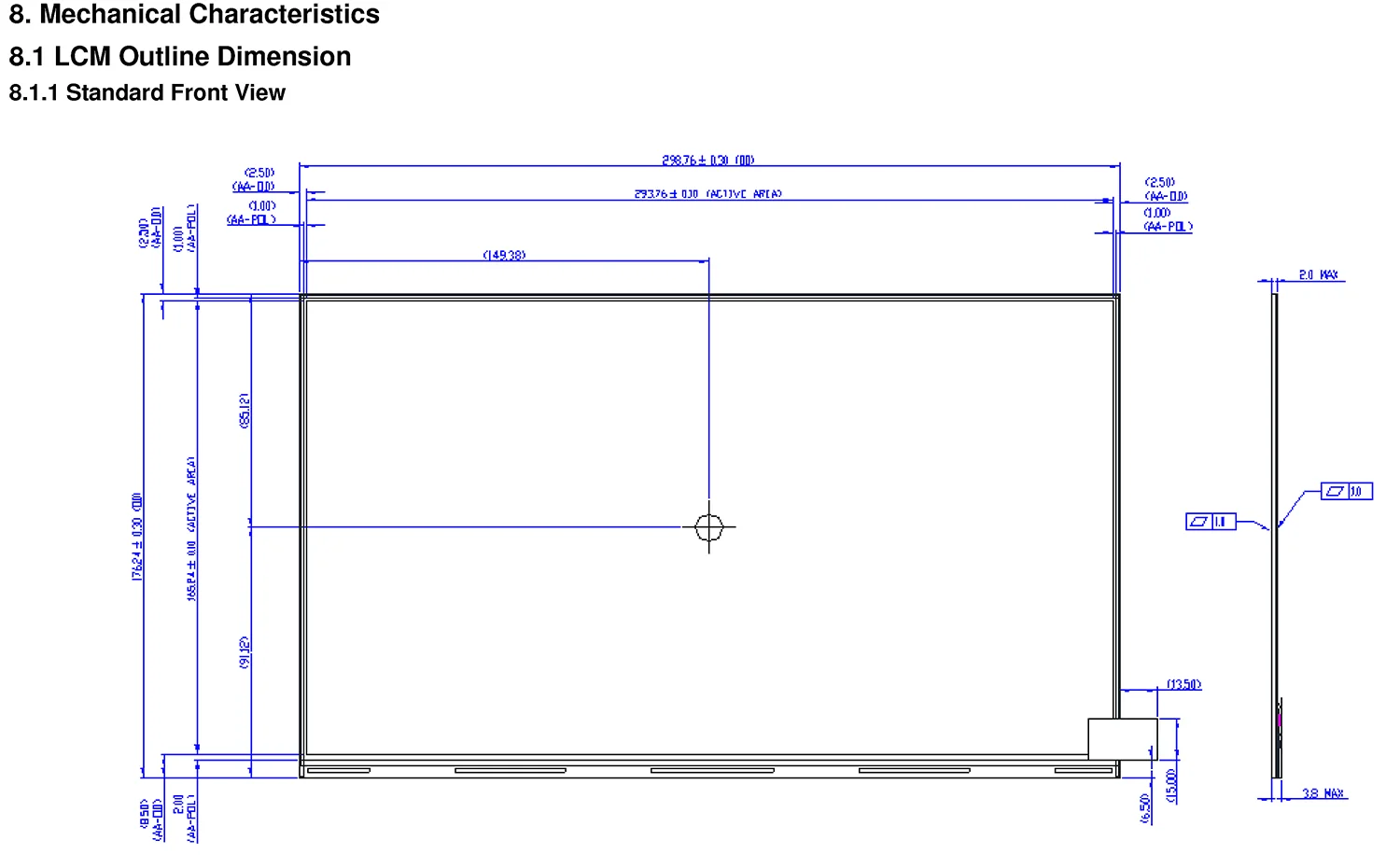

| Active Area | 293.76 (H) x 165.24(V) |
| Pixels H x V | 3840 x 3 (RGB) x 2160 |
| Pixel Pitch | 0.0765 x 0.0765 |
| Pixel Format | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| White Luminance (ILED=24mA) | 550 typ. (5 points average) 470 min. (5 points average) |
| Luminance Uniformity | 1.25 max. (5 points) |
| Contrast Ratio | 1200 typ |
| Response Time | 30 typ / 35max |
| Nominal Input Voltage VDD | +3.3 typ |
| Power Consumption | 7.1 W max. (Include Logic and BLU) |
| Electrical Interface | 4Lane eDP 1.4a |
| Glass Thickness | 0.2mm |
| Surface Treatment | Glare, Hardness 1H, Reflection 5% |
| Support Color | 16.7M colors ( RGB 8-bit +2 FRC) |
| Operating Temperature | 0-50 |
| Storage Temperature | -20-60 |
More Products here:
LCD TFT Display Module List, 1.3″-10.1″ LCD Panel, Manufacturer Price
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
