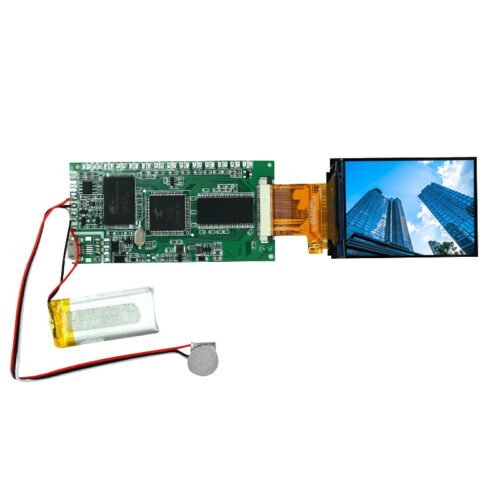

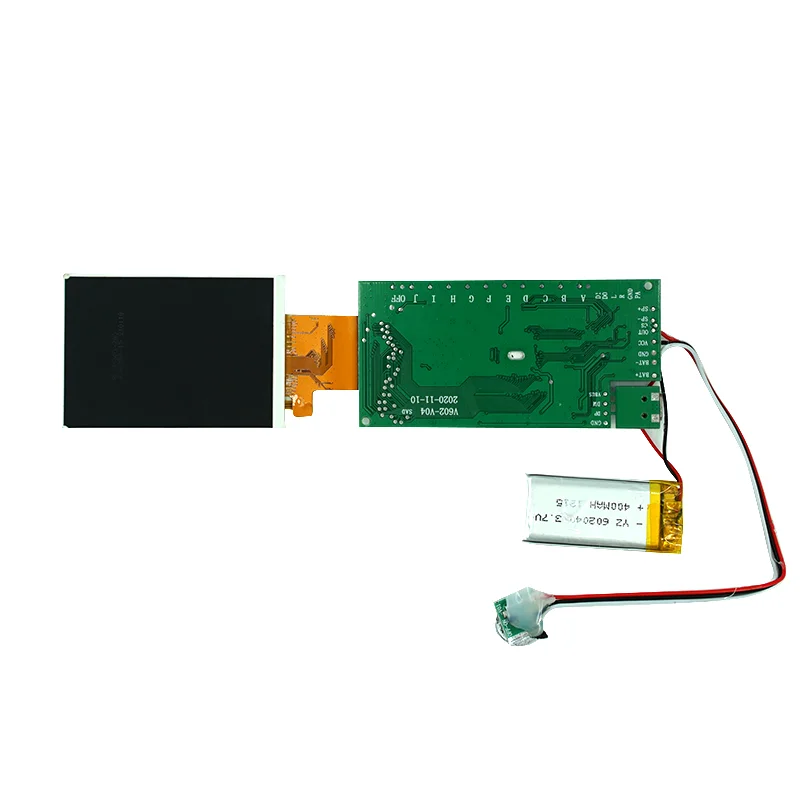

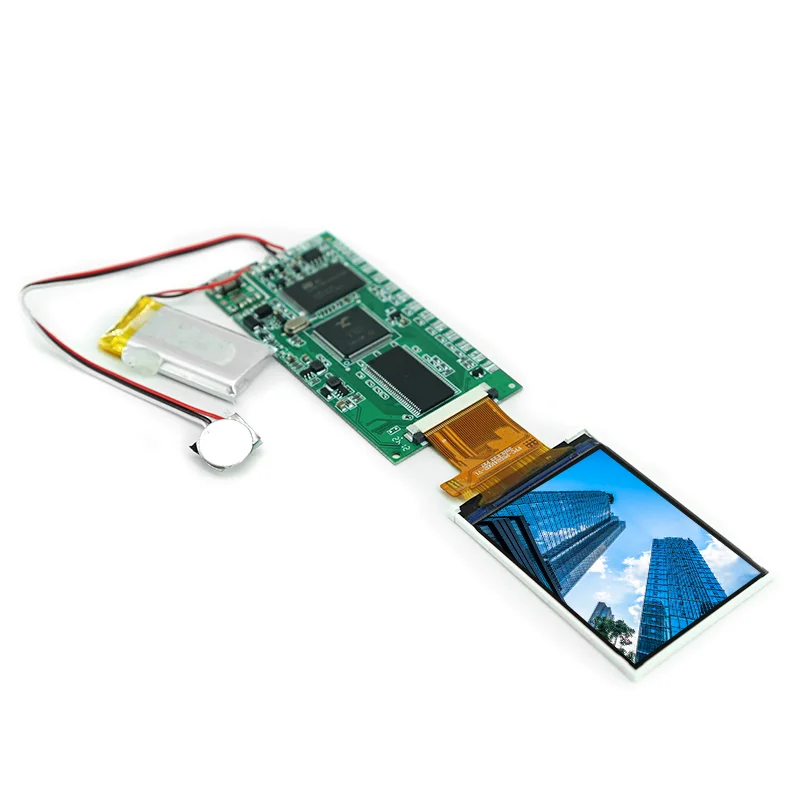

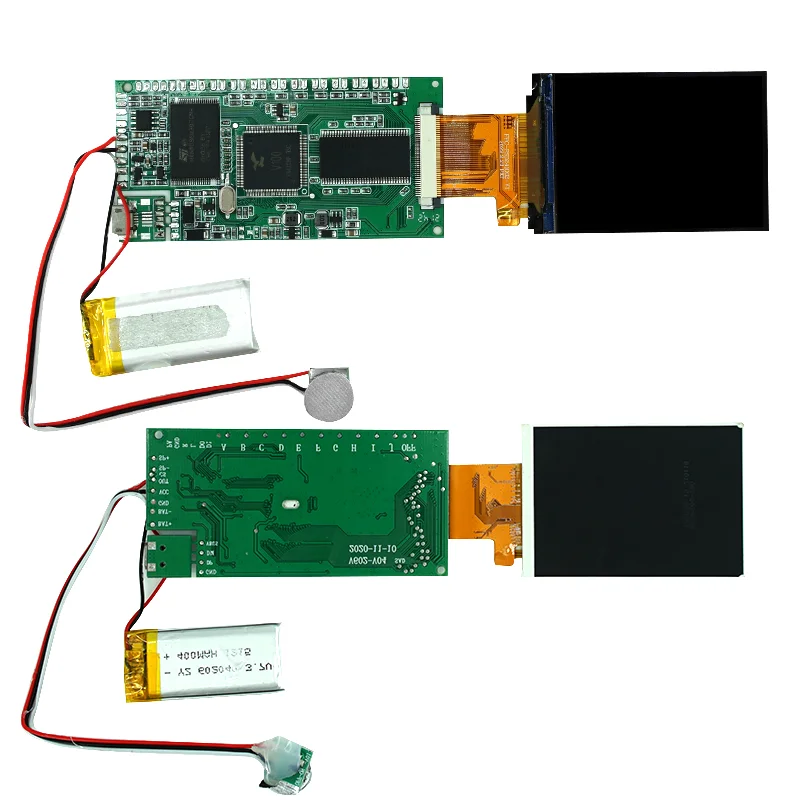

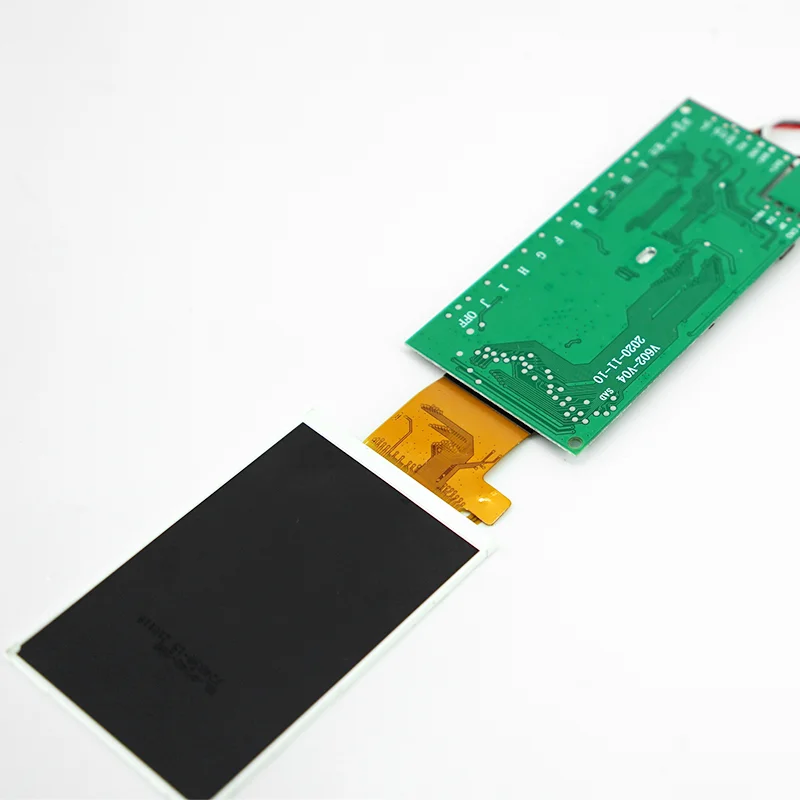

2.4-inch TFT LCD Display – 480*640 IPS TFT LCD display module with control board
1.1 Module storage
1. Storage temperature:-30 to +80
2. Place in dark sites to avoid strong lights
3. Don’t place other thing on their surfaces
4. Packaged in polyester materials (with anti-static electricity layers) and sealed
1.2 Soldering
1. Iron head temperature: 280±10℃
2. Soldering time: <3-4S
3. Soldering material: eutectic nature, low melting point
4. Don’t use acid solder
5. Soldering don’t repeat above 3 times
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit
RV024VGM-420-40 is a 480*640 resolution RGB interface TFT LCD module, IC Driver is ST7701S, with Operating Temperature -20 to +70 degrees and Storage Temperature degrees, LCM Luminance is 420nit. The interface is acceptable to change to SPI, MCU and so on, and the brightness is acceptable to customized, and supporting HDMI board and other LCD control boards, such as control for video, with USB, VGA interface and so on.
FAQ
1: How do I buy this 2.4 inch LCD module?
A: You could send us email from the lower right corner email or send to rjoytek@rjyi.net to discuss, we acceptable payment of paypay, TT or bank transfer. Or if you acceptable pay for Alibaba, we have Alibaba Shop here, welcome contact us!
2: How about delivery time?
A: Usually sample is about 7 working days, if a bulk products according to the quantity and item Project Plan about 20-60 working days, usually sample will send by UPS, FEDEX, DHL.
3: How do i know the price?
A： We do a one-stop LCD solution, different matching prices will be different. If you need to customize brightness, interface, control board, etc., you need to evaluate the price according to your requirements. If you need to match accessories, wires, etc., these are also personalized. If you just need a sample and don’t need other accessories, then we will also give you a sample price, please discuss with us by email.
Recommended Products
 |
 |
 |
| 3.4 inch 800*800 round display panel | 4 inch high brightness 4700nit lcd display | 5 inch square tft lcd display |
Technical data
Specifications
| NO. | RV024VGM-420-40 |
| screen size | 2.4 inch TFT LCD Module |
| Number of Pixels | 480*640 |
| Driving Scheme | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Colors | 16.7 M |
| Display Mode | IPS |
| Luminance | 420 nit |
| Input Data | RGB24 |
| IC Driver | ST7701S |
| Module Size | 42.72(W )*60.26*2.2(T) |
| Active Area | 36.72(W) *48.96(H) |
| Pixel Size | 76.5(W) *76.5 (H) |
| Operating Temperature | -20 to +70 |
| Storage Temperature | -30 to +80 |

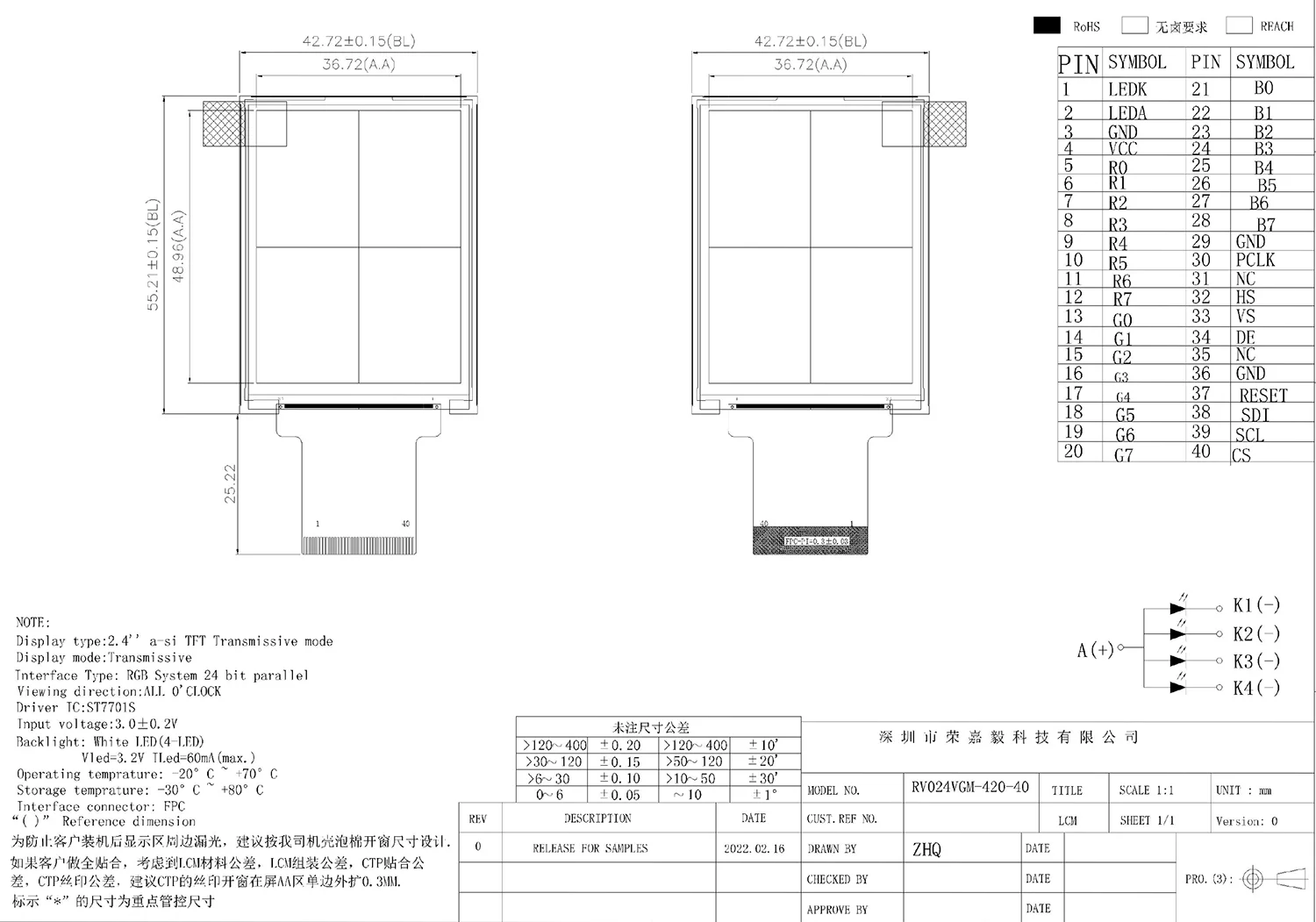

Mechanical reference
Structure
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
