Capacitive Touch Panel, TFT LCD Display Module
Model RV013Z1P-300-26

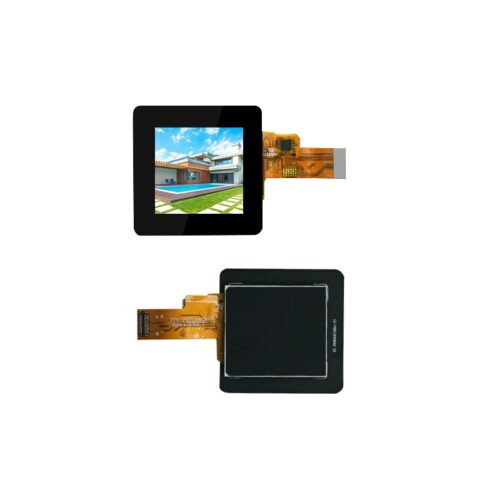

Custom LCD Display 1.3 inch Square TFT Capacitive Touch Screen Panel manufacturer
Key specifications
- Size
- 1.3 inch TFT Touch Panel
- Resolution
- 240*240
- Interface
- MIPI
- Luminance
- 300nit
- IC Driver
- ST7785M
- LCD Type
- AM TFT ,TRANSMISSIVE, NEGATIVE
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description

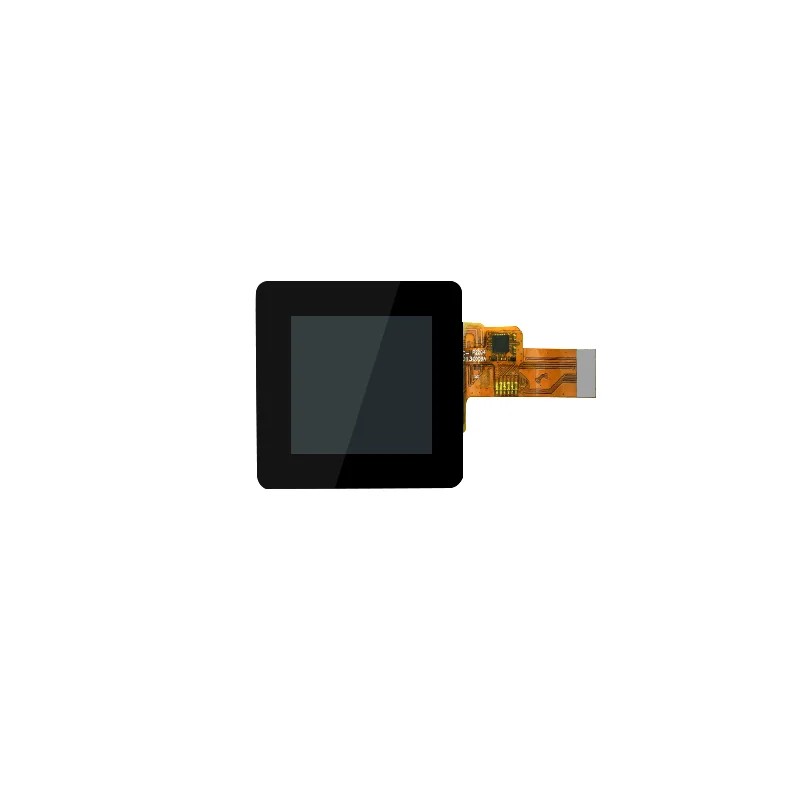

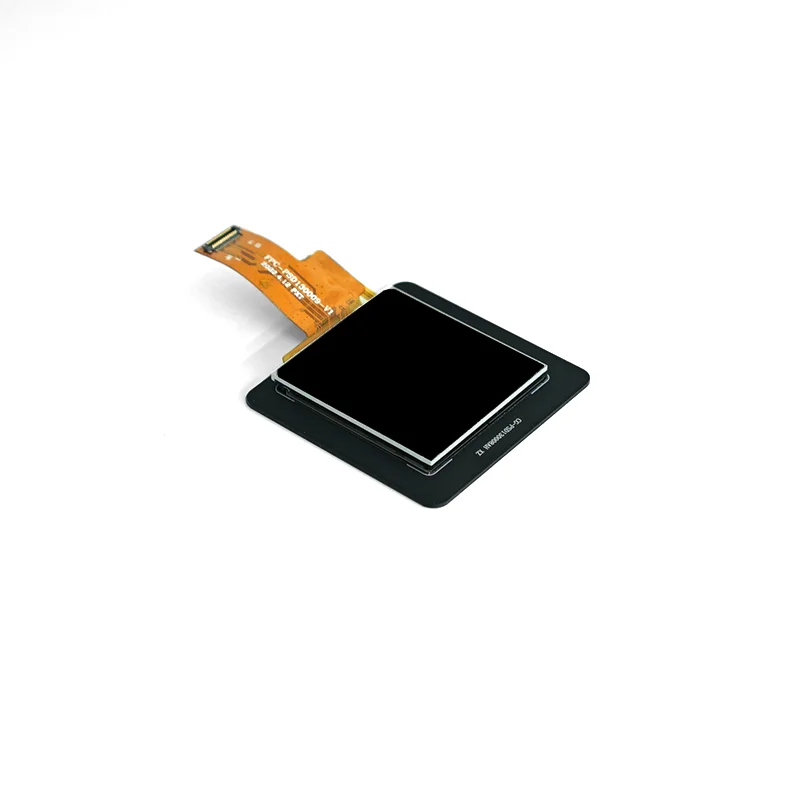

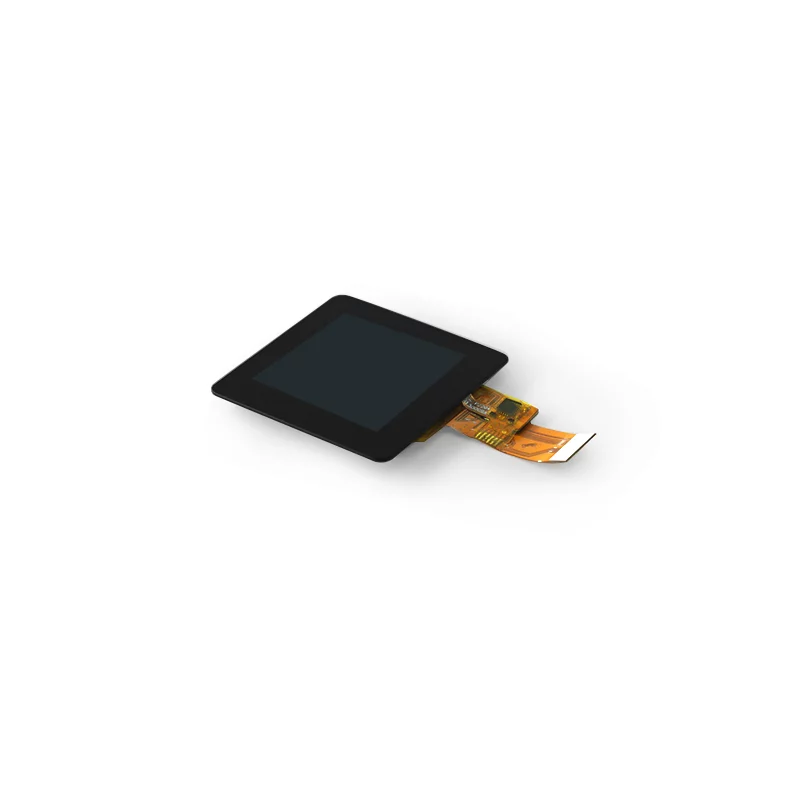

RV013Z1P-300-26 is a small size square 1.3 inch LCD display panel, the interface and brightness acceptable for customized, It is a transmissive type display operating in the normal white. This TFT-LCD has a 1.3 inch diagonally measured active area with QVGA resolutions (240 horizontal by 240 vertical pixel array).
How can we do for LCD panel customized?
Custom LCD module size, include
- Different size of lcd module and lcd module frame
- View angle: IPS/TN
- LCD module brightness
- Capacitive touch screen panel or no touch
Custom PFC & Backlight
- Frame materials: metal, plastic
- FPC shape
- Interface: MIPI, LVDS, MCU, RGB, EDP, and so on
- Pins
Custom CTP
- Single touch, multi-touch
- In-cell, on-cell
- G+G, G+F, +G+FF, GGG

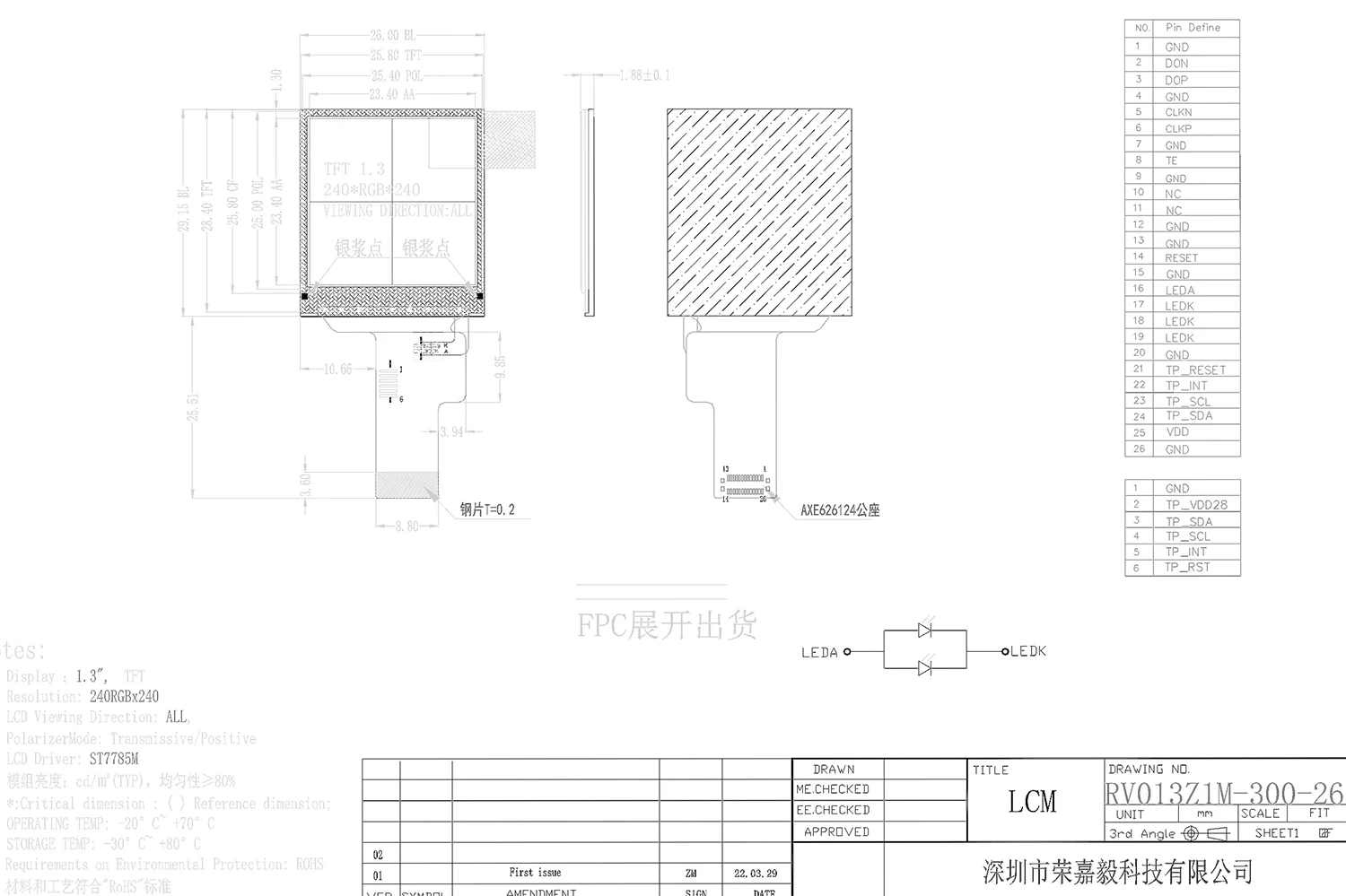

| Model | RV013Z1P-300-26 |
| Size | 1.3 inch TFT LCD touch screen panel |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 240(R,G,B)*240 |
| Input Data | MIPI |
| View Angle | ALL O”clock |
| IC Driver | ST7785M |
| Display Colors | 16.7 M |
| Module Size | 26(W)×29.15(L)×1.88(T) |
| CPT Size | 36(W)×36(L)×3.01(T) |
| Active Area | 23.4(W) ×23.4(L) |
| Pixel Size | 0.0975×0.0975 |
| Operating Temperature | -20 to +70 ℃ |
| Storage Temperature | -30 to +80 ℃ |
| LCM Luminance | 300 cd/m² |
FAQ
Q1: What the advantage of your company?
A1: We are a high-tech manufacturer, which provide one-stop LCD solution, in the technology side, We pursue the continuous update and development of LCD technology, and have obtained a number of technology patent-certificates.
We offer OEM, ODM, welcome to discuss any new item with us.
Q2: What is the products application?
A2: The products can be widely applied to the fields of HMI, Handheld Terminals, Medical Equipment, Instruments and Apparatus, Smart Home Equipment, Shopping Machine, Vehicle Display and AOI, etc.
Q3:How long of the deliver time?
A5: Our stocks are mainly raw materials or semi-finished(LCD module), usually after payment, we will send it within 3 days, if you need custom and buy large quantity, the delivery time about 4-7 weeks after you confirm the sample.
Q4: What kind of packaging? The transport process will not be damaged?
A7: Sample package with PP bag and carton box, Bulk production package with PP bag +Foam + Carton box + Wooden frame, all packages are protected by outer box and strapping to ensure the safety of material transportation.
MORE LCD TOUCH SCREEN PANEL HERE
 |  |  |

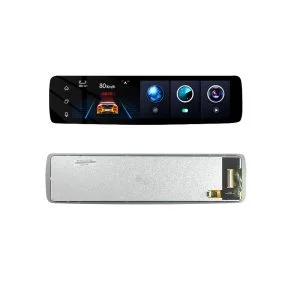

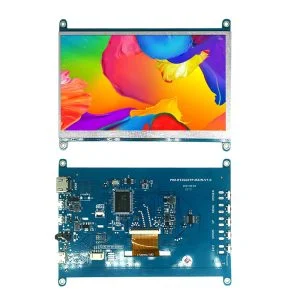

| 2.8 inch Round Touch Panel | 10.1 inch Car LCD Touch Display | 7 inch Raspberry Pi Touch Screen |
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
