Model RV101LBP-480-40
RJOYTEK Head-up Car LCD Display Instrument Cluster Multimedia Digital Dashboard 10.1 inch LCD Panel
Key specifications
- Size
- 10.1 inch Speedometer Digital LCD Cluster Instrument Panel
- Resolution
- 440*1920
- Brightness
- 550nit
- Interface
- MIPI
- Touch
- with touch
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description

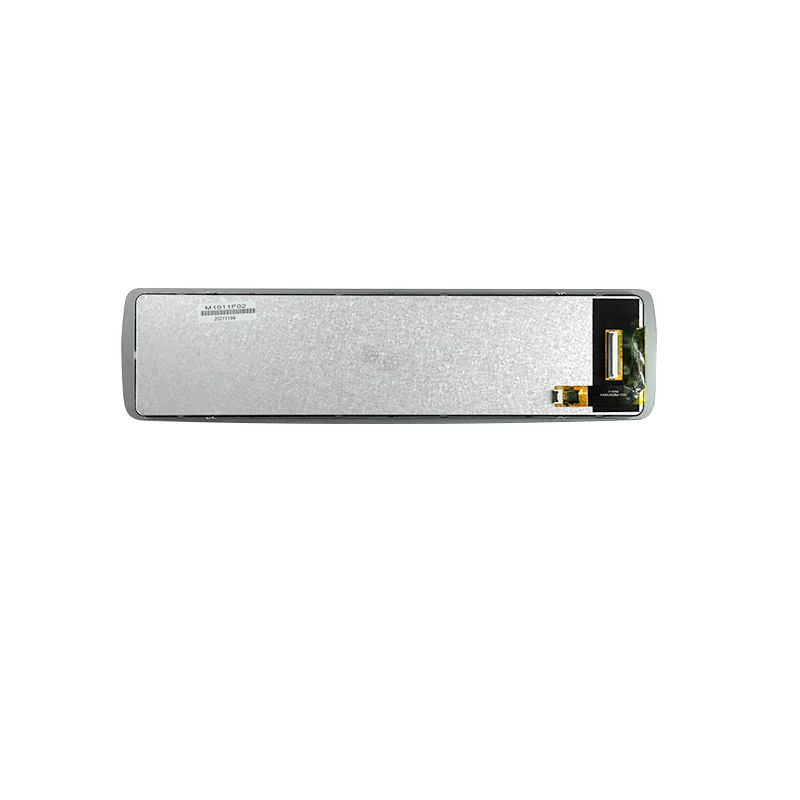

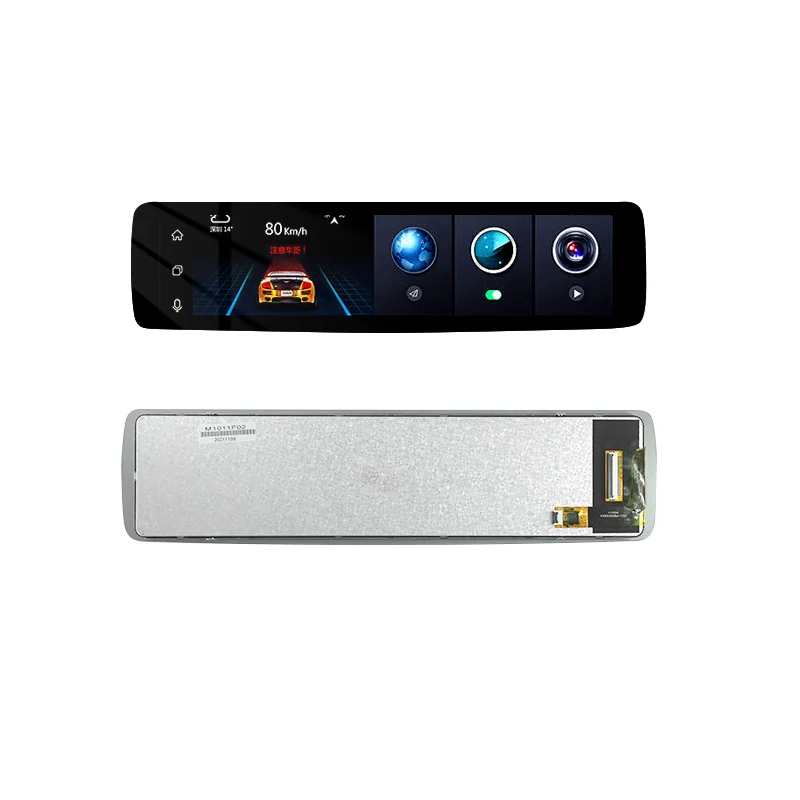

RV101LBP-480-40 is a car dashboard display, it is also a TFT-LCD display. Usually automotive speedometer digital Cluster Instrument used.
With 10.1 inch 440*1920, MIPI interface TFT LCD display, 40pin with capacitive touch.

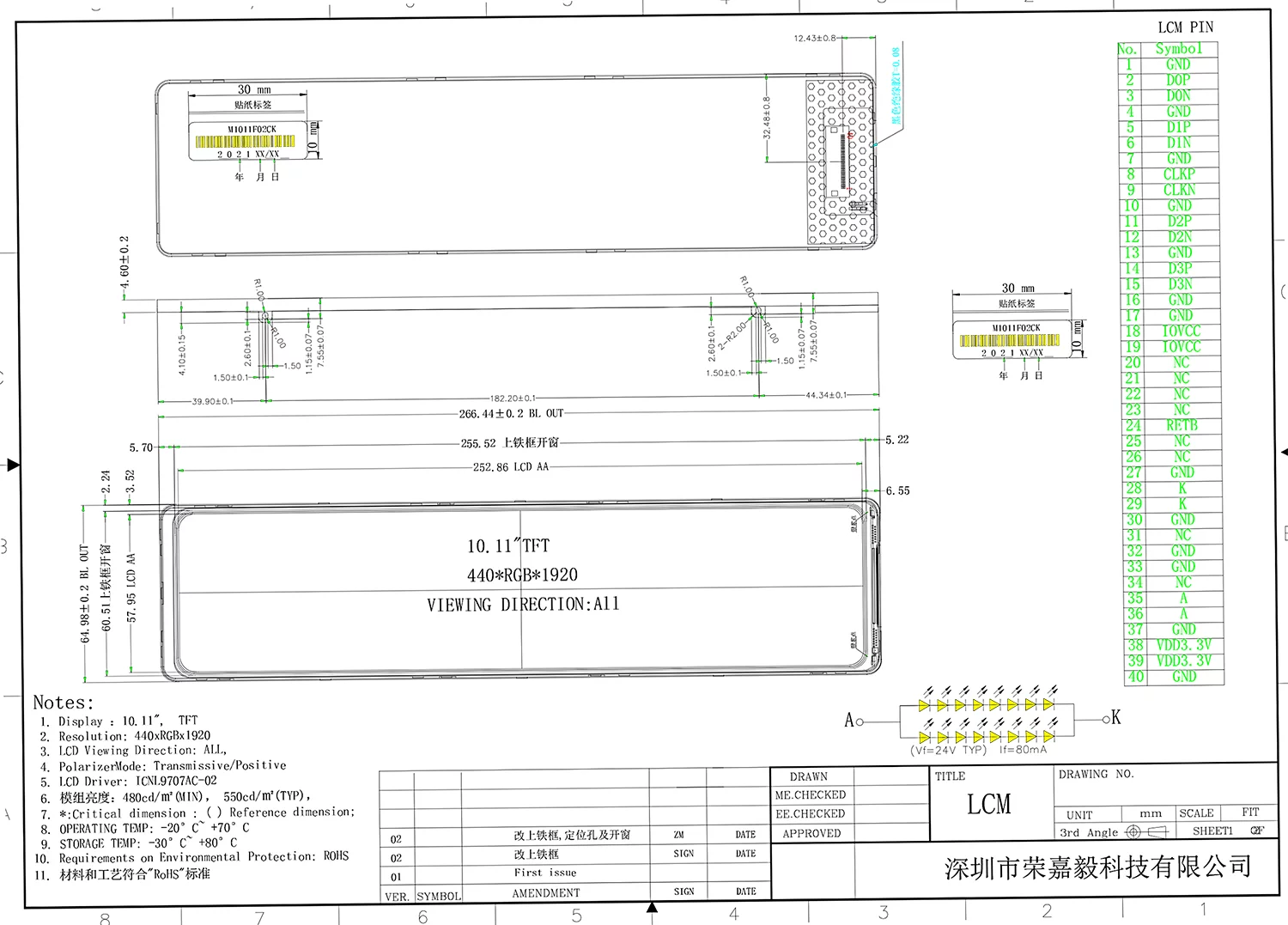

| Model | RV101LBP-480-40 |
| Size | 10.1 inch TFT LCD Panel for car |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 440(R,G,B)*1920 |
| Input Data | MIPI |
| View Angle | ALL O”clock |
| IC Driver | ICN9707 |
| Display Colors | 16.7M |
| Module Size | 267(W)×64.8(L)×4.1(T) |
| Active Area | 252.86(W) ×57.95(L) |
| Pixel Size | 0.047*0.141 |
| Operating Temperature | -20 to +80 |
| Storage Temperature | -30 to +80 |
| LCM Luminance | 480 |
| Touch | with touch |
MORE AUTOMOTIVE LCD DISPLAY YOU COULD CHECK AS BELOW:
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
