Model RV028Z6M-400-40
2.8 inch Round LCD Display – 480*480 IPS TFT LCD Module, Touch Screen
Key specifications
- Brightness (cd/m²)
- 400
- Interface
- RGB
- Resolution
- 480×480
- Size(inch)
- 2.8
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description

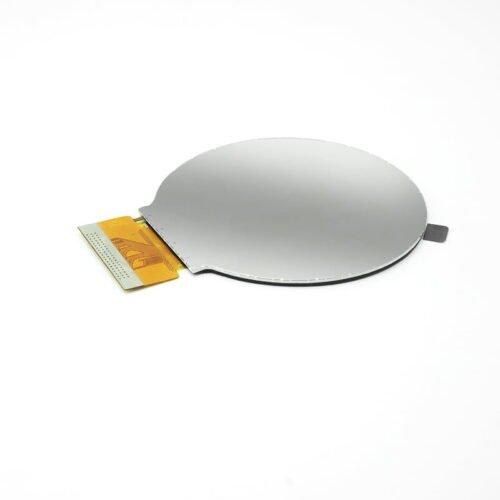

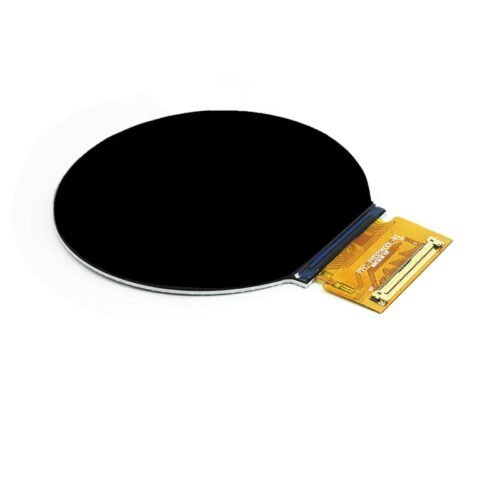

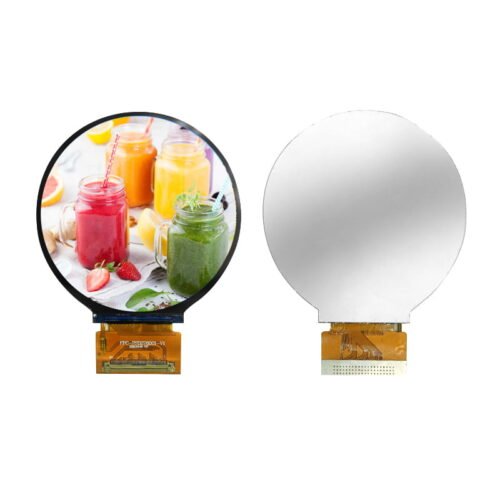

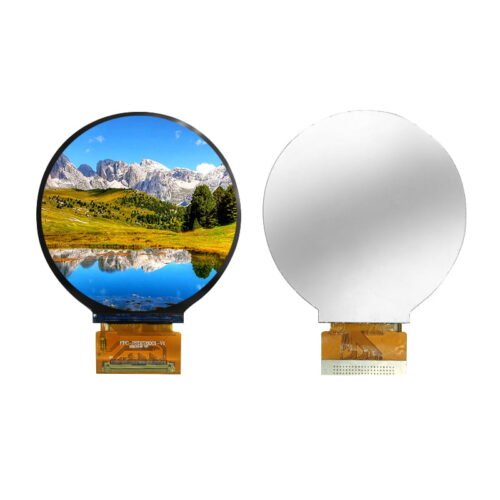

RJOYTEK 2.8 inch Round 480*480 IPS TFT LCD Module Touch Screen, this 2.8 inch round lcd screen with touch, and 400nit brightness.
RV028Z6M-400-40 is a small circular TFT LCD panel, this round 2.8 inch LCD display with touch, and it is RGB interface with 40pin, application for coffee machine or microwave oven.
|
|  |  |
| 2.1 inch tft lcd module | 2.5 inch round tft lcd module | 12.3 inch bar type tft lcd display |
2. Technical Specifications
| Model | RV028Z6M-400-40 |
| Size | 2.8 inch round tft lcd display panel |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 480(R,G,B)*480 |
| Input Data | RGB-24 |
| View Angle | ALL O”clock |
| IC Driver | ST7701S |
| Display Colors | 16.7M |
| Module Size | 73.33(W)×76.82(L)×2.2(T) |
| Active Area | 70.13(W) ×70.13(L) |
| Pixel Size | 0.1461×0.1461 |
| Operating Temperature | -20 to +70 |
| Storage Temperature | -30 to +80 |
| LCM Luminance | 400 cd/m² |
3. Structure
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
