Multi-sized Round TFT LCD Display Module
Rjoytek provide the wide range 1.3″ to 5″ small round TFT color LCD display, LCD touch screen module, wide temperature…
Round LCD Display
Model RV040YGP-300-40
4-Inch Round Touch TFT LCD Display – 720*720 Resolution, 300 cd/m² Brightness, RGB Interface
Key specifications
- Size(inch)
- 4.0
- Resolution
- 720×720
- Brightness (cd/m²)
- 300
- Interface
- RGB
- Viewing Angle
- All
- Wide Temperature
- No
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.

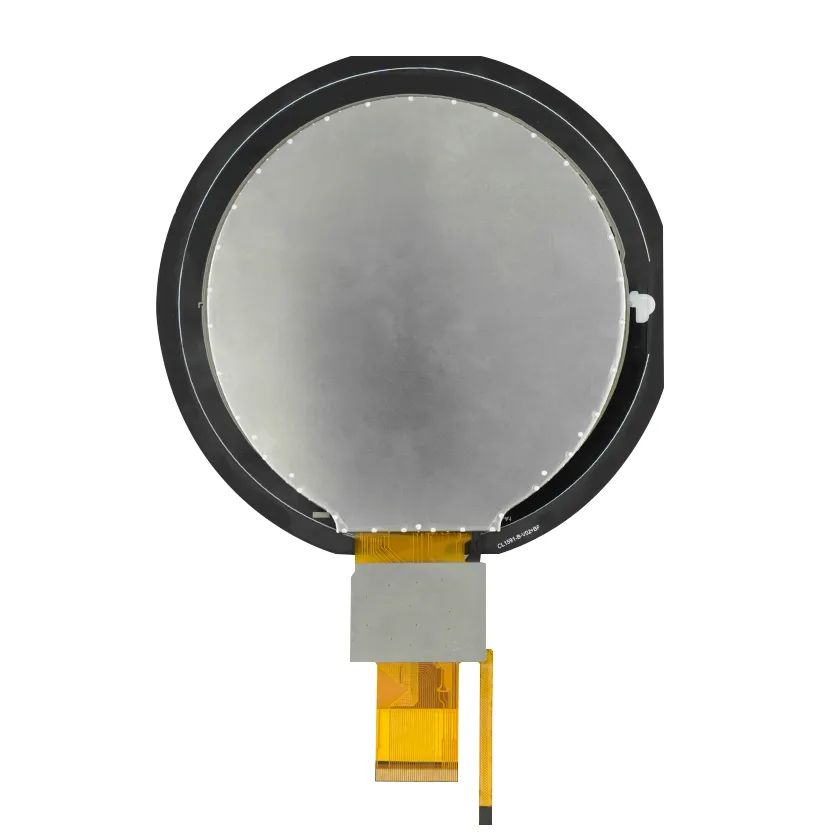

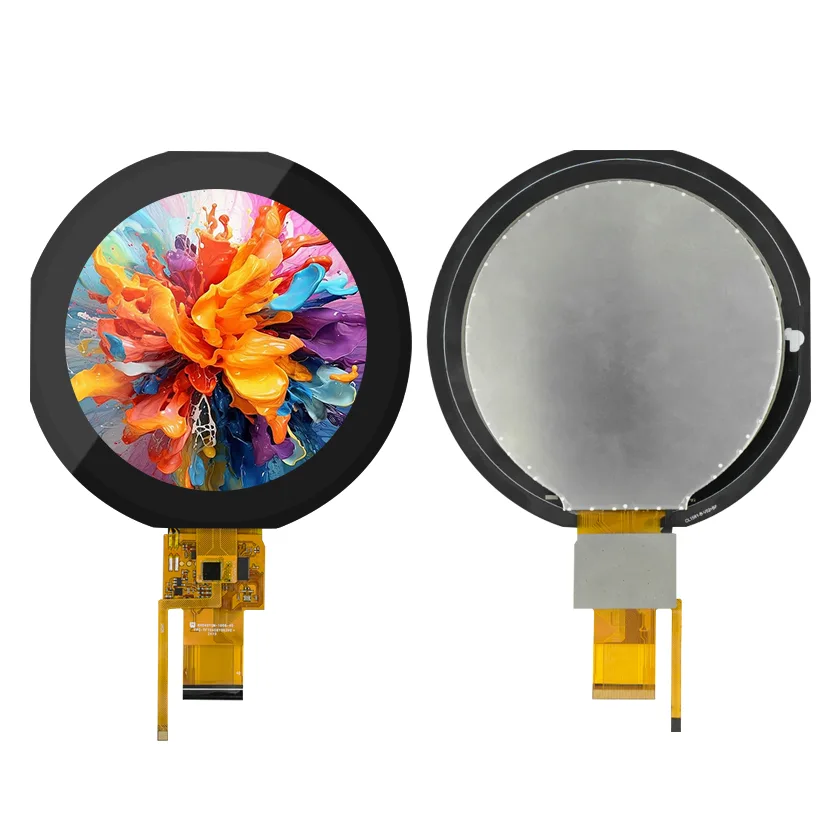

1. Product Description
The RV040YGP-300-40 is a high-quality 4.0-inch capacitive touch display, designed to deliver excellent visual clarity and responsiveness. With a 720×720 pixel resolution and 16.7 million colors, this display ensures sharp images and vibrant color reproduction. The combination of G+G capacitive touch technology and a 300 cd/m² luminance makes this module ideal for a wide range of applications.
High-Resolution Display: The 720×720 pixel resolution offers clear, detailed visuals, ideal for devices that require high image quality.
Capacitive Touch: Featuring G+G capacitive touch technology, the display offers responsive, multi-touch functionality, providing a smooth user experience for applications like smartphones, wearables, and interactive devices.
High Brightness: With a typical brightness of 300 cd/m², this display offers clear visibility in moderate to well-lit environments, making it suitable for various indoor applications.
Compact and Lightweight: The display’s small form factor, with a module size of 105.6(W) x 109.87(L) x 2.13(T) mm, allows for integration into compact electronic devices.
2. Technical Specifications
Item | Contents | Unit |
LCD Size | 4.0 | inch |
Touch Type | G+G Capacitive Touch | |
Luminance(cd/m2) | 300(TYP) | Cd/m2 |
Display Normally | White Mode | |
Resolution | 720(RGB)x720 | pixels |
Pixel | 0.18(H) x 0.18(V) | mm |
Active | 101.52(W) ×101.52(L) | mm |
Module size | 105.6(W) ×109.87(L) ×2.13(T) | mm |
Module+CTP size | 128.75(W) ×126.75(L) ×5.75(T) | mm |
Pixel arrangement | RGB Vertical stripe | |
Display Colors | 16.7M | |
Interface | RGB | |
DriveIC | FL7707 | |
Touch | CST3240 |

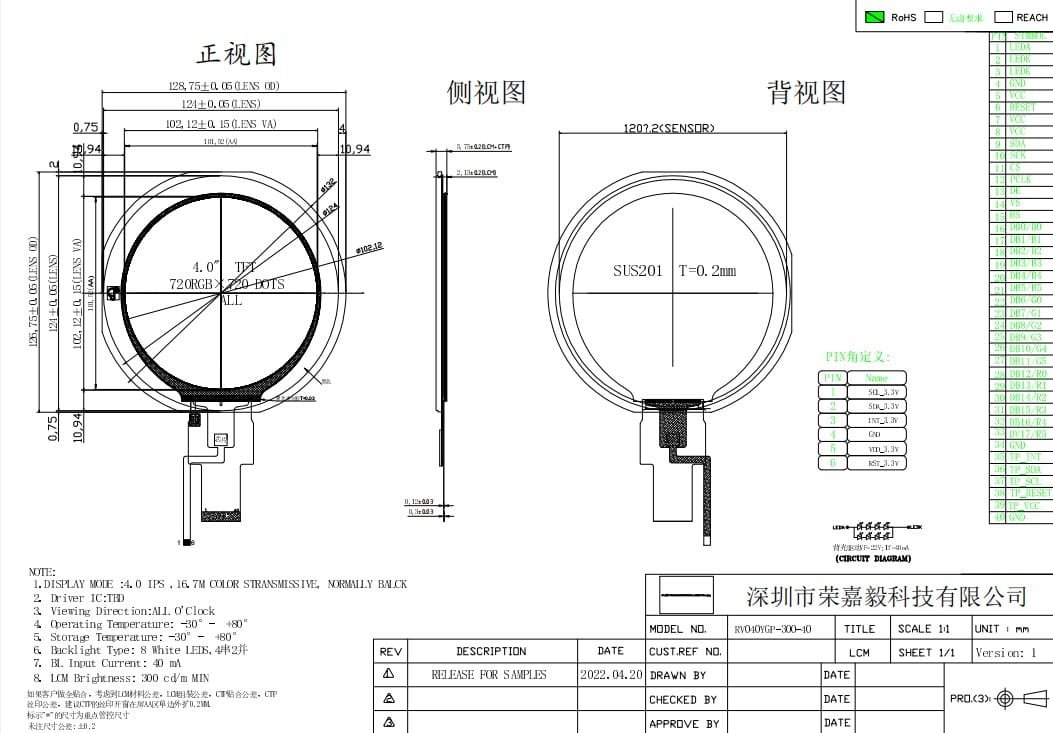

3. Structure
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
