Model RV028Z6P-400-40-V2

2.8-Inch Round TFT LCD Display, 480×480 Resolution, High-Brightness, RGB+SPI Interface

  • High Resolution and Vibrant Colors
    Delivers a sharp 480×480 resolution and supports 16.7M colors, ensuring crisp and vivid display performance.
  • Wide Viewing Angle
    Equipped with an ALL O’clock viewing angle, offering consistent image quality from any perspective.
  • Robust Environmental Adaptability
    Operates reliably within a wide temperature range of -20°C to +70°C and stores safely between -30°C and +80°C, making it ideal for diverse applications.
  • High Brightness and Compact Design
    Features 400 cd/m² luminance and a compact size of 73.33mm × 76.82mm × 2.2mm, perfect for portable and space-sensitive devices.
Contact for availability
View specifications

Share your interface, touch, brightness and volume requirements for an engineering fit review.

01Interface review
02Touch integration
03Controller support
04Lifecycle coordination

Product overview

Engineered for application fit

RV028Z6P-400-40-V2 is designed to deliver exceptional performance for a wide range of applications. With its high resolution of 480×480 and support for 16.7M colors, it provides sharp, vibrant, and accurate visuals. Featuring an ALL O’clock wide viewing angle, this display ensures consistent image quality from any perspective, making it ideal for devices that require excellent visibility.

Engineered for reliability, the module operates effectively within a broad temperature range (-20°C to +70°C) and can be stored in environments ranging from -30°C to +80°C. The display’s 400 cd/m² brightness ensures excellent visibility, even in challenging lighting conditions. Compact in size at 73.33mm × 76.82mm × 2.2mm, it is perfect for space-sensitive applications where performance cannot be compromised.

Whether used in industrial equipment, consumer electronics, or embedded systems, this TFT LCD display combines durability, flexibility, and outstanding visual performance, making it a versatile solution for demanding projects.

Technical data

Specifications

ItemContentsUnit
LCD TypeAM TFT, Transmissive, Negative--
Display Format480 (R, G, B) × 480 Dots--
Input DataRGB + SPI--
View AngleALL O’clock--
IC DriverST7701S--
Display Colors16.7M--
Module Size73.33 (W) × 76.82 (L) × 2.2 (T)mm
Active Area70.13 (W) × 70.13 (L)mm
Pixel Size0.1461 × 0.1461mm
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
LCM Luminance400cd/m²
WeightTBDg

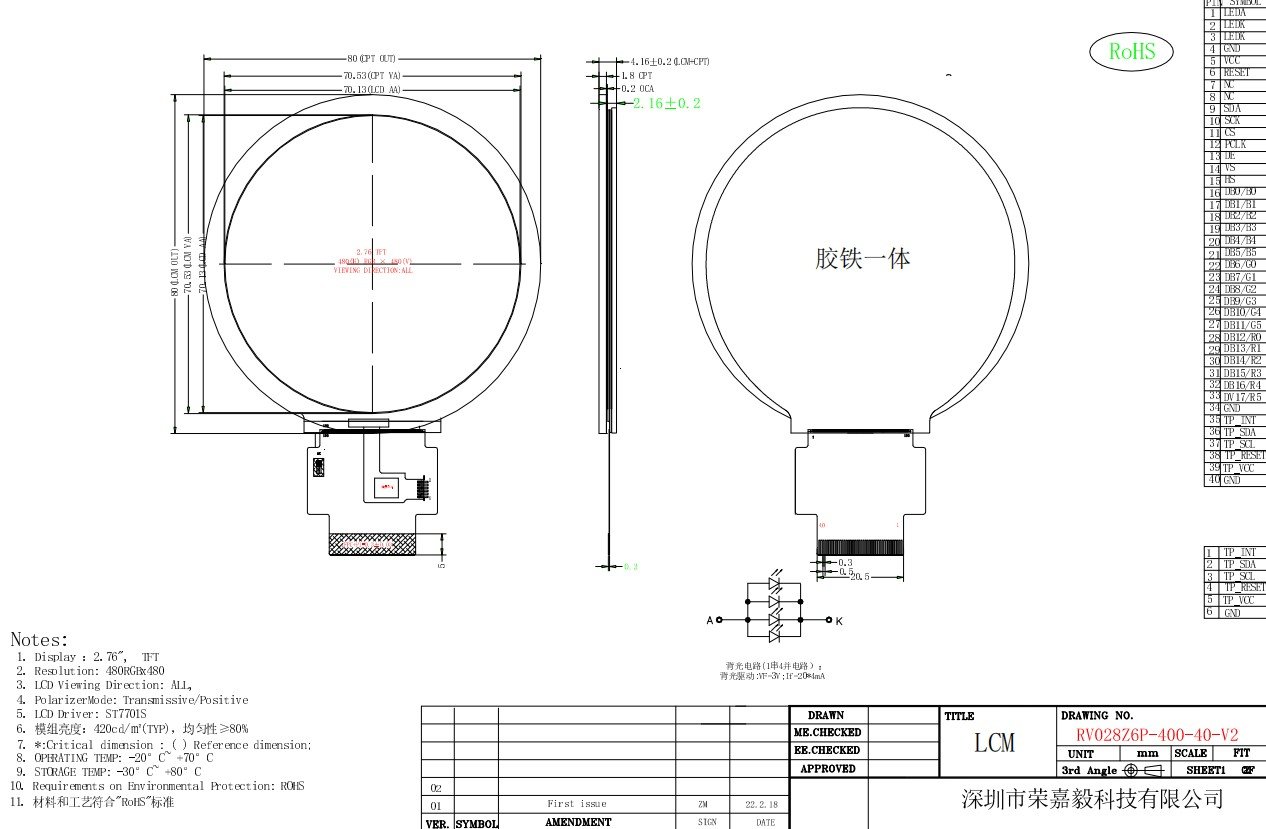

Mechanical reference

Structure

Project adaptation

Customization options

Adapt an existing display platform to the electrical, optical and mechanical needs of your product.

  • Interface and FPC adaptation
  • Brightness and backlight
  • Touch and cover glass
  • Controller board support
  • Mechanical coordination

Engineering FAQ

Questions before evaluation

Can touch and cover glass be customized?

Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.

Can RJY provide a controller board?

Controller support can be evaluated with your host interface, timing and software requirements.

What is required for a quotation?

Provide the application, target specification, operating environment, sample quantity and annual volume.
