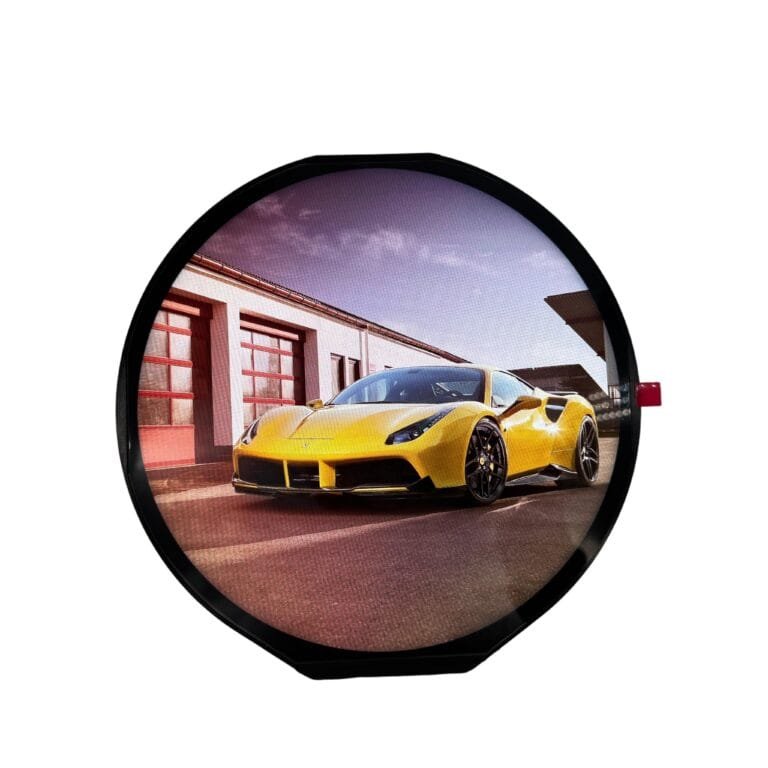

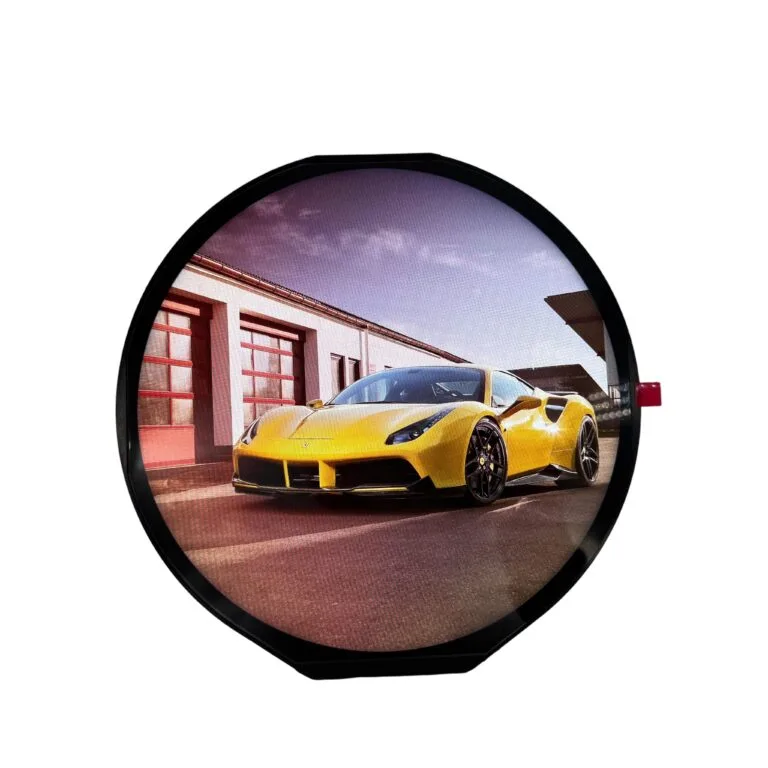

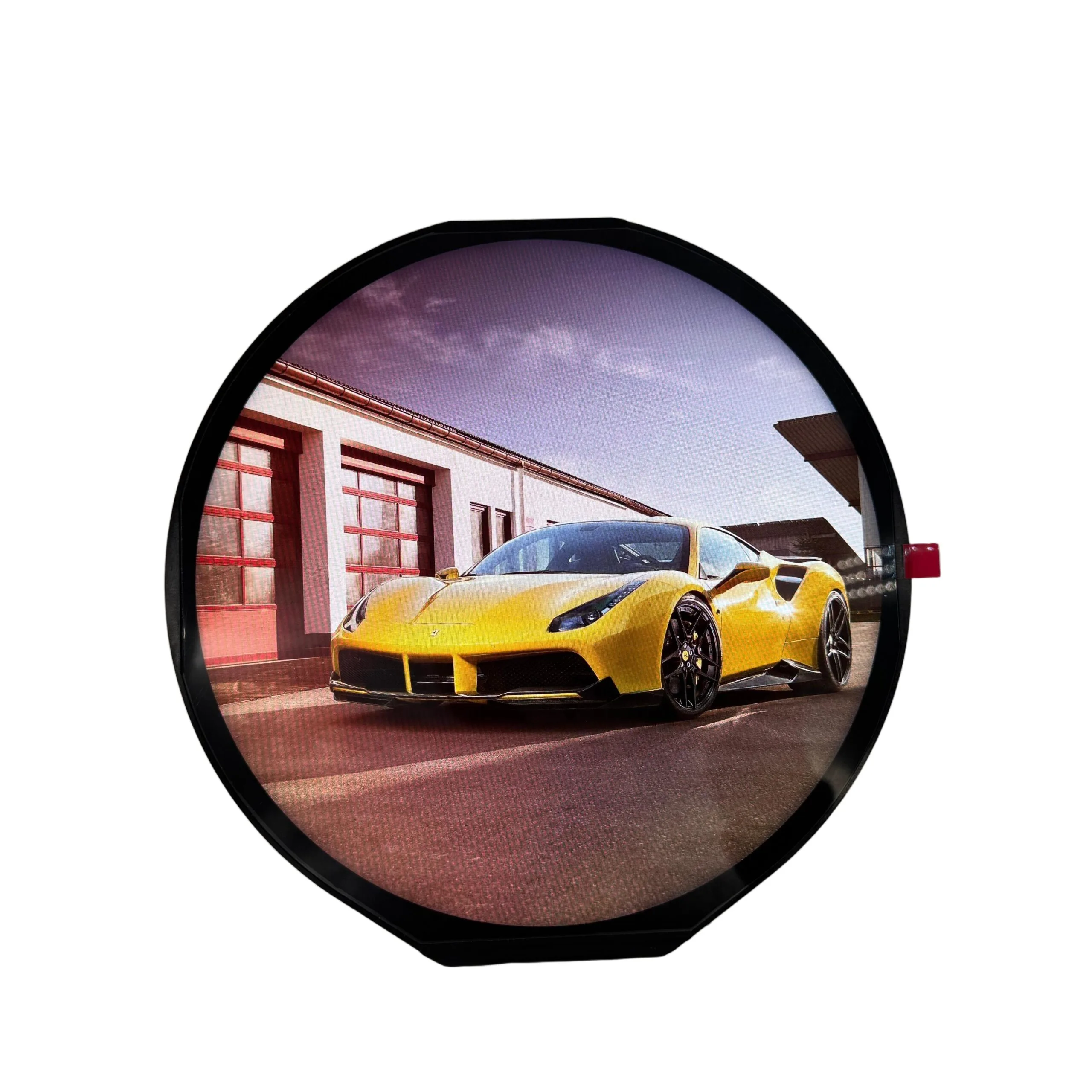

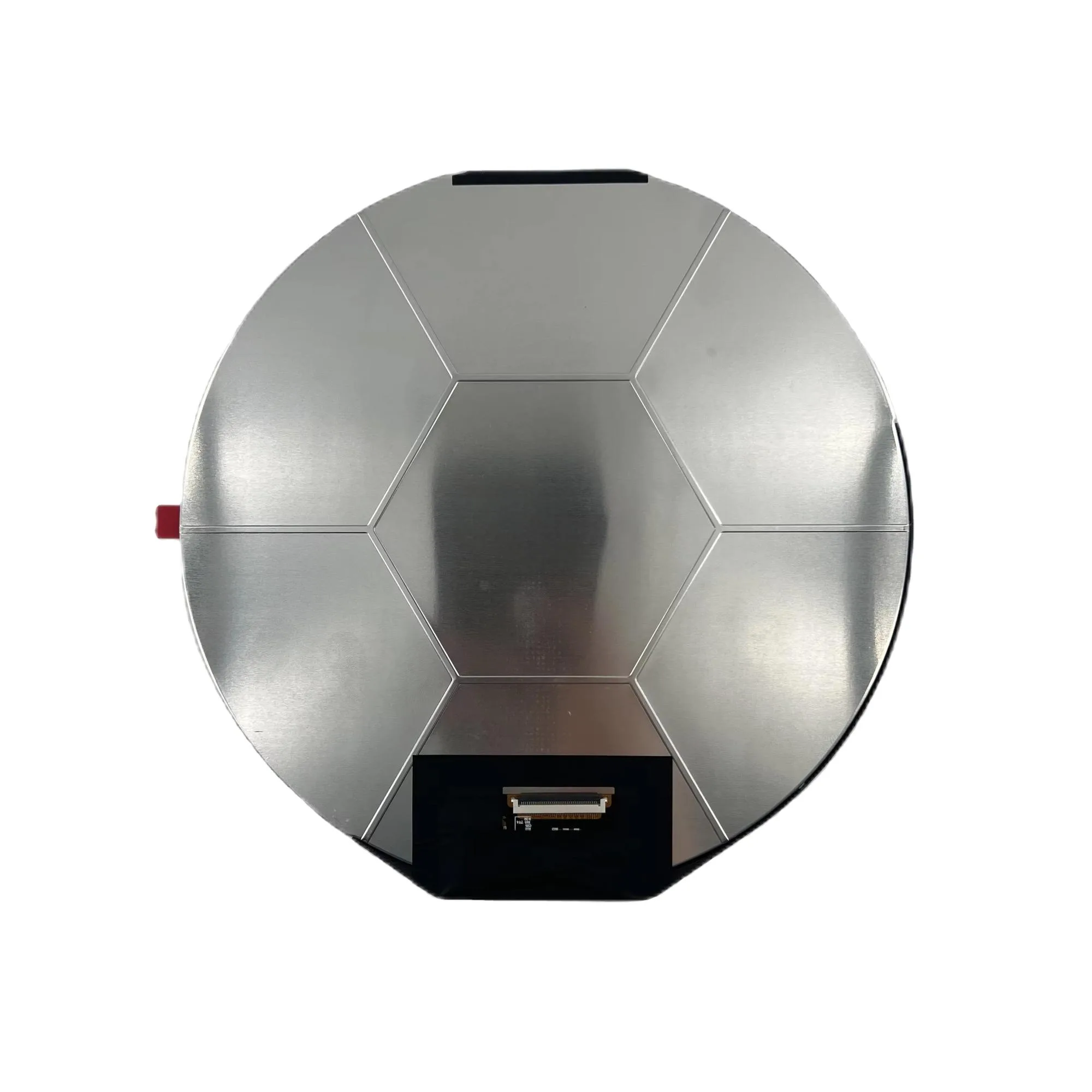

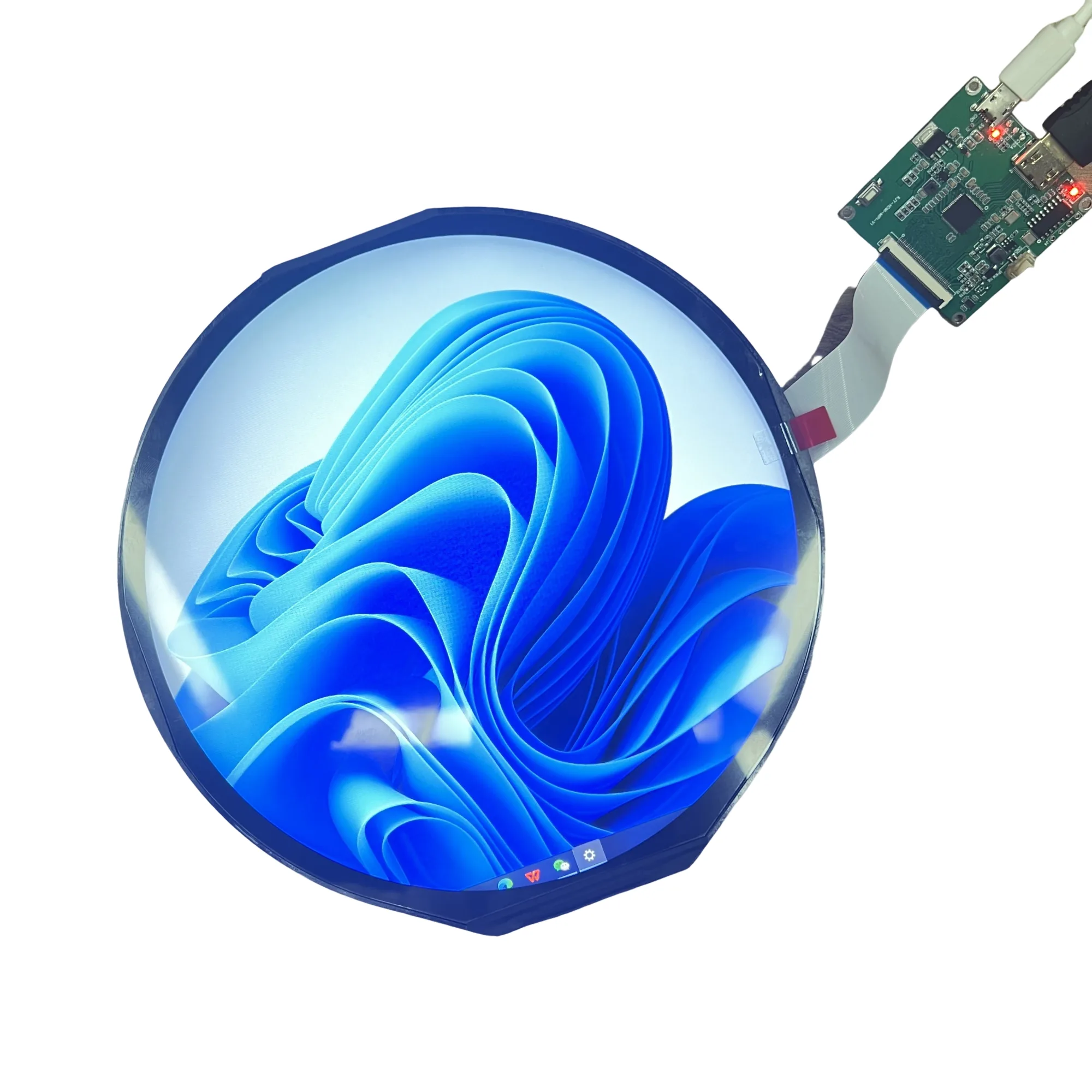

7-Inch Round TFT LCD Display, 1080×1080 Resolution, High-Brightness, LVDS Interface

The RJY070XUAY-800-40 is a high-performance 7-inch IPS TFT LCD display, offering exceptional clarity and vibrant color reproduction. With a resolution of 1080×1080 pixels, this display is ideal for a variety of applications that demand high-quality visuals.

• IPS Panel: The use of IPS (In-Plane Switching) technology ensures wide viewing angles, making the display easily readable from any direction, which is essential for interactive devices and applications where multiple users may be viewing the screen simultaneously.

• High Resolution and Color Depth: The 1080×1080 pixel resolution and 16.7 million colors ensure sharp, detailed images and accurate color reproduction, perfect for applications that require high visual fidelity.

• Brightness and Clarity: With a luminance of 800 cd/m², the display ensures clear readability even in environments with high ambient light, such as outdoor or brightly lit industrial applications.

• Wide Temperature Range: This display module operates efficiently within the temperature range of -20°C to +70°C, making it suitable for use in challenging environments, including outdoor displays, industrial settings, and automotive applications.

• NTSC Color Gamut: The 70% NTSC color gamut delivers vibrant and rich colors, enhancing the display’s performance in graphic-intensive applications.
