Model RJY080XUAY-340-40

8-Inch Round LCD Display – High Resolution 1080*1080, MIPI Interface

Contact for availability
View specifications

Share your interface, touch, brightness and volume requirements for an engineering fit review.

01Interface review
02Touch integration
03Controller support
04Lifecycle coordination

Product overview

Engineered for application fit

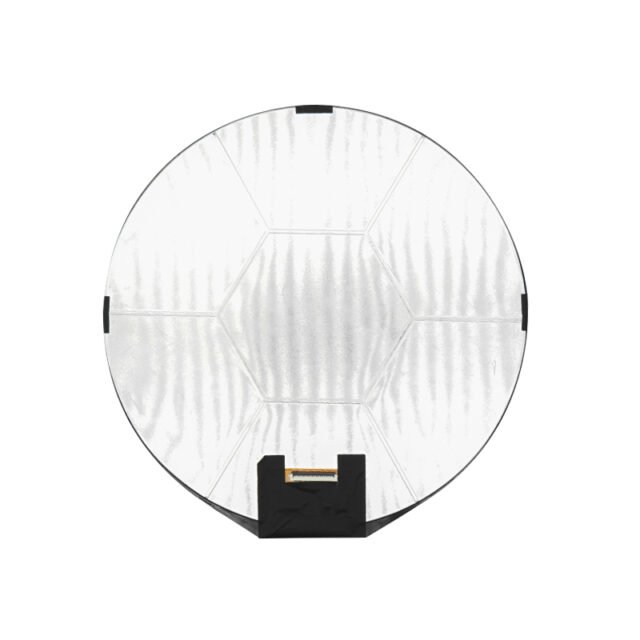

Circular Design with Generous Viewing Area

The display features an outline size of 219.3mm (H) × 224.02mm (V) × 4.0mm (T), offering a generous active display area of 208.1mm × 208.1mm. Its 8-inch round form factor stands out from traditional rectangular screens, enabling product designers to create innovative and visually striking user interfaces.


Full HD Resolution for Crystal-Clear Detail

With 1080(H) × 3(RGB) × 1080(V) pixels and a fine pixel pitch of 192.6µm, this display delivers true Full HD clarity in a circular format. The RGB stripe pixel arrangement ensures accurate color reproduction, supporting an impressive 16.7 million colors for rich, lifelike visuals.


High Contrast and Wide Viewing Angles

Built with a Normally Black display mode, the panel achieves a typical contrast ratio of 1000:1, producing deep blacks and vivid colors. Its 85°/85°/85°/85° viewing angle performance ensures content remains sharp and consistent from any perspective — ideal for dashboard displays, instrumentation panels, and public information systems.


Smooth Visual Performance

With a maximum response time of 35ms, the display offers smooth rendering for animations, UI transitions, and moderate video playback. Its free gray inversion viewing direction ensures uniform image quality without distortion or color shifting.


Seamless MIPI Interface Connectivity

The panel is equipped with a MIPI interface and powered by the FT8006S-AA driver IC, ensuring high-speed data transmission with low power consumption. This makes it compatible with a wide range of modern embedded systems and SoCs.


Balanced Brightness for Indoor and Semi-Outdoor Use

Delivering a luminance of 300 cd/m², the display is well-suited for indoor and semi-outdoor environments, providing clear visibility without excessive power drain. The surface treatment is NA, allowing integrators to apply their preferred cover glass or anti-glare coatings as needed.


Target Applications

The 8-inch round TFT display is an excellent choice for:

  • Automotive digital instrument clusters

  • Marine navigation and control systems

  • Industrial control interfaces

  • Medical diagnostic equipment

  • High-end consumer electronics

  • Public information kiosks and smart devices


Availability

The new 8-inch round TFT LCD display is now available for sampling and mass production orders. Our engineering team provides full technical documentation, integration support, and customization services to help customers bring their product concepts to life.

Technical data

Specifications

Model
RJY080XUAY-340-40
Item
Specification
Unit
LCD Size
8.0
inch
Resolution
1080*1080
Pixel
Display Mode
Normally Black
LCD Size
8 inch
Panel Type
IPS
Number of Colors
16.7M
Viewing Direction
ALL
NTSC
70%
Luminance
800
cd/m2
Module Size
219.3(H) x 224.02(V) x 4.0(T)
mm
Panel Active Area
208.1(H) ×208.1(V)
mm
Pixel Pitch
0.1644x0.1644
mm
Interface type
MIPI
Driver IC
TBD
Operating Temperature
-20~+70
℃
Storage Temperature
-30~+80
℃

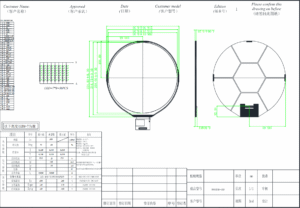

Mechanical reference

Structure

Project adaptation

Customization options

Adapt an existing display platform to the electrical, optical and mechanical needs of your product.

  • Interface and FPC adaptation
  • Brightness and backlight
  • Touch and cover glass
  • Controller board support
  • Mechanical coordination

Engineering FAQ

Questions before evaluation

Can touch and cover glass be customized?

Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.

Can RJY provide a controller board?

Controller support can be evaluated with your host interface, timing and software requirements.

What is required for a quotation?

Provide the application, target specification, operating environment, sample quantity and annual volume.
