3.4-inch Round LCD Display – 800*800 Resolution
3.4 inch circular tft lcd module
- Resolution: 800*800
- Interface: MIPI
- Drive IC: JD9365DA
- Color: 16.7M
- Pin connect: 20pin
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit

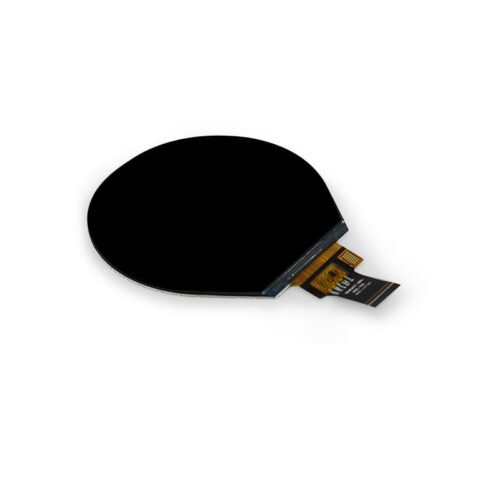

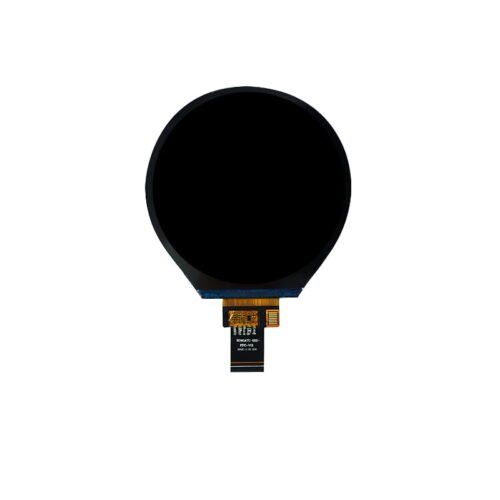

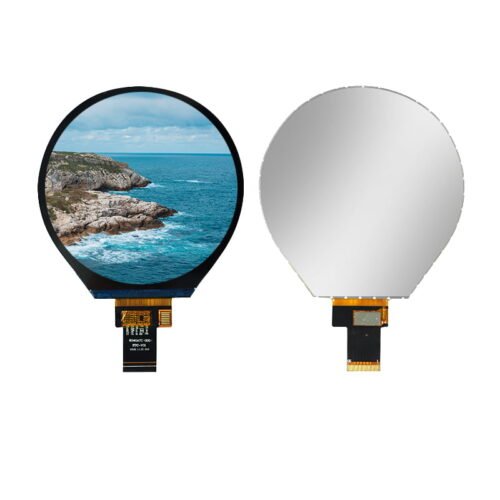

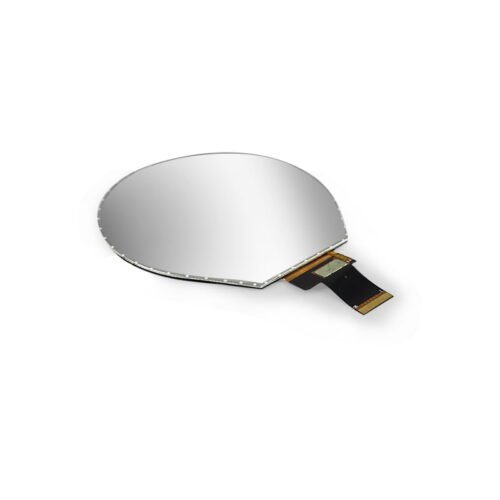

RV034L6M-650-30 is a round TFT display LCD module, with 800(RGB)x800 pixels, 4 Lane MIPI interface, with JD9365DA driver IC. This circular LCD screen could be widely used in many applications that need a round screen, such as in smart home control, an audio device with a full-color screen panel, and a car speedometer that needs a round display.
This circular display panel is without touch, but touch will add according to your requirements, G+G, G+F, G+FF or any requirement, you could tell us.
It has a wide temperature for storage and Operating, supporting the control screen that needs a high or low-temperature environment.
Luminance could customize, the typ is 650nit with this lcd panel, if you need sunlight-readable high brightness, please tell us the specifications you need.
Check company and certificates please click here-CERTIFICATES
Check 1.3″-10.1″ TFT LCD display here-1.3″-10.1″ lcd display
Check 10.2″-24″ TFT display here-10.2″-24″ tft display
Check automotive LCD display here-LCD screen for car
More details feel free to contact us!
Technical data
Specifications
| Model | RV034L6M-650-30 |
| LCD type | TFT TRANSMISSVIE |
| Size | 3.4 inch round lcd display module |
| Dot arrangement | 800*3(R.G.B)*800 |
| Module size (W*H*T) | 95.20*97.20*2.13 (mm) |
| Viewing area (W*H) | 94.60*92.60 (mm) |
| Active area (W*H) | 87.60*87.60 (mm) |
| Pixel size (W*H) | 0.1095*0.1095 |
| Backlight Type | LED(white 8*LED) |
| Drive IC | JD9365DA |
| Interface Type | 4 Lane MIPI（Video Mode ） |
| Operating temperature | -30-85 ˚C |
| Storage temperature | -40-90 ˚C |
| Humidity | 90%(Max60˚C) |
| Power Voltage | VDD (-0.3-4.6v), VDDIO(-0.3-4.6v) |
Mechanical reference
Structure
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
