TFT LCD Display Module
Model RV020QVM-300-12
2 inch LCD Module 320*240 TFT Display
Key specifications
- Size
- 2 inch lcd module
- Resolution
- 320*240
- Brightness
- 300nit
- Interface
- SPI
- IC Driver
- ILI9342
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
RV020QVM-300-12 is a small size 2.0 inch TFT LCD display with 320*240 resolution, the 2-inch 320×240 TFT LCD module features a Serial Peripheral Interface (SPI) interface, which allows for seamless connectivity with a wide range of microcontrollers and embedded systems.
This Driver IC is ILI9642, view angle is all O”clock IPS LCD nodule.
More small TFT LCD panel such as 1.3 inch, 1.96 inch or 2.5 inch, 2.4 inch, 2.1 inch or 2.8 inch LCD display panel you need, please send us inquiry.
| Model | RV020QVM-300-12 |
| Size | 2.0 inch TFT LCD Module |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 320(R,G,B)*240 |
| Input Data | SPI |
| View Angle | ALL O”clock |
| IC Driver | ILI9342 |
| Display Colors | 16.7 M |

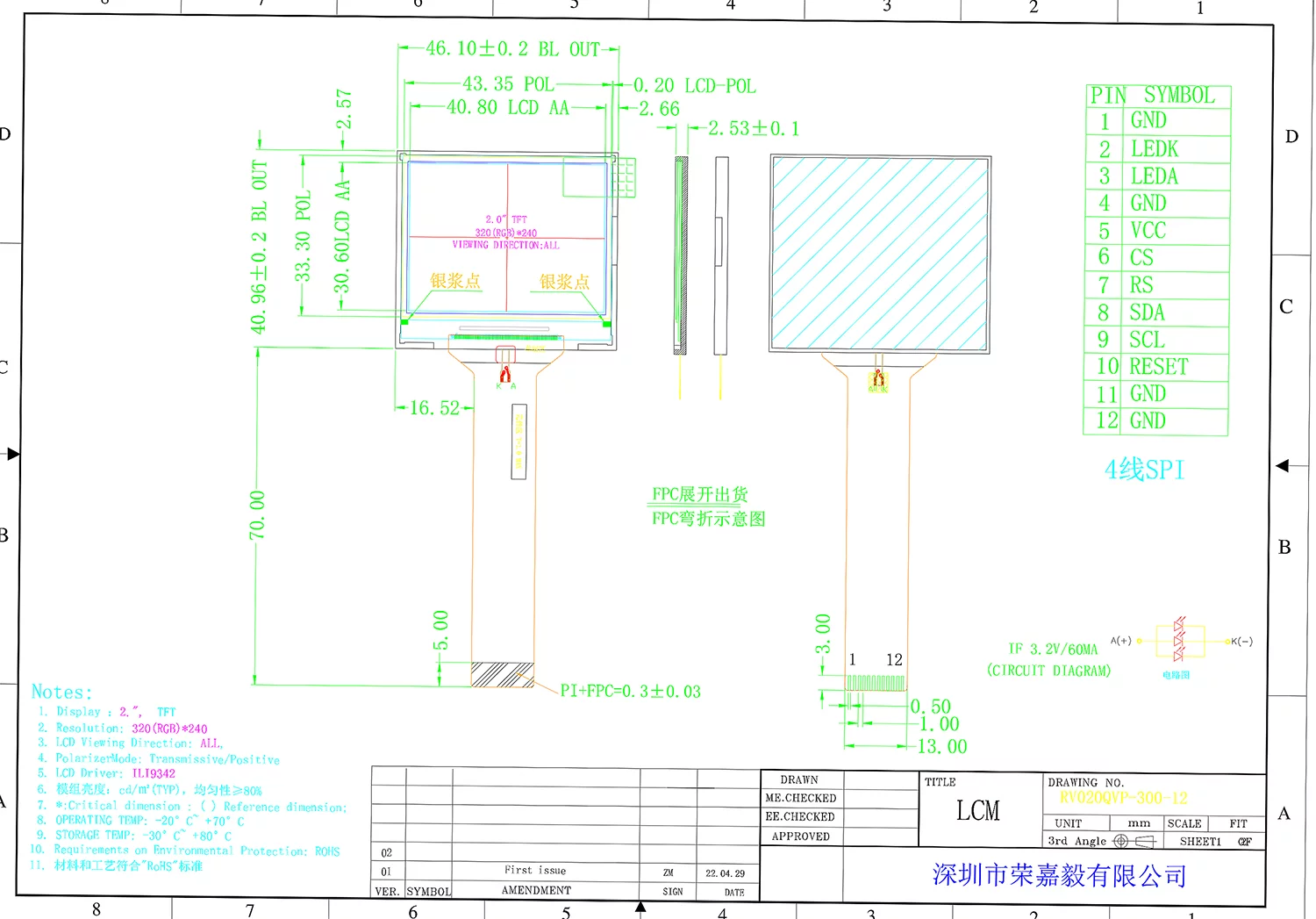

| Module Size | 46.1(W)×40.96(L)×2.53(T) |
| Active Area | 40.8(W) ×30.6(L) |
| Pixel Size | 0.0975×0.0975 |
| Operating Temperature | -20 to +60 ℃ |
| Storage Temperature | -30 to +70 ℃ |
| LCM Luminance | 300 cd/m² |
Specifications Download here
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
