Capacitive Touch Panel, TFT LCD Display Module

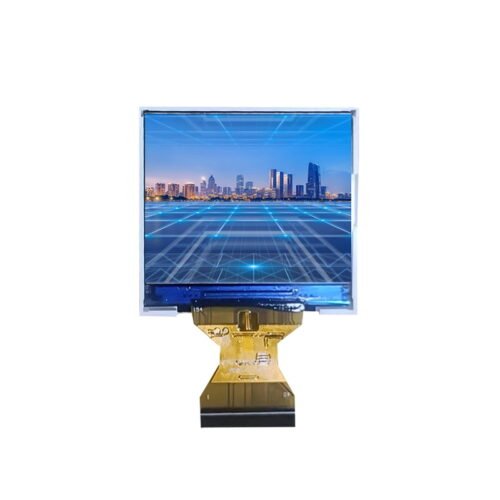

Model PSD200-292-SPEC
RJOYTEK 2 inch Capacitive Touch Screen 320*240 SPI LCD Touch Display Panel
Key specifications
- Size
- 2 inch tft lcd display
- Resolution
- 320*240
- Touch
- Capacitive touch
- Interface
- 3spi+6bit-RGB
- Brightness
- 270 cd/m2
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description

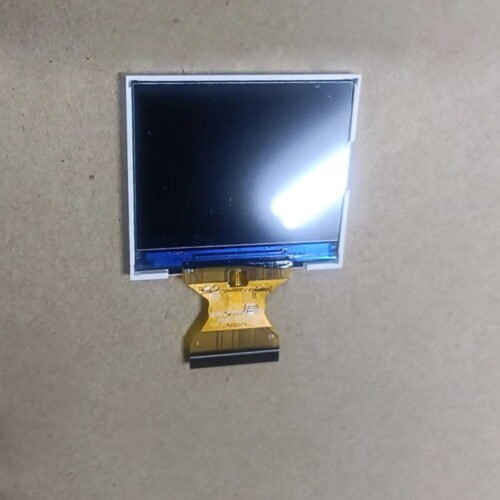

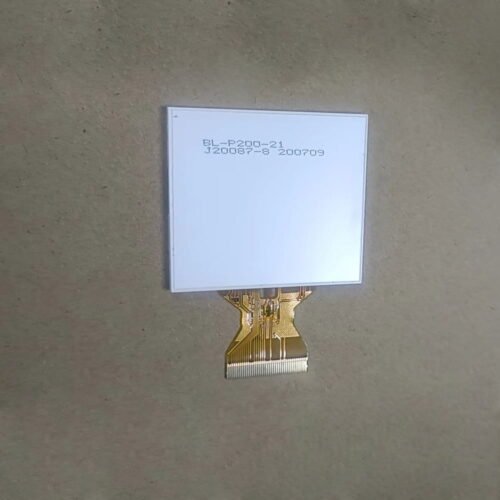

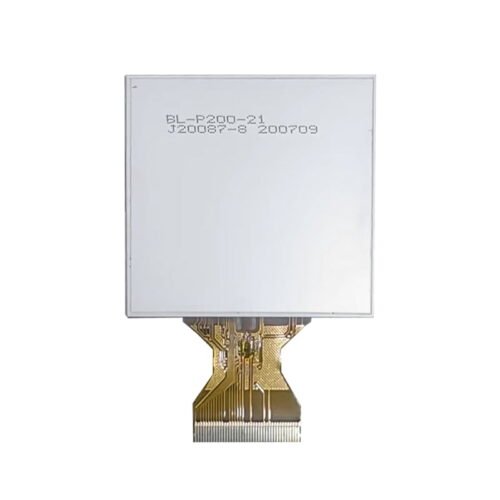

This 2 inch TFT LCD is a 320×240 resolution color TFT module display with GC9308 driver IC.
Here you could choose different type of 2 inch, we have RGB and SPI interfaces, 40pin and 12pin to you, Interface customized is acceptable, we also provide you with HDMI board, you could check our one-stop LCD solution in our website, more details, welcome to contact us.
| Model | PSD200-292-SPEC |
| Size | 2 inch touch screen |
| Number of Pixels | 320(H) x 240(V) |

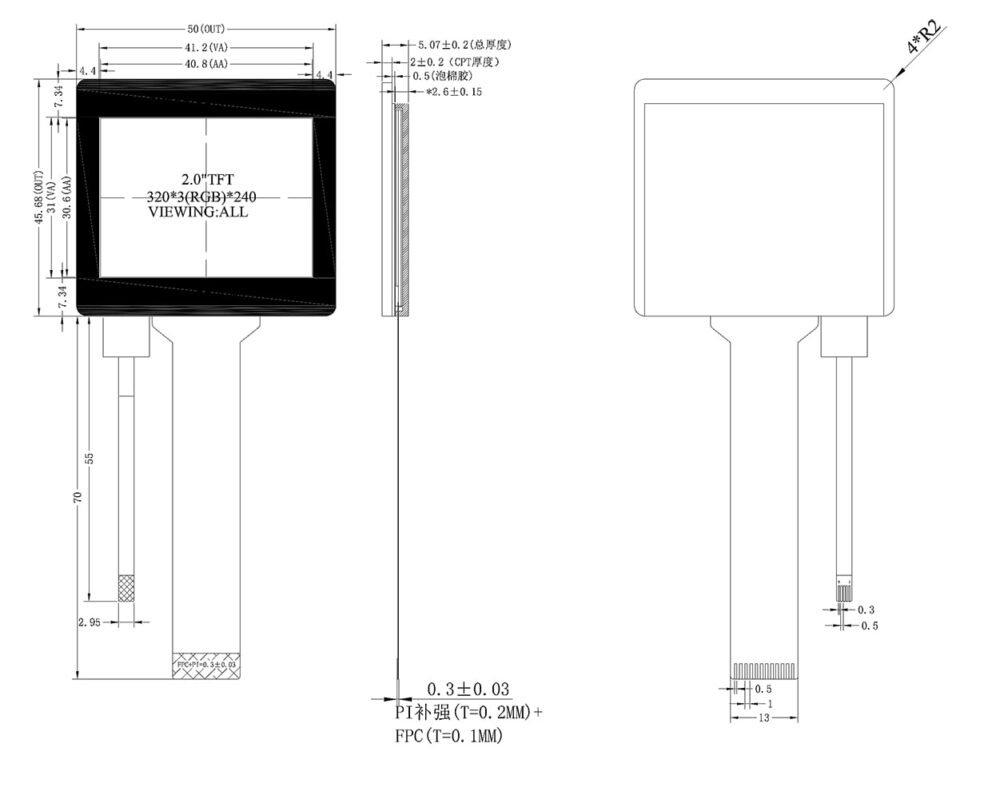

| Active Area | 40.80(H) x30.60(V) |
| LCM | 46.10(H)x40.96(V)x2.6(T) |
| LCD Type | TFT |
| View angle | 80/80/80/80 |
| Interface | 3spi+6bit-RGB |
| Operating Temperature | -20℃ ~70℃ |
| Storage temperature | -30℃ ~80℃ |
| IC | GC9308 |
| Brightness | 270 cd/m2 |
More Products here:
| Size | Model | Resolution | Interface | Active area | Storage temperature |
| 1.96″ round | WS020ZVM-N30-6KP0 | 640*572 | MIPI | 49.728(H) x 44.364(V) | -30℃~80℃ |
| 2.1″ round | RV021Z6P-400-40 | 480*480 | MIPI | 53.28*53.28 | -30℃~80℃ |
| 2.2″ | RV022WVM-TBD-39 | 480*800 | MIPI | 28.8*48 | -30℃~70℃ |
| 2.23″ | RV023L8M-650-31 | 200*480 | MIPI | 21.72*52.42 | -30℃~80℃ |
| 2.3″ | RV023L7M-TBD-40 | 480*360 | MIPI/RGB | 47.23*35.1 | -40℃~85℃ |
| 2.4″ | RV024QVM-300-10 | 240*320 | SPI | 48.96*36.72 | -30℃~80℃ |
| 2.41″ | RV024VGM-420-40 | 480*640 | RGB | 36.72*48.96 | -30℃~80℃ |
| 2.6″ | RV026L1M-300-30 | 640*360 | MIPI | 57.6*32.4 | -30℃~80℃ |
| 2.6″ | RV026LOP-300-12 | 320*240 | SPI | 52.8*39.6 | -30℃~80℃ |
| 2.8″ round | RV028Z6M-400-40 | 480*480 | RGB | 70.13*70.13 | -30℃~80℃ |
| 2.95″ | RV030FWP-350-30 | 480*854 | RGB/MIPI | 36.72* 65.28 | -30℃~70℃ |
 |  |  |
| 1.54 inch 240*240 LCD Module | Sunlight Readable 4700nit LCD Display | 5 inch 1080*1920 TFT LCD Panel 2800nit |
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
