TFT LCD Display Module

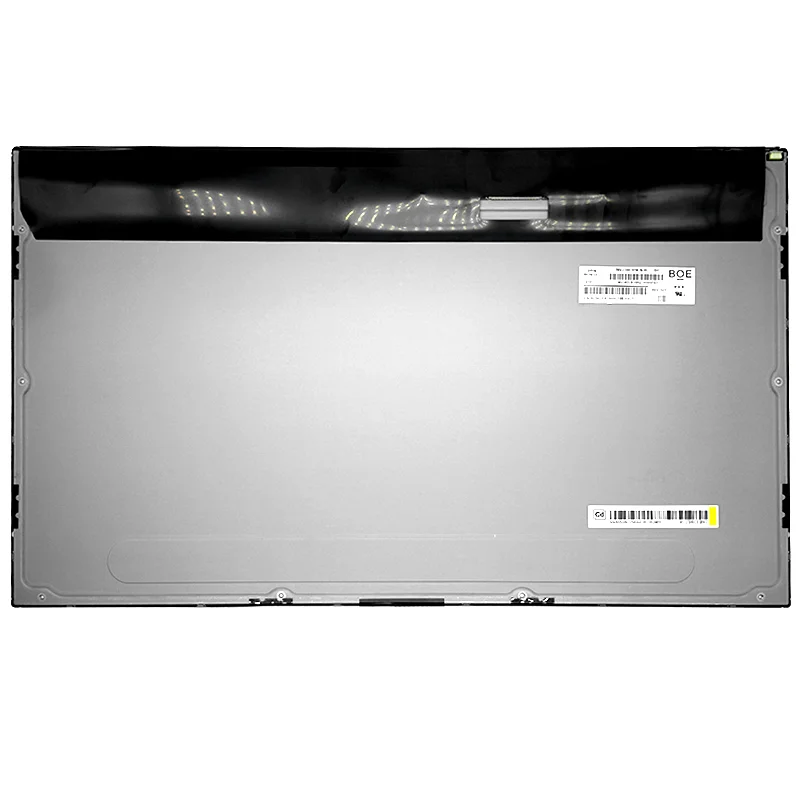

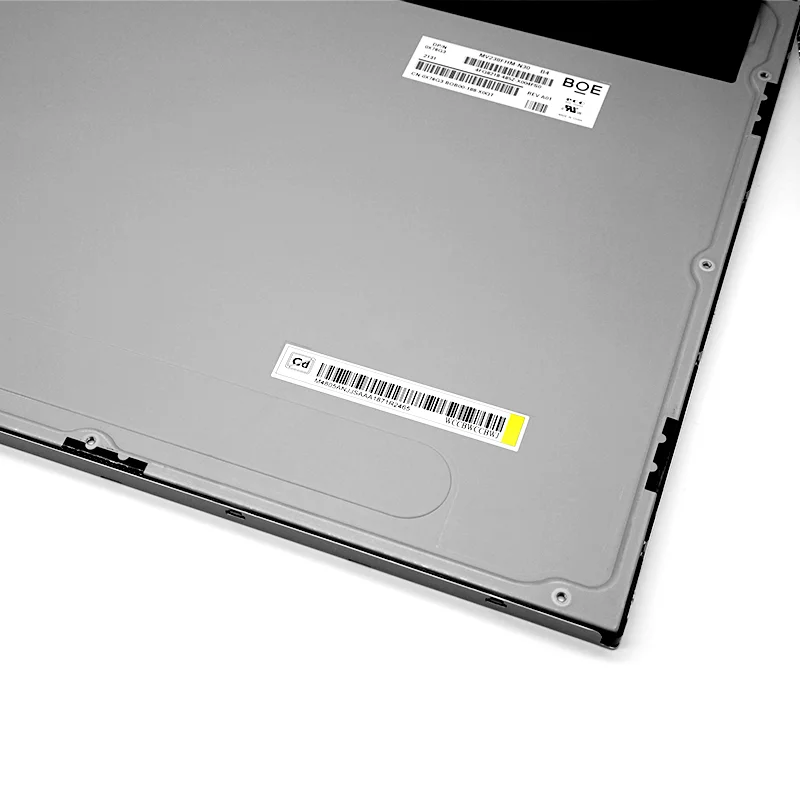

Model MV238FHM-N30
23.8-inch IPS LCD Display – 1920*1080 30pin LVDS interface TFT LCD Display Module
Key specifications
- Size
- 23.8 inch tft lcd module
- Resolution
- 1920*1080
- Interface
- LVDS
- Luminance
- 250 (Typ.)
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
This specification applies to the 23.8 inch- wide Color a-Si TFT-LCD Module. The display supports the FHD – 1920(H) x 1080(V) screen format and 16.7M colors (8-bit RGB data input). The input interface is Dual channel LVDS and this module doesn’t contain an driver board for backlight.
| Model | MV238FHM-N30 |
| Size | 23.8 inch tft lcd module |
| Active Area | 527.04(H) x 296.46(V) |
| Resolution | 1920*1080 |
| Pixel Pitch | 274.5(per one triad)×274.5 |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| White Luminance | 250 (Typ.) |
| Contrast Ratio | 3000(Typ.) |
| Outline Dimension | 543.0(H) x 317.4(V) x 11.2(D) (Typ.) |
| Electrical Interface | Dual channel LVDS,8-bits RGB data input |
| Support Color | 16.7M colors |
| Surface Treatment | SAG 40%, 3H |
| Operating Temperature | 0 to +50 |
| Storage Temperature | -20 to +60 |
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
