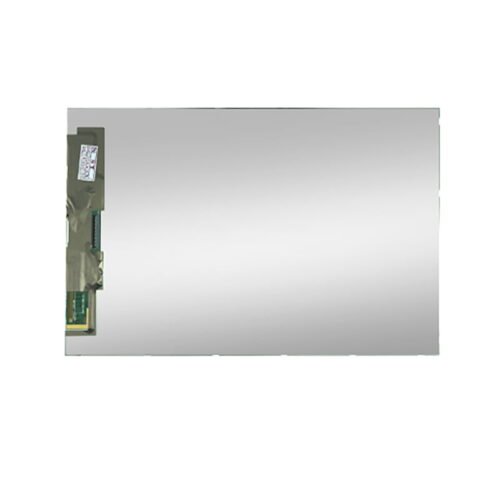

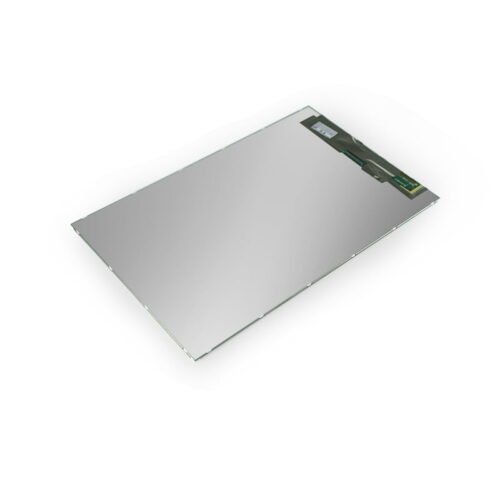

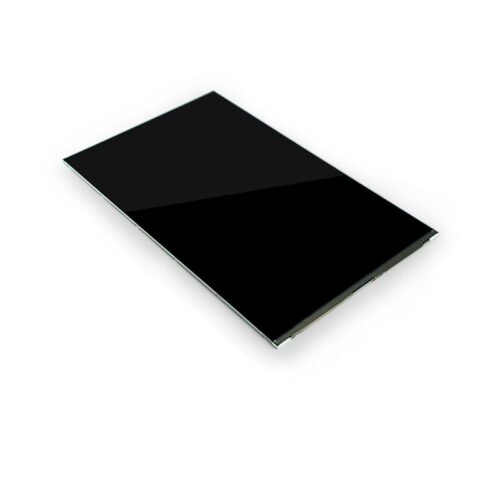

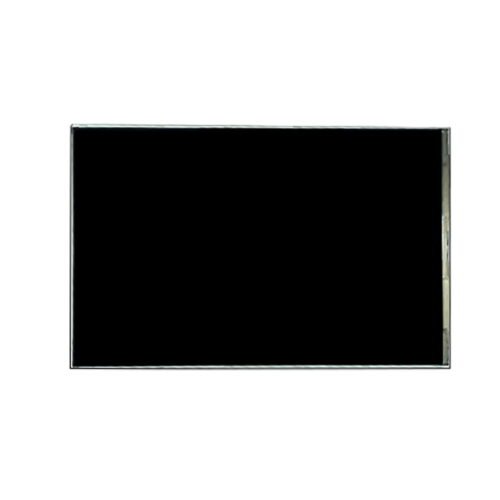

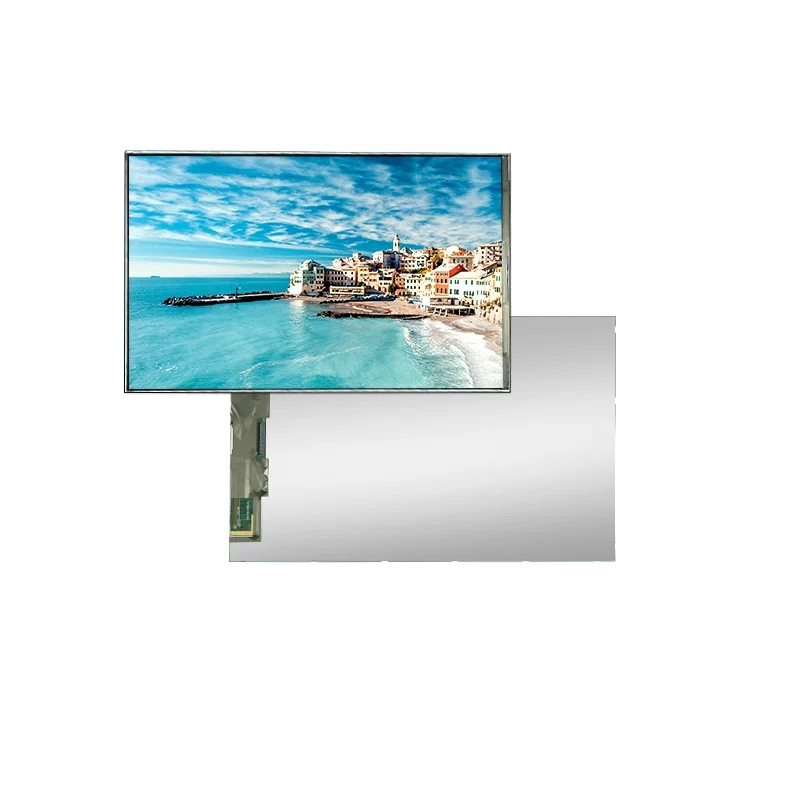

10.1 inch LCD Module 1200*1920 TFT LCD Screen
10.1 inch LCD Module 1200*1920 TFT LCD Screen - Image 2
10.1 inch LCD Module 1200*1920 TFT LCD Screen - Image 3
10.1 inch LCD Module 1200*1920 TFT LCD Screen - Image 4
10.1 inch LCD Module 1200*1920 TFT LCD Screen - Image 5
Model TV101WUM-NS0

10.1 inch LCD Module 1200*1920 TFT LCD Screen

Features

  • 4 Lane MIPI Interface;
  • 8-bit color depth, display 16.7M colors
  • Interface: MIPI
  • Resolution: 1200*1920
  • Storage Temperature: -55-125 ℃
  • Color Gamut: 70.8%(Typ.)

Support

  • With HDMI board
  • Custom touch panel
  • Custom brightness
  • Custom LCD control board
  • Get all-in-one LCD display
Contact for availability
View specifications

Share your interface, touch, brightness and volume requirements for an engineering fit review.

01Interface review
02Touch integration
03Controller support
04Lifecycle coordination

Product overview

Engineered for application fit

TV101WUM-NS0 is a color TFT LCD module using Thin Film Transistors as an active switching devices. This 10.1 inch LCD screen panel with WUXGA resolutions 1200*1920. With 4 lane MIPI interface, 8 bit display color, color gamut is 70.8%.

This 10.1 inch TFT LCD module with very low storage temperature -55 degree to high storage temperature 125 degree, and with color gamut of 70.8%. It is typically application for tablet PC.

Features

  • 4 Lane MIPI Interface;
  • 8-bit color depth, display 16.7M colors
  • Thin and light weight
  • High luminance and contrast ratio, low reflection and wide viewing angle
  • RoHS compliant
  • Interface: MIPI
  • Resolution: 1200*1920
  • Storage Temperature: -55-125 ℃
  • Color Gamut: 70.8%(Typ.)
Model TV101WUM-NS0
Size 10.1 inch TFT LCD screen module
Active Area 135.36(H)*216.576(V)
Number Of Pixels 1200(H)×1920(V)
Pixel Pitch 0.0376(H)×RGB×0.1128(V)
Pixel Arrangement Pixels RGB stripe arrangement
Display Mode Normally Black
Display Colors 16.7M(8bits)
Surface Treatment Upper POL : AGLR
Bottom POL : APF
3H
Contrast Ratio 900:1(typ.)
Viewing Angle(CR>10) 89/89/89/89(Typ.)
Response Time 35(Max.)
Color Gamut 70.8%(Typ.)
Brightness 360(M in)/450(Typ.)/540(Max.) cd/m2
Brightness Uniformity 9 point: min 80%
Power Consumption (watt) LCD: 0.33(Max.)(White Pattern)
BLU: 2.377W(Max.)(w/o Driver)

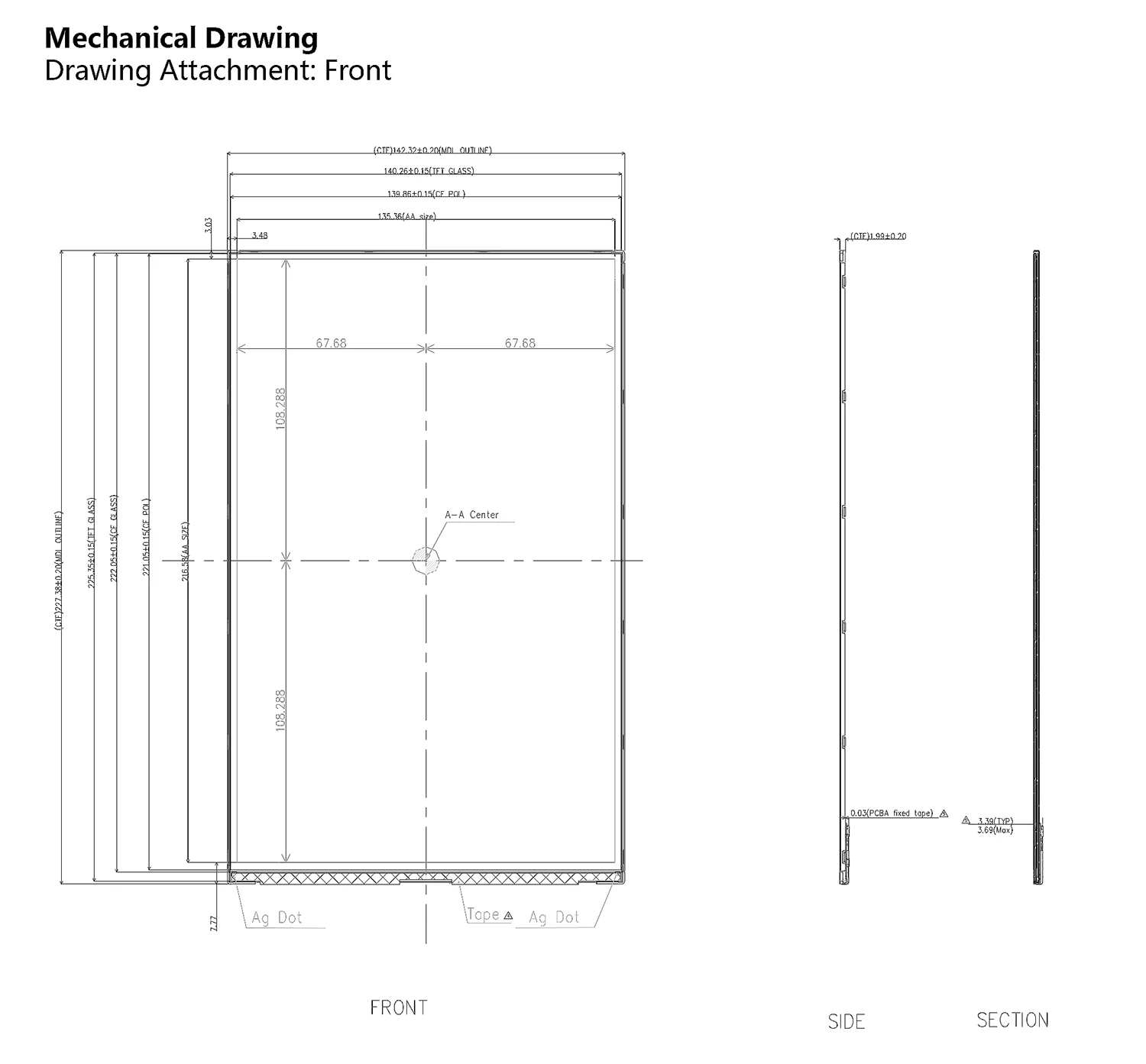

Outline Dimension 142.32(H) x 227.376(V)
Operating Temperature -20-85 ℃
Storage Temperature -55-125 ℃



TV101WUM NS0

MORE 10.1 INCH TFT LCD MODULE

Model Size Resolution Interface Luminance Storage temperature Active area
PG101BS01-1 OC 10.1 inch 800*1280 MIPI -30-70 135.36*216.576
GV101WXM-N81 10.1 inch 1280*800 eDP 250 nit -20-70 216.96(H)*135.6(V)
GV101WXM-N85 10.1 inch 1280*800 LVDS 430 nit -30-70 216.96(H)*135.6(V)



MORE PRODUCTS HERE

5 inch round tft lcd module 12.3 inch lcd nodule 4.3 inch TOUCH PANEL 1 3
5 INCH ROUND 1080P LCD MODULE 12.3 INCH TFT LCD MODULE 4.3 INCH TOUCH SCREEN LCD PANEL 7 INCH TFT LCD DISPLAY MODULE



Technical data

Specifications

Detailed specifications are available from the RJY engineering team.

Project adaptation

Customization options

Adapt an existing display platform to the electrical, optical and mechanical needs of your product.

  • Interface and FPC adaptation
  • Brightness and backlight
  • Touch and cover glass
  • Controller board support
  • Mechanical coordination

Engineering FAQ

Questions before evaluation

Can touch and cover glass be customized?

Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.

Can RJY provide a controller board?

Controller support can be evaluated with your host interface, timing and software requirements.

What is required for a quotation?

Provide the application, target specification, operating environment, sample quantity and annual volume.
