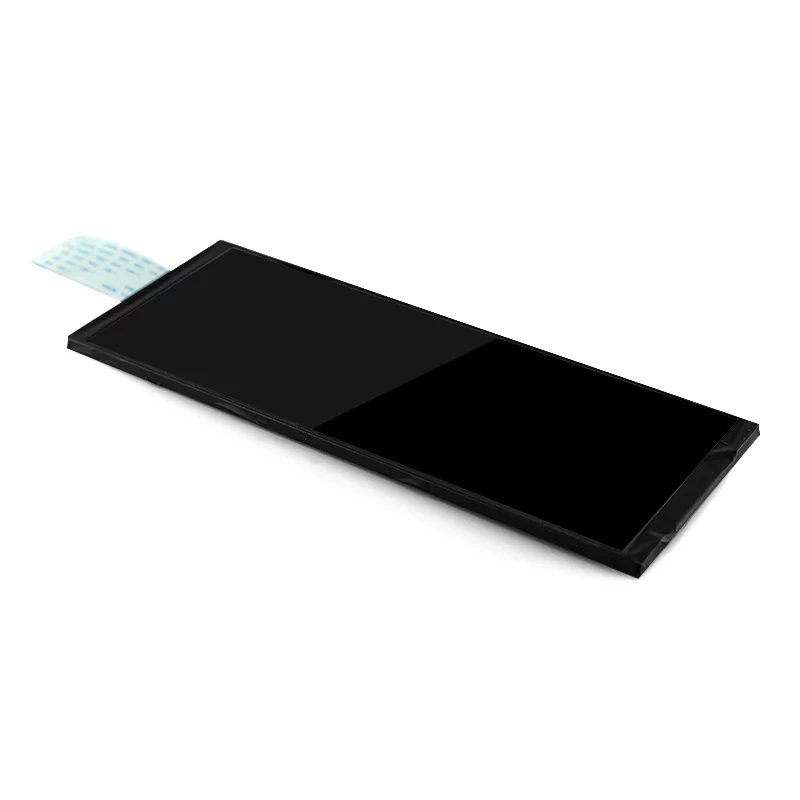

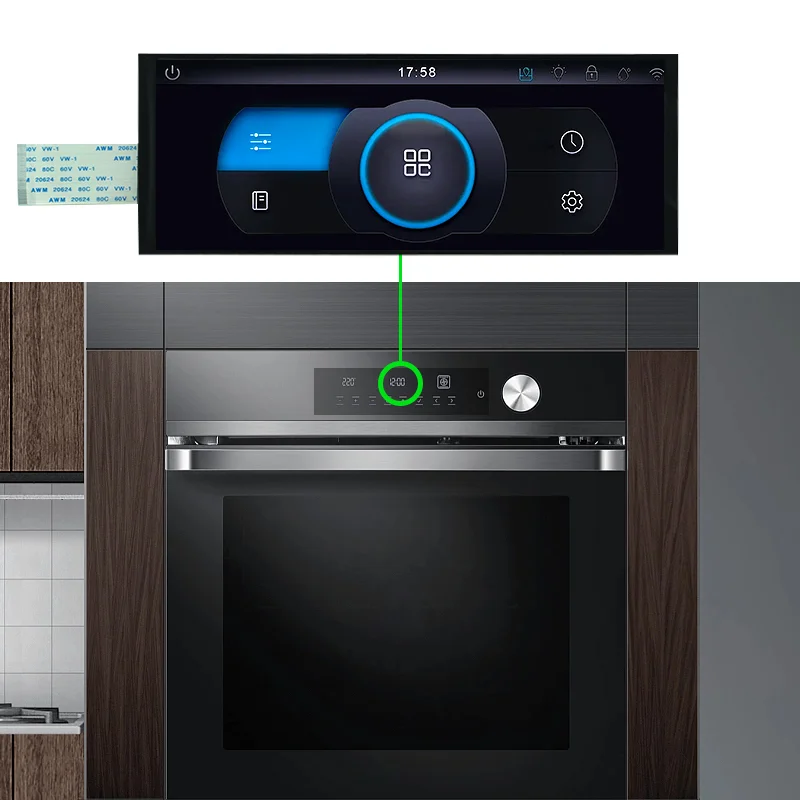

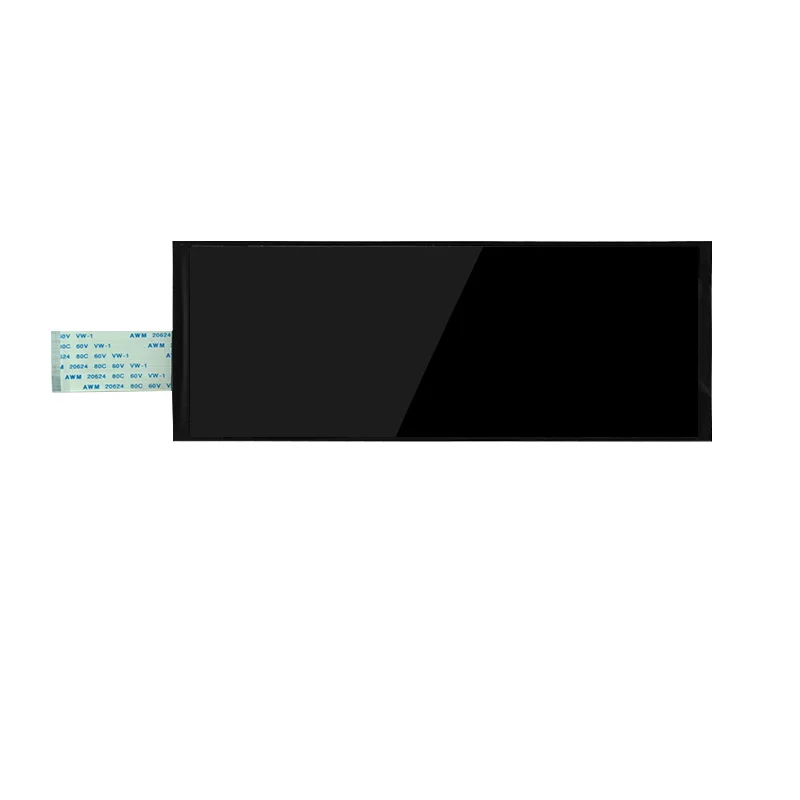

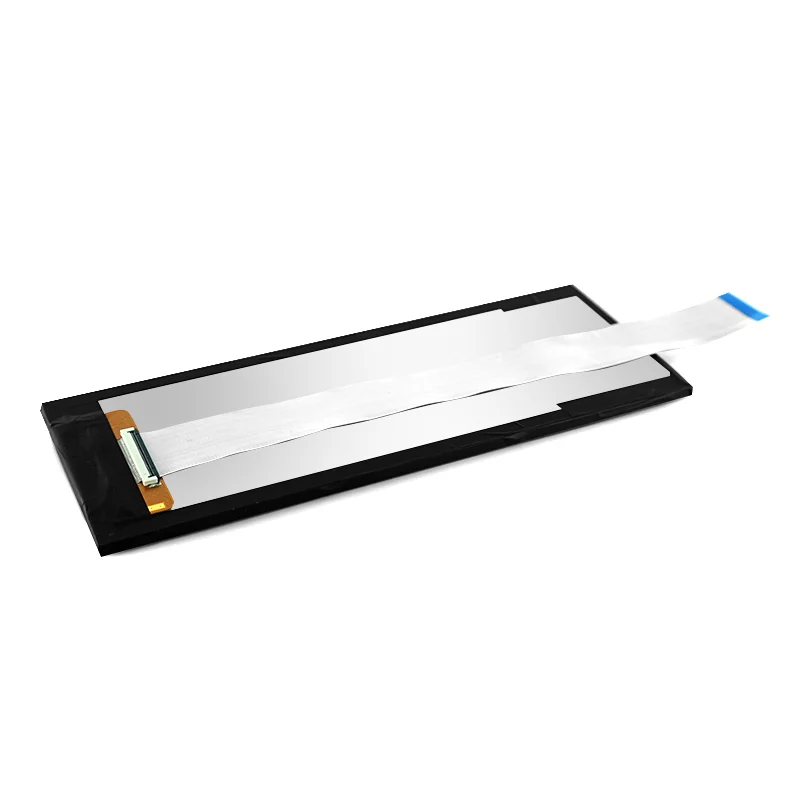

This is a color TFT LCD stretched bar display, 6.8 inch size with 1280*480 resolution, mainly used in home kitchen appliances control panel, such as ovens, microwave ovens, air fryers, etc.
If you need samples, you can tell us:
1: The quantity of samples, we have a large number of samples in stock for fast shipment;
2: Do you need an HDMI board? Usually we will provide it, unless you don’t need it;
3: Your address, we may need to calculate the shipping cost and the time of express arrival for you;
4: The conventional interface is MIPI, if you need others, please specify;
5: Do you need a samples with touch or no touch.
If you need to customize a special product, tell us your requirements as details, our professional sales will get into deep discussions with you and keep your project absolutely confidential.

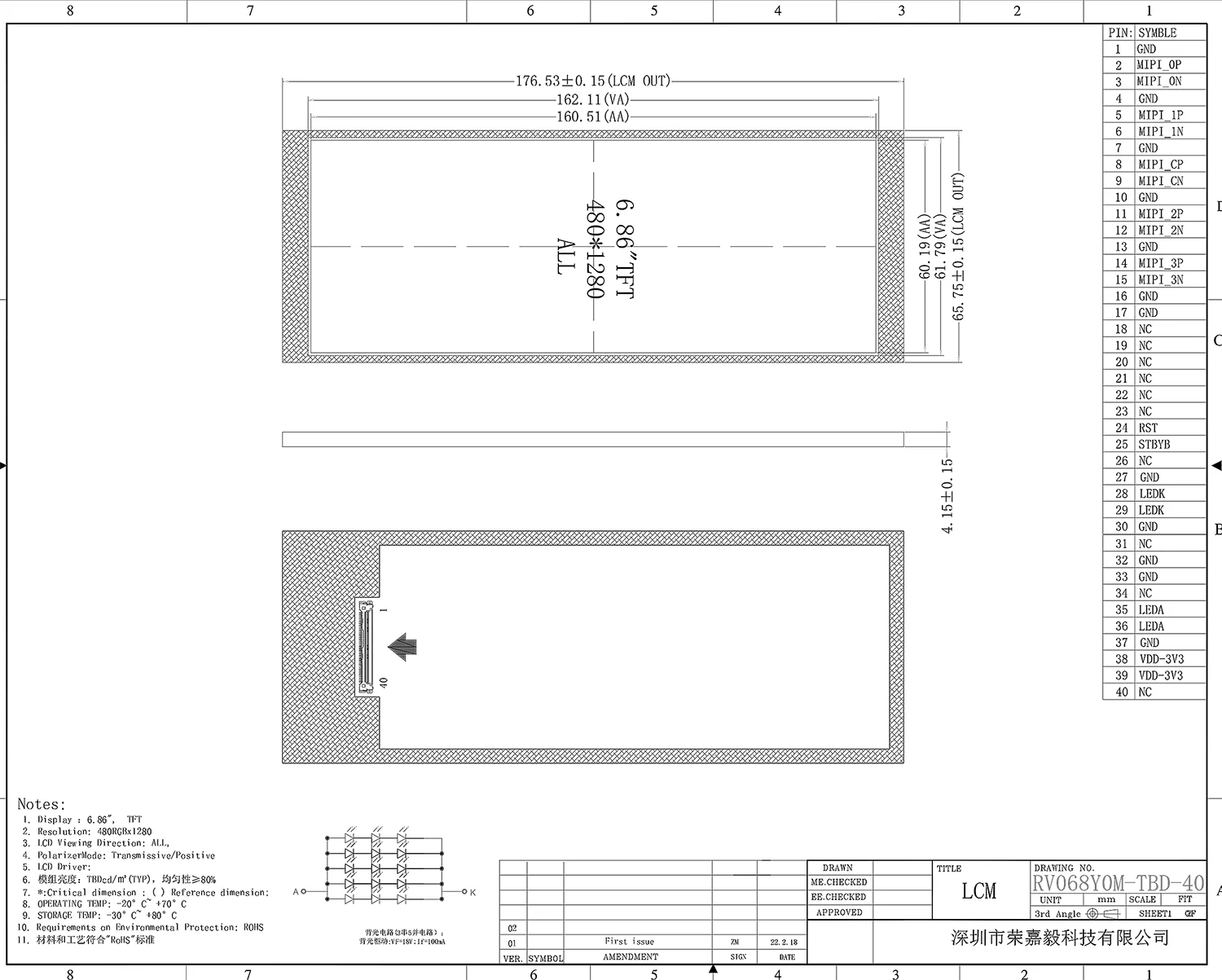

| Model | RV068Y0M-TBD-40 |
| Size | 6.8 inch TFT Color LCD Display Panel |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 480(R,G,B)*1280 |
| Input Data | MIPI |
| View Angle | ALL O”clock |
| IC Driver | ICN9707 |
| Display Colors | 16.7M |
| Module Size | 65.75(W)×176.53(L)×4.15(T) |
| Active Area | 60.192(W) ×160.512(L) |
| Pixel Size | 0.047*0.141 |
| Operating Temperature | -20 to +70 ℃ |
| Storage Temperature | -30 to +80 ℃ |
