Universal LCD Display Control Board HDMI to MIPI Controller Board Kit
LCD DISPLAY CONTROL DRIVER BOARD
- Function: HDMI to MIPI
- Display Interface: MIPI-4LINE-LCD Panel, 40pin
- Max Resolution support: 1920*1200
- Main Chip: LT6911C
- Support Power: 9-28V 200MA(5.6W) LED backlight
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit

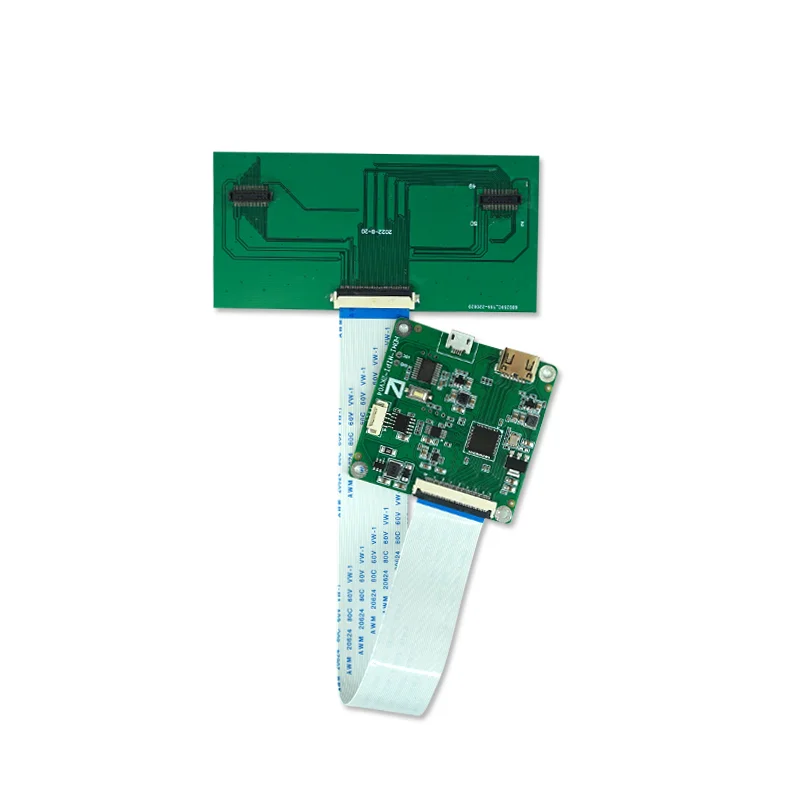

RJY-HDMI-MIPI-V1 LCD display control board supports MIPI-4LINE-LCD Panel with a resolution of 1920*1200 and below, and the main chip uses LT6911C. This LCD control board could buy together with our TFT LCD display panel, DHMI to MIPI LCD display and controller board kit.
It can support the conversion from the HDMI digital signal output by the PC to the MIPI signal that the LCD module can support. At the same time, it supports the LED screen backlight driver and can support the LED backlight within 9-28V 200MA (5.6W).

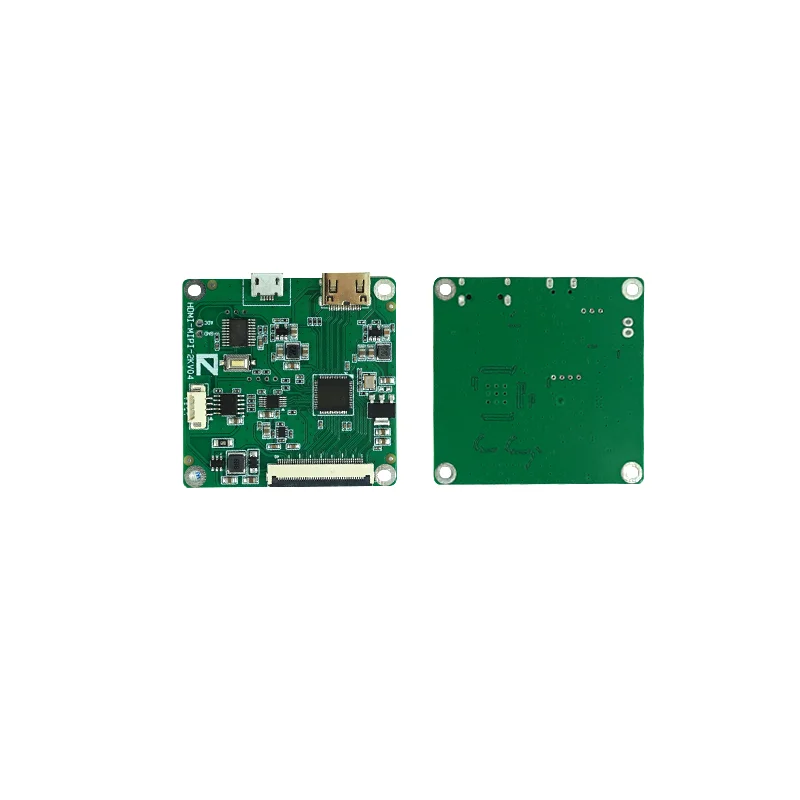

| Model | RJY-HDMI-MIPI-V1 | |
| main chip | LT6911C | |
| Interface | HDMI | HDMI |

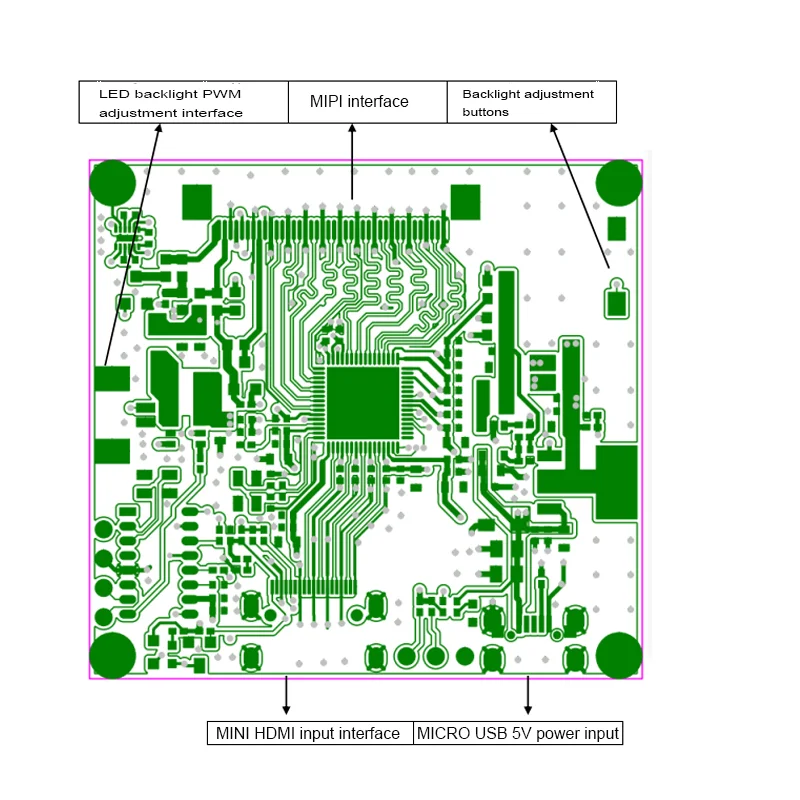

| panel interface | FPC 0.5mm, 40pin connect | |
| PWM DEBUG | HX 1.25mm | |
| Power | Input power | MICRO-USB （+5V +/-0.5V） |
| Display voltage | 3.3V, can support multiple voltages of +5.5V/-5.5V at the same time | |
| Button | Optional, can customize display backlight brightness adjustment | |
| PCB size | 48*45*1.2 mm | |
RJOYTEK LCD control boards are available for various types of resolution and multipurpose controllers as well as harsh environment controller boards. We provide customers with LCD display and LCD control board supporting solutions, signal wires are also supported, various interface adapter boards, control boards, and LCD customized one-stop solutions, providing customers with professional and comprehensive services. These LCD control boards are used in nearly every conceivable LCD display-related application, including displays for industrial, automotive, security, and architectural display systems.
 |
