Rockchip RK3562 Quad-core Industrial Control Board – WiFi, Bluetooth, USB 3.0, RJ45
-
High Performance – Quad-core ARM Cortex-A53 CPU up to 2.0 GHz, ARM G52 2EE GPU, integrated NPU delivering 1.0 TOPS; supports TensorFlow, Caffe, MxNet, Android NN API, RKNN API, and more.
-
Reliable Operation – Optimized hardware and software design ensures stable 24/7 unattended performance.
-
Highly Integrated – Built on an 8-layer TG170 PCB, with Ethernet, Wi-Fi, 18W amplifier, IR remote, LVDS, eDP, MIPI, microphone, and gravity sensing for simplified system design.
-
Flexible Expansion – Features 7× USB ports, 2× RS232, 2× RS232/RS485, 2× UART, 1× I2C, 8× I/O, and 1× AD interface for extended peripherals.
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit

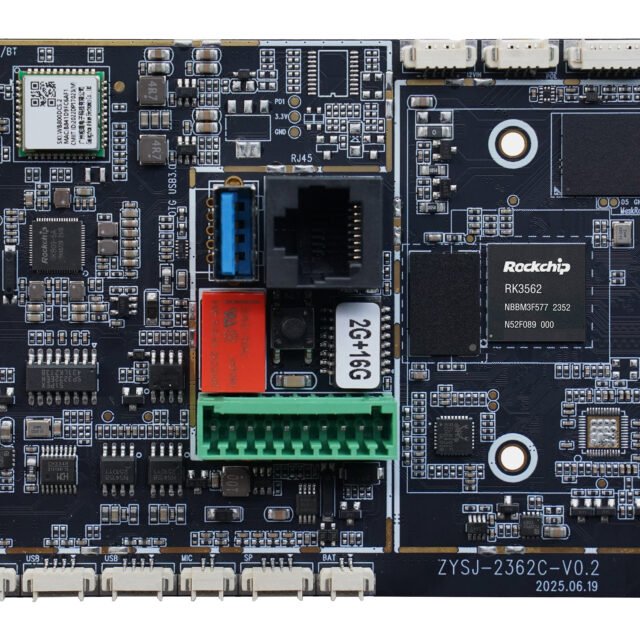

The RJY-2362K high-performance intelligent mainboard is powered by Rockchip’s RK3562 AI processor with an integrated NPU, supporting Android 13 and Linux operating systems. Built on a 22nm process, the quad-core ARM Cortex-A53 CPU (ARM v8.2-A) runs up to 2.0 GHz, delivering strong general computing capabilities. It is paired with an ARM G52 2EE GPU and an NPU with up to 1.0 TOPS of AI performance, supporting a wide range of AI development tools and frameworks.
The board provides versatile display outputs including LVDS (1080P), eDP, and MIPI, alongside rich connectivity options such as Ethernet, Wi-Fi, USB expansion, gravity sensor, RS232, RS485, I/O extension, I2C, MIPI camera, and IR remote control. With its advanced AI computing power and extensive interfaces, the ZYSJ-2362K is designed for applications in smart firefighting, smart construction, industrial inspection, autonomous driving, smart agriculture, intelligent sorting machines, AI robotics, cloud servers, NVRs, metaverse devices, ARM-based PCs, security, healthcare, transportation, finance, industrial control, education, and retail. Its hardware platformization and intelligent software integration ensure seamless experiences in human-machine and device-to-device interactions.
Technical data
Specifications
| Category | Specification |
|---|---|
| CPU | Rockchip RK3562, Quad-core ARM Cortex-A53, up to 2.0 GHz, 22nm process |
| GPU | ARM G52 2EE GPU, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU | AI performance up to 1.0 TOPS, supports TensorFlow / Caffe / MXNet / TFLite / ONNX |
| Memory | LPDDR4: 2GB (4GB/8GB optional, max 8GB) |
| Storage | eMMC: 16GB (32GB/64GB/128GB/256GB optional) |
| Networking | 10/100M Ethernet, Wi-Fi 802.11 b/g/n/ac (Wi-Fi 5/6 optional), Bluetooth (optional), 4G/5G LTE (optional), GPS (optional) |
| Display | eDP 1.3 (2560×1600@60fps), LVDS (1080P@60fps), MIPI (2560×1600@60fps), supports multi-screen display |
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
