Rockchip RK3576 Octa-core Android Control Board – WiFi, Bluetooth, USB 3.0, RJ45
- High Performance – Octa-core Cortex-A72 + Cortex-A53 CPU (up to 2.2 GHz), Mali-G52 MC3 GPU, integrated NPU delivering 6.0 TOPS AI performance; supports TensorFlow, Caffe, MXNet, Android NN API, RKNN API, and more.
- Stable Operation – Hardware and software optimizations enable 24/7 unattended operation for mission-critical environments.
- High Integration – Military-grade TG170 8-layer PCB design with Ethernet, Wi-Fi, 5W amplifier, IR remote, HDMI, LVDS, eDP, MIPI, microphone, and gravity sensing; ultra-thin board for streamlined device design.
- Flexible Expansion – 8× USB, 2× UART, 1× I2C, 4× I/O, 1× AD, 2× RS232, 1× RS485, 1× POE, earphone interface, and 3× auxiliary light control ports for extended peripherals.
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit

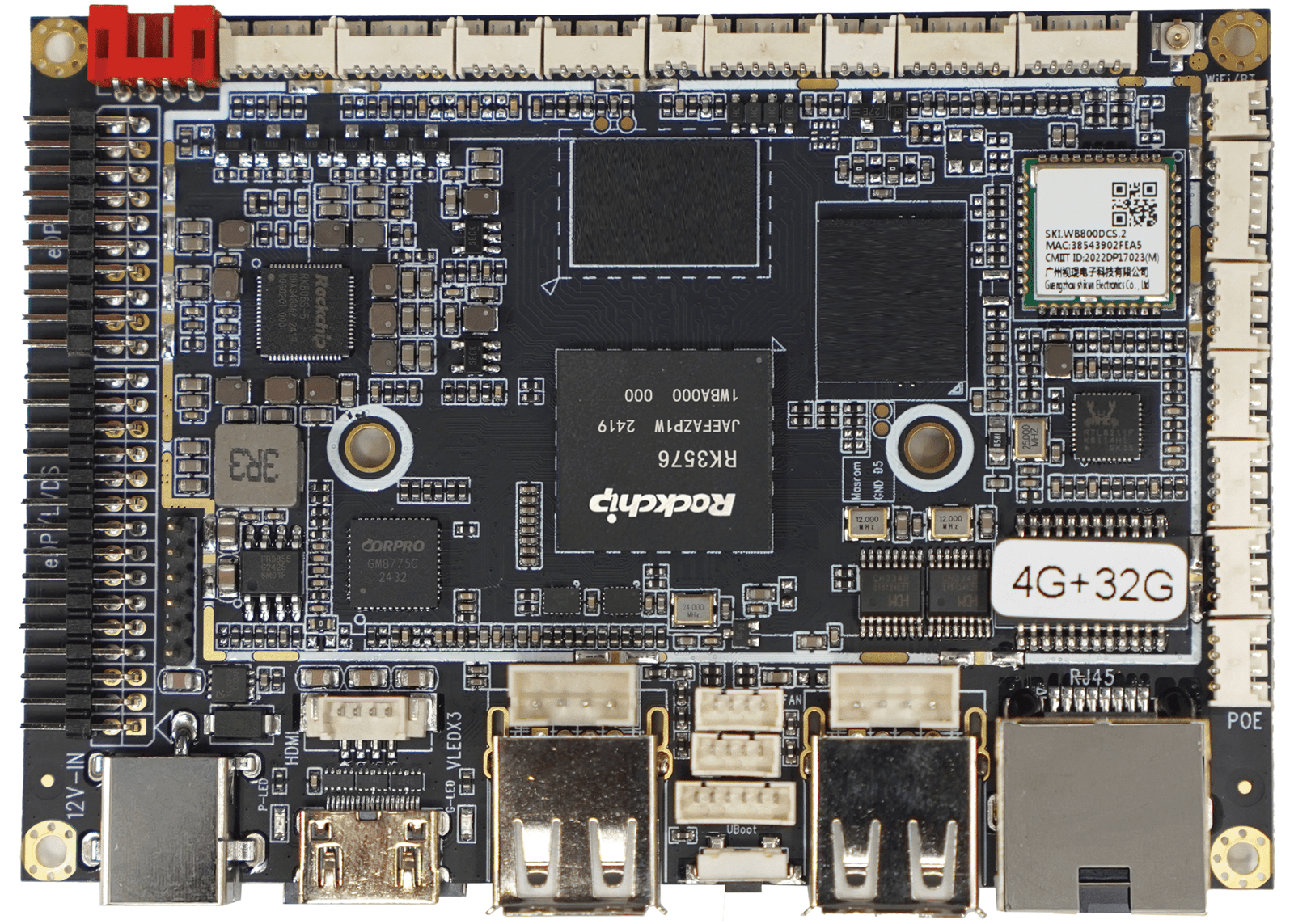

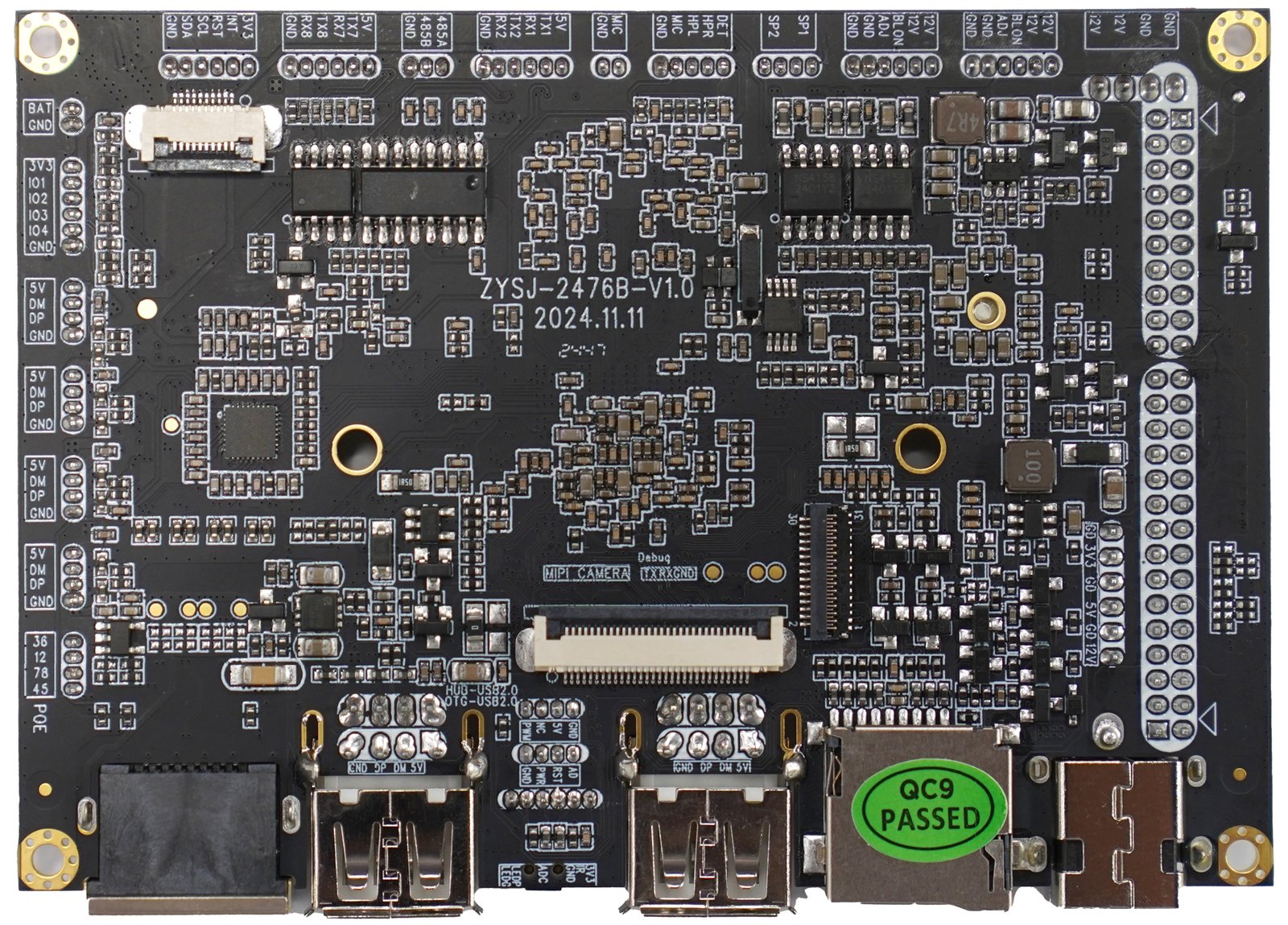

The RJY-2476B high-performance intelligent mainboard is built on Rockchip’s latest RK3576 AI processor with an integrated NPU, supporting Android 14, Debian, and Ubuntu operating systems. Featuring a quad-core Cortex-A72 + quad-core Cortex-A53 octa-core CPU with up to 2.2 GHz clock speed on an advanced 8nm process, it delivers outstanding general-purpose computing power. The system integrates a quad-core Mali-G52 MC3 GPU and an NPU delivering up to 6.0 TOPS AI performance, fully compatible with mainstream AI development frameworks and APIs.
The board supports dual independent displays, including LVDS (1080P), eDP, MIPI, and HDMI-4K outputs. It also offers Gigabit Ethernet, Wi-Fi, USB expansion, gravity sensor, RS232, RS485, I/O extension, I2C, MIPI camera, and IR remote control. With rich interfaces and powerful AI acceleration, the ZYSJ-2476B is ideal for AI servers, facial recognition payment devices, security systems, healthcare, transportation, finance, industrial control, smart education, and intelligent retail. Its modular hardware platform and intelligent Android ecosystem ensure seamless performance in human-machine interaction and networked applications.
Technical data
Specifications
| Category | Specification |
|---|---|
| Operating System | Android 14.0 / Debian / Ubuntu |
| CPU | Rockchip RK3576, Quad Cortex-A72 + Quad Cortex-A53, up to 2.2GHz |
| GPU | Mali-G52 MC3, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU | 6.0 TOPS @INT8, supports TensorFlow / PyTorch / ONNX etc. |
| Memory | LPDDR4 4GB (optional 8GB / 16GB, max 16GB) |
| Storage | eMMC 32GB (optional 64GB / 128GB / 256GB) |
| Display | eDP/DP (4K@60Hz), HDMI 2.1 (4K@120Hz), LVDS (1080P@60Hz), MIPI (2560×1600@60Hz), dual-screen support |
| Network | 10/100/1000M Ethernet, Wi-Fi 6 (optional dual-band), Bluetooth 5.2 |
| Interfaces | USB, RS232, RS485, UART, GPIO, I²C, AD, Camera, POE, IR |
| Power Input | DC 12V, 2A–5A, supports auto power-on |
| Dimensions | 100mm × 70mm × 15.7mm |
| Operating Temp. | -10°C to +70°C |
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
