It converts HDMI and VGA signals or DP digital signals output from a PC to eDP signals that can be supported by an LCD panel.
The design is mainly used for mating with TFT display, to achieve the highest resolution up to WUXGA analog R, G, B input signal reproduction, colour reproduction can support up to 24bit, up to 16.7 megapixels, ADC frequency up to 165MHz, and with DCR (Dynamic Contrast Ratio Adjustment), colour enhancement, colour engine, and other special features, so that the colour reproduction is more vivid, more vibrant, more vivid, and support for HDCP function, More vivid, more vivid, and support HDCP function. Synchronous automatic detection can be achieved. Synchronous detection requires the use of line-field separation of synchronous signals; has a beautiful OSD interface style, a variety of optional OSD language.
The software on the board supports online updating, and the maximum output resolution can be supported up to 2560*1440.

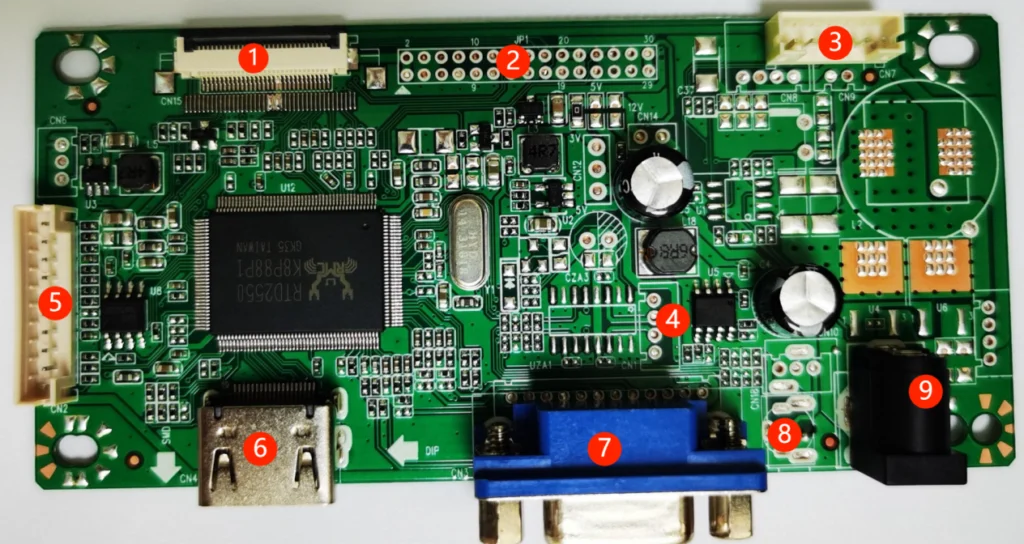

①eDP Display Interface
②eDP Display Interface
③External backlight control interface
④Speaker Output Connector
⑤Button Board Connector
⑥HDMI Input Connector
⑦VGA Input Connector
⑧PC Audio Input and Output Connector
⑨DC Power Input
