Capacitive Touch Panel, TFT LCD Display Module
Model RV101WXM-280-31
10.1-inch Android Solution TFT LCD Display – 800*1280 Touchscreen
Key specifications
- Size(inch)
- 10.1
- Brightness (cd/m²)
- 280
- Resolution
- 1280×800
- Interface
- MIPI
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
The 10.1 inch TFT LCD display boasts a sizeable screen real estate that allows for immersive multimedia experiences, precise touch input, and vibrant visuals. With a resolution of 800*1280 pixels, it offers crisp and clear images, making it ideal for multimedia content, gaming, and productivity applications. The TFT technology ensures wide viewing angles and accurate color reproduction. This 10.1 inch 800*1280 LCD touchscreen acceptable customized different projects, not only android, more information please feel free to contact us.

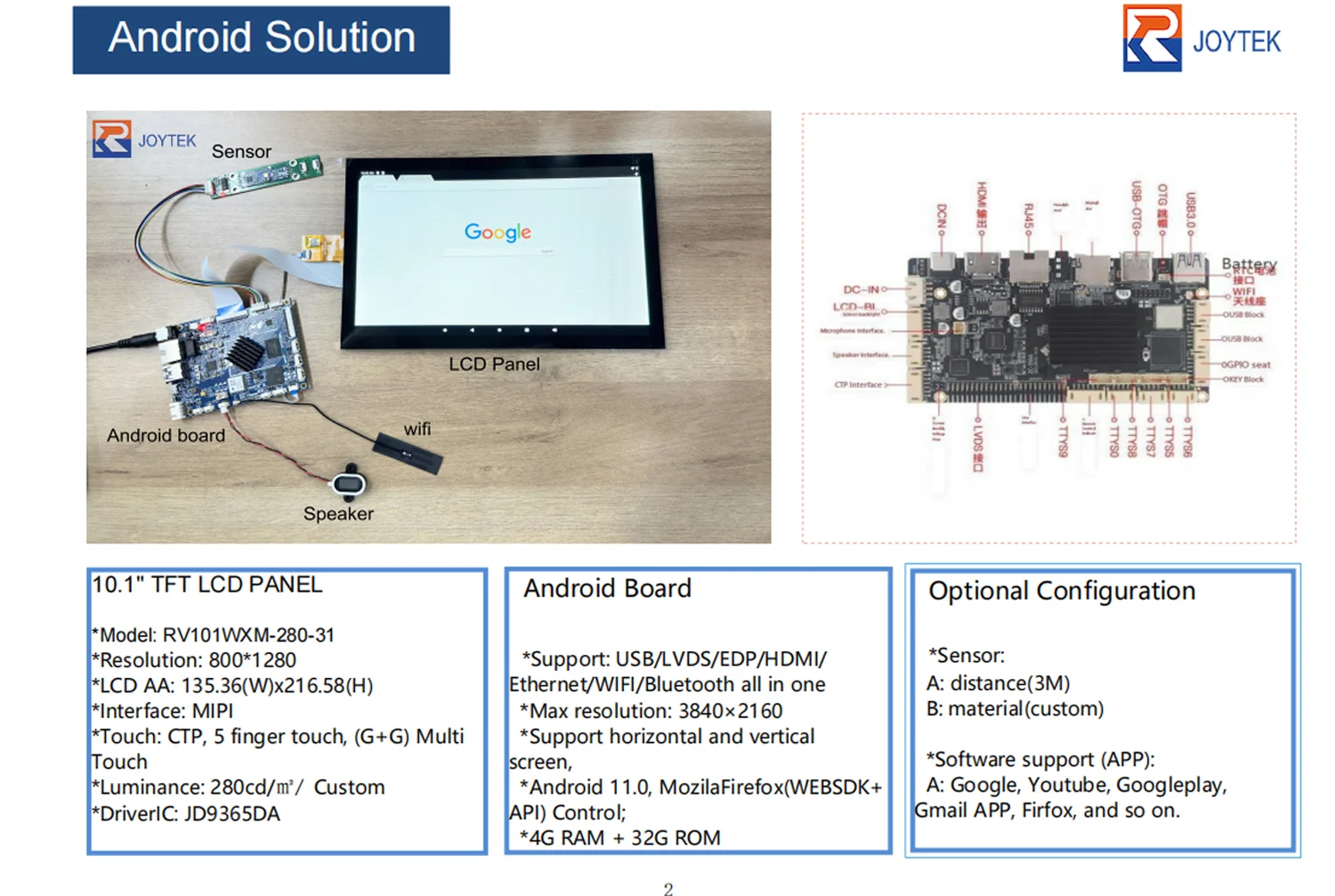

Android LCD Solution:
The integration of an Android LCD solution brings the power of the Android operating system to the 10.1 inch TFT LCD display. This solution combines hardware and software components specifically designed to optimize performance, enhance usability, and enable seamless connectivity. It offers features such as multi-touch capability, gesture recognition, and compatibility with a vast range of applications from the Google Play Store.
Customization and Compatibility:
With the Android operating system, the 10.1 inch TFT LCD display offers extensive customization options, allowing manufacturers to tailor the user experience to their specific needs. Additionally, Android’s wide compatibility with third-party applications and peripherals expands the possibilities for integrating additional functionality and features.
Connectivity and Networking:
The Android LCD solution enables seamless connectivity to the internet, local networks, and various wireless devices. This connectivity allows users to access online services, stream media content, sync data, and stay connected through email, social media, and other communication platforms.
Applications:
Tablets and two-in-one Devices:
The 10.1 inch TFT LCD display module with an Android LCD solution is a perfect fit for tablets and 2-in-1 devices. It provides a large, high-resolution screen for media consumption, productivity tasks, and gaming, all while leveraging the rich ecosystem of Android applications.
Digital Signage:
The combination of the 10.1 inch TFT LCD display panel and Android LCD solution can be utilized in digital signage applications. Its vibrant display and seamless connectivity allow for dynamic and interactive content delivery, making it suitable for retail, hospitality, and information kiosks.
Education and E-Learning:
The large screen and touch-enabled interface make the 10.1 inch TFT LCD display module with an Android LCD solution an excellent choice for educational purposes. It can be integrated into interactive whiteboards, e-learning devices, and educational tablets, providing an engaging and interactive learning experience.
Products Recommended
 |  |  |
| 10.25 INCH TFT LCD PANEL | 2.8 INCH SQUARE TFT LCD SCREEN | 1.89 INCH TFT LCD DISPLAY WITH BOARD |
2. Technical Specifications
| Model | RV101WXM-280-31 |
| Number of Pixel | 800(H) x RGB x1280(V) |
| Display area | 135.36(W) x216.58(H) |
| Outline Dimension | 143(H) x 228.6(V) x 2.65(body) |
| Pixel pitch | 169.2(H) x 169.2(V) |
| Interface | MIPI |
| Pixel arrangement | Pixels RGB stripe arrangement |
| Display mode | Normally Black |
| Driver IC | JD9365DA |
| Back-light | Single LED (Side-Light type) |
| Forward voltage | 12v ( vf) |
| Forward current | 160mA (If) |
| Viewing Angle range | 85/85 |
| Luminance Contrast ratio | 800 |
| Brightness | 280 Cd/cm2 |

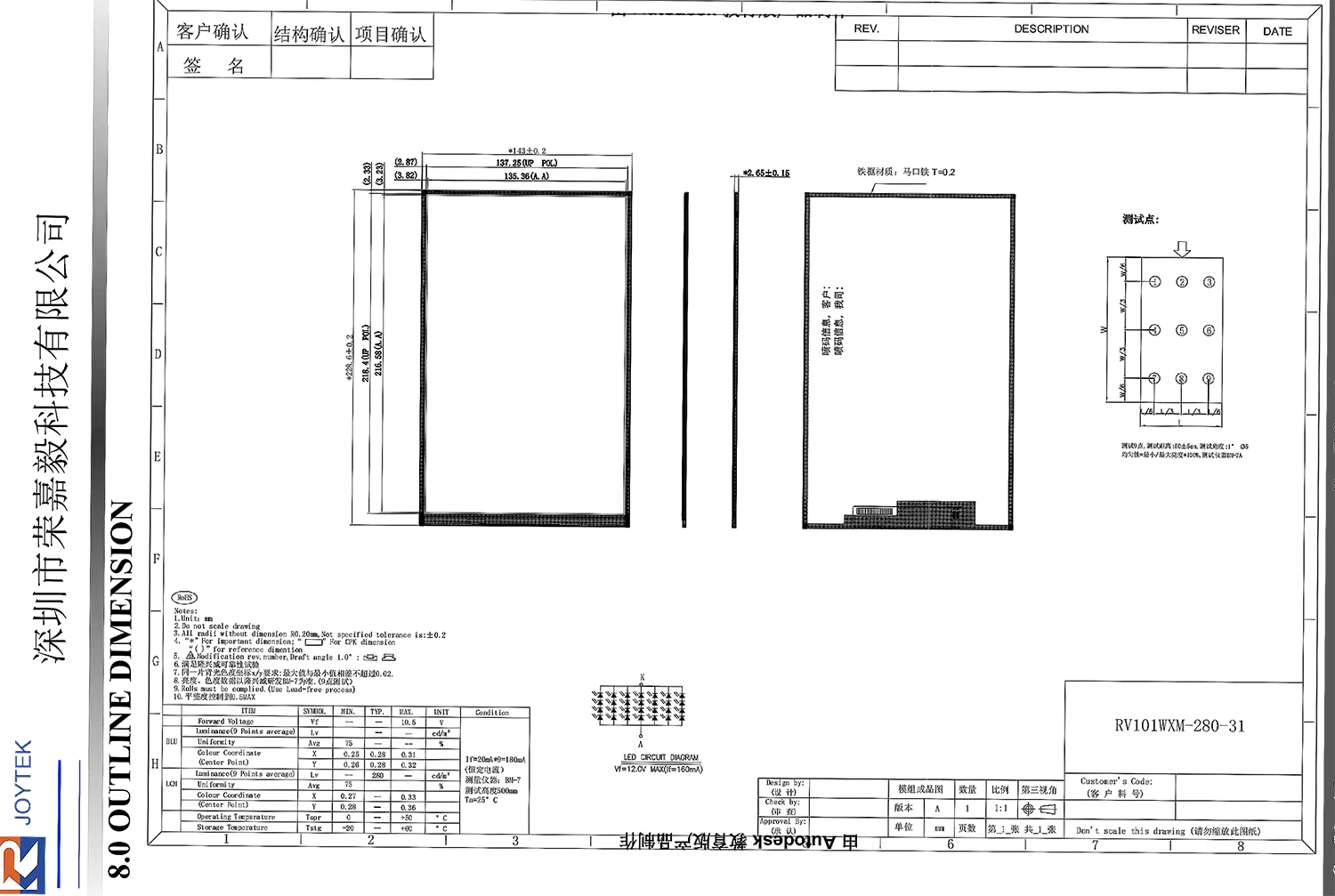

3. Structure
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
