What Is a Round TFT LCD?
A round TFT LCD is a circular display module based on thin-film transistor liquid crystal display technology. Unlike a standard…

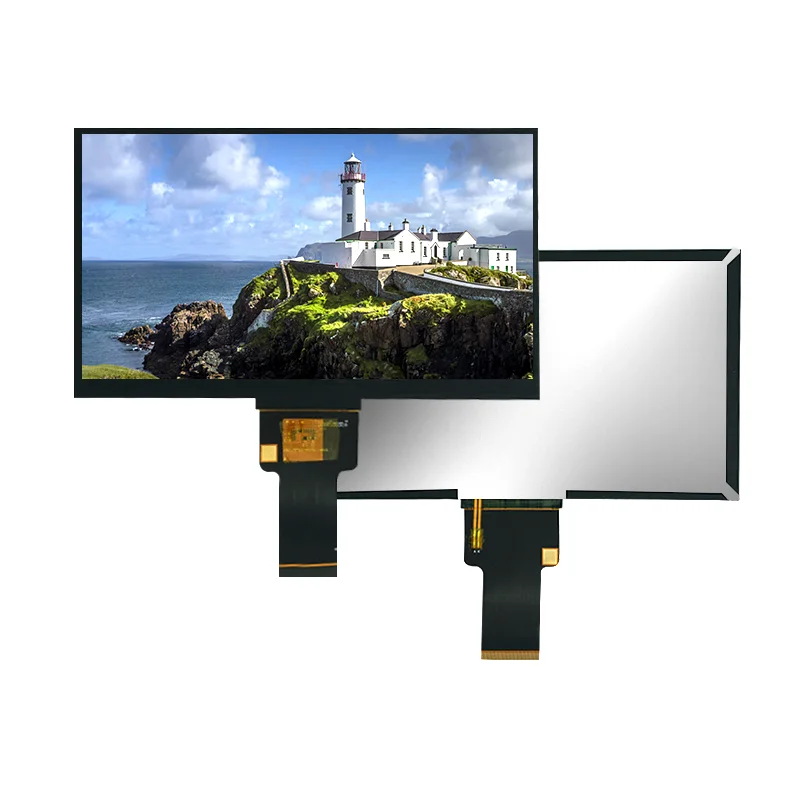

TFT LCD Display Module
Model RV067WSM-K10-40
Rjoytek High Brightness 1000nit 6.75 inch 1024*600 TFT LCD Module
Key specifications
- Size
- 6.7 inch TFT LCD module
- Resolution
- 1024*600
- Brightness
- 1000nit
- Contrast Ratio
- 1200
- NTSC
- 60%
- Interface
- LVDS
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
High Brightness 1000nit;
6.75 inch;
1024*600 resolution;
LVDS interface
| Model | RV067WSM-K10-40 |
| Size | 6.75 inch TFT LCD module |
| Panel Type | IPS |
| Resolution | 1024xRGBx600 |
| Display Mode | Normally Black |
| Number of Colors | 16.7M |
| Viewing Direction | ALL |
| NTSC | 60% |
| Contrast Ratio | 1200 |
| Luminance | 1000 cd/m2 |

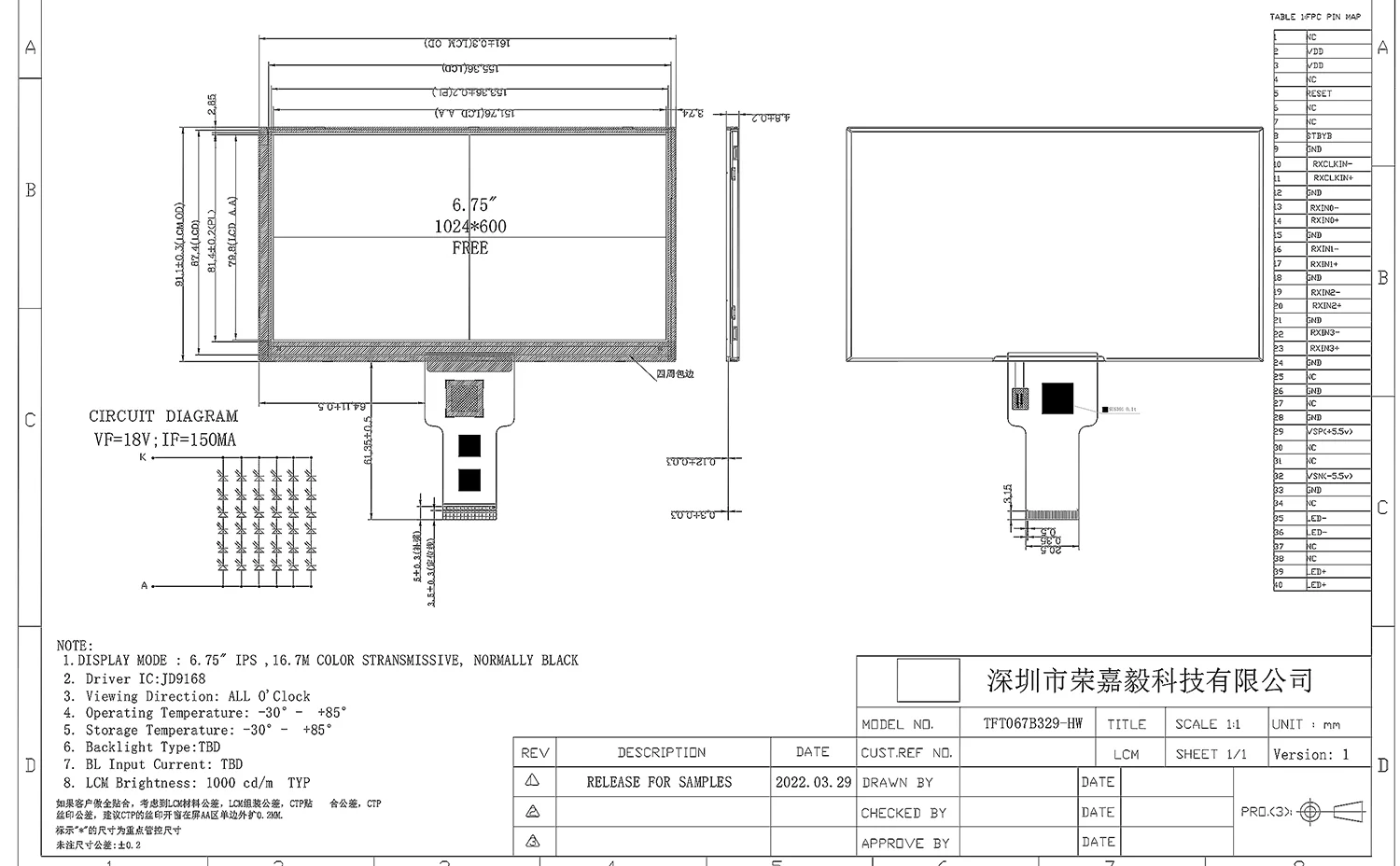

| Module Size | 161(H)x91.1(V)x4.8(D) |
| Panel Active Area | 151.76X79.8 |
| Pixel Arrangement | RGB-stripe |
| Light Source | 36 LED light |
| Interface | LVDS |
| Operating Temperature | -30~+85 ℃ |
| Storage Temperature | -30~+85 ℃ |
MORE PRODUCTS HERE YOU COULD CHECK:
 |  |
| 3.6 inch round lcd panel | 10.4 inch lcd module |
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
