Model RV036YHM-1000-40

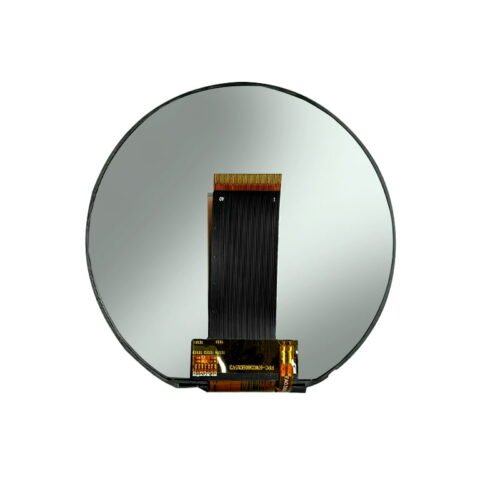

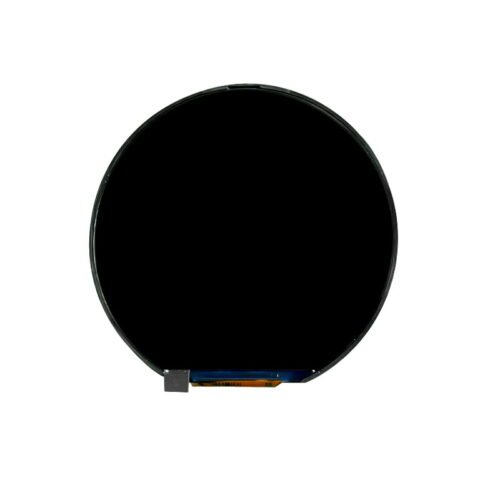

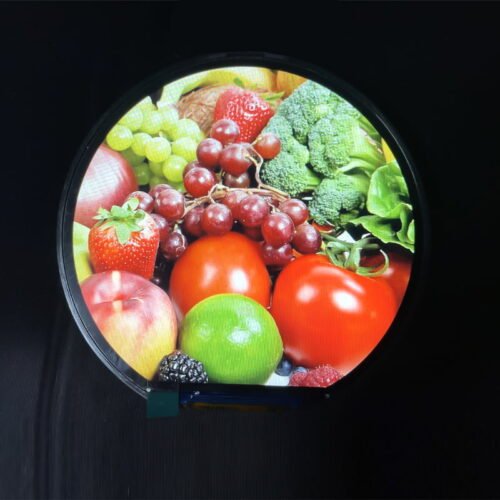

RJOYTEK 3.6 inch 544*506 Round TFT Ebike LCD Panel LCD Display
Key specifications
- Size(inch)
- 3.6
- Resolution
- 544×506
- Brightness (cd/m²)
- 1000
- Wide Temperature
- Yes
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
Display model RV036YHM-1000-40 is a color active matrix thin film Transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a Switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 3.6 inch diagonally measured active display area with WSVGA (544 horizontal by 506 vertical pixel) Resolution.
APPLICATION

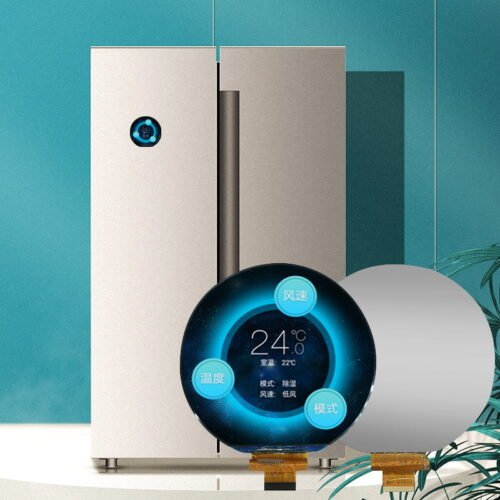

- Smart home control, this 3.6 inch LCD display we provide another specification that is very suitable for smart home control panels, such as refrigerators, air conditioners, microwave oven displays or smart switch buttons.

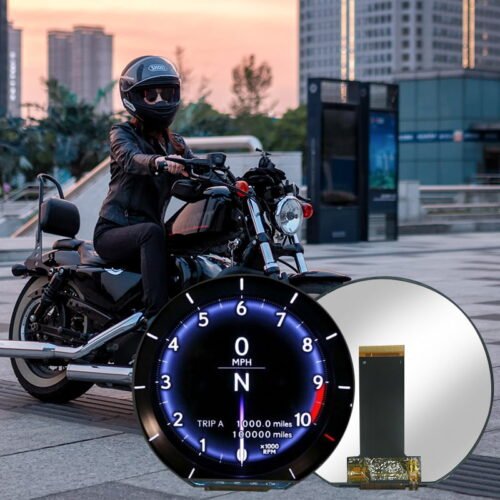

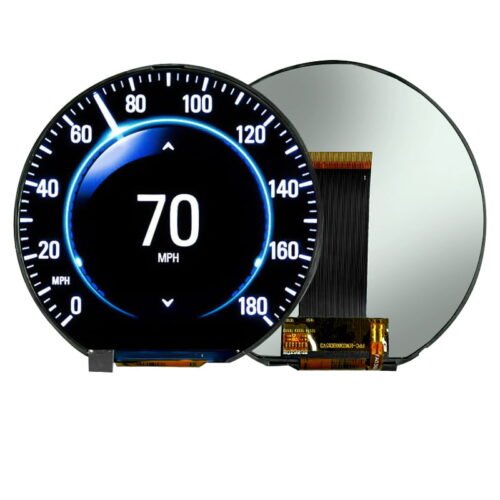

- Automotive Displays: The round LCD display can be incorporated into automotive dashboards or instrument clusters. It can show various information like speed, fuel level, engine temperature, and other vehicle parameters.
- Industrial Instruments: The round TFT LCD panel can be used in industrial instruments such as handheld measurement devices, portable testing equipment, or control panels. It provides a clear and visually appealing interface for data display and user interaction.
- Medical Devices: The LCD display can be used in medical devices like patient monitors, portable medical equipment, or diagnostic devices. It can present vital signs, test results, or other medical data in a compact and easy-to-read format.
MORE AUTOMOTIVE LCD DISPLAY PANEL
 |  |  |  |
| 12.3 inch automotive lcd display | 10.1 inch headup car lcd display | 9.35 inch headup car lcd display | 4 inch round automotive lcd panel |
2. Technical Specifications
| Module | RV036YHM-1000-40 |
| Size | 3.6 inch round tft lcd panel |
| Outline Dimension | 98.36×94.37 (typ) |
| Display area | 89.76(H) x80.79(V) |
| Number of pixel | 544 RGB (H) x 506(V) |
| Pixel pitch | 55 165(V) |
| Pixel arrangement | RGB Vertical stripe |
| Display mode | Normally Black |
| Control IC | ST72566 |
| Module size | 98.36*94.37*7.8 (tpy) |
| Operating temperature | -30-80 |
| Storage temperature | -30-85 |
| Brightness | 1000 Cd/m2 |
| Contrast Ratio | 1200:1 |
| Response Time | 30 ms |
3. Structure
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
