Model RV093LAP-500-40

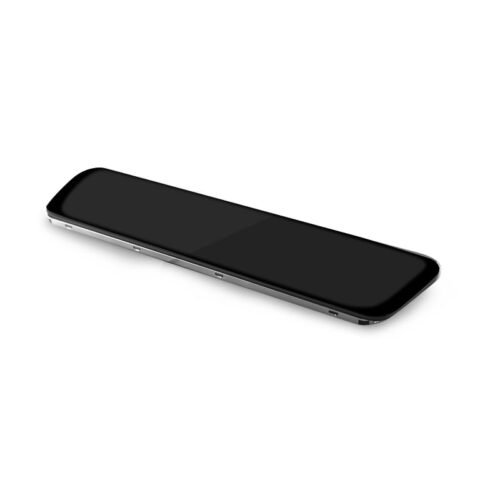

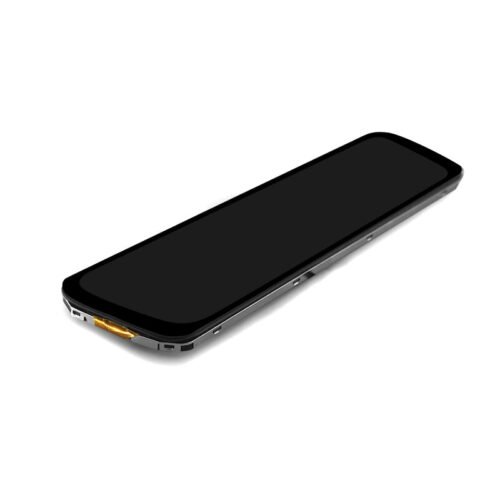

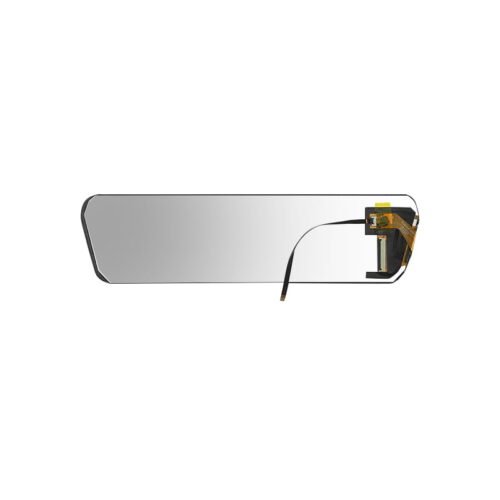

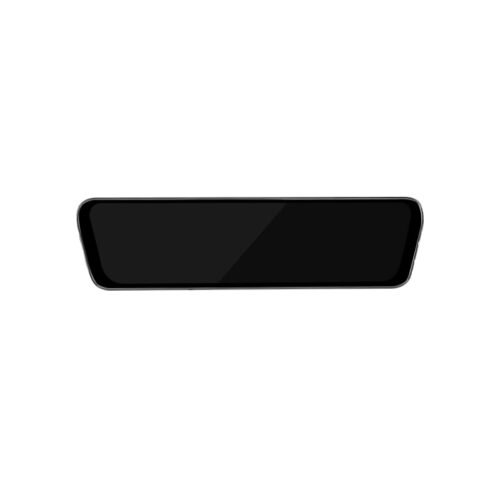

RJOYTEK 9.35 inch 320*1280 MIPI TFT LCD Display Vehicle Cluster LCD Displays
Key specifications
- Size
- 9.35 inch car lcd display
- Resolution
- 320*1280
- Interface
- MIPI
- LCM Luminance
- 800 cd/m²
- Pin
- 40pin
- LCD Type
- AM TFT ,TRANSMISSIVE, NEGATIVE
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
RV093LAP-500-40 a car head-up display, it is a 9.35 inch automotive cluster lcd panel. With 320*1280 resolution, MIPI interface, and a TFT Panel with touch.

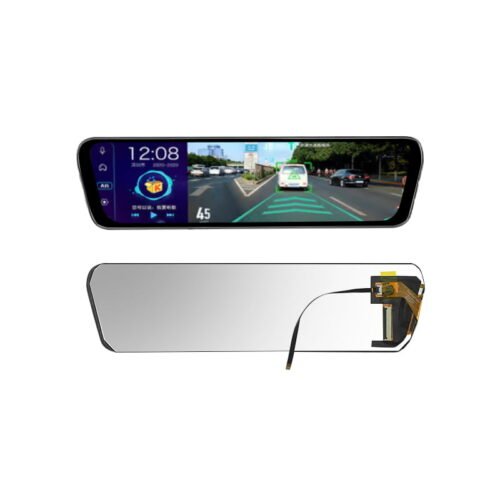

Application use: motorcycle LCD instrument screen, electric car LCD instrument screen, smart rearview mirror, outdoor visual, vihicel electronics,and so on.
| Model | RV093LAP-500-40 |
| Size | 9.35 inch car lcd display |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 320(R,G,B)*1280 |
| Input Data | MIPI |
| View Angle | ALL O”clock |
| IC Driver | ICN9707 |
| Display Colors | 16.7M |
| Module Size | 248.32(W)×65.6(L)×4.6(T) |
| Active Area | 232.32(W) ×58.08(L) |
| Pixel Size | 0.047*0.141 |
| Operating Temperature | -20 to +80 ℃ |
| Storage Temperature | -30 to +80 ℃ |
| LCM Luminance | 800 cd/m² |
| Pin | 40 pin |
FAQ
Q1: What is your company advantages?
A1: As introduce， RJOYTEK is a high-tech enterprise, which provide trial-made LCD solution.
From technology side, We pursue high-tech development of LCD technology and we have obtained more than 10 technology patent-certificates, and we also get ROHS, CE, REACH certificate.
From a manufacturer side, we offer OEM, ODM well, any brand customized is welcome, we offer control board, software customized together.
Q2:When you could deliver the sample and bulk products?
A2: Our stocks are mainly raw materials or semi-finished(LCD module) and some common LCD module, usually after payment, we will send it within 3-7 days for the sample. Bulk products will delivery 40-60 days if send by sea, and producing time depends on the quantity and the difficult of the customized.
Q3: If the products damaged or not when transport process?
A3: Usually not, sample package with PP bag and carton box, they send by Fedex, DHL or UPS. Bulk production package with PP bag +Foam + Carton box + Wooden frame, all packages are protected by outer box and strapping to ensure the safety of material transportation.
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
