TFT Color Display 6.8 inch 480*1280 LCD Panel for Microwave Oven
- Size: 6.8 inch TFT Color LCD Display
- Resolution: 480*1280
- Interface: MIPI
- IC Driver: ICN9707
- Storage Temperature: -30 to +80 ℃
- Keyword: TFT LCD Panel, 6.8 inch Color Display Panel
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit

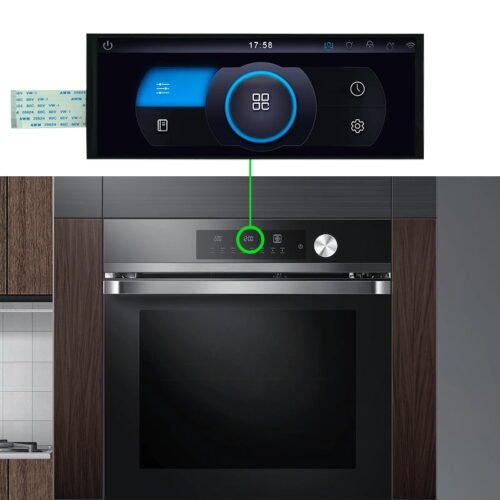

This is a color TFT LCD stretched bar display, 6.8 inch size with 1280*480 resolution, mainly used in home kitchen appliances control panel, such as ovens, microwave ovens, air fryers, etc.
If you need samples, you can tell us:
1: The quantity of samples, we have a large number of samples in stock for fast shipment;
2: Do you need an HDMI board? Usually we will provide it, unless you don’t need it;
3: Your address, we may need to calculate the shipping cost and the time of express arrival for you;
4: The conventional interface is MIPI, if you need others, please specify;
5: Do you need a samples with touch or no touch.
If you need to customize a special product, tell us your requirements as details, our professional sales will get into deep discussions with you and keep your project absolutely confidential.
| Model | RV068Y0M-TBD-40 |
| Size | 6.8 inch TFT Color LCD Display Panel |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 480(R,G,B)*1280 |
| Input Data | MIPI |
| View Angle | ALL O”clock |
| IC Driver | ICN9707 |
| Display Colors | 16.7M |
| Module Size | 65.75(W)×176.53(L)×4.15(T) |
| Active Area | 60.192(W) ×160.512(L) |
| Pixel Size | 0.047*0.141 |
| Operating Temperature | -20 to +70 ℃ |
| Storage Temperature | -30 to +80 ℃ |
Recommended Products
 |  |  |
| 1.89 inch 1600*1600 LCD Display | 0.38 inch Microdisplay for AR VR | 3.4 inch Round TFT LCD Panel |
Technical data
Specifications
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
