Rockchip RK3588S Octa-core Android LCD Controller Board – 6.0 TOPS AI chipset, Android 11.0, USB 3.0, RJ45
Key specifications
- High Performance
- RK3588S octa-core CPU (Cortex-A76 + A55) up to 2.4 GHz, Mali-G610 GPU, integrated NPU (6.0 TOPS)
- AI Support
- Compatible with TensorFlow, Caffe, MxNet, PyTorch; supports Android NN API and RKNN API
- Stable & Reliable
- Optimized hardware and software for 24/7 unattended operation
- High Integration
- Built-in Gigabit Ethernet, Wi-Fi/Bluetooth, HDMI, LVDS, eDP, MIPI, audio, IR, sensors
- Expandable
- Multiple USB ports, RS232/RS485, UART, CAN, I2C, GPIO, AD interface for peripherals
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description

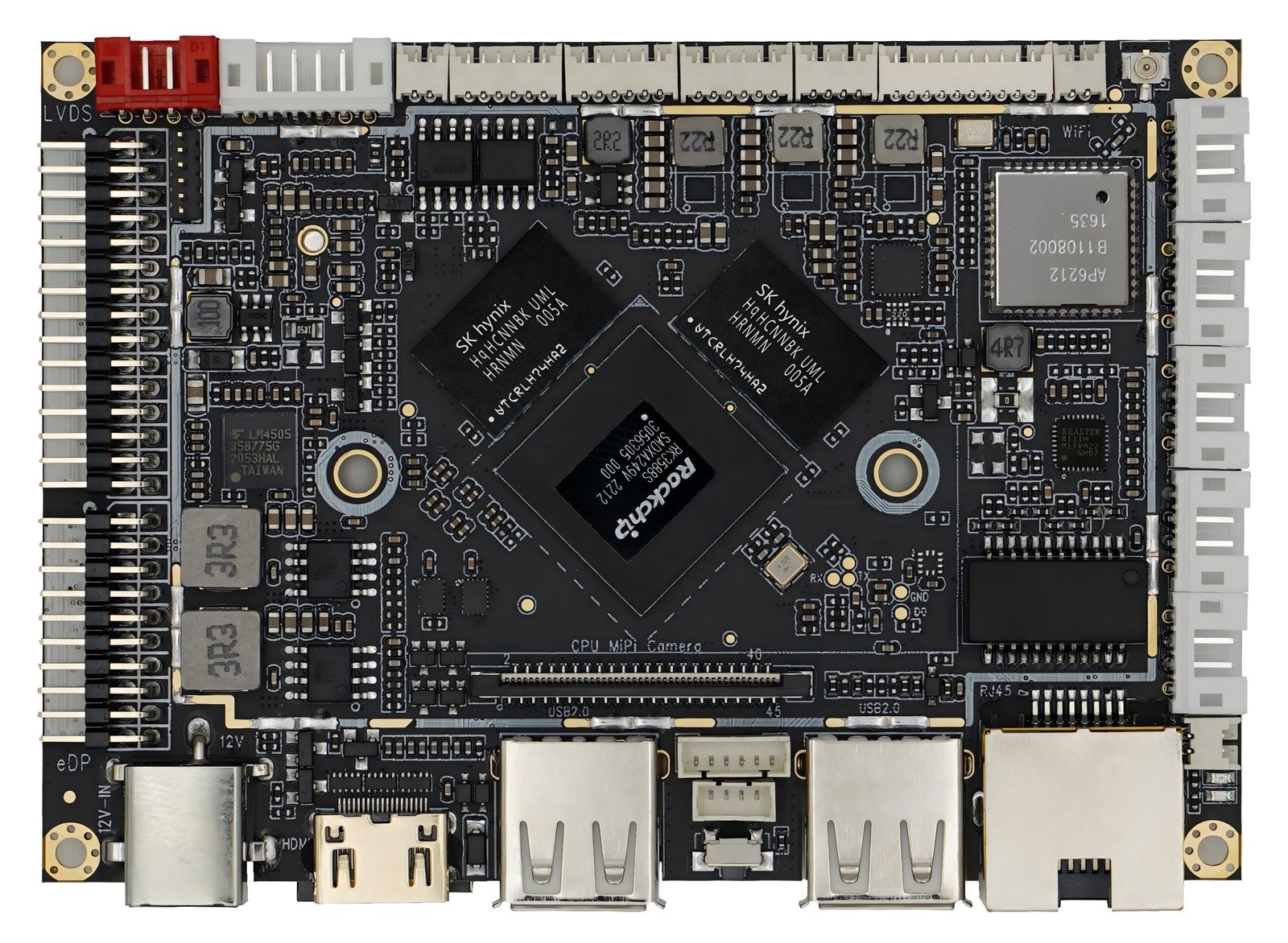

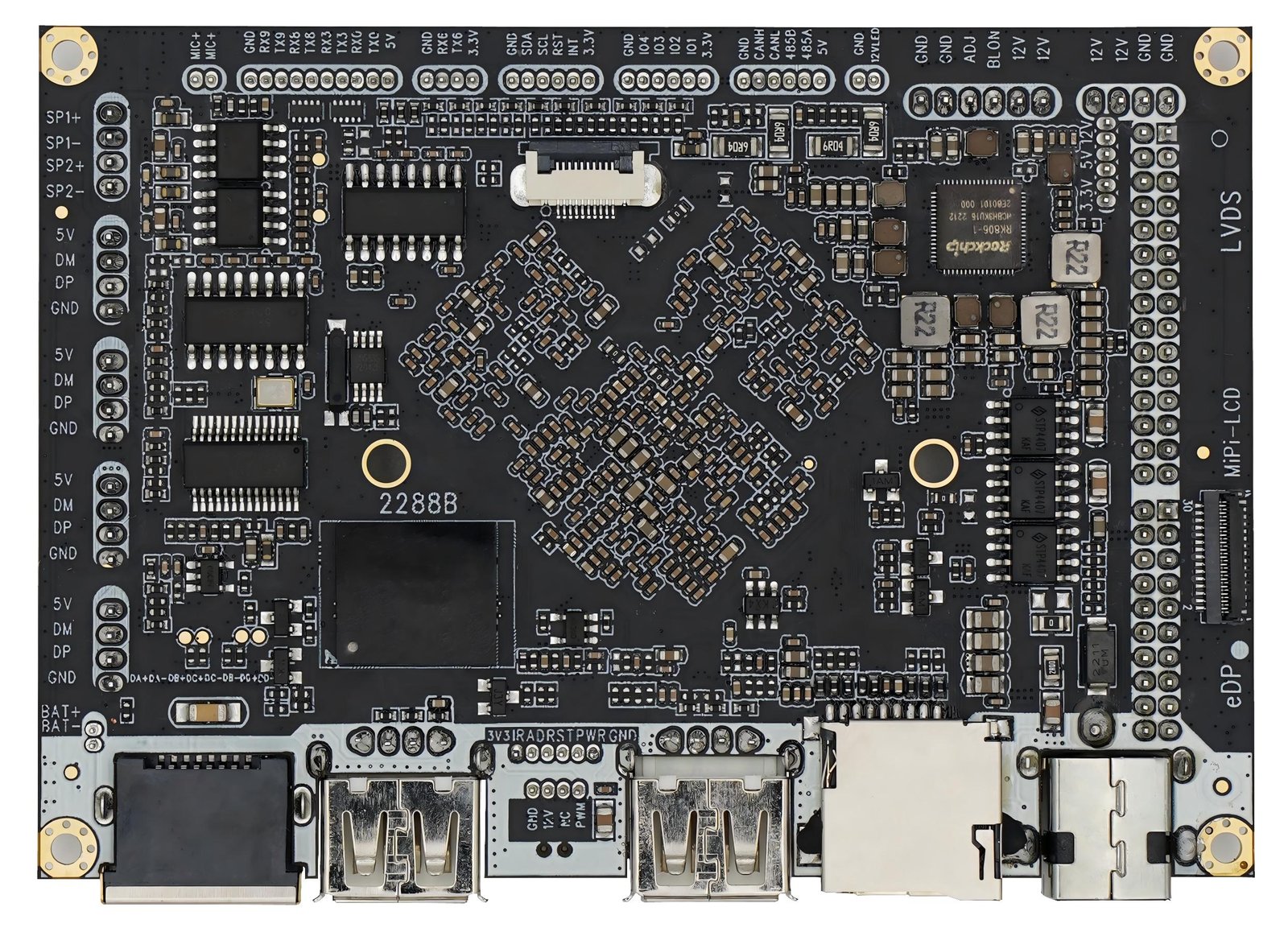

The RJY-2288B high-performance motherboard is powered by Rockchip’s next-generation flagship RK3588S AIoT processor, supporting Android 12.0, Linux, Ubuntu 20.04, and other operating systems. The RK3588S is built on 8nm LP process technology and features an octa-core 64-bit CPU with a Cortex-A76 + A55 architecture, reaching a maximum frequency of 2.4 GHz. It delivers exceptional general-purpose computing performance.
The GPU is a high-end quad-core Mali-G610, and the CPU integrates an AI Neural Processing Unit (NPU) supporting IN4 / IN8 / INT16 mixed-precision computation, achieving up to 6.0 TOPS. The platform supports multiple AI development tools and interfaces, enabling seamless integration with frameworks such as TensorFlow, Caffe, MxNet, PyTorch, and provides APIs including Android NN API, RKNN cross-platform API, and TensorFlow development interfaces.
This motherboard supports multi-screen independent display, LVDS 1080P output, eDP and MIPI display interfaces, and HDMI 8K output. It also offers a rich set of interfaces and features, including Gigabit Ethernet, Wi-Fi/Bluetooth, USB expansion, gravity sensor, CAN, RS232/RS485, I/O expansion, fill light, I2C expansion, MIPI camera input, and infrared remote control.
With its powerful octa-core AI processor and extensive connectivity, the ZYSJ-2288B is ideal for applications in AI robotics, cloud servers, smart NVRs, intelligent cockpits, ARM PCs, facial payment devices, security, medical, transportation, finance, industrial control, smart education, and intelligent retail. Its combination of hardware platformization and software intelligence enables an optimal human-machine interaction experience and seamless integration with networked devices.
2. Technical Specifications
| Category | Specification |
|---|---|
| Operating System | Android 12.0 / Linux / Ubuntu 20.04 |
| Processor (CPU) | Rockchip RK3588S (8nm LPP)Octa-core 64-bit CPU: 4 × Cortex-A76 + 4 × Cortex-A55, up to 2.4 GHz |
| Graphics (GPU) | Mali-G610 MP4 (quad-core)Supports OpenGL ES 3.2, OpenVG 1.1, OpenCL 2.2, 450 GFLOPS |
| Neural Network Processor (NPU) | Supports IN4 / IN8 / INT16 / FP16 computationUp to 6.0 TOPSCompatible with Caffe, MxNet, TensorFlow, TFLite, ONNX, DarknetProvides AI development tools and fast model conversion |
| Memory (RAM) | LPDDR4 4GB (optional 8GB / 16GB / 32GB) |
| Storage | eMMC 32GB (optional 64GB / 128GB / 256GB)TF Card expansion (optional) |
| Network | 1 × Ethernet 10/100/1000 MbpsWi-Fi 2.4 GHz 802.11b/g/n (5 GHz optional)Bluetooth V2.1+EDR / 3.0 / 3.0+HS / 4.1 / 4.2 / BLE |
| Display & Video | 1 × eDP 1.3 (4 lanes, 5.4 Gbps, 3.3V/5V)1 × LVDS (single/dual, 6/8-bit, 1080P60, 3.3V/5V/12V)1 × HDMI 2.1 (8K60Hz, HDMI/eDP selectable)1 × MIPI (supports 5.7 Gbps)Supports multi-screen independent displayOnboard backlight control 12V |
| Audio | 1 × Speaker output (2 × 18W, 4Ω)1 × Microphone input |
| Camera | 2 × MIPI camera input (up to 48 MP, optional)Supports USB cameras (optional) |
| RTC | External RTC battery, supports scheduled power on/off |
| USB Interfaces | 4 × USB 2.0 HOST1 × CPU USB 2.01 × USB 2.0 OTG |
| Infrared | 1 × IR receiver, supports remote control |
| LEDs | 1 × Power LED (red)1 × System LED (blue, blinking) |
| Buttons | 1 × Reset1 × Power1 × Upgrade |
| Serial Ports | 4 × RS2321 × UART TTL1 × RS485 |
| I/O & Expansion | 4 × GPIO (10-pin)1 × CAN1 × I2C1 × AD interfaceFan connector supports 5V/12V |
| Power Supply | AC 100–240 V, 50–60 Hz inputDC 12V / 5.5 mm inner 2.1 mm, 2–5A outputSurge voltage <18V, ripple <100 mVSupports auto power-on or button startup |
| Operating Conditions | Temperature: -10°C ~ 70°CStorage: -20°C ~ 70°CHumidity: 10%–80% |
| Board Dimensions | 100 × 70 × 11 mm |
| Multimedia | Supports 8K60fps H.265/H.264 decoding8K30fps H.265/H.264 encodingSimultaneous encode/decodeUp to 32 × 1080P30fps decoding, 16 × 1080P60fps encoding |
| Language & Input | Multilingual supportStandard Android keyboard, optional third-party keyboards (Chinese/Korean/Japanese)Native Android with root access for custom development |
| System Management | Real-time remote monitoringSystem crash auto-recovery7×24h unattended operationSupports OTA upgradesWi-Fi Display supportSoftware watchdog |
