, , Model RV021WVM-300-30

2.1 inch Round LCD Display – 480*480 IPS Panel RGB SPI LCD Module

Key specifications

Size(inch)
2.1
Resolution
480×480
Brightness (cd/m²)
300
Interface
RGB, SPI
Wide Temperature
No
Viewing Angle
All
Request Compatibility Review Request Sample Quote
View Full Specifications

Share your application, interface, touch requirement, controller board requirement and estimated annual volume.

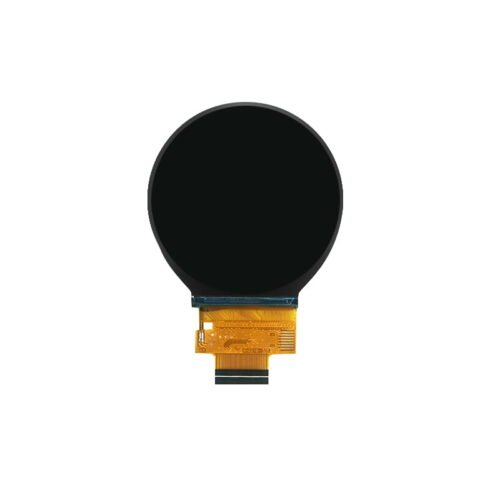

2.1 inch Round LCD Display - 480*480 IPS Panel RGB SPI LCD Module

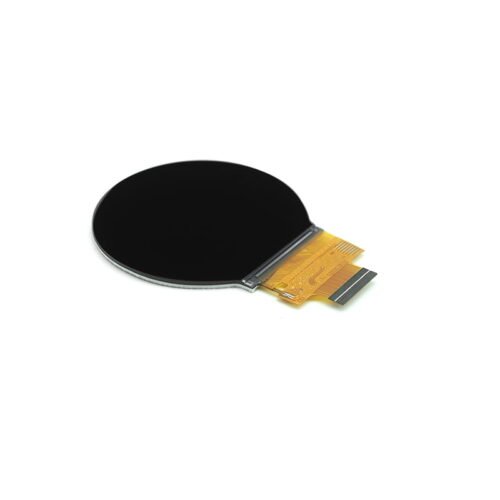

2.1 inch Round LCD Display - 480*480 IPS Panel RGB SPI LCD Module - Image 2

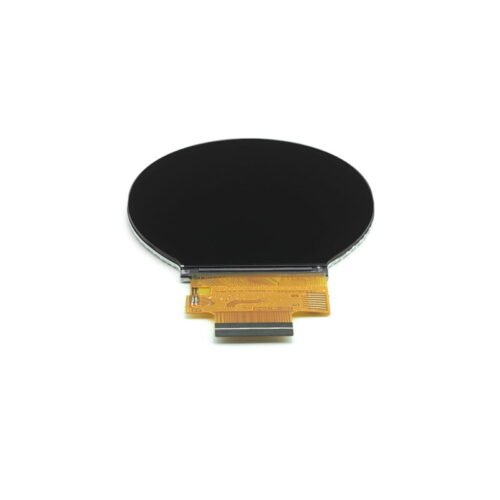

2.1 inch Round LCD Display - 480*480 IPS Panel RGB SPI LCD Module - Image 3
2.1 inch Round LCD Display - 480*480 IPS Panel RGB SPI LCD Module - Image 4

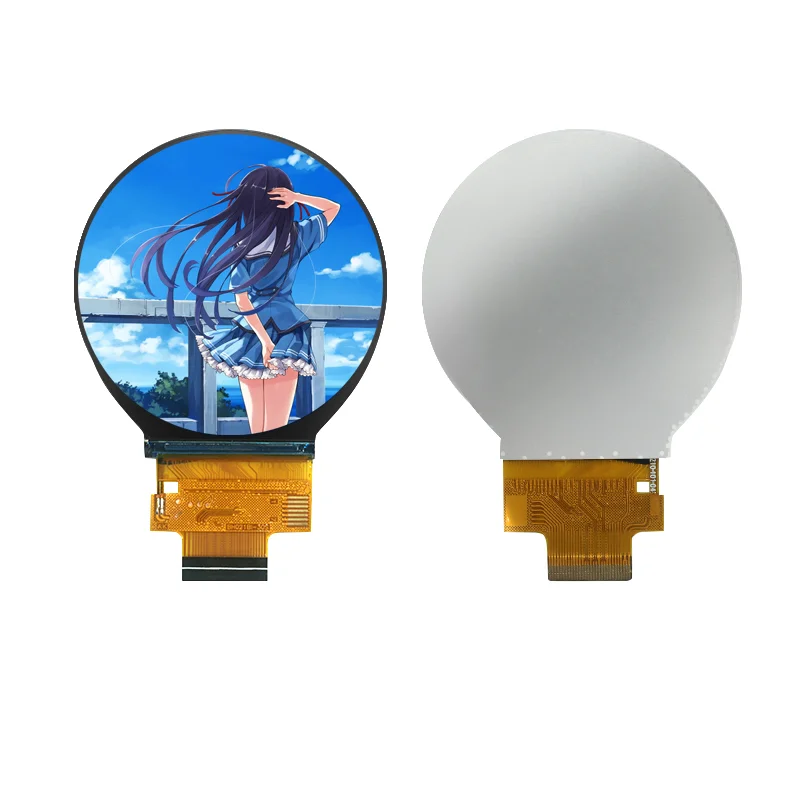

2.1 inch lcd panel
2.1 inch lcd panel

Interface Review

RGB, SPI and controller requirements are checked against the host platform.

Touch Options

Touch support depends on the selected module and project requirements.

Controller Support

LCD and controller board compatibility can be reviewed together.

Customization

Cover glass, backlight, FPC and mechanical coordination are available.

1. Product Description

This small size 2.1 inch tft lcd display panel you could choose two type, with touch or no touch, it is a round lcd display panel with RGB+SPI interface, all view angle.

we custom different size of LCD module, add touch screen, custom for the brightness and control board, we provide one-stop LCD solution include capacitive touch, drive board, FPC and so on.
contact us to tell us your requirements.

2. Technical Specifications

ModelRV021WVM-300-30
Size2.1 inch round lcd display
Number of Pixels480*480
LCD TypeA-SI TFT
Display Colors16.7 M
Display ModeIPS
Luminance300 cd/m²
Input Data3SPI+18RGB
IC DriverST7701S
Module Size56.18*59.71*2.3
Active Area53.28*53.28
Touchwith touch/ without touch
Operating Temperature-20 to +70
Storage Temperature-30 to +80

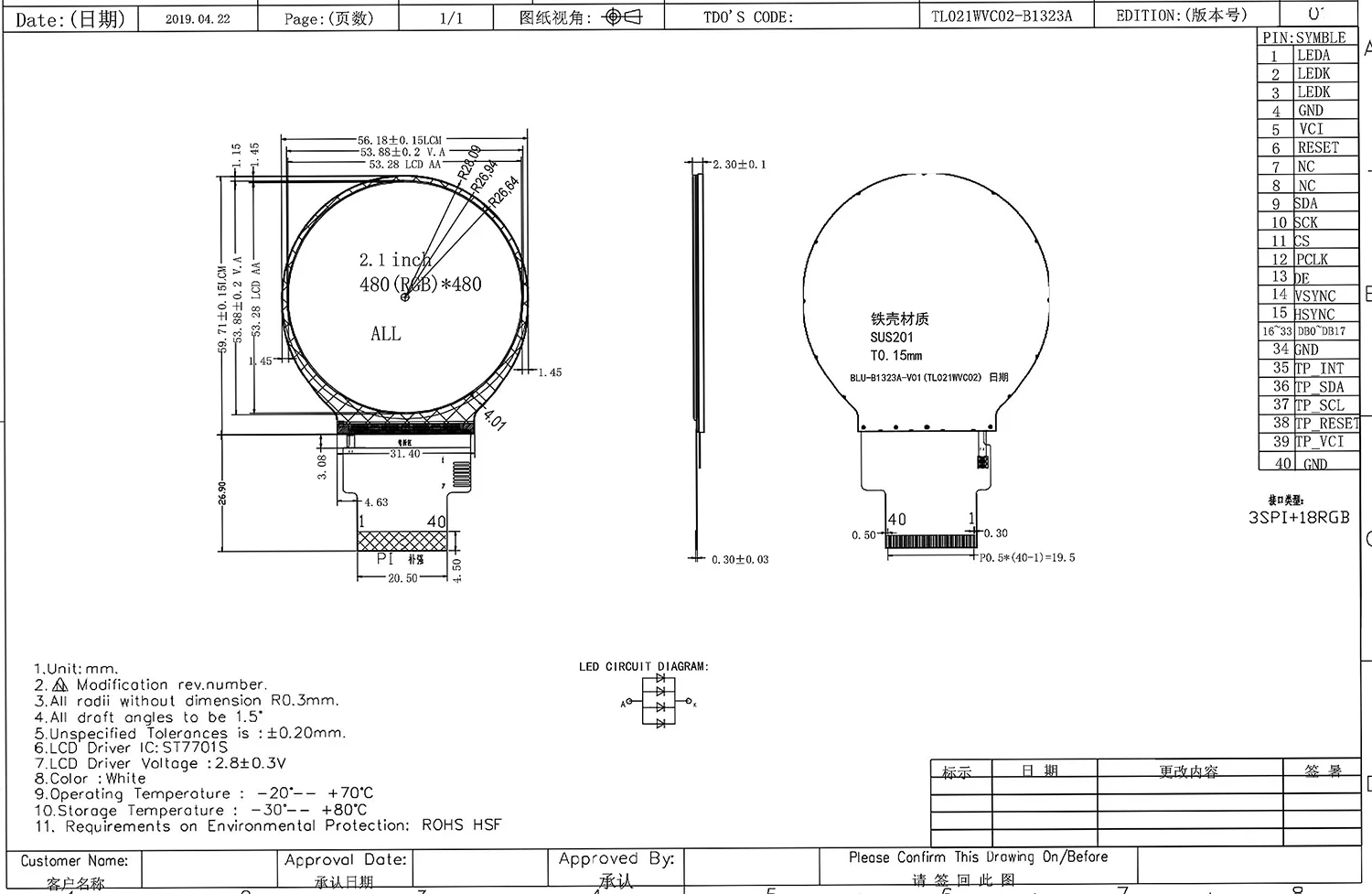

3. Structure

4. Customization Options

RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.

  • Interface and FPC adaptation
  • Brightness and backlight
  • Touchscreen and cover glass
  • Controller board and firmware
  • Mechanical structure coordination

Prepare your review

Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.

Submit custom requirements

Custom Inquiry

Your privacy matters to us. Any information you share will be kept strictly confidential and used only for business communication related to RJY Display products and services. Learn more in our Privacy Policy.

5. FAQ

Is a touchscreen available for this display?

Touchscreen availability depends on the selected display and project requirements.

Can RJY provide a compatible controller board?

Controller board support can be reviewed together with your host interface and timing needs.

What information is needed before ordering a sample?

Application, target specification, quantity, interface and customization needs help the team review fit faster.

Can cover glass or backlight be customized?

Cover glass, backlight and FPC changes can be evaluated for suitable projects.
