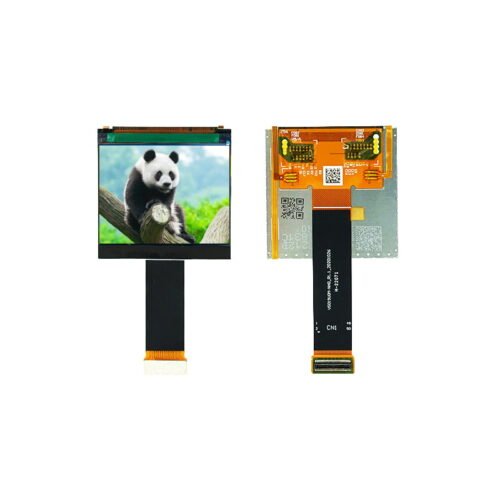

1.89 inch 1600*1200 LCD Screen

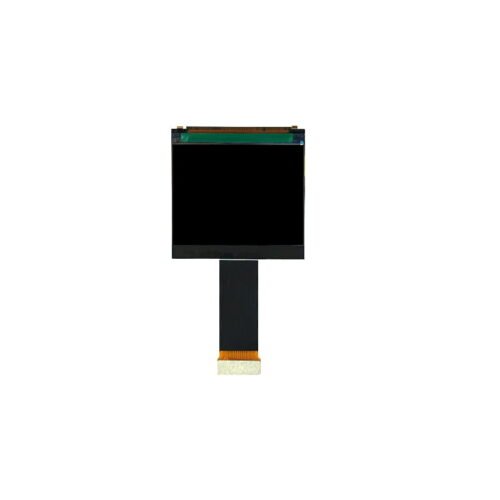

1.89 inch 1600*1200 LCD Screen - Image 2
1.89 inch 1600*1200 LCD Screen - Image 3
Ultra-wide bar LCD display module

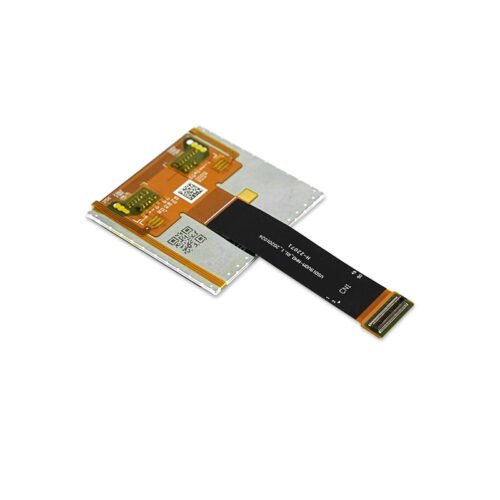

1.89 inch 1600*1200 LCD Screen - Image 5
, Model VS019U0M-NH0-DKP0

1.89 inch 1600*1200 LCD Screen

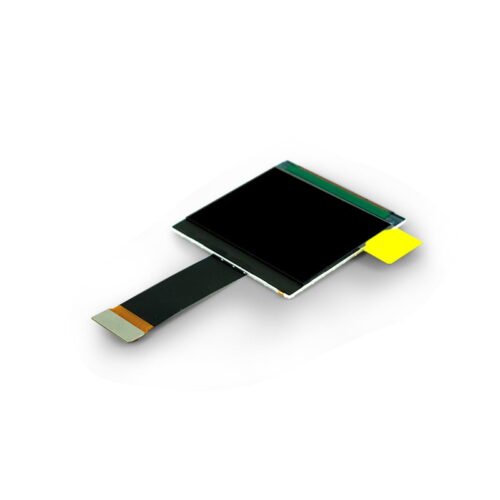

1.89 inch TFT LCD Screen Panel

  • Resolution: 1600*1200
  • Interface: MIPI DSI
  • Driver IC: R63455
  • Brightness: 1000nit
Contact for availability
View specifications

Share your interface, touch, brightness and volume requirements for an engineering fit review.

01Interface review
02Touch integration
03Controller support
04Lifecycle coordination

Product overview

Engineered for application fit

VS019U0M-NH0-DKP0 is a 1.89″ /1.9″ TFT-LCD screen panel, with an integral WLED backlight system, without a touchscreen. It is a Color Active Matrix TFT LCD screen, with 1600*1200 pixels, an operating temperature range of -10 ~ 50°C, and a storage temperature range of -30 ~ 70°C. It interface is MIPI DSI, Driver IC is R63455, with high brightness max can reach 1200nit, and tpy is 1000nit.

This small size 1.9 inch LCD display could application to HMD VR AR etc. Or other Virtual Reality Devices and Augmented Reality Devices

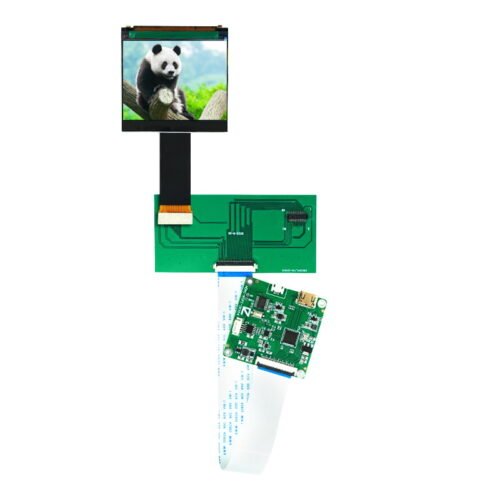

  • Provide HDMI board
  • Control board will custom according to your requirements, this control board is for MIPI-4LINE-LCD Panel, and max support 1920*1200 resolution lcd panel





6

Features

  •  High PPI
  • Fast response time
  • High frame ratio
  • High luminance, low reflection and wide viewing angle
  • RoHS、Halogen Free Compliant

Application

  • Virtual Reality Device
  • Augmented Reality Device



Recommended Products

7 6 1.5 inch tft lcd module
3.5 inch 1400*1600 TFT LCD Module 2.1 inch 1600*1600 TFT LCD Panel 1.52 inch 240*283 TFT LCD Touchscreen



Technical data

Specifications

Model VS019U0M-NH0-DKP0
Size 1.89"/1.9" TFT LCD Screen Panel
Display method Active matrix TFT
Display mode ADS
Number of pixels 1600(H) × 1200(V) (1058ppi)
Aspect ratio 4：3
Active area 38.4(H) × 28.8(V)
Pixel pitch 8.0 × 24.0
Pixel arrangement RGB stripe
Display colors 16.7M
NTSC Ratio 70.8%
LCM Outline Dimension 41.2(H)×40.6(V) × 1.72(T)
LCM Weight 7.0 +/- 1.0  gram
Driver IC R63455
Interface MIPI DSI
Surface Treatment HC, ≥3H
operating temperature -10-50 ℃
storage temperature -30-70 ℃
Humidity Ta≤50℃, 90% RH Max.





Mechanical reference

Structure

Project adaptation

Customization options

Adapt an existing display platform to the electrical, optical and mechanical needs of your product.

  • Interface and FPC adaptation
  • Brightness and backlight
  • Touch and cover glass
  • Controller board support
  • Mechanical coordination

Engineering FAQ

Questions before evaluation

Can touch and cover glass be customized?

Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.

Can RJY provide a controller board?

Controller support can be evaluated with your host interface, timing and software requirements.

What is required for a quotation?

Provide the application, target specification, operating environment, sample quantity and annual volume.
