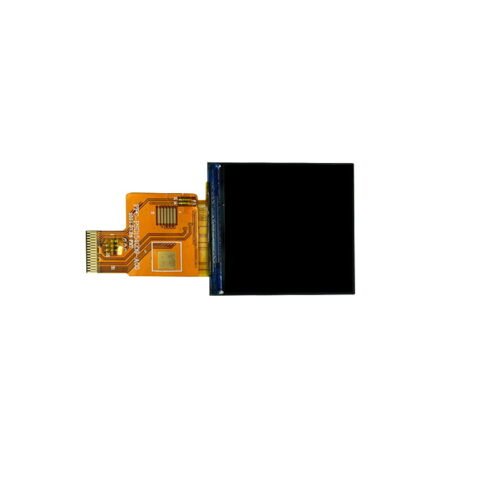

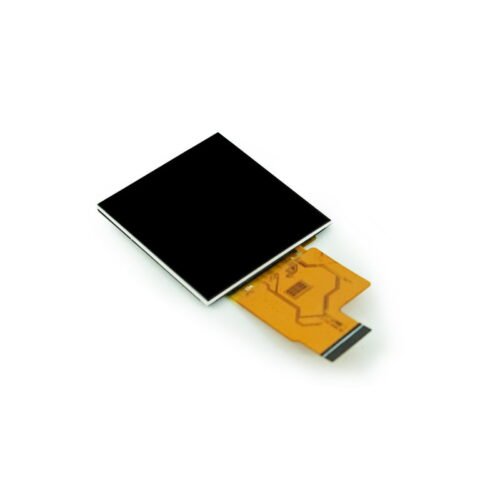

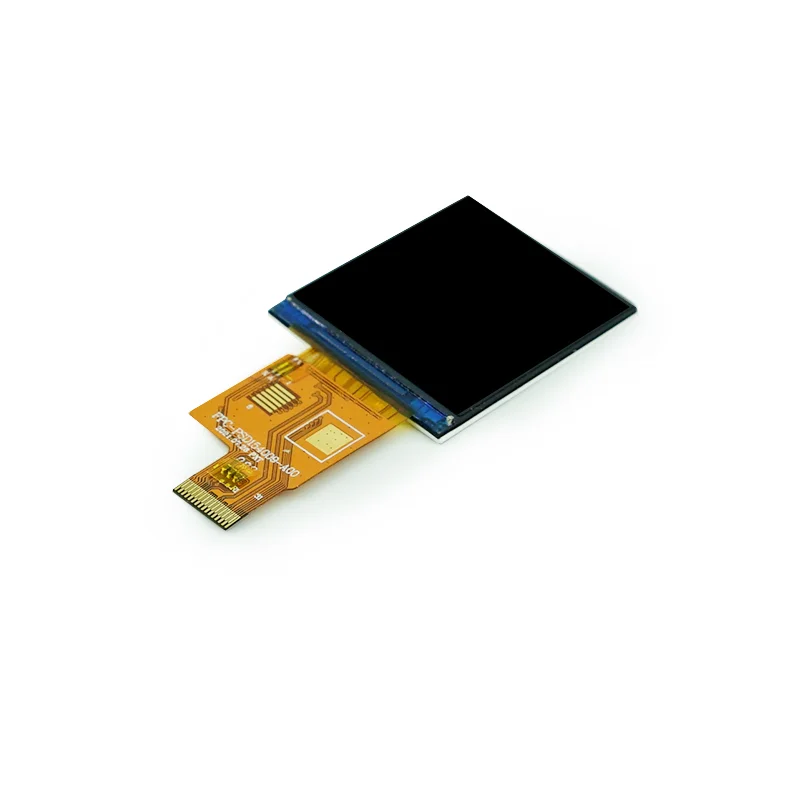

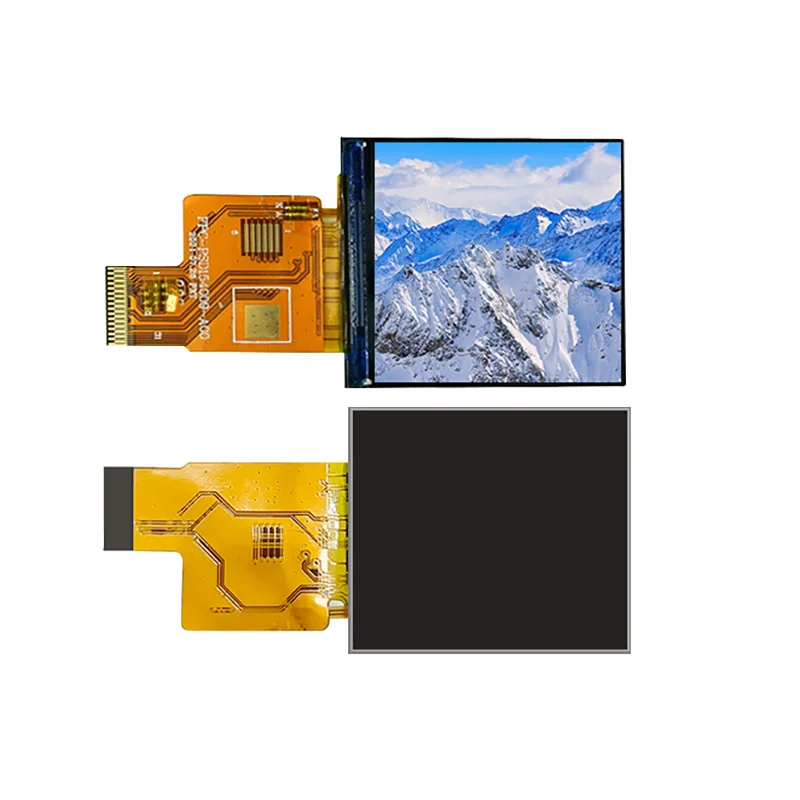

1.54-inch TFT LCD Display – 240*240 Resolution
1.54 inch TFT LCD Display module
- 240*240
- MIPI interface
- Driver IC: ST7785M
- Colors: 262K
- Display Mode: Normally Black
Description
Core Parameters
Structural diagram
Description
This 1.54 inch TFT LCD display panel from RJOYTEK, No. is RV015Z1M-800-31, it is 240×240 pixel with ST7785M Driver IC. Full wide viewing angle IPS. The color is 262K, and interface is MIPI, which can be changed if you need, its brightness is 800nit. This 1.54 inch LCD module could used in any embedded systems, industrial device, security and hand-held equipment.
Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.Provide HDMI board and other LCD control board.This 1.54 inch 240*240 tft display wide application for wearable device, healthcare device, handheld terminal, MP3 MP4 player, and other electronics.
Recommended Products |  |  |  |
| 3.4 inch round tft lcd module | 7 inch LCD touchscreen panel | 4 inch sunlight readable lcd screen | 10.25 inch automotive lcd display |
Core Parameters
| Model | RV015Z1M-800-31 |
| Size | 1.54 inch TFT LCD module |
| Display Mode | Normally Black |
| Resolution | 240(RGB)x240 |
| Pixel pitch | 0.1155(H) x 0.1155(V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing direction | ALL |
| Module outline dimension | 30.52(H)*33.72(V)*1.84(D) |
| LCD AA | 27.72 (H)* 27.72(V) |
| Colors | 262K |
| Driver IC | ST7785M |
| Interface | MIPI |
| Backlight | White LED |
| Operating Temperature | -20℃~ +70℃ |
| Storage Temperature | -30℃~ +80℃ |
| Luminance | 800cd/㎡ |
Structural diagram
