TFT LCD Display Module
Model RV060FHM-350-39

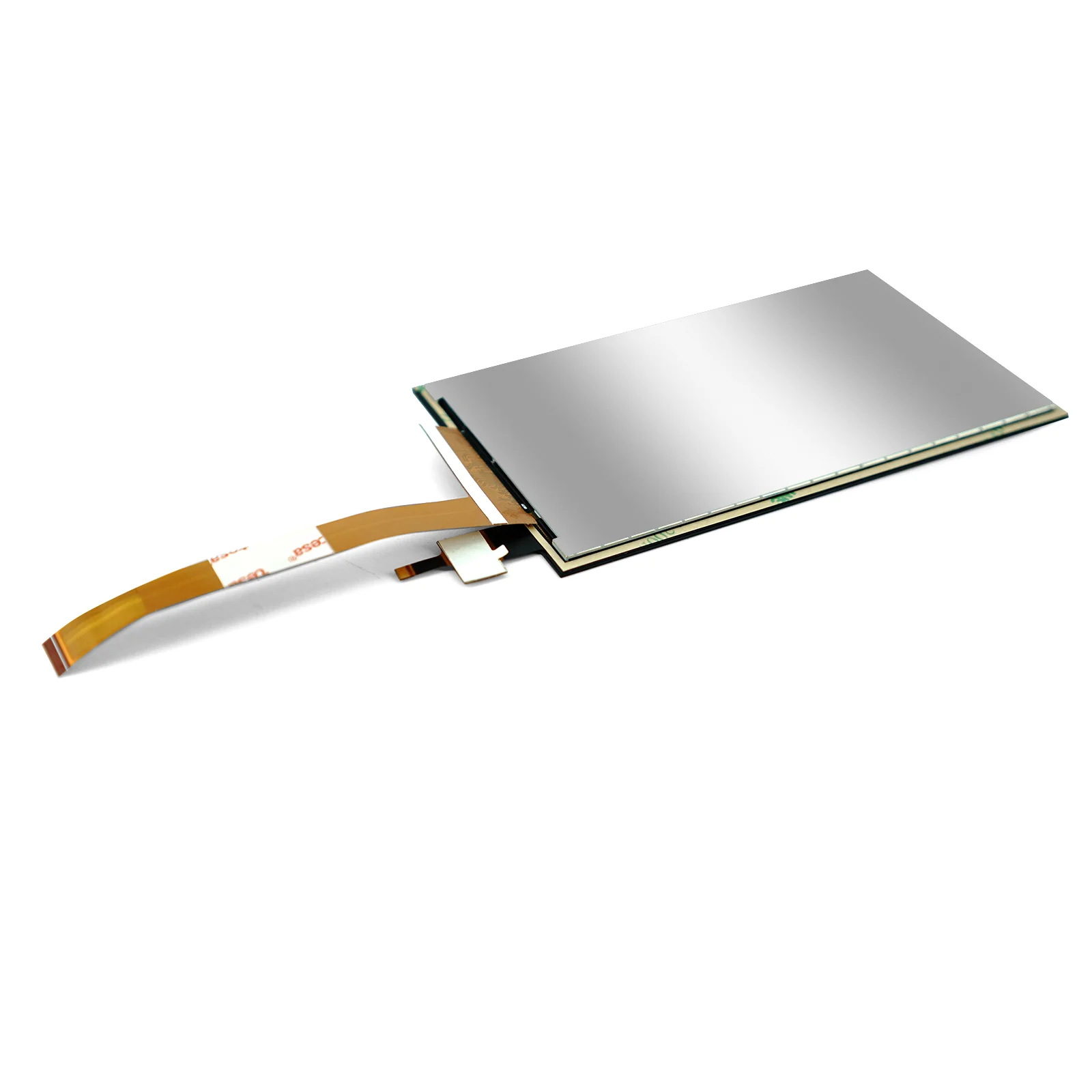

6 inch TFT LCD Display – 1080*1920 Resolution
Key specifications
- Size(inch)
- 6.0
- Interface
- MIPI
- Resolution
- 1920x1080
- Brightness (cd/m²)
- 350
- Wide Temperature
- No
- Viewing Angle
- All
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
RV060FHM-350-39 is a color HD 1080P 6 inch LCD screen module with 1080*1920 pixels with LED backlight, wide viewing angle, it is a square shape Normally Black transmissive TFT display model, MIPI VIDEO MODE interface, the interface acceptable to change according to your requirements. The IC driver is NT35532, it has a wide storage temperature of -30-70 degree, storage humidity is 90%RH.
Brightness is custom item, welcome to tell us your requirement about the LCD panel brightness.
Are there other products that can be selected from 6 inches to 7 inches?
Yes, we have 1.3 inch to 24 inch TFT LCD panel provide, there are 6 inch to 7 inch LCD display details:
|  |
|  |
|  |
|  |
|  |
More details welcome to contact us!
2. Technical Specifications
| Model | RV060FHM-350-39 |
| Display Mode | Normally Black transmissive |
| Viewing Direction | ALL O’clock |
| Input Signals | MIPI VIDEO MODE |
| Outside Dimensions | 76.72 (W) x139.62(H)x1.21(D) mm |
| Active Area | 74.52(W) x132.48(H) mm |
| Number of Pixels | 1080xRGBx1920Pixels |
| Dot Pitch | 0.069×0.069 mm |
| Pixel Arrangement | RGB Vertical stripes |
| Drive IC | NT35532 |
| Storage Humidity | 10-90%RH |
| Storage Temperature | -30-70 ℃ |
| Operating Ambient temperature | -20-60 ℃ |
| Power for Circuit Driving | Vcc: 2.3-4.6v |
| Power for Circuit Logic | Vt: 1.65-3.3v |
| Contrast Ratio | 1000 |
| Module Luminance | 350 nit / customized |
| Response time | 25ms |
| Viewing Angle | 80/80/80/80 Degree |
| NTSC | 70% |

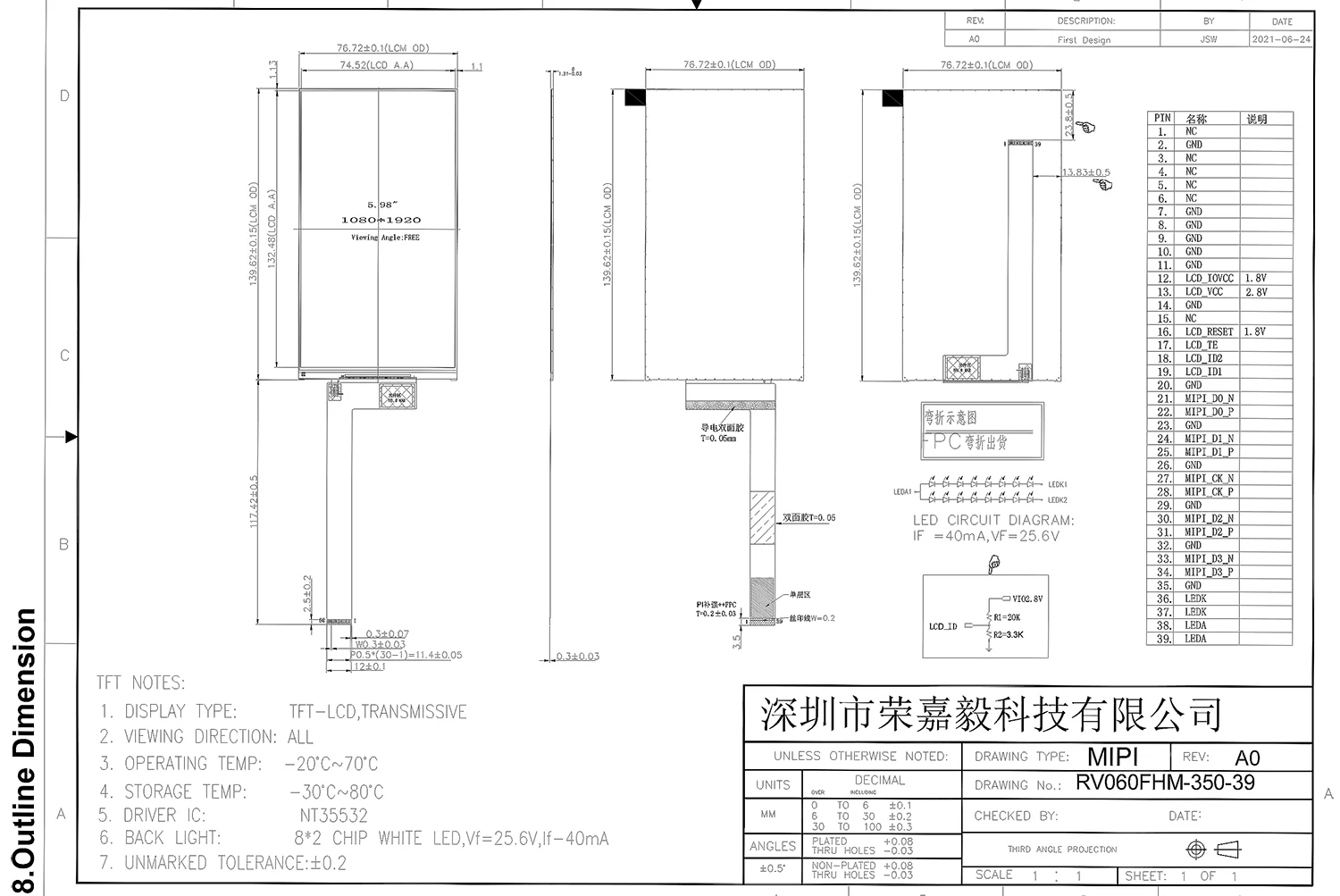

3. Structure
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
