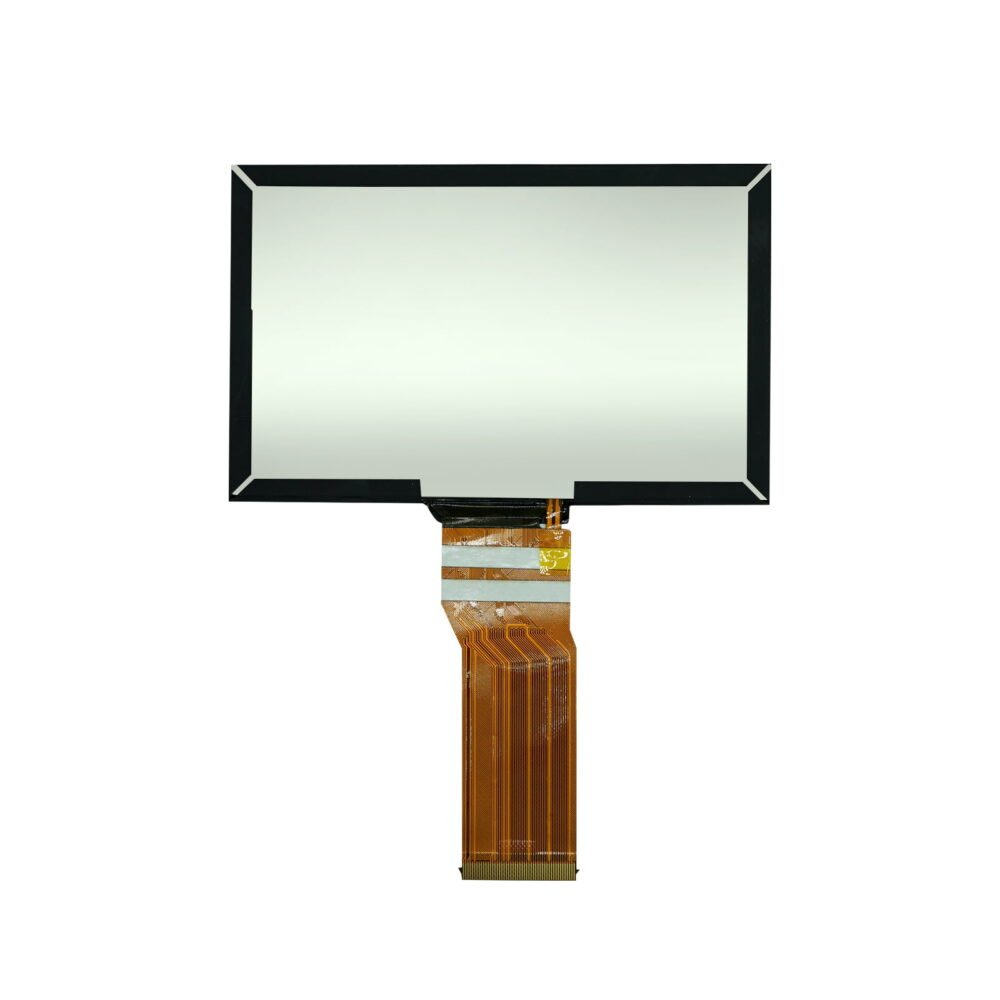

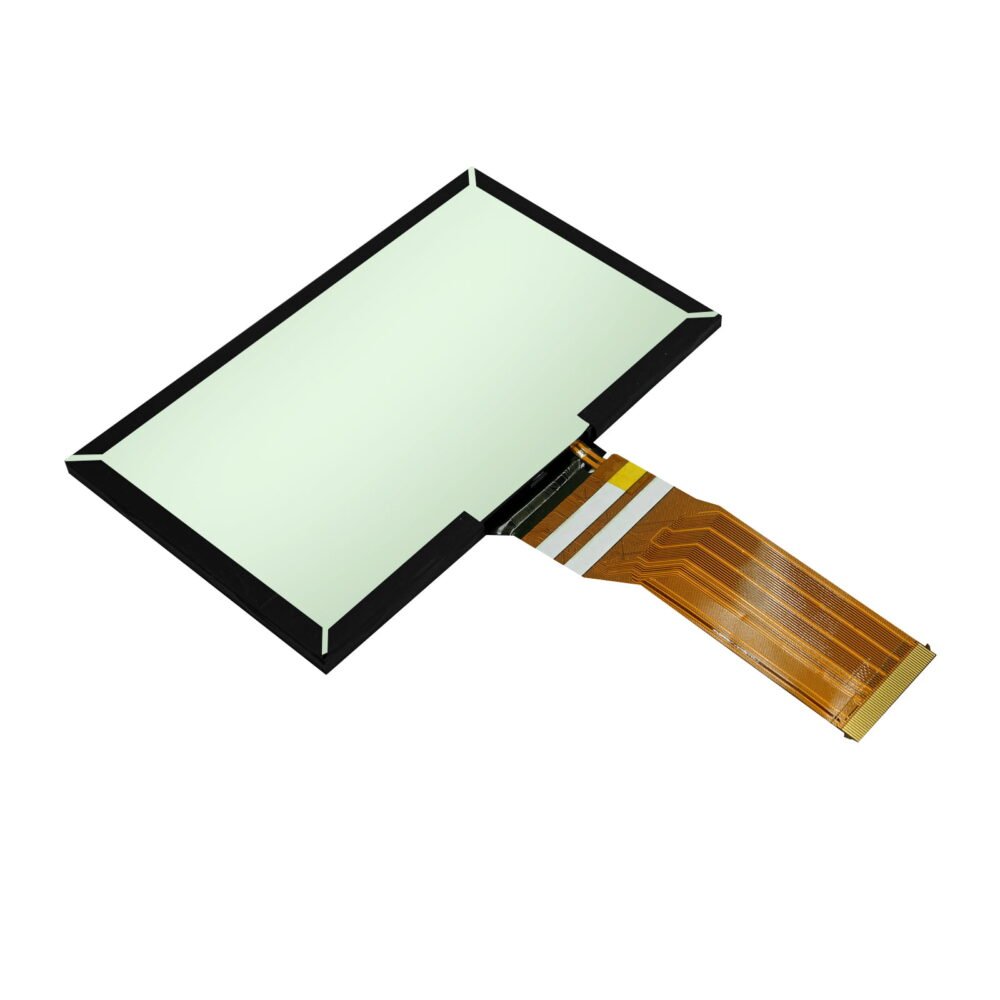

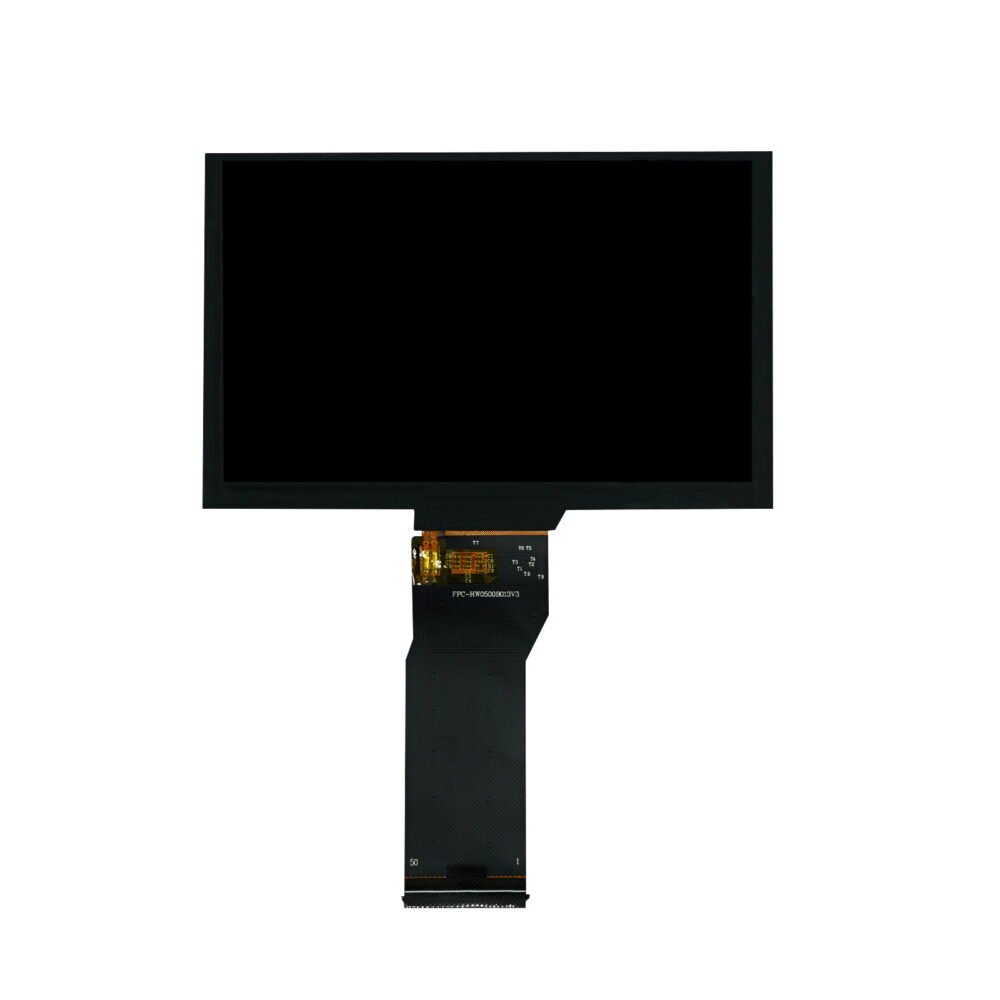

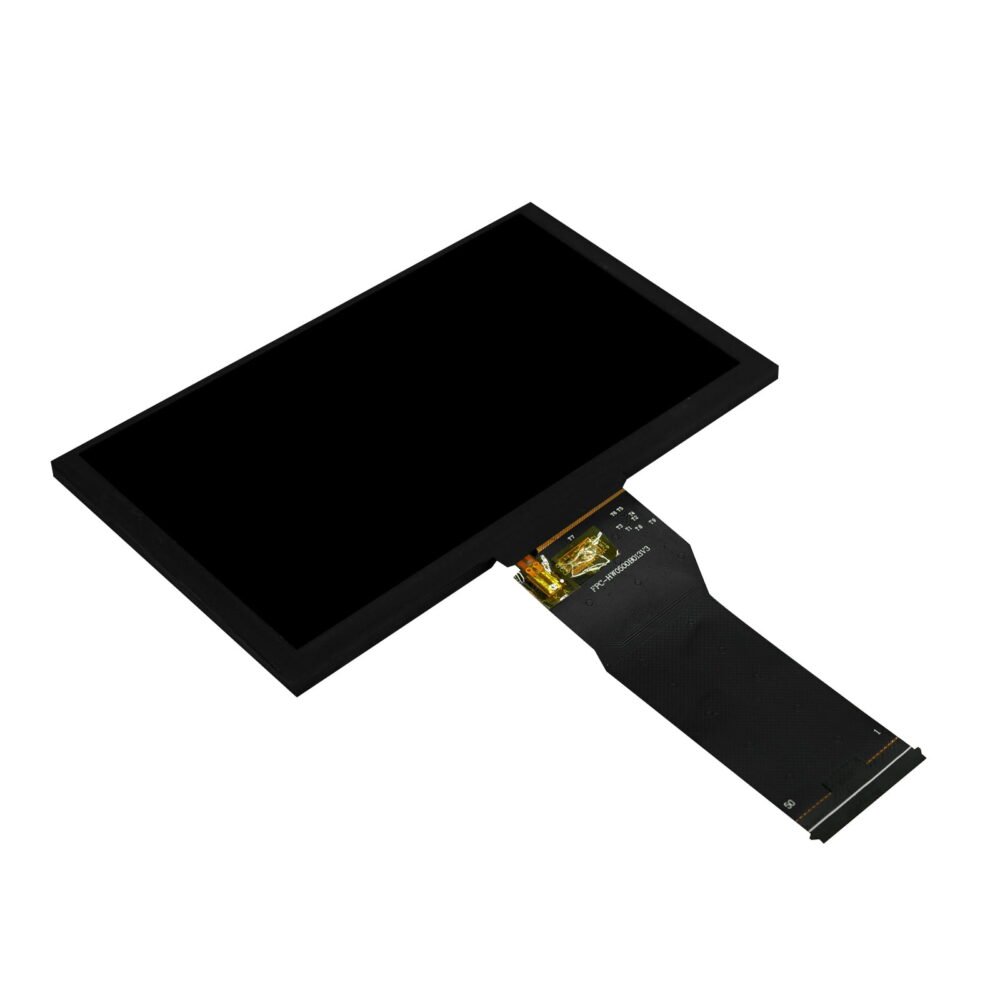

RJOYTEK 5 inch 800*480 RGB Interface IPS LCD Display
Feature
- Compatible with NTSC & PAL system
- RoHS design
- Image Reversion: UP/DOWN and LEFT/RIGHT
- Size: 5 inch lcd display
- Resolution: 800*480
- Interface: RGB
Applications
- Automotive cluster
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit
The model RV050WVM-720-50is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 5.0(15:9) inch diagonally measured active display area with (800 horizontal by 480 vertical pixel) resolution.
| Model | RVO5OWVM-72O-50 |
| Size | 5 inch lcd display |
| Number of Pixel | 800 RGB (H) x480(V) |
| Display area | 108(H) x64.8(V) |
| Module Outline Dimension | 120.70X 75.8 x4.5(Typ) |
| Display mode | Normally Black , IPS |
| Pixel arrangement | RGB Vertical stripe |
| Pixel pitch | 0.135(H) xO.135(V) |
| Back-light | LED Side-light type |
| Interface | RGB |
| Luminance | 750 Cd/m2 |
| Storage temperature | -35-85 °C |
| Operating temperature | -30-80 °C |
Technical data
Specifications
Detailed specifications are available from the RJY engineering team.
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
