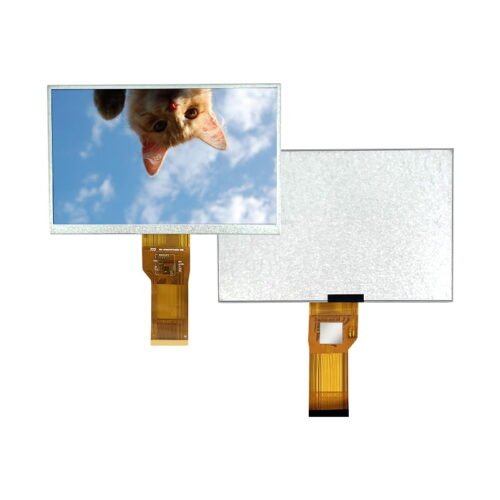

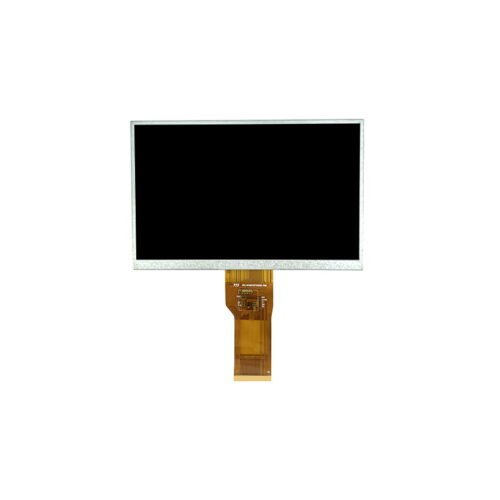

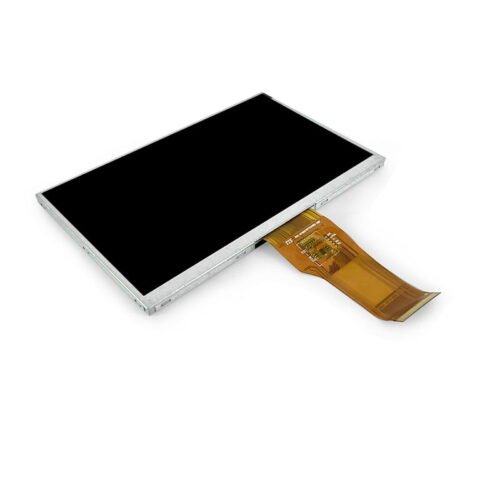

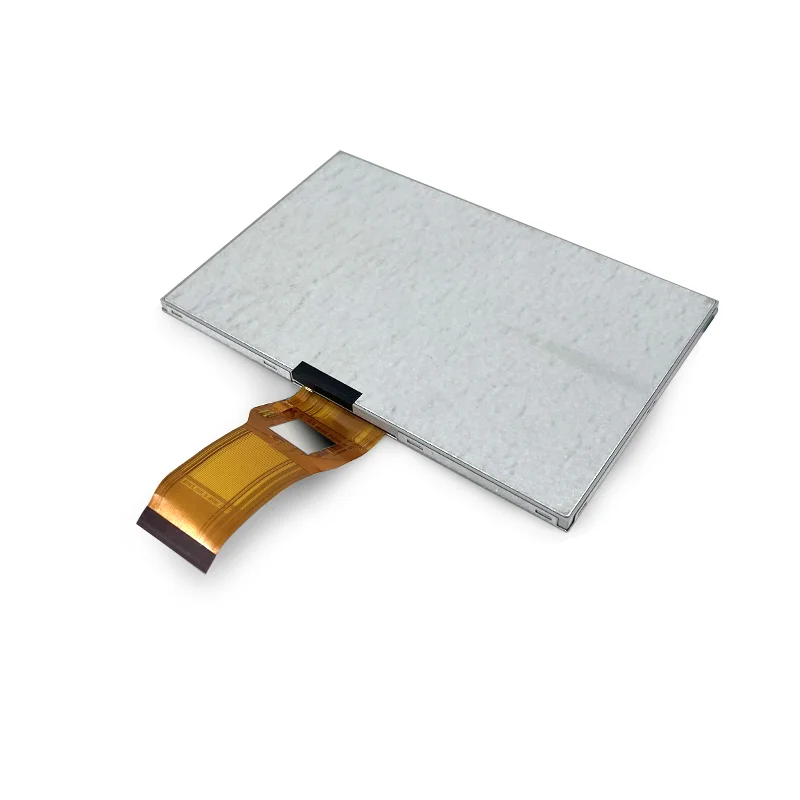

6.8 inch a-si TFT LCD Panel 800*480 TFT LCD Module
A-si TFT LCD Color LCD Display Panel
- Size: 6.8 inch TFT LCD Panel
- Resolution: 800*480
- Interface: RGB
- Storage Temperature: -40 to +125 ℃
- LCM Luminance: 800 cd/m²
Share your interface, touch, brightness and volume requirements for an engineering fit review.
Product overview
Engineered for application fit
RV068WVM-800-50 is a color TFT-LCD Panel using amorphous silicon TFT’s (Thin Film Transistors) as an active switching devices.
This 6.8 inch TFT LCD module with 800*480 resolution, input date is RGB, with wide storage temperature of -40 to +125 degree, the LCM Luminance is 800nit.
This 6.8 inch TFT LCD display module application in industrial displays, automotive displays, or any products that need wide temperature or small size 6.8 inch displays.
What can we do offer together?
1: HDMI board, LCD control board according to your requirements;
2: Interface transfer board or custom the different interface for you;
3: Touchscreen and different treatment of the surface, GG, GF, GFF;
4: Other accessories if you need.
Recommended Products
 |
 |
 |
| 1.89 inch TFT LCD Module with Driver Board | 3.4 inch Round TFT LCD Module | 5 inch Square LCD Panel with Control Board |
Technical data
Specifications
| Model | RV068WVM-800-50 |
| Size | 6.8 inch LCD panel |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 800(R,G,B)*480 |
| Input Data | RGB |
| View Angle | ALL O ”clock |
| Display Colors | 16.7M TRUE COLOR |
| Module Size | 156.1(W)×100.9(L)×5.5(T) |
| Active Area | 148.1*(W) * 88.86(H) |
| Pixel Size | 0.198x0.198 |
| Operating Temperature | -30 to +80 ℃ |
| Storage Temperature | -40 to +125 ℃ |
| LCM Luminance | 800 cd/m² |

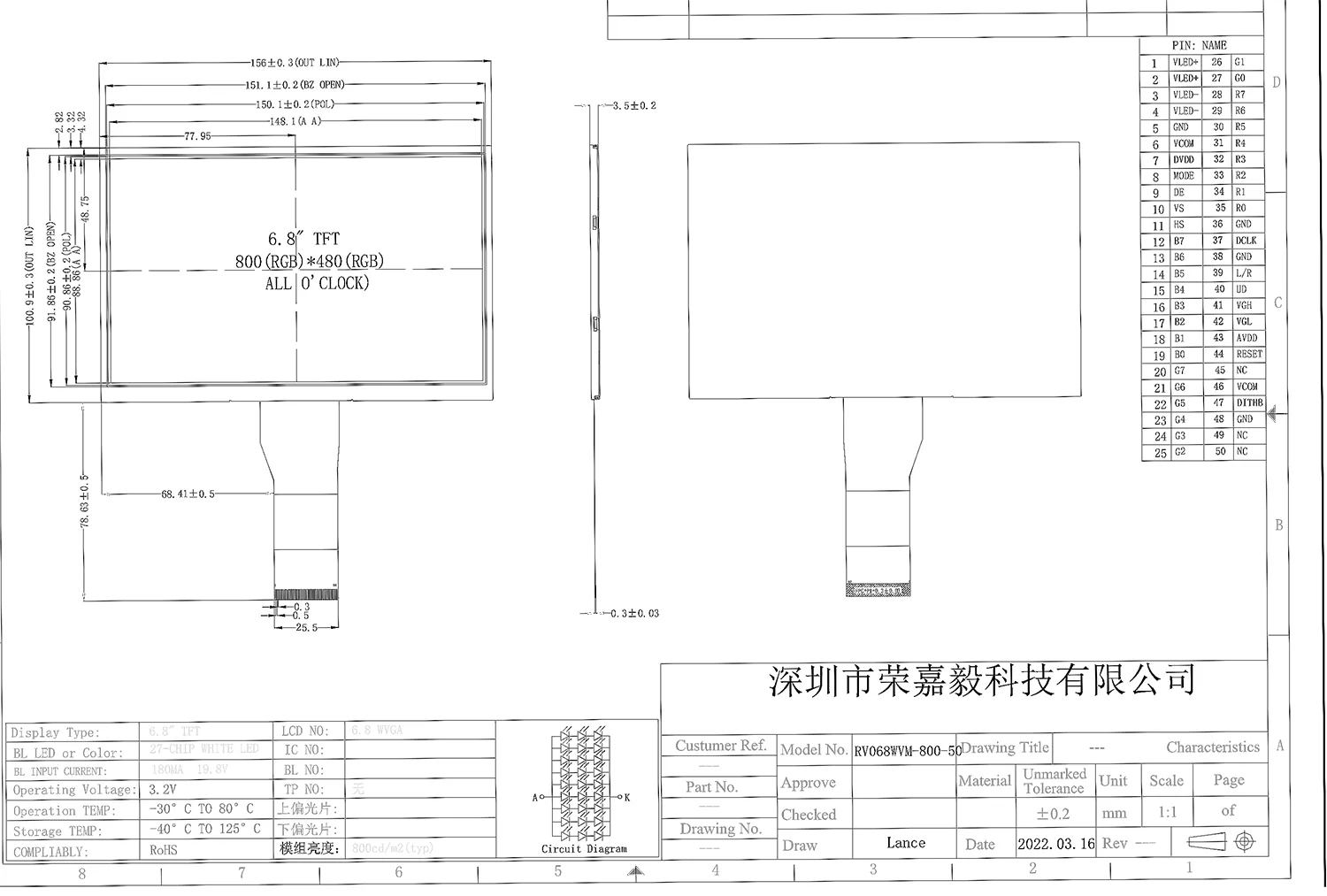

Mechanical reference
Structure
Project adaptation
Customization options
Adapt an existing display platform to the electrical, optical and mechanical needs of your product.
- Interface and FPC adaptation
- Brightness and backlight
- Touch and cover glass
- Controller board support
- Mechanical coordination
Engineering FAQ
Questions before evaluation
Can touch and cover glass be customized?
Yes. The available touch stack, cover glass and bonding process are reviewed against the selected module and project volume.
Can RJY provide a controller board?
Controller support can be evaluated with your host interface, timing and software requirements.
What is required for a quotation?
Provide the application, target specification, operating environment, sample quantity and annual volume.
