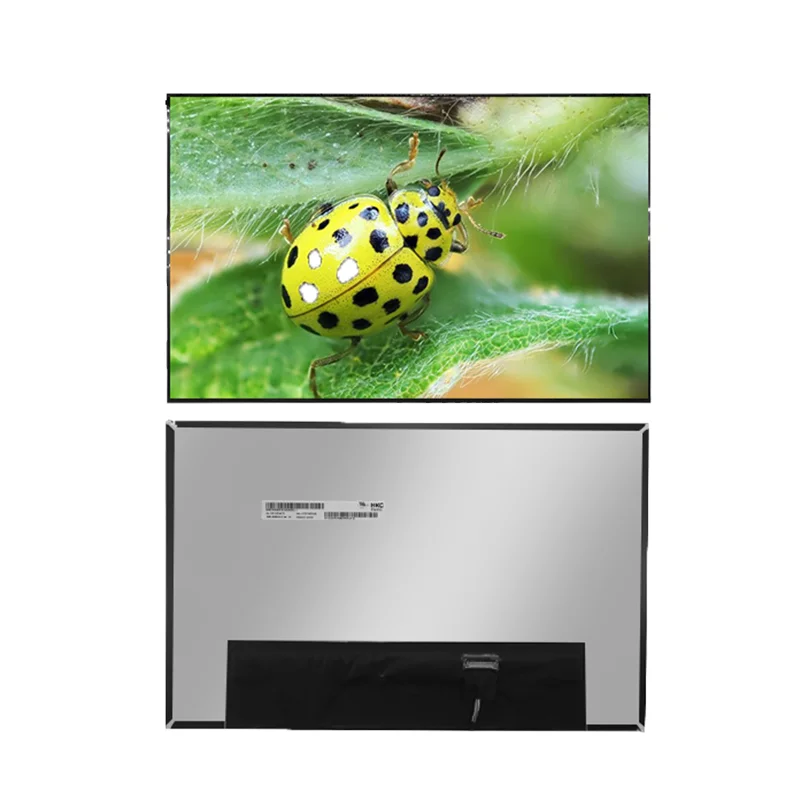

Capacitive Touch Panel, TFT LCD Display Module
Model RV101WSP-200-50

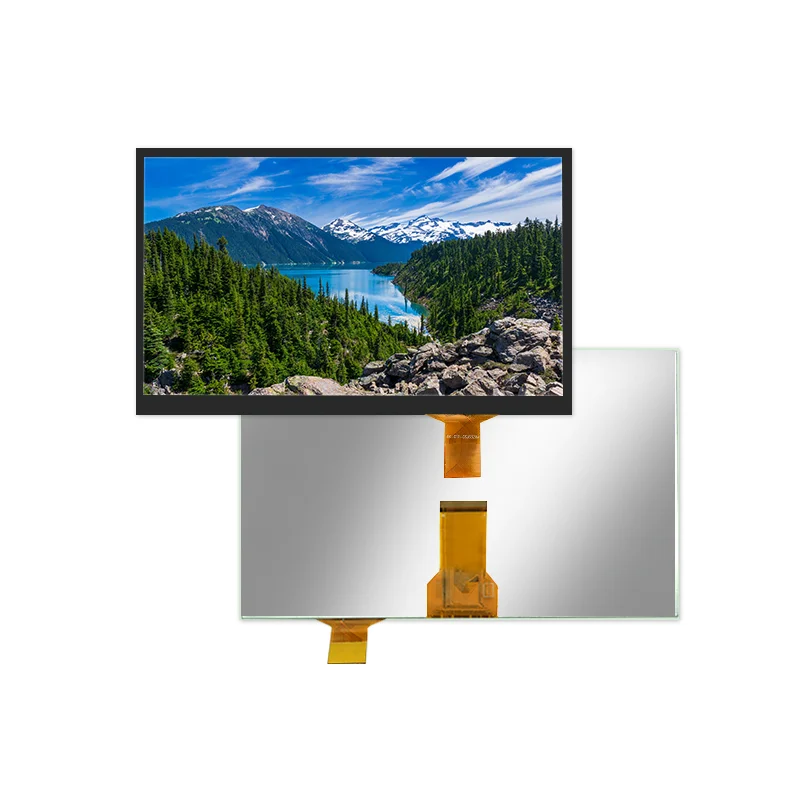

10.1 inch TFT LCD Touch Screen 1024*600 TFT LCD Display Rjoytek Wholesale
Key specifications
- Size(inch)
- 10.1
- Resolution
- 1024×600
- Brightness (cd/m²)
- 200
- Interface
- RGB
- Wide Temperature
- No
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.

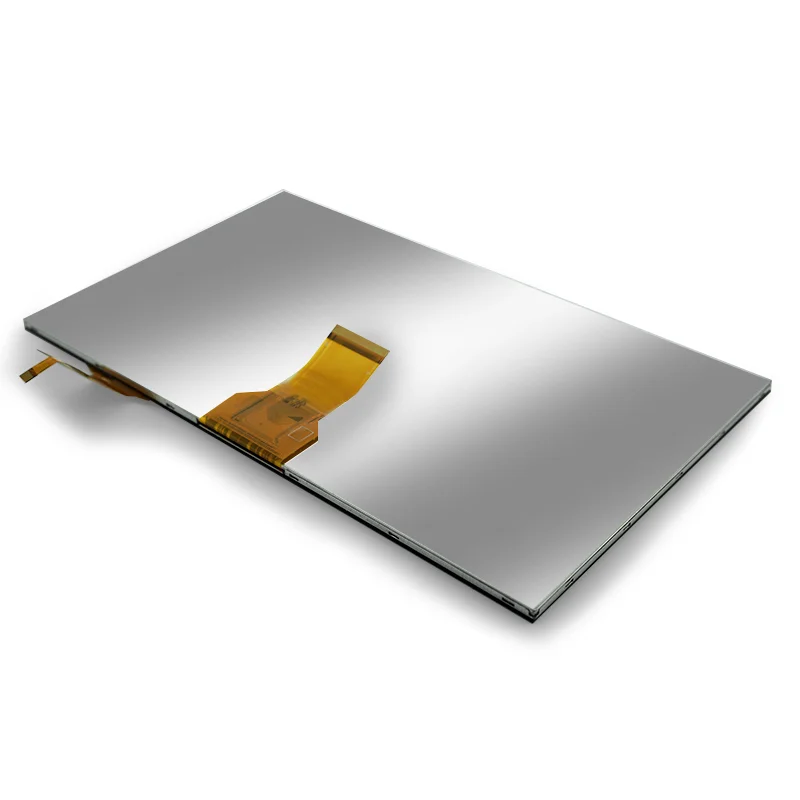

1. Product Description
The display model RV101WXM-200-50 is a ALL VIEW TFT-LCD (Thin Film Transistor Liquid Crystal Display) module. This model is Composed of a TFT LCD panel , a driving circuit and a back light, and also has a 10.1 inch diagonally measured active display area with HD(1024 horizontal by 600 vertical pixel) resolution in a stripe arrangement. Display 16M colors by 8 bit R.G.B signal input.
This 10.1 inch TFT LCD touch screen with 200nit brightness and 50pin. If you need to custom different brightness and pin, interface, or any control board such as HDMI board, we will provide that, we are a company that do wholesale and all products are wholesale price but small MOQ you could get it. Any problem welcome to discuss with us!
More products you may like:

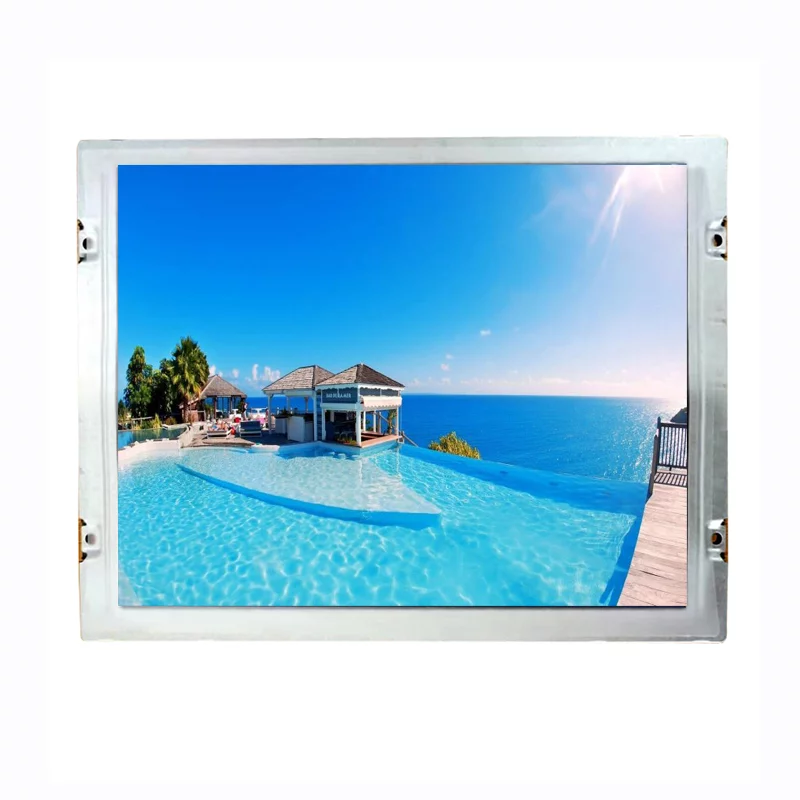

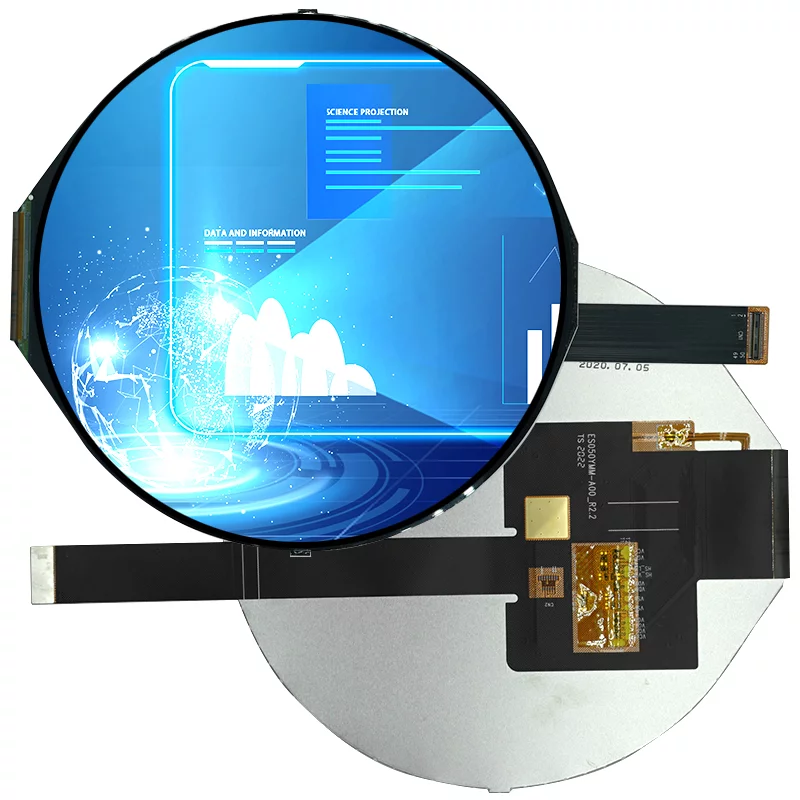

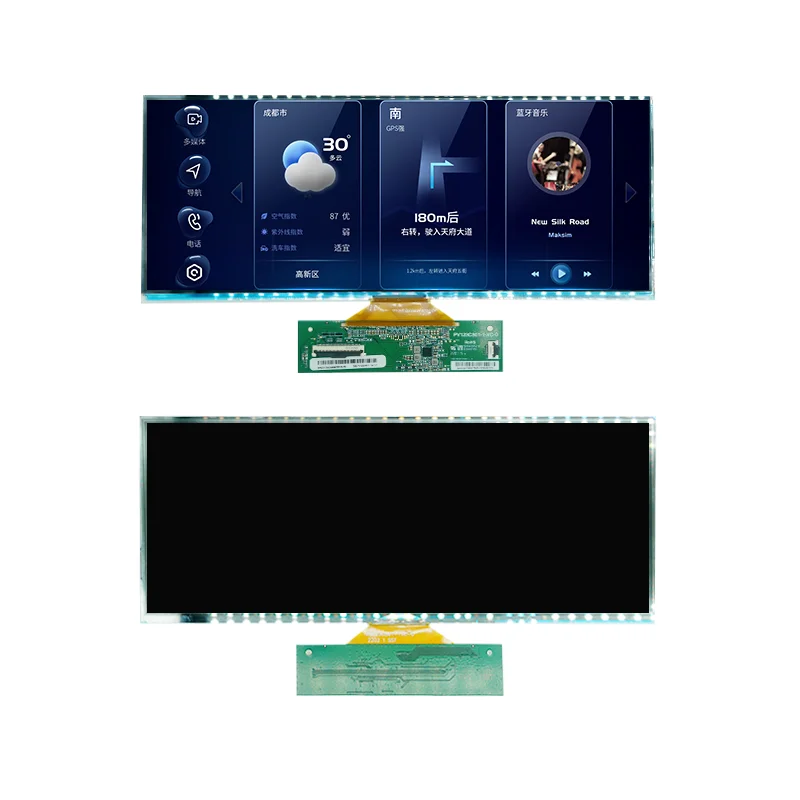

 8.4 inch TFT LCD Display |  5 inch Round TFT LCD Module |  12.3 inch TFT LCD Module for Car |
2. Technical Specifications
| Model | RV101WXM-200-50 |
| Size | 10.1 inch TFT Touch Screen LCD Display |
| Outline Dimension | 235.0* 143.0 *4.8 (D) MM |
| Display area | 222.72(H)×125.28(V) |
| Number of Pixel | 1024RGB(H)×600(V) |
| Pixel pitch | 0.2175(H)×0.2088(V) |
| Pixel arrangement | RGB Vertical stripe |
| Display mode | IPS |
| Surface treatment | Hard-Coating with EWV film |
| Back-light | White LED |
| NTSC | 50%（type） |
| Operating Temperature | -20-60 ℃ |
| Storage Temperature | -30-70 ℃ |

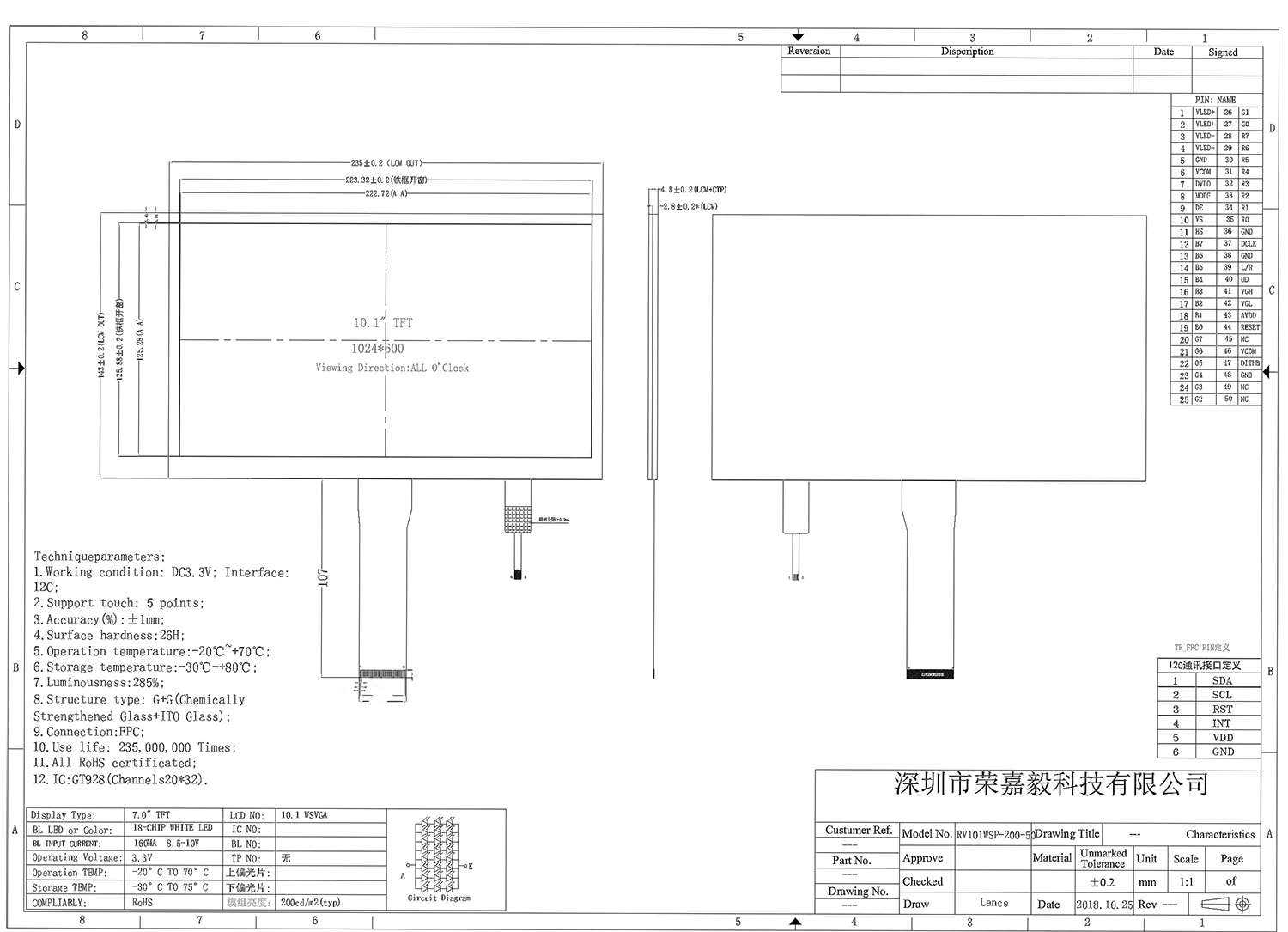

3. Structure
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
