2.8-inch IPS TFT LCD Display – 240*320 Resolution, with CTP
Square 2.8 inch 240*320 TFT LCD Panel
- LCD AA: 43.2 (H)* 57.6 (V)
- TP VA: 43.6 (H)* 58.05 (V)
- Driver IC: ST7789
- Touch IC: FT6336U
- Interface: SPI
- Touch structure: G+F
- Surface hardness: 6H
- with touch
Order prototype samples

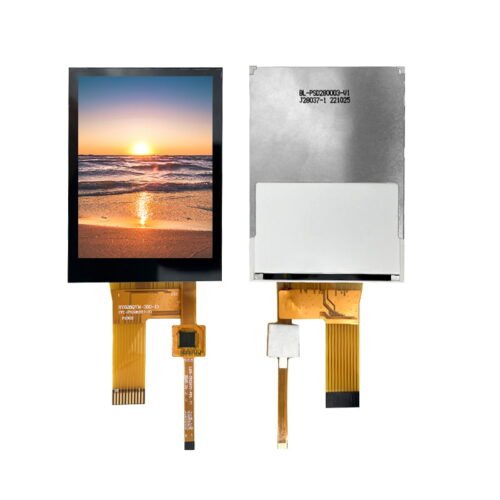

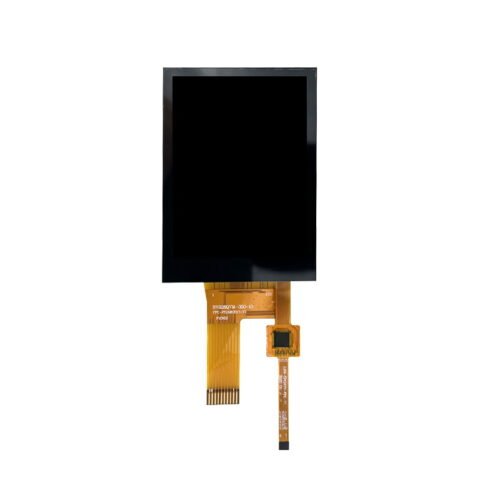

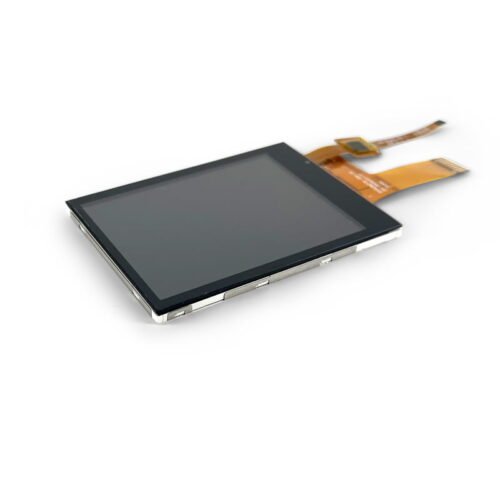

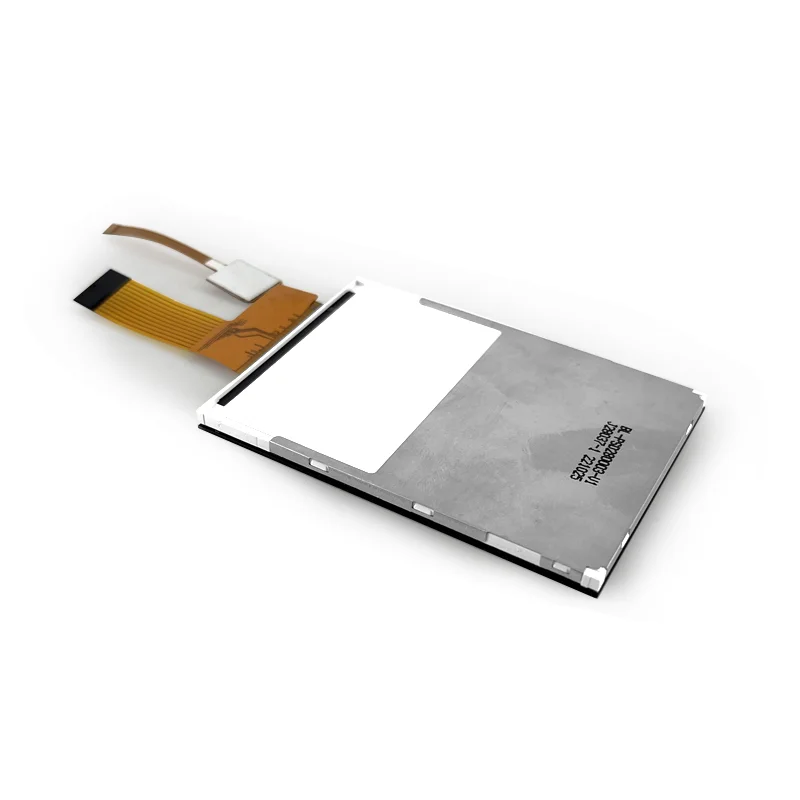

RV028QVP-350-10 is 2.8 inch square TFT Color LCD 240 * 320 pixel with Touch display module. It use ST7789 Driver IC and FT6336U Touch IC, LCD control board is acceptable custom according to your requirements.
Features:

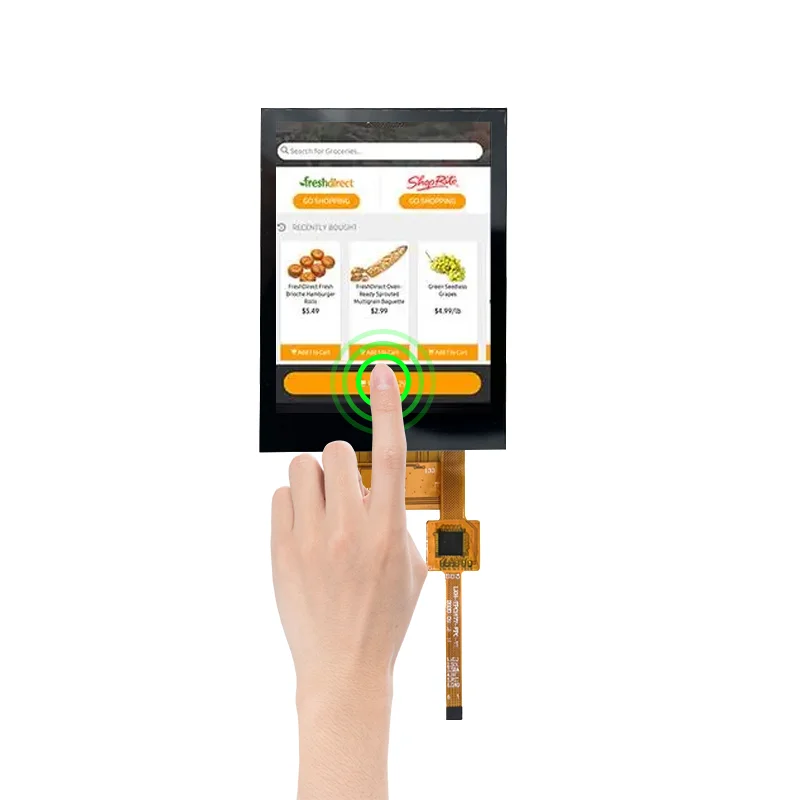

• with 240×320 pixels capacitive touch screen TFT LCD panel
• SPI interface, of cause, interface acceptable to custom or provide LCD driver board.
• Touch structure is G+F, and Surface hardness is 6H
| Model | RV028QVP-350-10 |
| Size | 2.8 inch TFT LCD module |
| Display Mode | Normally Black |
| Resolution | 240(RGB)x320 |
| Pixel pitch | 0.18(H) x 0.18(V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing direction | ALL |
| Module outline dimension | 50 (H)*69.02 (V)*2.30(D) |
| LCD AA | 43.2 (H)* 57.6 (V) |
| TP VA | 43.6 (H)* 58.05 (V) |
| Colors | 16.7M |
| Driver IC | ST7789 |
| Interface | SPI |
| Backlight | White LED |
| Touch IC | FT6336U |
| Surface hardness | 6H |
| Touch structure | G+F |
| Operating Temperature | -20℃~ +70℃ |
| Storage Temperature | -30℃~ +80℃ |
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min | Max | Unit |
| Power Supply voltage 1 | VCI~GND | -0.3 | +4.6 | V |
| Power Supply voltage 2 | IOVCC~GND | -0.3 | +4.6 | V |
| Logic Input Voltage Range | VIN | -0.3 | IOVCC+0.5 | V |
| Logic Output Voltage Range | VO | -0.3 | IOVCC+0.5 | V |
Driving TFT LCD Panel
| Parameter | Symbol | Min | Typ | Max | Unit |
| Supply voltage for analog circuit | VCI | 2.6 | 2.8 | 3.3 | V |
| Supply voltage for logic circuit | IOVCC | 1.65 | 1.8 | 3.3 | V |
| Input voltage ′H′level | VIH | 0.7*IOVCC | － | IOVCC | V |
| Input voltage ′L′level | VIL | GND | － | 0.3*IOVCC | V |
| Output voltage ′H′level | VOH | 0.8*IOVCC | － | IOVCC | V |
| Output voltage ′L′level | VOL | GND | － | 0.2*IOVCC | V |
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min | Max | Unit |
| Power Supply voltage 1 | VCI~GND | -0.3 | +4.6 | V |
| Power Supply voltage 2 | IOVCC~GND | -0.3 | +4.6 | V |
| Logic Input Voltage Range | VIN | -0.3 | IOVCC+0.5 | V |
| Logic Output Voltage Range | VO | -0.3 | IOVCC+0.5 | V |
Driving TFT LCD Panel
| Parameter | Symbol | Min | Typ | Max | Unit |
| Supply voltage for analog circuit | VCI | 2.6 | 2.8 | 3.3 | V |
| Supply voltage for logic circuit | IOVCC | 1.65 | 1.8 | 3.3 | V |
| Input voltage ′H′level | VIH | 0.7*IOVCC | － | IOVCC | V |
| Input voltage ′L′level | VIL | GND | － | 0.3*IOVCC | V |
| Output voltage ′H′level | VOH | 0.8*IOVCC | － | IOVCC | V |
| Output voltage ′L′level | VOL | GND | － | 0.2*IOVCC | V |
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min | Max | Unit |
| Power Supply voltage 1 | VCI~GND | -0.3 | +4.6 | V |
| Power Supply voltage 2 | IOVCC~GND | -0.3 | +4.6 | V |
| Logic Input Voltage Range | VIN | -0.3 | IOVCC+0.5 | V |
| Logic Output Voltage Range | VO | -0.3 | IOVCC+0.5 | V |
