0.39-inch Microdisplay – 1920*1080 FHD Micro OLED Display for AR VR
Features:
- Small-Size, High-Resolution Display: This microdisplay boasts a small form factor with a high-resolution 0.39-inch FHD (Full High Definition) display, offering an impressive pixel density of 5644 PPI (Pixels Per Inch).
- Adaptive Resolution: The display supports Adaptive Resolution, allowing for flexibility in resolution settings with options such as 8*M (M ranging from 40 to 240) pixels horizontally and RGB colors.
- Full Color: It delivers vibrant visuals with support for full-color mode, rendering 16.7 million colors for rich and accurate imagery.
- Fast Response: The microdisplay offers fast response times, ensuring smooth and responsive content display.
- Thin and Lightweight: Its slim profile and lightweight design make it suitable for applications where space and weight are critical factors.
- Image Enhancement: Features include color enhancement and sharpness enhancement, contributing to improved image quality.
- High Contrast Mode: Users can benefit from a high-contrast mode, enhancing the differentiation between dark and light areas on the display.
- High Fluency Mode: The display supports a high fluency mode, ensuring smooth and fluid motion in video content.
- Power-Saving Mode: It includes a power-saving (PS) mode to optimize energy efficiency when needed.
- Scan Direction Selection: Users have the option to select the scan direction, either up or down, depending on their specific requirements.
- Interface Options: The microdisplay provides interface support with options for MIPI only or MIPI+I2C connectivity, offering flexibility in integration.
Description
Core Parameters

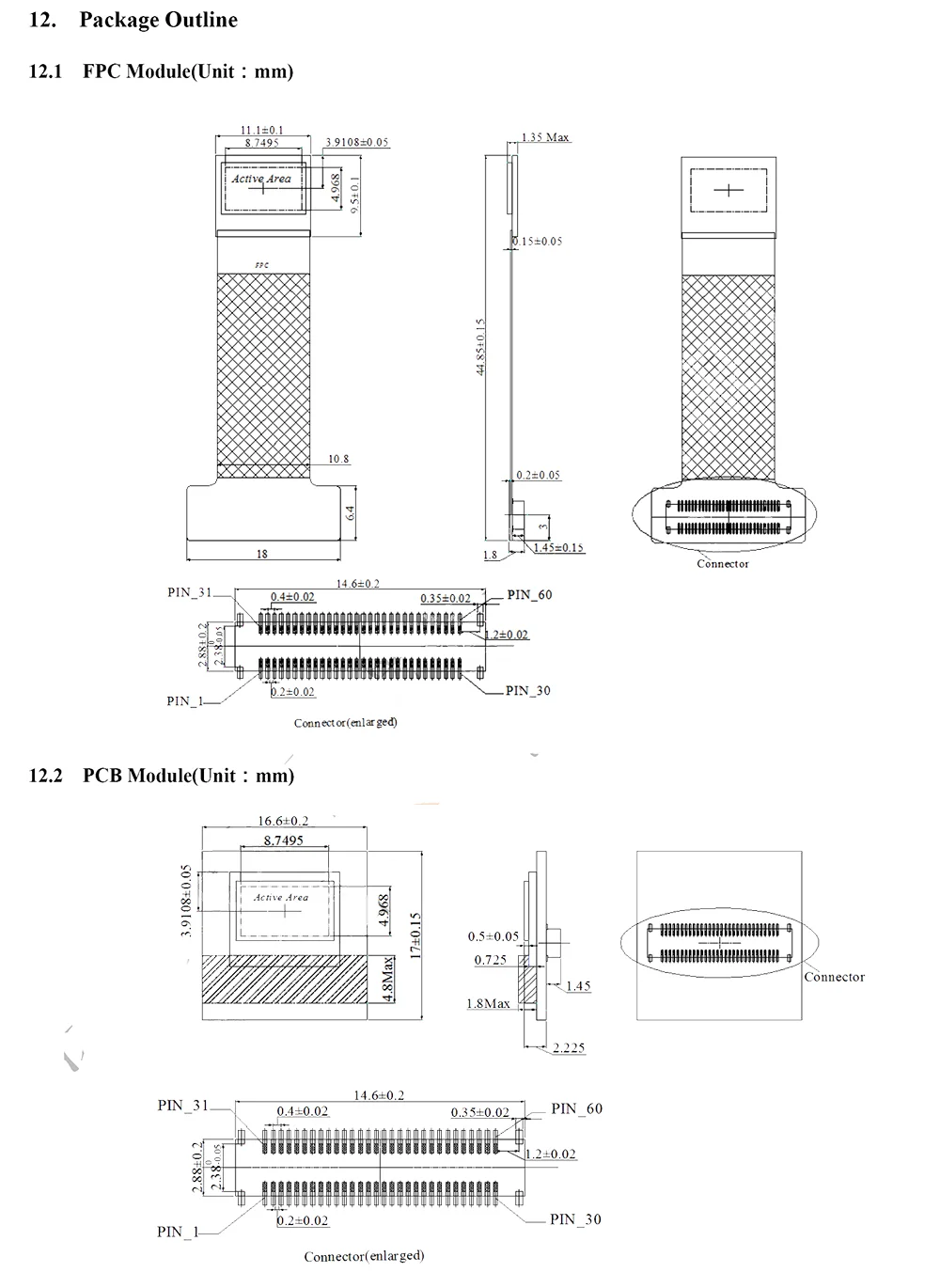

Structural diagram
Description
The B039FH8A0 is a 0.39-inch (1 cm) diagonal OLED (Organic Light Emitting Display) panel module featuring Full High Definition (FHD) resolution of 1920 x 1080 pixels. This module utilizes an active matrix color OLED technology with a single crystal silicon backplane. The integration of pixel circuits and driving IC onto the silicon backplane enables a compact form factor and remarkably low power consumption.This 0.39-inch OLED microdisplay is well-suited for various applications within the Virtual Reality (AR/VR) domain, including Head Mounted Displays (HMDs) and Near-Eye Displays (NEDs). It provides high-quality visuals with its FHD resolution.For AR and VR display applications involving this 0.39-inch OLED microdisplay, we offer an HDMI board as a complementary accessory, ensuring seamless connectivity and enhanced functionality.
| NO. | B039FH8A0 |
| screen size | 0.39 INCH |
| resolution | 1920 x1080 |
| AP Operated Resolution | 8*M, M=40~240)*RGB*(8*N, N=30~135 |
| Full color mode | 16.7M |
| Display Type | OLED |
| Interface | MIPI only or MIPI+I2 C |
| Environment temperature | -40— +85 ºc |
| Storage temperature | -45—+90 ºC |
| Pin | 60 pin |
| Power Supply Voltage | VDDI: 4v,AVDD-AVSS: 7vAVEE-AVSS: -7v |
| MIPI Differential Input (1.32v) | CLKP_PTA/B, CLKN_PTA/B DATAP0_PTA/B, DATAN0_PTA/B DATAP1_PTA/B, DATAN1_PTA/B DATAP2_PTA/B, DATAN2_PTA/B DATAP3_PTA/B, DATAN3_PTA/B |
| I2C Clock | 600-1300 ns /more information please contact us |
Product Purchase Service Process:
- Research and Selection: Customers begin by researching and selecting the desired product they wish to purchase.
- Order Placement: Customers can place their order through our online platform (Alibaba shop) or contact us via email to initiate the order placement process.
- Payment: Payment for the selected product can be made using various methods, including credit card, TT (Telegraphic Transfer), PayPal, bank transfer, or other available payment options.
- Shipping or Pickup: Typically, samples are either picked up in person or shipped using reliable express services such as DHL, FedEx, UPS, or other suitable carriers. The shipping duration typically ranges from 3 to 7 working days, depending on the specific express service and transit times. For bulk orders, products are shipped by sea, with an average transit time of 30 to 60 days.
- Delivery: Customers receive their purchased product through either the chosen shipping method or in-person pickup.
- Post-sale Service: We encourage customers to reach out to our company for any questions or concerns they may have regarding the product. Additionally, we offer various accessories and customization options, including HDMI boards and functional LCD control boards.
Product Guarantee:
- Warranty: Our company provides a warranty period for products purchased. If any defects are discovered before shipping, we will promptly replace or repair the product at no cost to the customer.
- Return Policy: Customers have the option to return products within a specified timeframe if they are unsatisfied. We may offer refunds or exchanges as part of our return policy.
- Customer Service: Our dedicated customer service team is available to address any concerns or issues that customers may encounter with their purchased products. We also provide a range of accessory parts, including HDMI boards and other customized functional components.
Order Process:
- Product Selection: Customers begin by selecting the specific product they wish to purchase.
- Contacting Us: Customers can initiate the ordering process by sending an email or filling out a form. They can provide the model number or specify their particular requirements, such as size, resolution, brightness, touchscreen capabilities, and any additional boards or features.
- Checkout: Our sales manager engages with the customer via email to discuss and confirm order details. It’s essential to ensure that the email address provided is accurate. Rest assured, these emails are solely for order confirmation and will not be used for other purposes or disclosed to third parties.
- Order Placement: After reaching an agreement on the order details, customers make the payment using the agreed-upon payment method. Once we receive the payment confirmation, we proceed to arrange the delivery based on the communicated delivery date.
- Delivery: We provide customers with a shipping tracking number and inform them about the selected shipping company. We actively track the products until they are safely received by the customer.
What Is The Microdisplay?
A microdisplay is a compact display unit characterized by its small size, often referred to as a miniature flat display panel. Typically, it encompasses displays with diagonal sizes of less than 2 inches (5 cm).OLED (Organic Light-Emitting Diode) is an acronym for organic light-emitting diode. It is also known as organic electro-luminescent (organic EL) diode.A Micro-OLED microdisplay device employs a single crystal silicon wafer (wafer) as the backplane. This design offers several advantages, including self-illumination, thin form factor, lightweight, wide viewing angles, rapid response times, and high luminous efficiency.For a detailed comparison between OLED and LCD technologies, please refer to the relevant information available here.OLED, LCOS, LCD, Micro-OLED Introduction.Our Microdisplay |  |  |
| 1.89 inch 1600*1200 TFT LCD Microdisplay | 0.38 inch FLCOS 1280*720 Microdisplay | 0.71 inch 1920*1080 OLED Microdisplay |
