Description

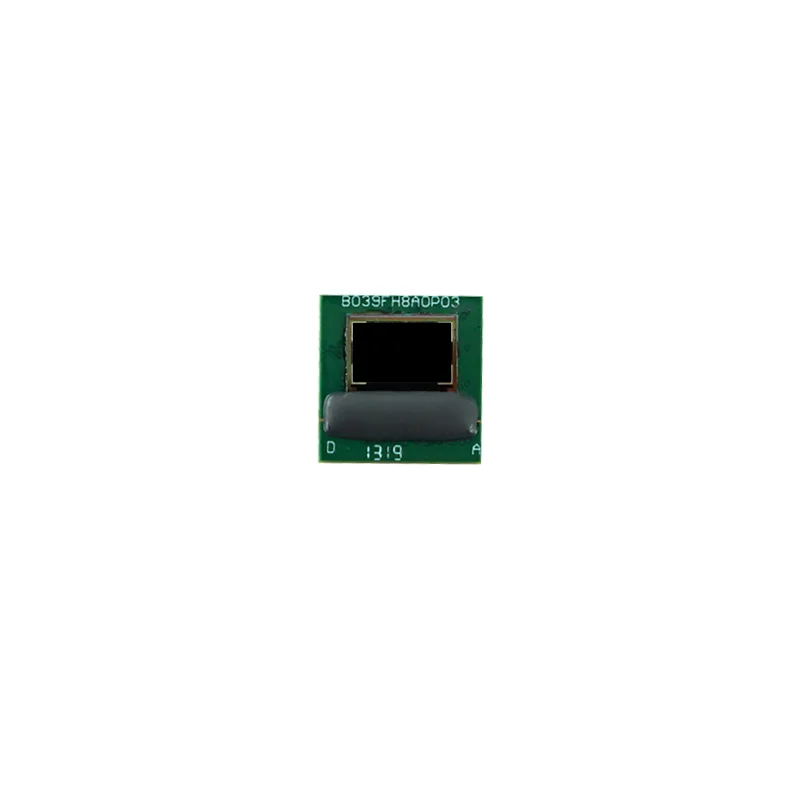

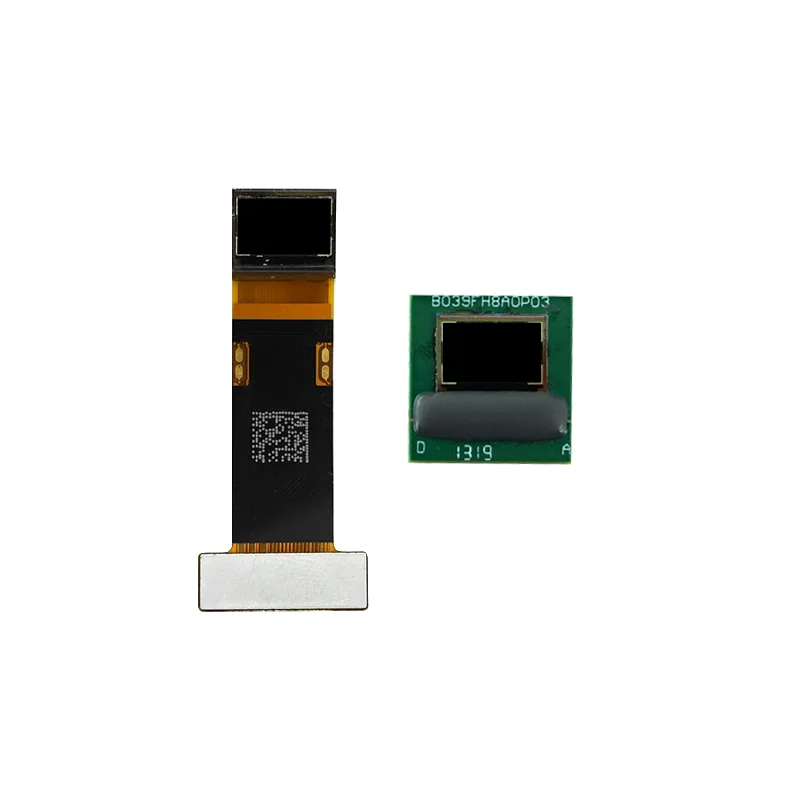

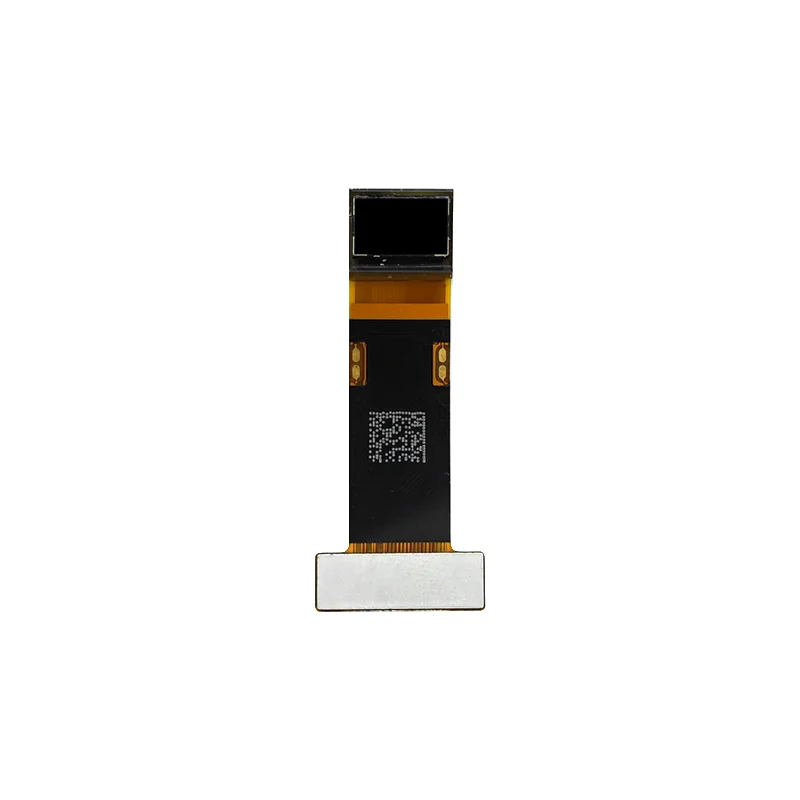

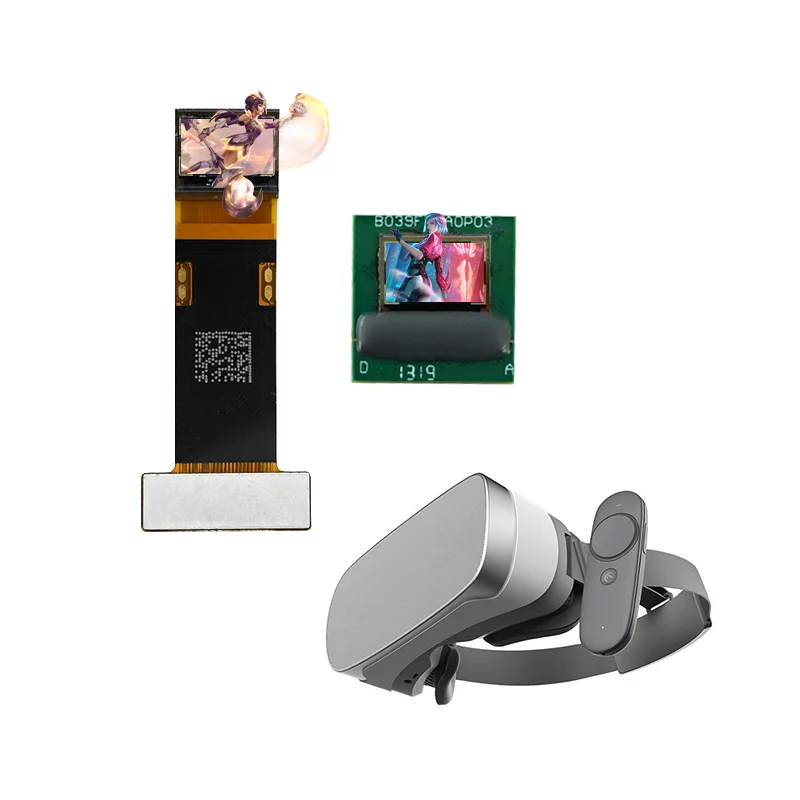

B039FH8A0 is a 0.39 inch(1 cm) diagonal, with FHD resolution(1920 x1080), active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon backplane . The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption. This 0.39 inch OLED microdisplay is application for Virtual Reality application（AR/VR）, Head mounted displays, Near-Eye Displays etc.

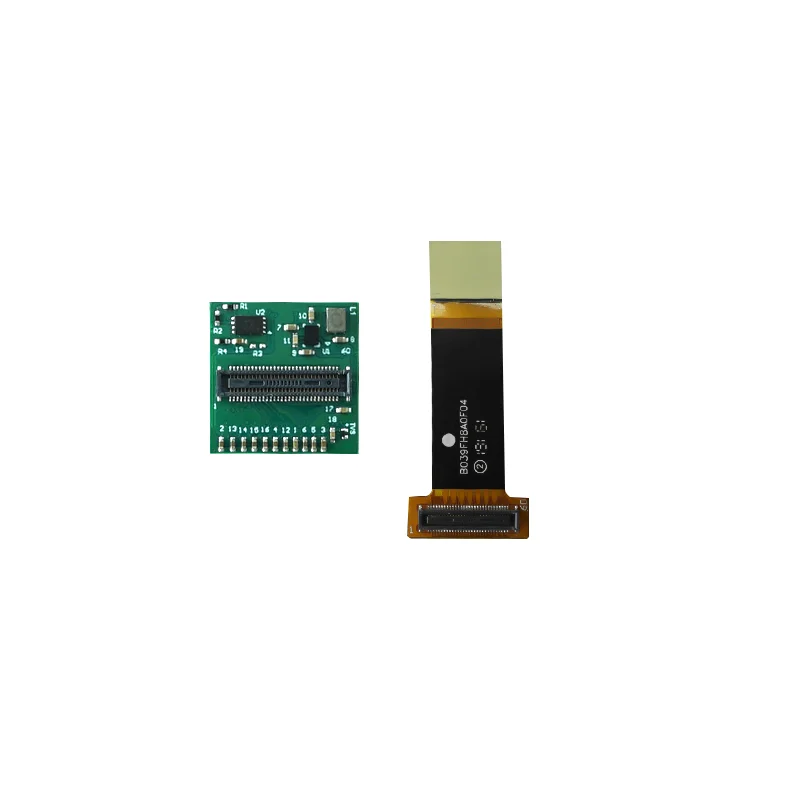

This 0.39 inch OLED microdisplay application for AR VR display, we provide HDMI board.
Features
* Small-size, high resolution 0.39 FHD Display PPI=5644
* AP Operated Resolution (8*M, M=40~240) x RGB x (8*N, N=30~135)
* Full color mode, 16.7M colors
* Fast response
* Thin and light in weight
* Color enhancement, Sharpness enhancement
* High contrast mode
* High fluency mode
* Power-saving (PS) mode
* Scan direction selection, up or down
* Interface, Support MIPI only or MIPI+I2C
| NO. | B039FH8A0 |
| screen size | 0.39 INCH |
| resolution | 1920 x1080 |
| AP Operated Resolution | 8*M, M=40~240)*RGB*(8*N, N=30~135 |
| Full color mode | 16.7M |
| Display Type | OLED |
| Interface | MIPI only or MIPI+I2 C |
| Environment temperature | -40— +85 ºc |
| Storage temperature | -45—+90 ºC |
| Pin | 60 pin |
| Power Supply Voltage | VDDI: 4v,
AVDD-AVSS: 7v AVEE-AVSS: -7v |
| MIPI Differential Input (1.32v) | CLKP_PTA/B, CLKN_PTA/B DATAP0_PTA/B, DATAN0_PTA/B DATAP1_PTA/B, DATAN1_PTA/B DATAP2_PTA/B, DATAN2_PTA/B DATAP3_PTA/B, DATAN3_PTA/B |
| I2C Clock | 600-1300 ns /more information please contact us |
What Is The Microdisplay?
A microdisplay is a miniaturized display unit with a miniature size, also known as a miniature flat display panel. Usually refers to a display with a diagonal size of less than 2 inches (5 cm).
OLED (OrganicLight-Emitting Diode) an organic light-emitting diode (OLED or organic LED), also known as organic electro-luminescent (organic EL) diode.
Micro-OLED microdisplay device uses a single crystal silicon wafer (Wafer) as the backplane, which has the characteristics of self-illumination, thin thickness, light weight, large viewing angle, short response time, high luminous efficiency, etc.,
The difference between OLED and LCD please check here OLED, LCOS, LCD, Micro-OLED Introduction.
Our Microdisplay
 |
 |
 |

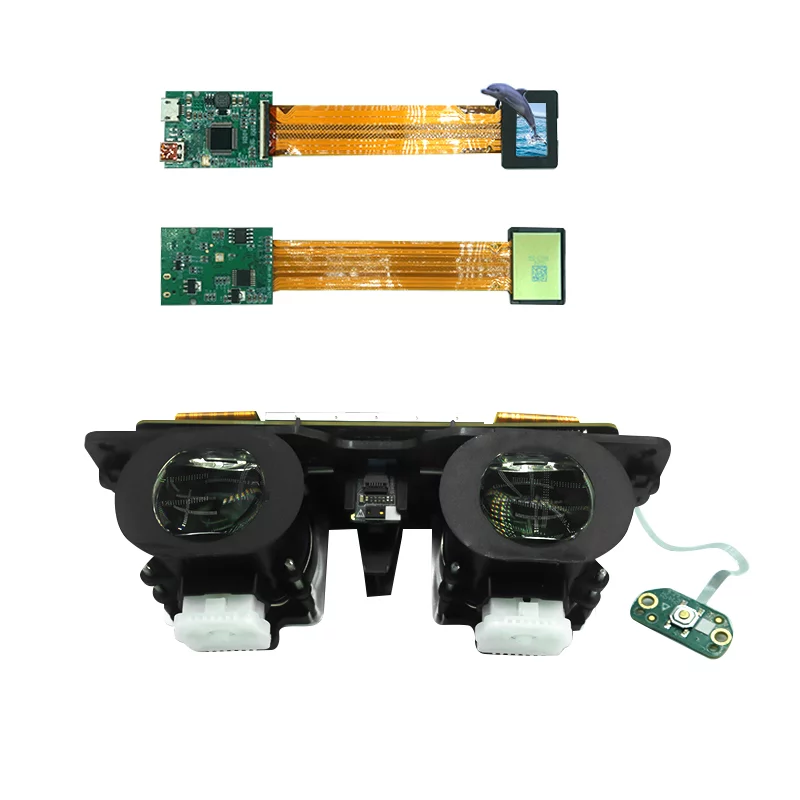

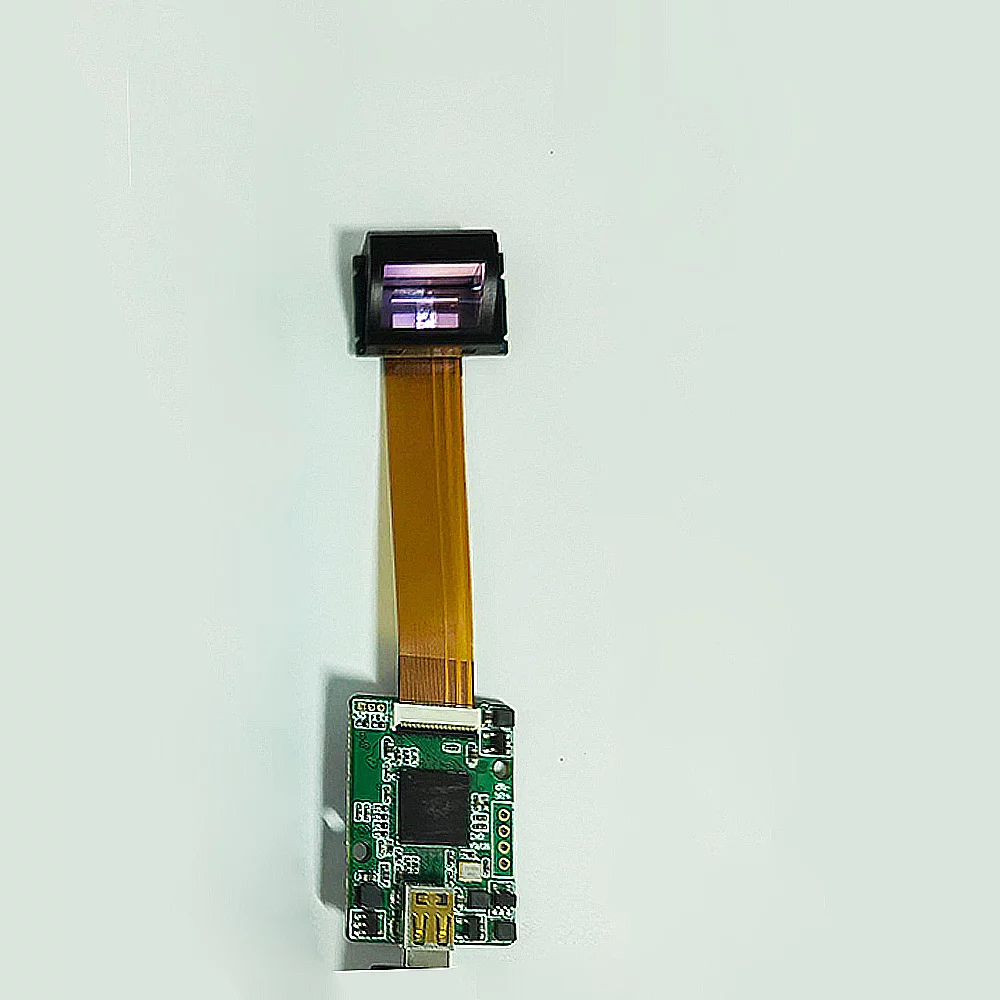

| 1.89 inch 1600*1200 TFT LCD Microdisplay | 0.38 inch FLCOS 1280*720 Microdisplay | 0.71 inch 1920*1080 OLED Microdisplay |
