Introduction
Display technology has evolved rapidly in recent years. In-cell, On-cell, et OGS (Solution One Glass) technologies are among the most significant innovations. These technologies have reshaped the design and performance of touchscreens in various devices, including consumer electronics and industrial systems.
This article will introduce these technologies, explain how they work, and highlight their benefits in modern TFT LCD displays. By understanding these innovations, you’ll gain insight into their role in shaping the future of touch and display technologies.
What is In-cell Technology?
In-cell technology is a breakthrough in TFT LCD displays. In this technology, the touch sensors are integrated directly into the liquid crystal (LC) layer. This eliminates the need for a separate touch layer, making the display thinner.
How In-cell Technology Works
In an In-cell display, the touch sensors are built into the pixels of the LCD itself. The touch functionality works by detecting voltage changes when the screen is touched. The integrated design reduces the thickness of the panel while maintaining excellent display quality.
Advantages of In-cell Technology
- Slimmer Design: In-cell technology allows for thinner displays, ideal for compact devices.
- Better Display Quality: With fewer layers, more light passes through, making the display brighter and sharper.
- Improved Touch Sensitivity: The integration enhances touch response and accuracy.
- Cost-Efficiency: In-cell displays are cost-effective, as they reduce the need for multiple components.
What is On-cell Technology?
On-cell technology is another advancement in TFT LCD displays. Unlike In-cell, the touch sensors in On-cell technology are placed on top of the TFT LCD layer, but they remain separate from the liquid crystal layer.
How On-cell Technology Works
On-cell technology places the touch sensors directly above the TFT layer. When a user touches the screen, the sensors detect changes in capacitance, allowing for accurate touch input. The thin touch layer improves the overall design and response time.
Advantages of On-cell Technology
- Compact Design: On-cell technology reduces the thickness of the display while maintaining excellent touch functionality.
- Enhanced Touch Performance: On-cell displays offer fast touch response, making them ideal for interactive applications.
- Improved Display Brightness: With the touch layer above the display, light passes more easily, resulting in better brightness.
- Reduced Weight: Eliminating the separate touch panel makes On-cell displays lighter.
What is OGS (One Glass Solution) Technology?
OGS (Solution One Glass) technology combines the touch functionality and display layer into a single piece of glass. This technology eliminates the need for separate layers, resulting in thinner and more durable displays.
How OGS Technology Works
In OGS technology, the touch sensors are embedded within the glass itself. This is achieved through advanced optical bonding techniques, where the touch and display layers are laminated together. The result is a single, cohesive layer that is thinner and more resistant to damage.
Advantages of OGS Technology
- Ultra-Thin Design: OGS technology allows for incredibly slim displays, ideal for modern devices.
- Enhanced Durability: The single-glass design makes OGS displays more durable, which is important for devices that undergo frequent handling.
- Efficacité Énergétique: Fewer layers in the display lead to reduced power consumption, extending battery life.
- Highly Accurate Touch: OGS technology offers excellent touch sensitivity and precision.

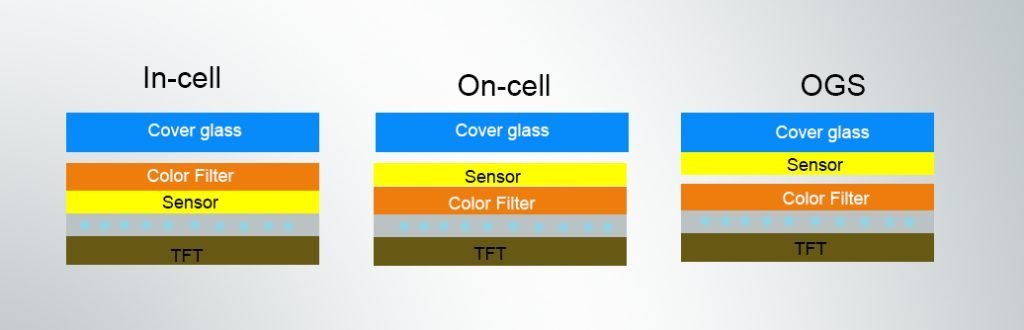

Comparison of In-cell, On-cell, and OGS Technology
| Caractéristique | In-cell | On-cell | L'OGS |
|---|---|---|---|
| Touch Layer Location | Integrated in the LCD layer | Placed above the LCD layer | Integrated into one layer of glass |
| Display Thickness | Thinner, more compact | Thin, but slightly thicker than In-cell | Ultra-mince, combine tactile et affichage |
| Coût | Plus rentable | Légèrement plus cher que l'In-cell | Coûts de fabrication plus élevés en raison du processus de collage |
| Luminosité de l'écran | Excellente luminosité | Luminosité améliorée | Excellente luminosité grâce à la réduction des couches |
| Durabilité | Durabilité standard | Haute durabilité | Très haute durabilité grâce au collage verrier |
| Sensibilité tactile | Très réactif | Exceptionnellement réactif | Détection tactile extrêmement précise |
Tableau comparatif des technologies In-cell, On-cell et OGS
Applications des technologies In-cell, On-cell et OGS
Ces technologies sont largement utilisées dans diverses industries. Voici quelques applications clés :
- Équipement industriel: Ces écrans sont utilisés dans les panneaux de contrôle, les dispositifs portables et les outils de mesure industrielle.
- Secteur médical: Les dispositifs médicaux et les moniteurs patients bénéficient de la durabilité et de la précision tactile offertes par ces technologies.
- Automobile: Les écrans tactiles embarqués, tels que les systèmes de navigation et les tableaux de bord, utilisent ces technologies pour une performance tactile améliorée.
- Systèmes commerciaux: Les systèmes de point de vente, les kiosques interactifs et autres applications commerciales reposent sur les écrans In-cell, On-cell et OGS pour leur réactivité et leur compacité.
Conclusion
Les technologies In-cell, On-cell et OGS révolutionnent les écrans LCD TFT. Elles offrent des designs plus fins, des temps de réponse tactiles plus rapides et une meilleure durabilité. Alors que la demande d'appareils plus compacts et efficaces ne cesse de croître, ces technologies joueront un rôle crucial dans l'avenir des solutions d'affichage tactile. Comprendre ces innovations nous donne un aperçu de l'avenir de la technologie d'affichage et de son impact sur diverses industries.
